9670-61C
Terra Part # 9670-61C
$18,135
Accessories related to Terra Part # 9670-61C
73707

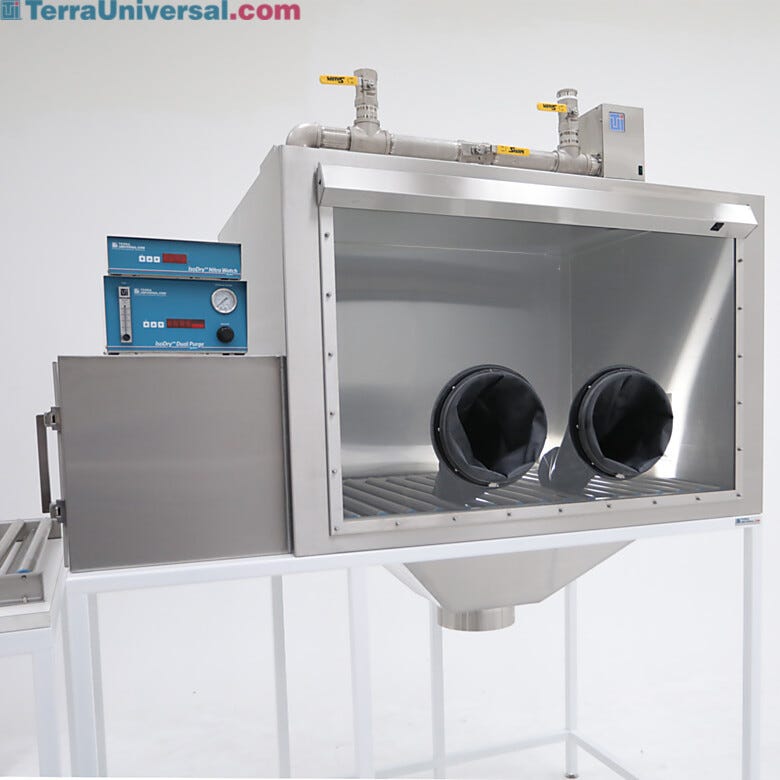

Glovebox; BioSafe®, 304 or 316 Stainless Steel, 38" W x 29" D x 39" H, Tempered Glass Window, 120 V
Usually ships in 25-33 business days

Want it faster ? Read about FasTrak

Product Details
  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Maintain a sterile inert atmosphere with optional open- or closed-loop ULPA filtration for advanced contamination control
  • Positive-pressure isolator design minimizes ingress of contaminants while supporting controlled gas environments
  • Optional ULPA-filtered recirculation captures submicron powders and aerosols to protect sensitive processes and products
  • Designed for pharmaceutical, biotech, and other advanced materials applications requiring aseptic and oxygen/moisture-controlled handling
  • Continuous-seam stainless steel interiors with radius corners eliminate cracks, crevices, and particle traps
  • Smooth 304 or 316 stainless steel surfaces eliminate germ traps, simplify cleaning and disinfection.
  • Designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures.
  • Includes LED illuminator for clear viewing of entire chamber.
  • 10" (254 mm) diameter ports that provide a wide range of motion (order desired gloves separately).
  • Safety glass or polycarbonate viewing windows allow full view of chamber.
  • Select optional left-, right- or dual-mount airlocks for easy material transfer.
  • Optional removable access panel available simplifies equipment transfer.
  • Other options include HEPA filtration modules, dew point controllers, pass-through oven, tilt-up windows, trace oxygen sensor and other environmental sensors.
  • Application Note:
  • Unless specified, glovebox is not designed as low-leak or air-tight containment chambers, nor should it be used with hazardous substances that require air-tight seals.

Material Type: 304 or 316 Stainless Steel

Model: BioSafe®

Number of Glove Ports: 2

Window Material: Tempered Glass

Chamber Material: 304 or 316 Stainless Steel

Chamber Width: 38"

Chamber Depth: 29"

Chamber Height: 39"

Chamber Dimensions: 38" W x 29" D x 39" H

Maximum Working Height: 38.5"

UL File Number: E484299

Unit of Measure: EA

Marks & Listings: UL, ULC

Electrical Specifications: 120 V, 0.5 A, 50/60 Hz

Weight, Product: 610 lb

Dimensions, Product: 38" W x 29" D x 39" H

Weight, Shipping: 850 lb

Dimensions, Shipping: 44" W x 35" D x 45" H

Package Type: Palletized

BioSafe® Stainless Steel Glove Box Isolators

  • custom stainless steel glove box isolator Custom BioSafe Stainless Steel Glove Box Isolator
  • Meteorite Glove Box Isolator with Dual Purge Nitrowatch Meteorite Glove Box Isolator
  • stainless steel inert and filtered glove box for live biotherapeutic products (LBPs) ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs)
  • Glove Box Isolators and Containment Chambers Glove Box Isolators and Containment Chambers
custom stainless steel glove box isolator
Meteorite Glove Box Isolator with Dual Purge Nitrowatch
stainless steel inert and filtered glove box for live biotherapeutic products (LBPs)
Glove Box Isolators and Containment Chambers

Features and Benefits

View Glovebox Dimensions

More Information

A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
12 (305) 20 (508) 26 (660) 18 (457) 11.1 (282) 10.5 (267) 10 (267) 11 (279)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs)

BioSafe® stainless steel glove box for Live Biotherapeutic Products (LBP’s) features an adjustable open/closed loop ULPA filtration system to help filter submicron API’s. The nitrogen gas-purge module mounted on top automatically maintains an inert atmosphere. Connected to a sensor inside the glovebox, it quickly reaches and efficiently holds the user-specified RH%.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Seam Welds with Radius Corners

Smooth internal surfaces and coved corners eliminate cracks and crevices that can harbor germs. Stainless steel resists biocides and disinfectants, won't corrode or particulate.

External LED Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.

BioSeal™ Gasketed Access Door

Place equipment or supplies inside glovebox using this large left-hand access door. The urethane gasket ensures a tight, non-contaminating seal.

Internal Relative-Humidity Sensor

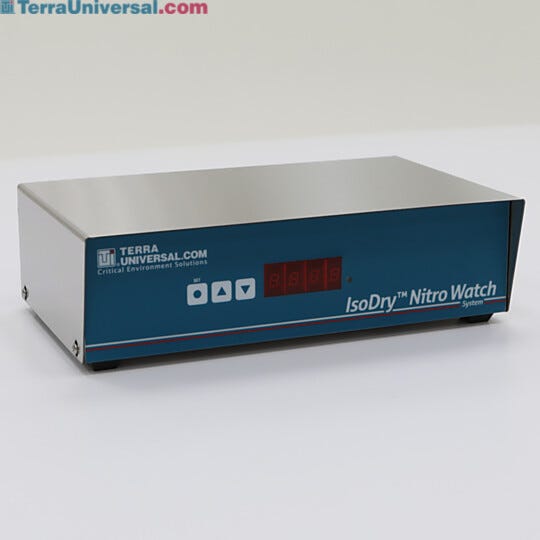

Optional RH sensor is used to monitor the internal environment, working with the Dual Purge™ and NitroWatch® control systems to automatically introduce nitrogen.

Inert Gas Air Lock with Autoclavable Doors

BioSafe® inert gas air locks minimize nitrogen loss and contamination inflow when materials are passed through the glove box. The airlock is connected to an inert gas line to purge out ambient air before transferring materials through. The interior features seamless coved corners to simplify sterilization. The BioSeal™ door with blue urethane gasket is autoclavable.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.
  • Relative Humidity and Temperature Data Logger

    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • High Caliber Hardware

    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports

    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Sloped Bottom Customization Available

    BioSafe® glove box isolators can be customized with sloped bottom and drain valve for easy disinfectant wash-down after cleaning and sterilization.
  • Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Neoprene Accordion Sleeve Assemblies

    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).

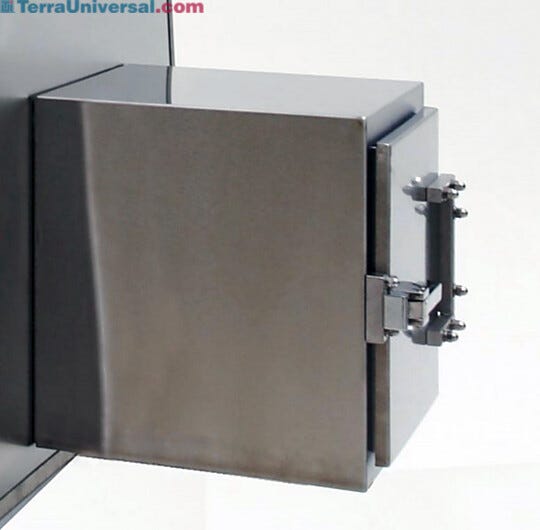

  • Many Air Lock Designs!

    Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).
  • Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.

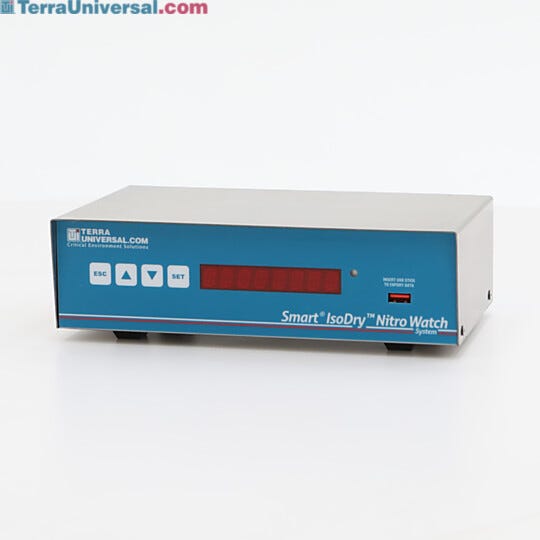

  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
