- Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Maintain a sterile inert atmosphere with optional open- or closed-loop ULPA filtration for advanced contamination control
- Positive-pressure isolator design minimizes ingress of contaminants while supporting controlled gas environments
- Optional ULPA-filtered recirculation captures submicron powders and aerosols to protect sensitive processes and products
- Designed for pharmaceutical, biotech, and other advanced materials applications requiring aseptic and oxygen/moisture-controlled handling
- Continuous-seam stainless steel interiors with radius corners eliminate cracks, crevices, and particle traps
BioSafe® Stainless Steel Glove Box Isolators
9670-PP-02
9670-PP-02
BioSafe® Aseptic Processing Glove Box Isolators
Read more
Want a quote quickly ?
Submit a QuickQuote requestLearn More: Terra's FasTrack Program
Print Copy Copied
Here at Terra Universal, we’ve made it our mission to offer the best possible lead times in the industry. In addition to aggressive stocking programs and streamlined fulfillment, Terra Universal also offers several services that ensure you receive your products as quickly as possible.
Terra FasTrak Guaranteed Delivery Services
FasTrak 24/7 guarantees to meet the shipping date YOU specify, regardless of quoted lead times.
Terra Universal can provide FasTrak 24/7 service for both in-stock products and custom orders.
Examples of FasTrak 24/7 services include:
- Assigning a dedicated senior expediter
- Assigning a dedicated production team and up to three shifts per day
- Eliminating internal purchase approvals to speed the receipt of parts and materials
Terra FasTrak service fees are only meant to cover the cost of additional Terra services, they are not designed to generate profit. If Terra fails to ship on or before the specified date, Terra will refund up to 100% of the FasTrak charges at the client's request. This guarantee does NOT cover direct, special, consequential, or other damages. It is strictly limited to 100% of the amount paid for the FasTrak service.
The FasTrak 24/7 refund policy does not apply when a specified ship date is missed due to factors outside Terra's control, such as vendor performance or shipping company delays. The FasTrak 24/7 guarantee DOES apply in instances where the shipping date is missed due to Terra's own negligence.
Terra Sales and Customer Service
Mon - Fri, 09:00 AM - 08:00 PM PST
Tel: +1 (714) 578-6100
Email: [email protected]
Product Details
Product Details
BioSafe® Aseptic Processing Isolators
Standard Features
- A Range of MaterialsSelect polycarbonate or tempered safety glass viewing window, with two or four 10” (254 mm)-diameter glove ports
Optional Features
- 1 Range of GlovesMany gloves available, including one-piece hypalon (shown)
- 2 ULPA filtration systemOpen/closed-loop ULPA filtration system removes submicron powders and aerosols
- 3 AirlockRight and left-side inert gas air locks minimize nitrogen loss and contamination inflow when transferring materials
- 4 StandHeavy-duty stainless steel stand with casters provides mobility and stability
- 5 NitroWatch® RH ControllerMonitors internal humidity; activates a high-flow purge when RH climbs above set point
- 6 Dual Purge™ SystemProvides a variable flow of nitrogen purge gas: high to recover set point, low to conserve nitrogen
Not Shown: Range of Options - Options include nitrogen purge controller, dew point and oxygen level controls, ionizing module, and port caps
Not Shown: UV Module - UV Module allows fast, effective sterilization in hard-to-reach glove box interiors
BioSafe® Stainless Steel Glove Box Isolators
Inert and ULPA Filtered 316L Stainless Steel Glovebox with Rollers and Funnel to Empty Heavy Bags of Salt- Custom BioSafe Stainless Steel Glove Box Isolator
- Meteorite Glove Box Isolator
- ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs)
- Glove Box Isolators and Containment Chambers
Inert and ULPA Filtered 316L Stainless Steel Glovebox with Rollers and Funnel to Empty Heavy Bags of Salt
This stainless steel glovebox with Nitrogen purge and ULPA filtration provides an inert, low particulate environment. Stainless steel gravity rollers installed inside the air lock and glovebox effortlessly move heavy bags toward the funnel area.
Inert ULPA filtered 316L stainless steel glovebox with rollers and funnel to empty heavy bags of salt | 9670-61C displayed Inert and ULPA Filtered 316L Stainless Steel Glovebox with Rollers and Funnel to Empty Heavy Bags of Salt This stainless steel glovebox with Nitrogen purge and ULPA filtration provides an inert, low particulate environment. Stainless steel gravity rollers installed inside the air lock and glovebox effortlessly move heavy bags toward the funnel area.
16624
Custom BioSafe Stainless Steel Glove Box Isolator
Custom BioSafe Stainless Steel Glove Box Isolator
17191
Meteorite Glove Box Isolator
This 304 Stainless Steel chamber is configured for processing meteorite samples in a low-particle, low-humidity environment. Each system consists of two glove boxes linked by a pass-through air lock, which allows transfer of samples without affecting low RH levels in either chamber. Stainless steel glove ports with hypalon gloves allow manipulation of samples, and stainless steel shelves allow organized sample storage.
Meteorite Glove Box Isolator This 304 Stainless Steel chamber is configured for processing meteorite samples in a low-particle, low-humidity environment. Each system consists of two glove boxes linked by a pass-through air lock, which allows transfer of samples without affecting low RH levels in either chamber. Stainless steel glove ports with hypalon gloves allow manipulation of samples, and stainless steel shelves allow organized sample storage.
ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs)
BioSafe® stainless steel glove box for Live Biotherapeutic Products (LBP’s) features an adjustable open/closed loop ULPA filtration system to help filter submicron API’s. The nitrogen gas-purge module mounted on top automatically maintains an inert atmosphere. Connected to a sensor inside the glovebox, it quickly reaches and efficiently holds the user-specified RH%.
ISO 5 BioSafe® stainless steel glove box for Live Biotherapeutic Products (LBPs) features open/closed loop ULPA filtration and automatic nitrogen gas purge syst | 9670-64C displayed ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs) BioSafe® stainless steel glove box for Live Biotherapeutic Products (LBP’s) features an adjustable open/closed loop ULPA filtration system to help filter submicron API’s. The nitrogen gas-purge module mounted on top automatically maintains an inert atmosphere. Connected to a sensor inside the glovebox, it quickly reaches and efficiently holds the user-specified RH%.
Glove Box Isolators and Containment Chamber Glove Box Isolators and Containment Chambers Video overview of Terra's nitrogen-purged glove box isolators and containment chambers designed to provide a clean, dry processing environment
Features & Benefits
Features and Benefits
View Glovebox Dimensions
Print Copy Copied
More Information
| A in. (mm) | D in. (mm) | F in. (mm) | H in. (mm) | I in. (mm) | L in. (mm) | M in. (mm) | N in. (mm) |
|---|---|---|---|---|---|---|---|
| 12 (305) | 20 (508) | 26 (660) | 18 (457) | 11.1 (282) | 10.5 (267) | 10 (267) | 11 (279) |
Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.
Positive Pressure Isolation vs. Biohazard Containment
Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.
ISO 5 BioSafe® Inert and Filtered Glove Box for Live Biotherapeutic Products (LBPs)
BioSafe® stainless steel glove box for Live Biotherapeutic Products (LBP’s) features an adjustable open/closed loop ULPA filtration system to help filter submicron API’s. The nitrogen gas-purge module mounted on top automatically maintains an inert atmosphere. Connected to a sensor inside the glovebox, it quickly reaches and efficiently holds the user-specified RH%.
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Continuous Seam Welds with Radius Corners
Smooth internal surfaces and coved corners eliminate cracks and crevices that can harbor germs. Stainless steel resists biocides and disinfectants, won't corrode or particulate.
External LED Illuminator
Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.
BioSeal™ Gasketed Access Door
Place equipment or supplies inside glovebox using this large left-hand access door. The urethane gasket ensures a tight, non-contaminating seal.
Internal Relative-Humidity Sensor
Optional RH sensor is used to monitor the internal environment, working with the Dual Purge™ and NitroWatch® control systems to automatically introduce nitrogen.
Inert Gas Air Lock with Autoclavable Doors
BioSafe® inert gas air locks minimize nitrogen loss and contamination inflow when materials are passed through the glove box. The airlock is connected to an inert gas line to purge out ambient air before transferring materials through. The interior features seamless coved corners to simplify sterilization. The BioSeal™ door with blue urethane gasket is autoclavable.
BioSafe®: Terra's Ultimate Cleanliness Rating
Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Service Provider
Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis
Custom Product Designs
Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Relative Humidity and Temperature Data Logger
Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data. -
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship. -
Glove Box Iris Port Adapter for 10" Ports
The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately). -
Sloped Bottom Customization Available
BioSafe® glove box isolators can be customized with sloped bottom and drain valve for easy disinfectant wash-down after cleaning and sterilization. Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.-
Neoprene Accordion Sleeve Assemblies
Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available). Many Air Lock Designs!
Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).-
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply. Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.-
Data Logging with 113,000 Readings at User Defined Intervals
Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new. -
Plug & Play Data Logging
Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
Products similar to this one

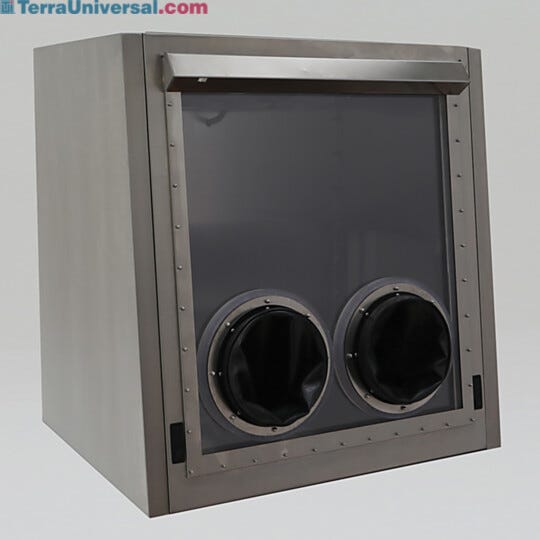

- Glove Box; Insulated, 304 Stainless Steel, 41" W x 33" D x 43" H, 2 Glove Ports, Full Tilt-Up Window, 120 V$14,670Usually Ships in 35 - 41 days
- Some ship in 30 - 34 days
- Some ship in 35 - 41 days
Other products you may find relevant
- Group of 21 productsErgoHeight® Electric Height Adjustable Cleanroom Workstations FromAs low as $1,825Some ship in 1 - 3 days
- Group of 18 productsElite and Eton Series Ergonomic Laboratory Chairs by BioFit FromAs low as $404Some ship in 5 - 7 days
- Portable Nitrogen Gas Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H$4,917Usually Ships in 3 - 5 days
- Some ship in 1 - 3 days
- Some ship in 20 - 25 days
- Usually Ships in 1 - 3 days
- Usually Ships in 40 - 46 days
- Usually Ships in 20 - 24 days
- Usually Ships in 0 - 2 days
- Usually Ships in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 0 - 2 days
- Some ship in 5 - 7 days
- Group of 10 productsSure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite FromAs low as $1,188Some ship in 3 - 5 days
- Group of 8 productsSure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite FromAs low as $1,204Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 8 - 12 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 8 - 14 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 0 - 2 days
- Some ship in 1 - 3 days
- Some ship in 5 - 7 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
BioSafe® Gloveboxes

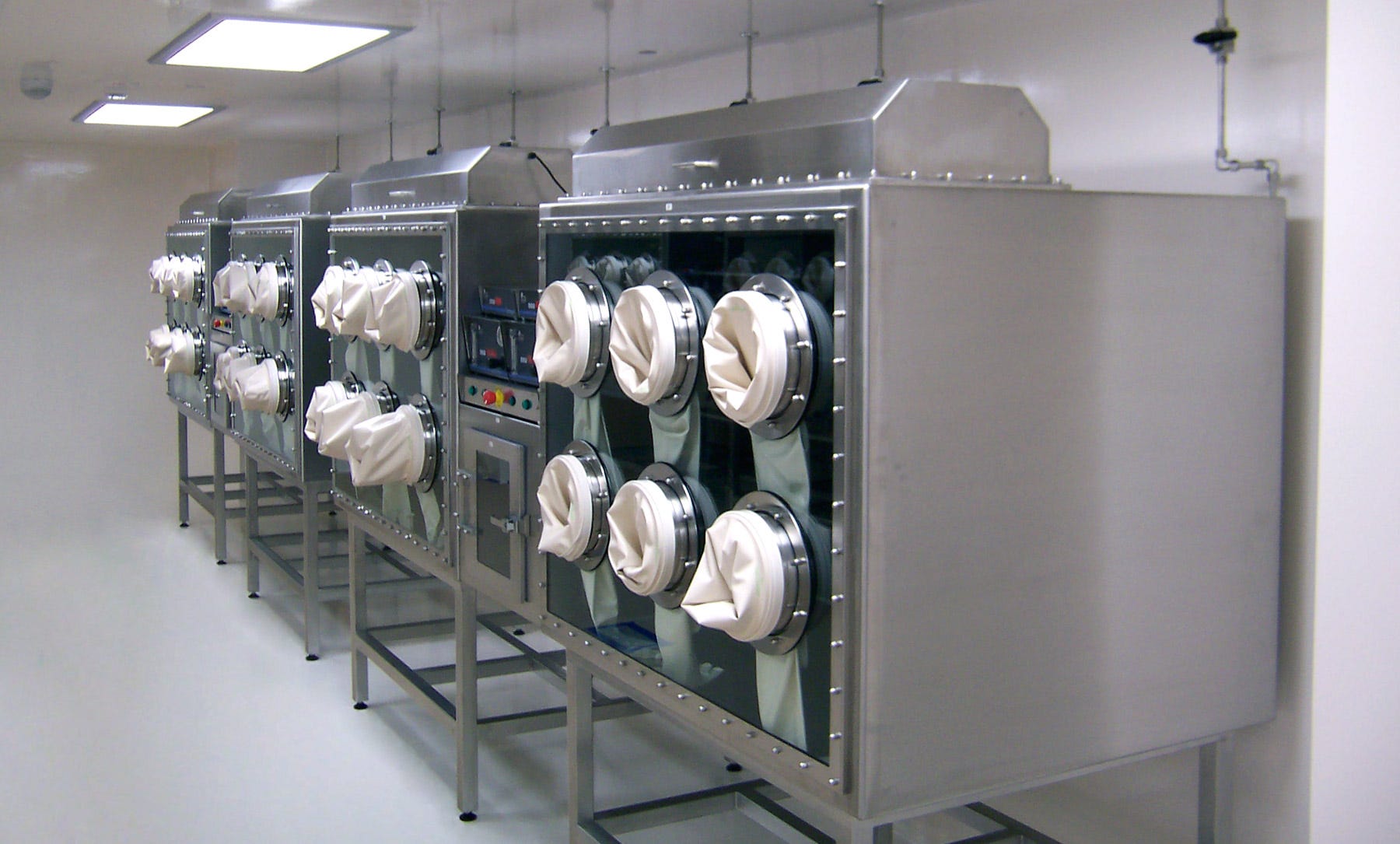

Meteorite Nitrogen Glovebox Isolator
This 304 stainless steel glovebox isolator is configured for processing meteorite samples in a low-particle, low-humidity environment. Each system consists of two glovebox chambers linked by a pass-through air lock, which allows transfer of samples without affecting conditions in either chamber.
Stainless steel glove ports with hypalon gloves allow manipulation of samples. Stainless steel shelves mounted inside each chamber allow organized sample storage.
Terra’s Dual Purge™ and NitroWatch® control systems automatically regulate the nitrogen flow to the chambers in order to maintain a user set point between ambient and 5%RH.
Radioactive Material Handling Glove Box
- Pressure: Negative pressure to 10" WG (both processing chambers)
- Access: Bag-in, Bag-out Port Vacuum port hatches with O-ring seals Removable glove ports
This 12-gauge 304 stainless steel isolation glove box is designed for safe handling of radioactive materials used in medical applications. It features two chambers connected by a vacuum port. Three-sixteenth-inch safety glass allows full viewing from the front and top. One-piece gaskets and heavy-duty counter-balanced port hatches ensure a low leak rate of 0.5% of the volume of the total enclosure per hour (tested under 5" WG of vacuum).
The chambers include flanges for connection to a ventilation system and utility ports for introducing power and vacuum service. Both chambers are rated for 10" WG vacuum. All seams feature radius corners for easy wipe-down. Removable glove ports allow fast glove change-out.
Biocontainment Isolators for Animals, Poultry, Veterinarians
BioSafe® Gloveboxes are suitable as animal isolators for various veterinary and animal handling applications requiring both operator and work area protection: sample collection, animal studies, veterinary compounding, bird and poultry handling.
Configurable for ABSL-1 and ABSL-2 applications, integral ULPA filtration supports aerosol containment of non-infectious, non-hazardous agents. Gapless 316L stainless steel construction and optional sloped bottoms with drain ports ensure quick cleanup of waste and byproducts. Dual-side access doors, which can also be outfitted as airlocks, allow streamlined control of specimen transfer without compromising cleanliness or sterility. Access ports are available with built-in integrated gloves, or with self-closing, clean silicone Iris Port Adapters for easy chamber access.
