Terra Part # 1529-68
$16,398
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

In stock soon
Accessories related to Terra Part # 1529-68
41595

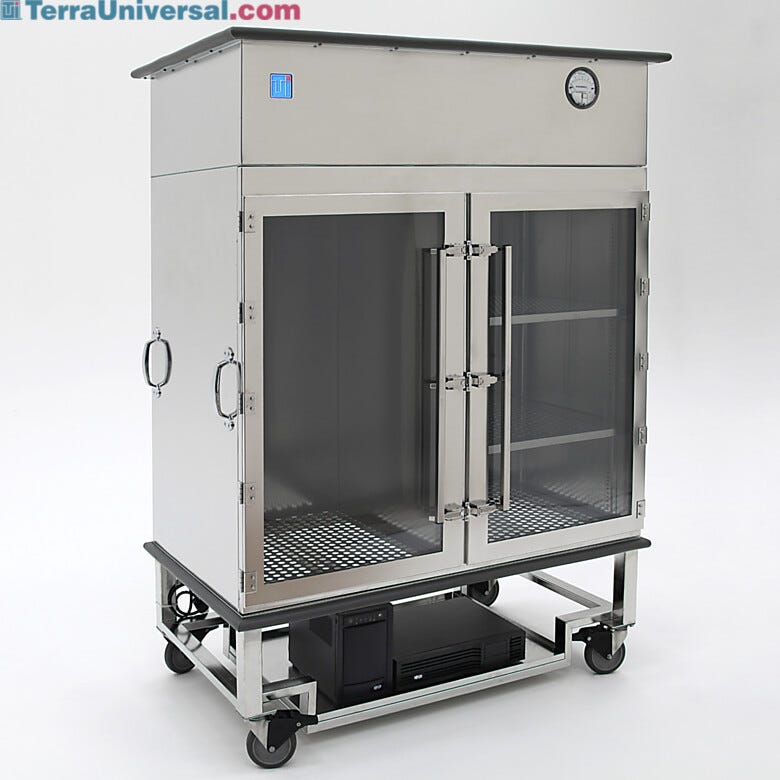

Cart; Cleanroom, PureFlow, Stainless Steel, 52.5" W x 29.5" D x 73" H, 3, 2 Doors, 120 V

• Provides a safe, contamination-free way to transfer materials

• Shelves: (3) 48"W x 24"D (1219 x 610 mm)

• Door Opening: 20.75"W x 39"H (527 x 991 mm)

• Includes chrome-plated Liftlatches

• Requires (1) EC Fan/filter Unit and (1) PureFlow Power Supply (order these separately)

• Electrically commutated, high-efficiency DC motor meets low-energy power requirements

• Internal baffling plates and diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow

• Sound level is approximately 49 dBA, at average air flow velocity of 90 FPM.( 0.46 m/s)

• HEPA Filter: 99.99% efficient High-Efficiency Particular Air, rated at particles 0.3µm diameter

• ULPA Filter: 99.999% efficient Ultra-Low Penetration Air, rated at particles 0.12µm diameter

• Purchase optional Challenge Port Kit separately

• Order replacement filter separately

• Because filters are delicate and subject to damage during handling, all filter sales are final; no failure claims can be accepted

Type: Laminar Flow

Brand: PureFlow

Manufactured by: Terra Universal

Application: Cleanroom

Material: Stainless Steel

Shelf Type: Perforated

Shelves: 3

Number of Doors: 2 Doors

Electropolished: Optional

Unit of Measure: EA

Marks & Listings: 0-2

Electrical Specifications: 120 V, 4.2 A, 504 W, 1 Ph, 60 Hz

Weight, Product: 525 lb

Dimensions, Product: 52.5" W x 29.5" D x 73" H

Weight, Shipping: 775 lb

Dimensions, Shipping: 60" W x 37" D x 83" H

Package Type: Crate

Buy Accessories
  1. Delivers power to the PureFlow filter/fan unit when AC power is disconnected | 1529-76 displayed
    $727
    Increase Down Increase Up
  2. Delivers power to the PureFlow filter/fan unit when AC power is disconnected | 1529-16 displayed
    $4,886
    Increase Down Increase Up
  3. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.
    $959
    Increase Down Increase Up
  4. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  5. Electropolish Service
    Request Quote
    Increase Down Increase Up
  6. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability | 9999-316L displayed
    Request Quote
    Increase Down Increase Up
  7. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  8. Small (4") LiftLatch with Catcher | 1603-84 displayed
    $162
    Increase Down Increase Up

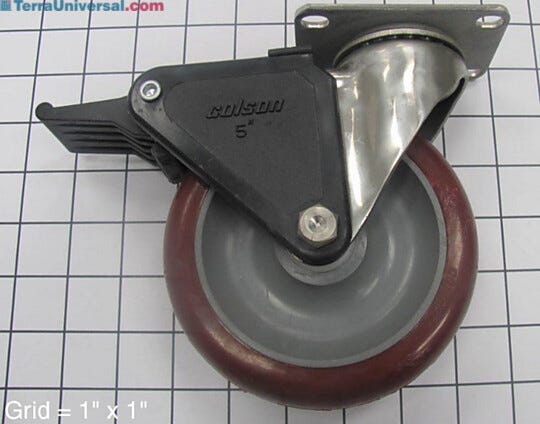

  9. Suits various weights, floor surfaces, and cleanliness requirements | 1701-37 displayed
    $71
    Increase Down Increase Up
  10. Prefilter for the Filter-Fan Unit | 6702-00 displayed
    $37
    Increase Down Increase Up

Features and Benefits

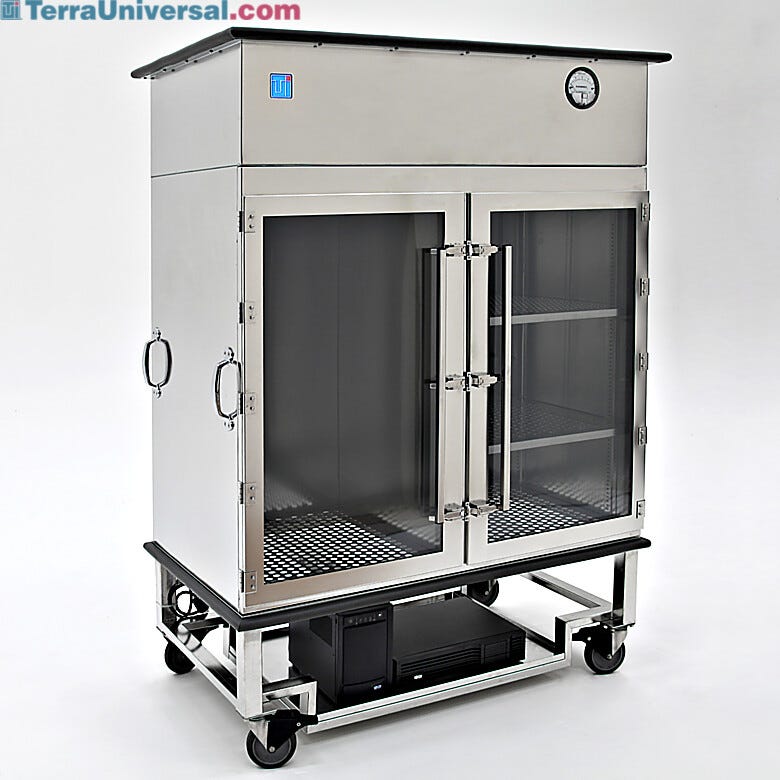

PureFlow™ Laminar Flow Transport Cart, Double Door

PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area during parts transfer.

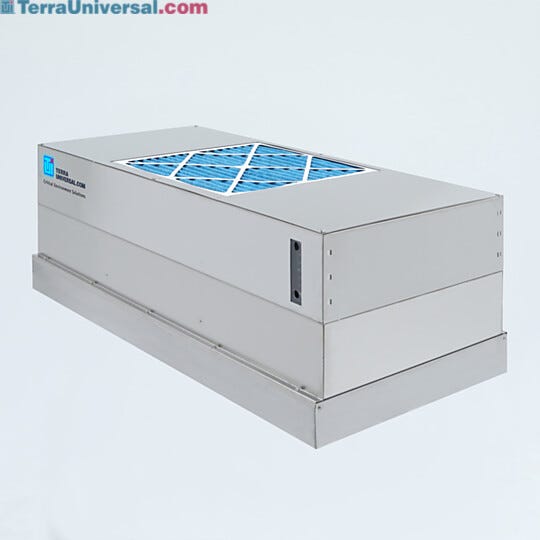

WhisperFlow® Cleanroom Fan Filter Units

Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow.

PureFlow Power Supply

Provides power to the PureFlow filter/fan unit and switches to battery power when AC power is disconnected.

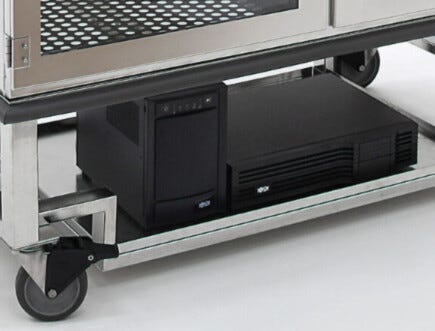

PureFlow Power Cell for 30 Minutes of Uninterrupted Operation

Rackmount external battery pack offers extended battery runtime when used in conjunction with expandable rackmount Uninterruptible Power Supply (UPS) system. Includes heavy gauge cabling with high current DC connectors for simple installation. Runtime varies with load, battery condition and other factors.

Portable Cleanroom Storage Cabinet with Laminar Air flow

Terra’s portable cleanroom storage cabinets are equipped with UL-rated air filtration systems for safe operation. The built-in fan filter unit (FFU) supplies clean ISO 5 or ISO 4 (class 100 or class 10) storage conditions for critical components. An optional power cell allows for mobile operation of the built-in FFU during transportation.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Ionizing Bar
    For use on 24" x 48" ( 610 x 1219 mm) filter/fan units only (Order FFUs separately).
  • Electropolish Finish
    Electropolishing increases corrosion resistance and improves ease of cleaning with a smooth, reflective, mirror-like finish.
  • Fan Filter Unit with External UPS Battery System
    Uninterruptible Power Supply (UPS) system provides backup battery power supply to keep critical equipment running without interruption when utility power supply is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
