1. Nitrogen-purged desiccator cabinets are pre-wired for integration with Terras automated, cabinet-level humidity control systems: Dual Purge and NitroWatchDual Purge and NitroWatch Systems Explained

    Dual Purge™ System

    • Cuts nitrogen waste, guards against oxidation
    • Ensures a constant positive pressure inside desiccators and other enclosures to block contamination and moisture inflow
    • Automatically activates high-flow purge when doors are opened to ensure fast, effective purge of particles and moisture
    • Operates in tandem with NitroWatch® to maintain any desired sub-ambient moisture level (down to 0% RH)
    • Guards against pressure damage to desiccator doors and seals
    • Door switches are highly reliable—rated for over 10 million operations

    Desiccators must be continuously purged with nitrogen or another process gas in order to ensure a controlled environment free of contaminants and moisture.

    Unfortunately, however, a steady gas inflow can't guarantee the clean, dry conditions you require. A flow adequate to maintain a safe internal positive pressure when doors are closed is insufficient to overcome the backflow of outside air that occurs when a door is opened. A higher-level purge that might guard against this backflow wastes nitrogen and leads to over-pressurization that warp doors and damage seals.

    Dual Purge System Offers Variable-Purge Security

    The Desiccator Dual Purge System solves these problems by providing a higher flow level only when it's needed, and only for as long as it's needed.

    It relies on a sensor switch installed on each door. During normal operation, with all doors closed, the system maintains an economical low flow of nitrogen into the desiccator to ensure a constant positive pressure of about 0.05" WG (Water Gauge)—just enough to block out moisture and contaminants.

    When a door is opened, the sensor switch immediately activates a high-flow purge of nitrogen into the desiccator's plenum chamber that minimizes the influx of moisture and contaminants.

    When the door is closed, the high-level gas flow continues to purge the desiccator for a selectable period of time, ensuring that any moisture that does enter the chamber is quickly forced out of the Automatic RB® (Relief/Bleed) Valve, before it can degrade sensitive materials. This time delay is adjustable, so you can retain the high-flow for a longer time when you suspect moisture contamination may have occurred. Note: The Automatic RB® Valve must be ordered separately.

    The dual-purge capabilities of these units ensure that contaminants and moisture stay outside the processing chamber and at the same time guard against dangerous over-pressurization that can lead to warped doors, failed seals—even explosions! And because the Dual Purge System delivers only as much gas as is necessary, it economizes on nitrogen consumption; tests show that in many applications, these units can pay for themselves in a matter of months.

    Safety Alarms Ensure Worry-Free Operation

    The Dual Purge System incorporates a flowmeter, a line pressure gauge and a variable purge mechanism. A “Low-Pressure” alarm is activated if the incoming line pressure is ever interrupted. This dual audible/visible alarm alerts you to a disconnected supply line, an empty gas storage pod, or other problem that could spell disaster for contents of a desiccator or glove box!

    NitroWatch™ Controller Expands Capabilities

    The Dual Purge System operates in tandem with Terra's NitroWatch System to fully automate moisture control.

    The NitroWatch includes a humidity sensor that continuously monitors the internal RH level and activates the Dual Purge to automatically maintain any sub-ambient humidity threshold you require (down to 0% RH). For more critical requirements, select the NitroPlex™, which combines this automatic humidity control with multiplexed purge capability. In all of these applications, the Automatic RB Valve is required to ensure safe relief of over-pressurization that can build inside a chamber.

    • Dimensions: 12"W x 11.25"D x 7"H (305 mm x 286 mm x 178 mm)
    • Weight: 16 lbs. (7258 g.)
    • Flowmeter: 0-20 SCFH
    • Line Pressure Gauge: 0-60 psi
    • Chamber Sensor: 0 - 0.4" WG (factory set at 0.02" WG)
    • Inlet/Outlet: 0.25" (6 mm) (accepts 0.25" (6 mm) OD polyethylene tubing)
    • Case Material: 304 stainless steel; Chrome plated or stainless steel internal fittings
    • Power Requirement: 110/220VAC, 50/60Hz (requires no manual power setting)
    • Timer Adjustment: 0-8 minutes (factory set at 1 minute)
    The variable Purge Advantage:
    Low Flow Conserves N2
    when Doors Closed
    High Flow Efficiently Purges
    Moisture when a Door Opens
    Automated Humidity control
    Low Flow Conserves N2
    when Doors Closed and %RH Under Set Point
    High Flow Efficiently Purges
    Moisture when Door Opened or %RH Under Set Point

    66 Products

    Close

    66 Products

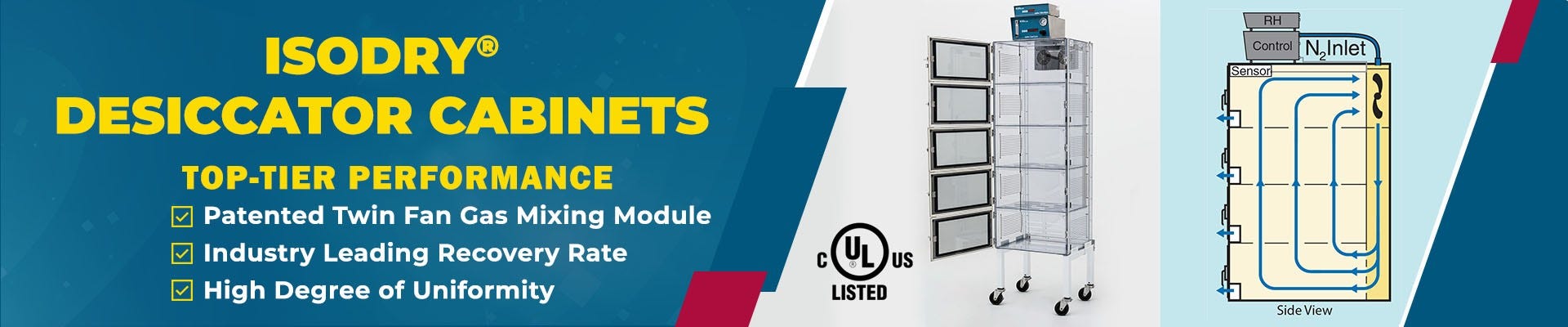

  2. Automated humidity control desiccator cabinets feature patented gas dilution modules to achieve high RH uniformity and rapid recovery ratesIsoDry Desiccator Explained

    IsoDry Dual Purge/NitroWatch Systems

    The complete IsoDry control system includes a relative humidity sensor mounted inside the chamber and a Terra's IsoDry Dual Purge and NitroWatch systems, which work in tandem to ensure fast set point recovery times (see graph above).

    The Dual Purge system provides a high-volume burst of nitrogen to attain the RH set point upon system set-up. Once this set point is attained, it uses an economical low-flow purge to maintain the set point, and then activates the high-flow purge the minute a door opens to recover set point with minimal nitrogen waste. The NitroWatch provides continuous monitor/display of both measured RH and set point levels.

    Status alerts built into the IsoDry Dual Purge System warn if incoming nitrogen line pressure falls below operational rates (signaling an interruption in the gas supply) or if the system remains in high-flow purge for an excessive period (signaling a door left ajar). This integrated system also provides the low-voltage power required by the IsoDry and a variable speed control for the dilution fans.

    For smaller cabinets, a flowmeter kit provides an economical alternative to the automated Dual Purge/NitroWatch controller. The flowmeter kit includes a plug-in power supply for the gas mixing fans, but does not include set-point capability or RH monitoring.

    What's Your Application?

    The standard NitroPlex™ system provides unsurpassed moisture control in dozens of storage applications. Temperature, gas or biological sensors expand the range of critical operations.

    • Microelectronics components, surface-mount devices (SMDs), hybrid packages
    • Storage of printed circuit boards (PCBs) for rework
    • Pharmaceutical R&D studies
    • Kitting of high-precision watch components
    • Pass-through transfer of night-vision electronics
    • Lithium battery development
    • Humidity testing of cosmetics
    • Accelerated life testing of ICs
    • Animal inhalation and toxicology research

    Which critical control application can you find in your facility?

    Power Requirement24V: draws power from IsoDry Dual Purge System
    Fans120 CFM each
    Display5-digit LED
    Display Resolution± 0.1%RH
    Sensor Accuracy± 2% RH @ 20°C
    Measuring Range0 - 100% RH
    CalibrationNone required for standard accuracy range

    37 Products

    Close

    37 Products

  3. ValuLine desiccator cabinets are designed for long-term storage and low-traffic environments. The simplified design reduces cabinet and automated RH controller manufacturing costs substantially since rapid recovery times aren't required.

    16 Products

    Close

    16 Products

  4. Small-footprint Smart desiccators automatically maintain sub-ambient, user-specified humidity set points down to 0%RH; install out-of-the-box in less than one minuteSmart Desiccator Explained


    SmartDesiccators

    Smart Performance—and Big Savings!

    Testing demonstrates the cost benefit of the SmartDesiccator's automated nitrogen control system. Our total nitrogen consumption test was first conducted on a desiccator equipped with a flowmeter, and then with a SmartDesiccator™ control system, under the conditions specified in the chart.

    Result: SmartDesiccator™ uses 22% of nitrogen consumed by standard cabinet—a 78% saving!

    Smart Desiccator Time to Achieve 10% RH chart
    • Ambient Humidity: 60% RH
    • Temperature: 70°F (21° C)
    • RH Setpoint: 10% RH
    • Test Period: Achieve setpoint and then maintain it for 24 hours
    • Chamber Access: Door opened once every 30 minutes; remains open for one minute
    SmartDesiccator™ (blue line on chart)
    • To achieve setpoint: 85 cubic feet (2.4 cubic meters). Required 30 minutes @ 170 CFH (4.81 m3/hr) on high flow.
    • Maintain for 24 hrs: 40 cubic feet (1.1 cubic meters)
    • Total N2 Consumed: 125 cubic feet (3.5 cubic meters)
    • Desiccator with 0 - 20 SCFH flowmeter (red line on chart)
    • To achieve setpoint: 85 cubic feet (2.4 cubic meters). Required over 4 hours @ 20 CFH (0.57 m3/hr).
      Note: Setpoint measured with a hygrometer, since this set up does not monitor humidity level.
    • Maintain for 24 hrs: 480 cubic feet (13.6 cubic meters)
    • Total N2 Consumed: 565 cubic feet (16 cubic meters)

    13 Products

    Close

    13 Products

  5. High visibility contamination-free storage cabinet for non-moisture sensitive materials

    16 Products

    Close

    16 Products

  6. NitroPlex desiccator cabinets provide automatic humidity control of each individual chamber down to 0% RH at rapid recovery timesNitroPlex™ Desiccator Explained

    NitroPlex™ Multiplex Humidity Desiccators Overview

    Terra’s NitroPlex™ Desiccator Control System optimizes nitrogen purge efficiency for the most demanding applications, when every second of moisture exposure counts.

    The NitroPlex™ is the only humidity control system that combines the monitoring and control capabilities required in zero-tolerance applications with miniaturized semiconductor components, bio/pharmaceutical samples and other moisture-sensitive materials.

    Chamber-by-Chamber Multiplexed %RH Monitor/Control

    A separate high-accuracy, miniaturized humidity module in each desiccator chamber provides independent monitor/control capability. Each module can be programmed locally or remotely to maintain a humidity set point from ambient down to 0%RH.

    Nitrogen is directed only where needed to keep the %RH level below the critical set point.

    Cuts System Recovery Time to Seconds

    Desiccators controlled by a flowmeter may require an hour or more to regain a humidity set point after a chamber access door is opened. When doors are opened repeatedly, humidity levels can remain above the critical set point for an entire work day.

    Testing shows that the NitroPlex™ cuts this recovery time by over 400% in a 4-chamber desiccator (see sidebar below). In Terra's Microccator™ this recovery time is cut to a matter of seconds, eliminating moisture-caused damage.

    Product Safety Alarm

    The NitroPlex™ eliminates another common cause of moisture exposure: access doors mistakenly left open or ajar. The system directs a high-flow nitrogen purge to any chamber the moment its door is opened. If the door remains opened longer than a specified delay time, the NitroPlex™ issues warning alarms to alert personnel to the problem.

    Performance Improvements Spell Big Savings

    NitroPlex™ Cuts N2 Costs by over 75%, Improves Efficiency by 400% A desiccator with only one bleed valve may cause more harm than good.

    Once an access door is opened, any moisture that enters a cabinet will tend to migrate from one chamber to the next until it exits the cabinet through a bleed valve. In a large, multi-chamber cabinet with only one bleed valve, the moisture may contaminate several chambers.

    Even a desiccator equipped with Terra Dual Purge™ and NitroWatch® systems may require 40 minutes or more to purge the moisture and recover the desired humidity set point (see test results at right). In this test, the top chamber of a four-chamber desiccator was exposed to moisture until the humidity level reached 97%RH. Figure 1 (on graph) represents the desiccator efficiency when it was equipped with a single Automatic RB® Valve located in the bottom chamber. The system required 40 minutes to bring the humidity level down to the 10% set point.

    If, during that period, another door is opened, this recovery time will be extended further. Very possibly, the cabinet might fail to reach its programmed RH set point over the course of an entire shift, or even longer.

    Simply by installing Terra's Automatic RB® (Relief/Bleed) Valve in each desiccator chamber, you can cut both the system recovery time and the nitrogen consumption in half. This is the test case represented by Figure 2 on the graph. Only 20 minutes—and only half as much nitrogen--were required to bring the humidity level to the set point.

    The final test case (Figure 3) included a NitroPlex™ control system. With this set up, the desiccator required only 10 minutes to bring the RH from 97% to the set point level of 10%—only a fourth the time required in the first test. It consumed only 15 cubic feet (.42 cubic meters) of nitrogen, only 13% of the amount used in the first test case.

    This nitrogen saving alone, nearly 77% in this test, justifies investment in a NitroPlex control system.


    Fig. 1: Dual Purge™/NitroWatch® Systems, One Automatic RB® Valve
    Moisture migrates through cabinet

    Fig. 2: Dual Purge™/NitroWatch® Systems, Four Automatic RB® Valves
    Moisture migratation eliminated

    Fig. 3: NitroPlex™ System
    Efficient moisture removal, reduced N2 use
    What's Your Application?

    The standard NitroPlex™ system provides unsurpassed moisture control in dozens of storage applications. Temperature, gas or biological sensors expand the range of critical operations.

    • Microelectronics components, SMDs, hybrid packages
    • Storage of PCBs for rework
    • Pharmaceutical R&D studies
    • Kitting of high-precision watch components
    • Pass-through transfer of night-vision electronics
    • Lithium battery development
    • Humidity testing of cosmetics
    • Accelerated life testing of ICs
    • Animal inhalation and toxicology research

    Which critical control application can you find in your facility?

    75 Products

    Close

    75 Products

  7. Wafer Box Desiccators use a controlled dry nitrogen purge to maintain low-humidity, space-efficient, particle-free, static-safe storage of semiconductor wafer lot boxes

    19 Products

    Close

    19 Products

  8. Accessible and space-efficient drum storage desiccators extend the shelf life of pharmaceutical powders and other moisture-sensitive materials stored in dry storage drums

    8 Products

    Close

    8 Products

  9. Stainless steel desiccator cabinets maintain aseptic conditions down to 0% RH, resist biocides and frequent wipedowns

    45 Products

    Close

    45 Products

  10. Portable desiccators are lightweight, easy to carry, and stackable for space-saving storage

    65 Products

    Close

    65 Products

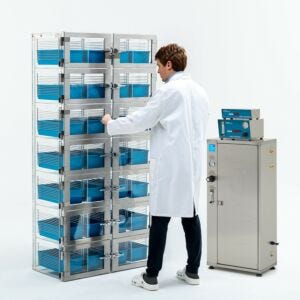

  11. Terra's broad portfolio of specialty desiccators are designed for mobile storage and protection of sensitive electronics, kitting trays, reels, and more!

    220 Products

    Close

    220 Products

  12. Cleanroom compliant vacuum desiccators, fabricated of transparent, 1-thick acrylic, support full vacuum to 29.9"Hg

    37 Products

    Close

    37 Products

  13. Up to 99.5% pure medical grade nitrogen from a compressed air feed, provides a reliable, on-demand gas source for desiccators, glove boxes without the need for bulky canisters

    5 Products

    Close

    5 Products

  14. Desiccator options include automated humidity controllers, nitrogen generators, shelving, stands, static neutralizers, latches, casters and more

    193 Products

    Close

    193 Products

  15. Terra- manufactured desiccators: acrylic, static dissipative PVC, stainless steel. Nitrogen purged, desiccant & vacuum dried.
    Automated controllers. 1- 16 chambers. Storage cabinet and cart models.
    Custom sizes/designs.

    Terra stocks many desiccators for shipment now at guaranteed world-wide prices.
    Close

14 Item(s)

Available Types of Desiccator Cabinets

IsoDry® Desiccator Cabinets

Efficient IsoDry® desiccator cabinets with automatic RH control provide faster recovery and uniform RH for critical humidity requirements.

NitroPlex Desiccator Cabinets

Plastic and stainless steel desiccator cabinets designed for the most stringent humidity control requirements provide automatic RH control for fast set-point recovery via chamber-by-chamber N2 purge.

Vacuum Desiccator Cabinets

1" thick acrylic vacuum chambers support full vacuum 29.9" Hg—ideal for parts drying and degassing. Available in transportable chamber sizes and as storage cabinets.

Stainless Steel Desiccator Cabinets with Double Doors

Stainless steel desiccator cabinets with spacious chambers, adjustable shelving, and double doors are ideal for storage of large bulky items.

Desiccator Cabinet for Wafer Boxes

These desiccator cabinets are ideal for ESD sensitive semiconductor wafers. They preserve wafer lot boxes in a low-humidity and particle-free environment.

Desiccator Cabinet for Bulk Storage

This stainless steel desiccator cabinet is ideal for bulk storage such as heavy drum containers. The nitrogen-purged environment preserves the shelf life of moisture sensitive materials.

Desiccator Accessories

Build your own nitrogen dry box or upgrade your existing unit. Smart controllers automatically maintain RH in your desiccator cabinet. Add more shelves or storage racks to your cabinet or find replacement parts such as latches and casters.

Adjustable-Shelf Desiccators

Stainless steel, acrylic, and static dissipative PVC desiccator cabinets protect moisture-sensitive materials and eliminate harmful electro-static discharge and particulate contamination.

ValuLine™ Desiccator Cabinets

Clearly surpass any manufacturer's design quality, contamination control, and availability. Easily upgrade to an automatic nitrogen control system with Terra's Smart module.

Smart™ Desiccator Cabinets

Benchtop dry boxes with automatic RH controllers cut nitrogen waste.

Portable Desiccator Boxes

Portable, stackable nitrogen dry boxes provide low-humidity storage and can be easily carried to different locations.

40 Years of Design Improvements

Experienced users trust Terra’s desiccators to solve the arcane problems incomprehensible to other manufacturers

Desiccators

  • Series 300 Stainless Steel Double Door Desiccator Cabinet With Stand Series 300 Stainless Steel Double Door Desiccator Cabinet With Stand
  • Adjust-A-Shelf Desiccators
  • Desiccators: Features and Design overview
  • Leveling your Desiccator
  • Video Overview of Stainless Steel Desiccator Cabinets Stainless Steel Desiccator Cabinets
  • ValuLine™ ES Desiccator Cabinet: Extended Storage Systems, 3 chambers ValuLine™ ES Desiccators: Extended Storage Systems, 3 chambers
  • Series 100 Stainless Steel Benchtop Desiccator Cabinet Series 100 Stainless Steel Benchtop Desiccator Cabinet
  • Stainless Steel Desiccator Liftlatches Ergonomic, Non-Contaminating LiftLatches
  • Desiccator Cabinet with Nitrogen Purge Controls, 10 Chambers IsoDry® Desiccator Cabinet, 10-chamber static-dissipative PVC
Series 300 Stainless Steel Double Door Desiccator Cabinet With Stand
Video Overview of Stainless Steel Desiccator Cabinets
ValuLine™ ES Desiccator Cabinet: Extended Storage Systems, 3 chambers
Series 100 Stainless Steel Benchtop Desiccator Cabinet
Stainless Steel Desiccator Liftlatches
Desiccator Cabinet with Nitrogen Purge Controls, 10 Chambers

Clickable areas are briefly highlighted when pages open.
Tap any area to open linked web page, even after highlights fade.

Want to view this catalog again?
Here’s how to add it to your home screen.

When the e-catalogue opens, tap the Share button at the bottom center of the screen.

Scroll down; tap on
Add to Home screen.

Tap Add; the shortcut will be displayed on your home screen.

Clickable areas are briefly highlighted when pages open.
Tap any area to open linked web page, even after highlights fade.

Want to view this catalog again?
Here’s how to add it to your home screen.

When the e-catalogue opens, tap the 3 dots at the top right corner of the screen.

Scroll down; tap on
Add to Home screen.

Tap Add; the shortcut will be displayed on your home screen.

Technical Resources



Cleaning Acrylic and Static-Dissipative PVC Products

These products should be cleaned with clean, lukewarm water and a clean, nonabrasive, noncontaminating cloth. If desired, a mild, nonabrasive detergent may also be used. Use only light pressure when cleaning. If the surface is exceptionally dirty or gritty, "rinse" the surface first by lightly swabbing a saturated cloth over the surface and allowing surfactants to drain away. Avoid rubbing dirt or grit into the surface. Turn the cloth often and replace with a clean cloth frequently. Dry by blotting gently with a clean, dry cloth.

*DO NOT USE ketones, aromatics, esters, halogens, window cleaning sprays, kitchen scouring compounds, or solvents (such as acetone, benzene, gasoline, carbon tetrachloride, or thinners). Static-dissipative PVC may be cleaned with alcohol, but avoid touching acrylic surfaces with alcohol because alcohol can cause structural damage to the acrylic.

Characteristics: The acrylic used in Terra desiccators is more rigid than acetates or vinyls, and is much more resistant than glass to thermal shock. The tensile strength of this material is 10,000 PSI at room temperature; however, when continuously loaded, imposed loading should not be allowed to exceed 750 PSI. Although this acrylic can withstand temperatures between -30 and 190 degrees Fahrenheit (-34°C and 88°C), it is recommended that temperatures not exceed 160 degrees Fahrenheit for continuous service.

Exposure of acrylic or static-dissipative PVC to direct sunlight may cause the material to warp and distort. Therefore, products should be kept out of direct sunlight.

The self-ignition temperature of acrylic is 830 degrees Fahrenheit (443 degrees Celsius) measured in accordance with ASTM D-1929. The products of combustion, when sufficient air is present, are water and carbon dioxide. However, as with many other common combustible materials, when sufficient air is not present during combustion toxic carbon monoxide will be produced.

Polypropylene is a very light-weight thermoplastic material with considerable strength and outstanding chemical resistance, especially with acids, bases and solvents. It may be used at temperatures up to 130°C (it may be autoclaved).

Rigid PVC is harder and stronger than most other thermoplastics. It is attacked by many organic solvents (ketones, aromatics and some chlorinated hydrocarbons) but it has a very good resistance to oils and a low permeability to gases.

Polycarbonate is virtually unbreakable. It has high tensile strength at temperatures up to 120°C. However, it has poor resistance to solvents, and concentrated acids and alkalis.

video

Desiccators: Features and Design overview

Terra's nitrogen-purged desiccator cabinets meet dry storage requirements as low as 1% relative humidity. Standardization simplifies component upgrade, retrofit and replacement. Terra's Smart controllers allow setpoint control and even multiplexed purging for the most critical humidity requirements.

video

Leveling your Desiccator

Learn how to properly level your plastic or stainless steel desiccator cabinet, as well as instructions to align the doors.

video

Terra Desiccator Features

Terra offers a complete line of desiccators specially configured to the requirements of the semiconductor, electronics, biopharmaceutical, medical device, and aerospace industries.

video

Terra Desiccator Overview

Terra offers a complete line of desiccators specially configured to the requirements of the semiconductor, electronics, biopharmaceutical, medical device, and aerospace industries.

8 Item(s)




Can't find what you're looking for?
Tell us what you need and we'll build it!



SUBMIT A QUICKQUOTE REQUEST


Need Help?

(714) 578-6100

EMAIL CHAT

Mon - Fri, 5:30am - 5:30pm PST

Hide
You need at least 2 products to compare Compare Clear All
Compare Products
