Nitrogen Generators
Print Copy Copied
State-of-the-Art and State-of-the-Budget
- State-of-the-art membrane separation technology produces dry nitrogen up to 99.5% pure
- Eliminates drawbacks of conventional nitrogen sources—gives you control of rate and purity of nitrogen production
- Delivers gas flows up to 400 SCFH or more depending on nitrogen purity requirements (even higher flows possible if only dryness is desired)
- Low-pressure alert indicates drop in inlet pressure, alerting you to a problem that could result in diminished flow/purity
- Compact, lightweight design allows set-up wherever there's a compressed air supply
- Ideal for use as a reliable, continuous nitrogen supply for desiccators, glove boxes, incubators or for vacuum chamber backfilling
- Simplicity of field-proven design ensures completely reliable, economical operation, virtually eliminates maintenance
- Use of low pressure standard industrial compressor; No high pressure compressor needed to obtain required nitrogen flow
- Energy savings; operation at a low pressure requires less energy
- Reduced CO2 emissions; no heater required to open polymer membrane structure, thus reducing the energy consumption
- Robust fiber; most tolerant fiber to particle contamination
- Large membrane diameter; lowest membrane module pressure drop in the industry
- Strong engineering plastic: Life-expectancy of more than 10 years
- Factory membrane ageing, pre-delivery; no performance decrease over time due to fiber aging
- Quick start-up time: Required nitrogen purity is produced instantly, no time needed to heat-up
- Low noise operation; radiated noise generated by membrane technology is extremely low
- Three models available with three flow ranges
The nitrogen membrane component of a nitrogen generator provides a low-cost, highly efficient means of separating air into its component gases. Because this technology requires no moving parts and consumes relatively little energy, it is surprisingly economical to operate and maintain—the main expense is the energy required to provide a stream of compressed feed air. Each system contains gas pressure control valves and instruments, a coalescing filter and carbon filter (which removes particles and liquid vapors from the feed line), and the nitrogen membrane module.
The membrane module consists of bundles of hollow fiber, semipermeable membranes. Each fiber has a perfectly circular cross-section and a uniform core through its center. The wall thickness of each fiber is thus consistent, which contributes to the physical strength of each membrane. Because the fibers are so small (about the diameter of a human hair), a great many can be packed into a limited space, providing an extremely large membrane surface area that can produce a relatively high volume product stream.
The hollow fibers of a membrane nitrogen generator are assembled parallel to a central core tube, and the bundle is inserted into an outer case to form the air separation module. Compressed air is introduced into the center of the fibers at one end of the module and contacts the membrane as it flows down to fiber bores. Oxygen, water vapor and other "fast gases" pass through the outside of the fibers. The oxygen-rich gas stream then flows through the fiber bundle to the periphery of the case, where it is discharged as a by-product.
While all but a small fraction of the oxygen passes through the membrane material to the exterior of the hollow fibers, most of the nitrogen present in the feed air is contained within the hollow fiber membrane. Since water vapor passes through the membrane along with the oxygen, this nitrogen product is essentially moisture-free. The nitrogen stream emerges at a pressure roughly 20-30% below that of the feed air pressure.
Design Simplicity Means Easy, Reliable Operation
Because the heart of the system—the membrane module—contains no moving parts, a nitrogen generator requires minimal maintenance. The only attention a system typically needs is a watchful eye on the inlet gas flow and an occasional filter change. Terra's compact nitrogen generators make these tasks easy with a built-in low-pressure alarm to alert users of gas line kinks or compressor malfunctions via an easy-to-see indicator light.
Each nitrogen generator system consists of a membrane module, controls and instrumentation, and coalescing filters and traps to remove oil and liquids, organic contaminants, and other particulates from the feed air. Installation of these small nitrogen generators merely requires piping compressed air to the system and piping the nitrogen to its destinations. Order Terra's oil-less clean air compressor separately.
Application Examples
| N2 Generator Size | Model | Example Applications | ||
|---|---|---|---|---|
| Small | No. 2700-12B | 3-4 chamber desiccator or small 2-port glovebox | ||
| Medium | No. 2700-11B | Two 10-chamber desiccators or two 4-foot gloveboxes | ||
| Large | No. 2700-9B | Six 10-chamber desiccators or six 4-port gloveboxes | ||
| *Higher flow rates for a given purity can be achieved with high feed pressure and temperature. Contact Terra for information on high-pressure compressors and inline gas heaters. | ||||
Specifications
- Housing: Powder-coated white CR steel cabinet with polypropylene leveling feet
- Feed Air Pressure: 189 PSIG max
- Low-Pressure Alarm: 70 PSI
- Feed Air Temperature: 36ºF(2°C) to 122ºF(50°C)
- Nitrogen Outlet Flow: See graphs below
- Prefilter: One-micron absolute filtration. Dual glass micro-fiber filter beds coalesce and remove water droplets. Remaining oil content: 1 ppm by weight. Includes slide indicator (to indicate need for filter change), liquid-level indicator and internal drain. ISO 8573.1 Quality Class - Solids: Class 2, Oil Content: Class 4
- Coalescing Filter: Absolute filtration of 0.01 µm particles; 99.999% oil removal efficiency. Includes slide indicator (to indicate need for filter change), liquid-level indicator and internal drain ISO 8573.1 Quality Class - Solids: class 1, Oil Content: Class 1
- Membrane Module: Semipermeable hollow-fiber bundles
- Electrical Requirements: Power not needed to generate nitrogen, but low-pressure indicator light requires 120VAC. User-supplied air compressor may require electricity.
- These are typical values for the most common models. Industrial nitrogen generator systems can be tailor-made to suit special applications.
- Nitrogen membrane systems produce both nitrogen and oxygen enriched air. Nitrogen enriched air can cause suffocation and oxygen enriched air increases fire hazards. The nitrogen enriched air produced should be treated as pressurized air; refer to compressed air safety protocols to avoid injury.
Nitrogen Flow Rate & Feed-air consumption in SCFH
On-Site Nitrogen Generator: The Practical, Reliable Alternative
For more and more manufacturers, on site nitrogen generators with membrane separation have become a preferable alternative to conventional sources of purified nitrogen (whether in liquid customer stations or nitrogen cylinders).
High-volume suppliers of purified nitrogen typically rely on the cryogenic distillation process, which provides excellent purity levels (up to 99.99%) but is energy-intensive and hence inherently expensive. For occasional nitrogen requirements that demand ultra-high purity, these sources remain the most economical; but for many other applications—including most high-volume storage situations—non-cryogenic generation on-site makes better sense.
Optimal Source of Purge Gas for Glove Boxes, Desiccators, and Other Enclosures
Portable nitrogen generator membrane systems can be sized to deliver as little as 100 SCFH efficiently and economically, and in most cases lead to significant savings, even when high purity levels are necessary.
For nitrogen-purged storage and process systems with automatic humidity controls (like Terra desiccators, glove boxes and automated stockers), this purity level may not even be necessary. Terra systems automatically regulate the nitrogen purge to maintain the most critical humidity levels typically required, which can generally be achieved with purity levels below the 99.99% you are currently paying for.
Long-Term Stability, Complete Supply Control
These nitrogen gas generators provide additional savings—and greater convenience—by eliminating the need to rent tanks and pay for delivery services. Of course, they also free you from price increases on the part of your nitrogen distributor. Once your system is installed, you pay only minimal electricity expenses: your gas costs remain completely predictable.
And your supply remains secure. You'll never need to worry about overbuying to compensate for tight supplies or delivery disruptions.
Complete Product Control
The purity of nitrogen, flow rate of the gas, and feed-air temperature and pressure all affect the performance of the N2 generator. By altering these variables, you can generate nitrogen gas with precisely the right purity and flow for your applications.
Nitrogen purity can be regulated (up to a maximum of 99.5%) by adjusting the input air pressure and temperature. In most cases, the greatest system efficiency is achieved at purities of 95-99%, levels adequate for most cleanroom applications.
- Flow Rate & Pressure: The flow rate of the enriched nitrogen gas is a function of the purity required. The higher the nitrogen purity required, the lower the flow rate produced, assuming constant feed air temperature and pressure. To produce a higher purity nitrogen gas, more oxygen must permeate the membrane. You increase oxygen permeation by increasing the pressure difference across the membrane. This transports more gas, including more of the total oxygen content of the feed air, through the membrane. With more oxygen permeating the membrane, the oxygen level in the nitrogen product gas is reduced and purity improved.
Temperature: Feed air temperature also affects the performance of the system. The higher the feed air temperature, the higher the feed air flow rate required, assuming constant air pressure and nitrogen purity. As feed air temperature rises, the membrane permeability increases, requiring an increased feed air flow rate to maintain product flow. However, feed air temperature also affects the membrane material. High feed air temperature shortens the life of the membrane. When the feed air temperature increases, the feed air flow required rapidly escalates. Therefore, the system must be designed to provide required feed air flow rate of the maximum anticipated feed air temperature, or an air conditioner must be used to control the feed air temperature.
Moisture: Dew point is the temperature at which a given mixture of water vapor and gas is saturated. The dew point and trace contaminants of the nitrogen-enriched product gas are dependent on the water level and quality of the feed air. Operating in the purity range of 95-99.5% nitrogen, saturated feed air results in a product gas that contains less than 5 ppm water, depending on feed air conditions. The atmospheric dew point equivalent is -65°C (-85°F). Water level in the feed gas is dependent on temperature and pressure. Therefore, if the feed air pressure is reduced, the dew point of the product may increase. If the temperature is increased, the feed dew point increases and the product stream dew point increases. Changes in dew point are minimized by using a refrigerated air dryer to condition the feed air.
CO2: Carbon dioxide in the product stream is typically less than 0.01% operating at 99% nitrogen, 135 psig and 25°C, based on feed air containing 0.03% carbon dioxide.
-

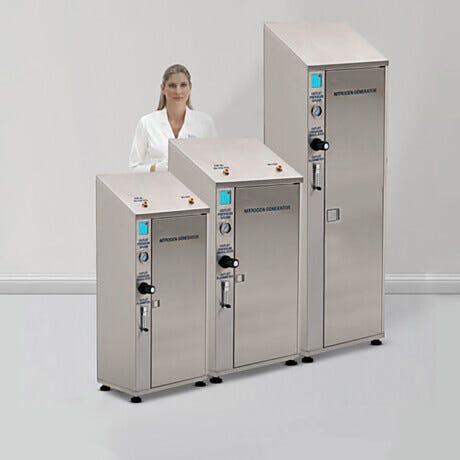

Nitrogen Membrane Gas GeneratorsStockedGroup of 4 products2700-PP-01 72984FromAs low as $6,502Some ship in 1 - 3 daysStocked
Certified
ISO 5 Icon
1 Voltage2 Material2 Certified ISO Grade™ Design3 Width2 Depth4 Height3 Flow Rate @ 97% purity, 100 psig3 Flow Rate @ 98% purity, 100 psig3 Flow Rate @ 99% purity, 100 psigVoltage: 120/240 VMaterial: Powder-Coated Steel, 304 Stainless SteelCertified ISO Grade™ Design: ISO 7, ISO 5Width: 18", 24", 20"Depth: 18", 12"Height: 81.25", 49.25", 35.5", 42.5"Flow Rate @ 97% purity, 100 psig: 685 ft³/hr, 205 ft³/hr, 26 ft³/hrFlow Rate @ 98% purity, 100 psig: 500 ft³/hr, 150 ft³/hr, 18 ft³/hrFlow Rate @ 99% purity, 100 psig: 290 ft³/hr, 88 ft³/hr, 10 ft³/hr -
Portable Nitrogen Generator; Self-Contained With Compressor and Tank; 304 Stainless Steel, 30" W x 17" D x 60.8" H (2700-12C-P)Stocked Quick Ship+ Available$11,413Usually ships in 1 - 3 daysISO 5 IconCertifiedStockedQuick Ship +
-

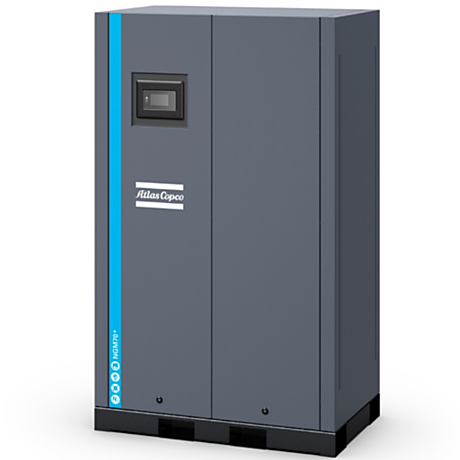

On-Site Nitrogen Generators by Atlas CopcoStockedGroup of 13 products1989-PP-03 82642FromRequest QuoteSome ship in 3 - 5 daysStocked2 Type1 Certified ISO Grade™ Design13 Model1 Flow Rate @ 97% purity, 100 psig1 Flow Rate @ 98% purity, 100 psig1 Flow Rate @ 99% purity, 100 psigType: Membrane, PSACertified ISO Grade™ Design: ISO 8Model: NGM7+, NGMs 3, NGMs 1, NGMs 2, NGP8+, NGP12+, NGP20+, NGP30+, NGP50+, NGP70+, NGP300+, NGP550+, NGP1000+Flow Rate @ 97% purity, 100 psig: 10.1 ft³/hrFlow Rate @ 98% purity, 100 psig: 7.9 ft³/hrFlow Rate @ 99% purity, 100 psig: 5.7 ft³/hr -

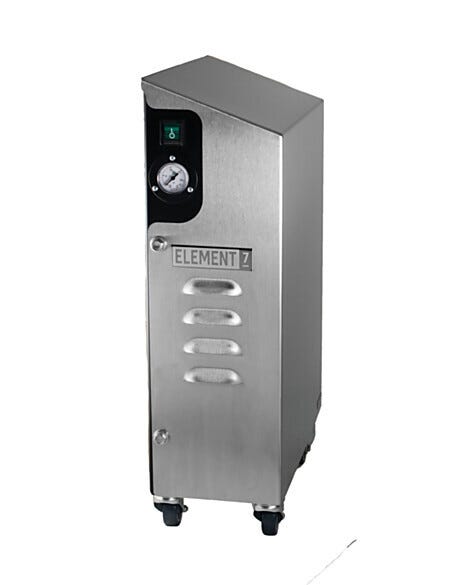

Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H (2700-99)Stocked Ships Free$4,335Usually ships in 3 - 5 daysStockedISO 8 Icon
Quick Ship +Ships Free
-
Pressure Booster Module for Nitrogen Generator, 2x - 4x- Multiplier (2700-98)Stocked Quick Ship+ Available$648Usually ships in 1 - 3 daysStockedISO 6 Icon
Quick Ship + -

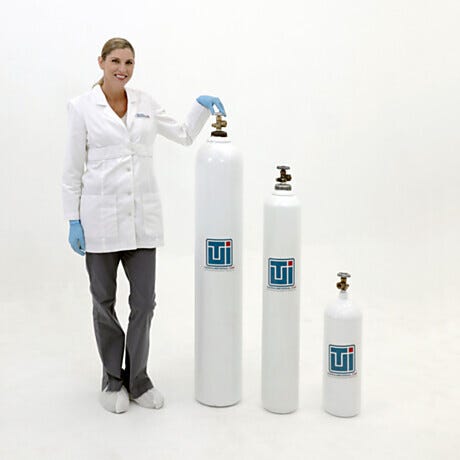

High-Pressure Gas Cylinders for Nitrogen GeneratorStockedGroup of 4 products2700-PP-03 79158FromAs low as $413Some ship in 1 - 3 daysISO 7 Icon
Stocked1 Material1 Certified ISO Grade™ Design4 Internal VolumeMaterial: SteelCertified ISO Grade™ Design: ISO 7Internal Volume: 60 ft³, 80 ft³, 250 ft³, 125 ft³ -
Rotary Screw Air Compressors by KaeserStockedGroup of 1 product6800-PP-01 77369FromAs low as $20,351Some ship in 3 - 5 daysStocked1 Voltage1 Type1 Tank Capacity1 Power1 Output1 Oil-lessVoltage: 240 VType: RotaryTank Capacity: 92.5 galPower: 20 HPOutput: 77 CFMOil-less: No
Filter Products
See Product(s)
Nitrogen Generators
- Adjust-A-Shelf™ Desiccator Cabinets
- Contamination-Free Plastic Storage Cabinets
- Desiccator Accessories
- Desiccator Cabinets with Removable Sliding Trays
- Desiccators Comparison Chart
- Drum Storage Desiccators
- IsoDry® Desiccator Cabinets
- IsoDry® Humiccator Cabinets
- Nitrogen Generators
- NitroPlex™ Desiccator Cabinets
- Portable and Benchtop Desiccators
- Smart® Desiccator Cabinets
- Specialty Desiccator Cabinets
- Stainless Steel Desiccator Cabinets
- Vacuum Desiccators
- ValuLine ES Plastic Desiccator Cabinets
- Wafer Storage Desiccators
Stainless SteelDurable; resistant to corrosion, chemicals/solvents, and rust. Making it the preferred material wherever frequent cleaning and sterilization are required.
SteelExtremely durable, aseptic, easy to clean, low bio-burden; inherently non-combustible; smooth internal surfaces without cracks or crevices that harbor germ colonies
ISO 5The product design and materials are recommended for use inside an ISO 5 environment based on Terra's ISO Grade™ criteria.
ISO 6The product design and materials are recommended for use inside an ISO 6 environment based on Terra's ISO Grade™ criteria.
ISO 7The product design and materials are recommended for use inside an ISO 7 environment based on Terra's ISO Grade™ criteria.
ISO 8The product design and materials are recommended for use inside an ISO 8 environment based on Terra's ISO Grade™ criteria.
Nitrogen Generators by Terra Universal
Print Copy Copied
High-Capacity Nitrogen (N2) Applications
Nitrogen's inert properties make it a necessity for many industries. It's widely used for drying, purging, cooling, and to create protective barriers between sensitive parts and the damaging environment.
In pharmaceutical or life science laboratories, N2 works within desiccators and glove boxes to protect moisture-sensitive parts and samples. Other industries that rely on the drying properties of N2 are semi-conductor and electronics.
Food packaging lines are a good example of where high volumes of nitrogen are used to protect consumables from spoiling by contact with oxygen. The N2 creates a protective barrier. The same idea can be applied to flammable raw materials: contact with oxygen would be harmful.
Nitrogen is incorporated into heat-treating, welding and laser-cutting processes in the steel and aerospace industries. For chemicals production, pressurized N2 can propel liquids through pipelines and help remove volatile organic chemicals (VOCs) from manufacturing environments.
Nitrogen is the most abundant gas present in the air we breathe. By separating it into a pure gas, many useful applications have been developed. Generating large quantities of N2 as needed is a convenient, cost-effective practice.
N2 Generator System Components:
- 1. 200-gallon compressed air holding tank
- 2. 60-gallon nitrogen holding tank
- 3. Hydrocarbon filter
- 4. Two (2) nitrogen membranes and one (1) exit filter
- 5. Coalescing pre-filters
- 6. High-volume rotary screw compressor
Specifications
- Nitrogen Purity: 99%+ (depending on inlet pressure)
- Power Requirements (compressor): 208/230/460 VAC, 60Hz, 3-phase, prewired for 460V operation
- Power Requirements (generator): 120VAC / 240VAC
- Generator Max. Power: 4kW
- Footprint: 60"W x 44"D (generator); 90W" x 72"D (generator and compressor)
- Maximum height: 96"
- Generator Tank Capacity N2 holding tank: 60 gal.; Compressed air storage: 200 gal.
- Compressor* pressure range: 217 psig
- Compressor* Capacity: 157 ACFM
- Compressor* Motor Power: 50 HP
- Compressor* Dimensions: 78.375"L x 40.5"W x 67"H
- Compressor Weight: 2,458 lb
High-Capacity Nitrogen Membrane Performance
| Test # | Inlet Pressure (psi) | Pressure Entering N2 Membrane (psi) | Pressure in N2 Holding Tank (psi) | Outlet Flow Rate (cfm) | % N2 | Comments |
|---|---|---|---|---|---|---|
| 1 | 120 | 120 | 25 | 13 | 99 | 0% RH |
| 2 | 120 | 120 | 35 | 18 | 99 | 0% RH |
| 3 | 120 | 120 | 80 | 30 | 99 | 0% RH |
| 4 | 120 | 100 | 60 | 18 | 99 | 0% RH |
| 5 | 120 | 100 | 50 | 15 | 99 | 0% RH |
| 6 | 120 | 90 | 50 | 20 | 99 | 0% RH |
| 7 | 120 | 90 | 40 | 13 | 99 | 0% RH |

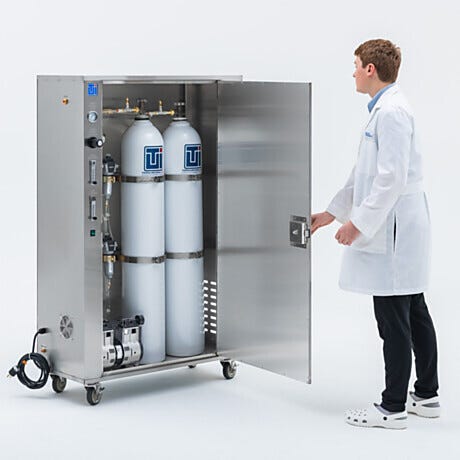

Portable Nitrogen Generator, Medium Size for Multiple Desiccator Cabinets or Gloveboxes
Nitrogen membrane separation technology produces up to 99% pure dry nitrogen, eliminating the need for expensive nitrogen tank services. This medium size N2 generator provides output suitable for two 10-chamber desiccators or two 4-port gloveboxes.

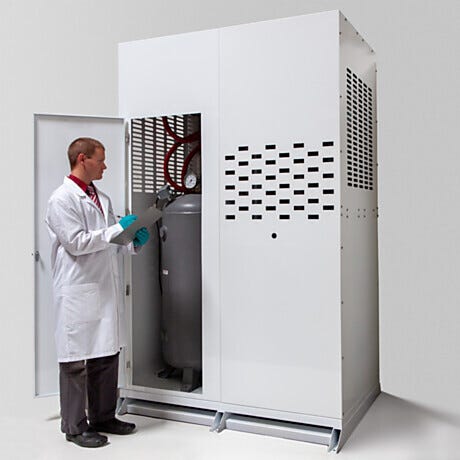

High-Capacity Nitrogen Generator
High-capacity nitrogen generator system includes holding tank for a continuous gas supply without continuous operation (order compressor separately).
Nitrogen Membrane Airflow Diagram
No power required! Simply connect to compressed air supply. Nitrogen membranes and filters separate oxygen, moisture, and particles to produce up to 99.5% pure medical grade Nitrogen gas.
Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
Highest Standards For Nitrogen Generators
Terra’s Laboratory Nitrogen Generators are designed and built to the highest standards required by defense, semiconductor, and medical industries for long-term reliability and protection against damage, injuries, and electrical hazards.
High Pressure Nitrogen
Atlas Copco NGM Series Nitrogen Generators are ideal for laser cutting applications requiring high pressure nitrogen with lower purity levels
USP Compliant Medical Grade Nitrogen
Terra's Nitrogen gas generator is third-party certified to USP 30 NF 25 for ≥ 99% pure medical grade nitrogen
Nitrogen Generators by Terra Universal
Terra's Nitrogen Generators- A Reliable Nitrogen Source for Desiccator Cabinets
- ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation
- Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
- Laboratory Nitrogen Generator
- High-Capacity Nitrogen Generator
- Maximum Drying Power in a Nitrogen Desiccator Cabinet
- HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas
- HG Mini PEM Hydrogen Generators by LNI SwissGas
- Terra's BioSafe® Sliding Glides
- HG Basic PEM Hydrogen Generators by LNI Swissgas
- HG Pro PEM Hydrogen Generators by LNI SwissGas
- Pressure Swing Absorption (PSA) and Membrane Technology of on-site Nitrogen Generators by Atlas Copco
304 stainless steel construction with 3 different sizes of portable nitrogen generators | 2700-PP-01 displayed Terra's Nitrogen Generators On-site nitrogen generation eliminates the need for third-party suppliers, offering control over the quantity and quality of nitrogen produced. Nitrogen generators operate using one of two key technologies: membrane-based or Pressure Swing Adsorption systems.
Nitrogen generators can be installed to desiccator cabinets to eliminate reliance on bulky gas canisters | 2700-11B displayed A Reliable Nitrogen Source for Desiccator Cabinets Available in three several capacities, nitrogen generators provide a reliable source of up to 99% pure nitrogen for purging desiccator cabinets, glove boxes and other process enclosures.
Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks | 3504-02A displayed ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks with heavy equipment on the workspace, such as this Smart® Desiccator Cabinet connected to a Nitrogen Generator.
Stainless steel Smart® Glove Box mounted on BioSafe® automatic height adjusting table (28"-43"H), with Nitrogen Generator | 3305-34A displayed Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
Nitrogen Generators are available in several capacities to provide a reliable source of clean nitrogen up to 99% pure Laboratory Nitrogen Generator Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
High-capacity nitrogen generator system includes holding tank for a continuous gas supply | 2701-32 displayed High-Capacity Nitrogen Generator High-capacity nitrogen generator system includes holding tank for a continuous gas supply without continuous operation (order compressor separately).
Maximum Drying Power in a Nitrogen Desiccator Cabinet In this video we experiment and demonstrates the rapid drying power of the Terra's desiccator cabinet and nitrogen generator.
HG Pro 4000 PEM Hydrogen Generators by LNI Swissgas with a 4000 cc/min flowrate, a 16 bar (232 psi), a 20L tank, a multilayer PEM cell and a high pressure GLS | 7200-PP-03 displayed HG Pro 4000 PEM Hydrogen Generators by LNI SwissGas
HG Mini PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 1L tank,, and an electrolytic cell with a polymeric membrane | 7200-PP-01 displayed HG Mini PEM Hydrogen Generators by LNI SwissGas
BioSafe Sliding Glide with PTFE bottom and 316L Stainless Steel stem | 2807-07 displayed Terra's BioSafe® Sliding Glides See how Terra's BioSafe® Sliding Glides are expertly designed to help you move equipment and furniture effortlessly while protecting your floors. These glides ensure smooth movement without causing abrasive damage like scratches, scuffs, or microfractures. Ideal for making furniture and equipment relocation easy, while preserving the integrity of your surfaces!
HG Basic PEM Hydrogen Generators by LNI Swissgas with up to 300 cc/min flowrate, 10 bar (145 psi), a 3L tank, and an electrolytic cell with a polymeric membrane | 7200-PP-02 displayed HG Basic PEM Hydrogen Generators by LNI Swissgas
HG Pro PEM Hydrogen Generators have a 1,500 cc/min flowrate, up to 16 bar (232 psi), 3L tank, a multilayer PEM cell, and a two-column drying PSA system | 7200-PP-06 displayed HG Pro PEM Hydrogen Generators by LNI SwissGas
Cost-efficient on-site Pressure Swing Absorption (PSA) and Membrane Technology Nitrogen Generators by Atlas Copco for use in various applications | 1989-PP-03 displayed Pressure Swing Absorption (PSA) and Membrane Technology of on-site Nitrogen Generators by Atlas Copco
