Terra Part # 1696-05A
$15,233
Usually ships in 35-41 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1696-05A
51727

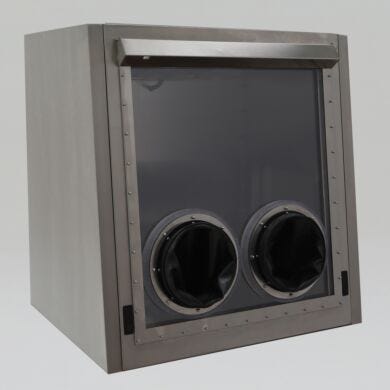

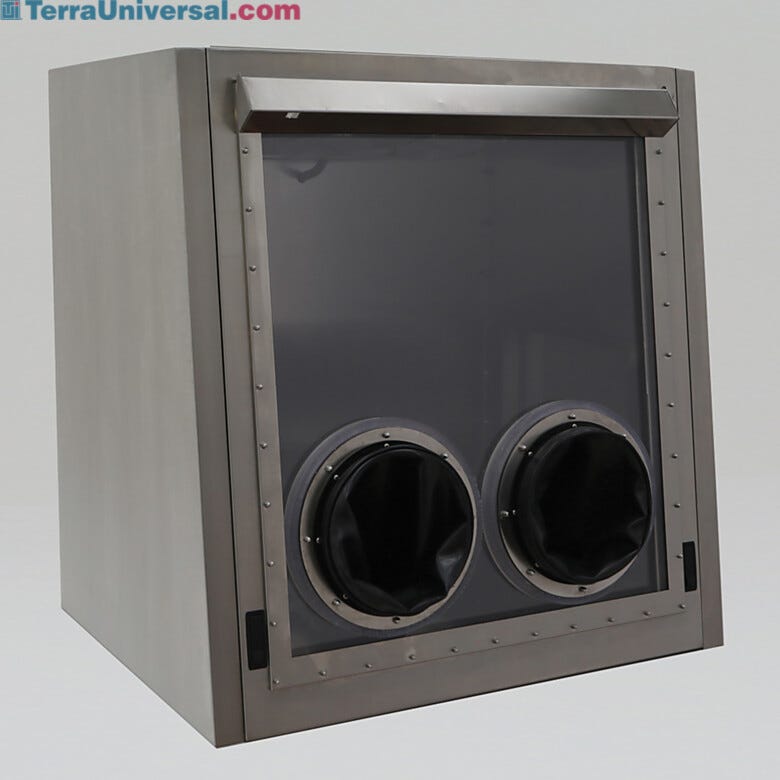

Glove Box; Insulated, 304 Stainless Steel, 41" W x 33" D x 43" H, 2 Glove Ports, Full Tilt-Up Window, 120 V
  • Includes fluorescent illuminator
  • Features two 10" diameter ports that provide a wide range of motion
  • Double-glazed polycarbonate tilt-up viewing windows provide visibility of work-in-progress and access to insert equipment or supplies
  • For optional use with Constant Temperature Control system 1694-76 or 1694-77
  • Double-walled, insulated chamber boosts thermal efficiency to create stable process temperatures.

Window Material: Polycarbonate

Number of Glove Ports: 2

Access: Full Tilt-Up Window

Maximum Working Height: 38.82"

Chamber Width: 41"

Chamber Depth: 33"

Chamber Height: 43"

Material: 304 Stainless Steel

Unit of Measure: EA

Electrical Specifications: 120 V, 0.15 A, 18 W, 1 Ph, 50/60 Hz

Weight, Product: 584 lb

Dimensions, Product: 41" W x 33" D x 43" H

Weight, Shipping: 929 lb

Dimensions, Shipping: 46" W x 42" D x 58" H

Package Type: Crate

Buy Accessories
  1. The self-closing Iris Port Adapter attaches to Terra's 10"-diameter glove port (order port separately) | 1694-54 displayed
    $585
    Increase Down Increase Up
  2. Terra’s products are made of cleanroom compatible, top tier hardware; designed and tested to guarantee the highest quality, durability, and craftsmanship | 1694-53 displayed
    $290
    Increase Down Increase Up
  3. Exterior of 304 stainless steel glove port; 12” diameter round, with neoprene gaskets | 1672-08-2 displayed
    $1,202
    Increase Down Increase Up
  4. Exterior of polypropylene glove port with 9”-diameter round cut out and neoprene gaskets | 1694-55 displayed
    $698
    Increase Down Increase Up
  5. Glovebox Port; PVC, 10" Diameter, Round
    $370
    Increase Down Increase Up
  6. Stand; Powder Coated Steel, for Insulated Glovebox with Full Window
    $1,015
    Increase Down Increase Up
  7. Provides a stream of static-neutralizing ions to protect ESD-sensitive components. | 2005-16A displayed
    $940
    Increase Down Increase Up
  8. Humidity sensor allows economic set point control | 9500-06 displayed
    $1,538
    Increase Down Increase Up
  9. Terra's Smart® IsoDry® Nitro-Watch™ logs data at user specified intervals: RH, temp, door open/close, purge on/off, and sensor removal/attachment
    $1,903
    Increase Down Increase Up
  10. Monitors and controls dew/frost point | 1401-94 displayed
    $9,359
    Increase Down Increase Up
  11. Humidifier provides inline humidification of nitrogen | 9081-02 displayed
    $3,756
    Increase Down Increase Up
  12. Ideal source for purge gas in moisture- sensitive storage and processing applications | 9082-00 displayed
    Dryex™ 80 Gas Dryer Only 3 left in stock
    $8,878
    Increase Down Increase Up
  13. Designed to provide reliable gas drying without the hassle and expense | 9082-01 displayed
    Dryex™ 10 Gas Dryer Only 4 left in stock
    $4,699
    Increase Down Increase Up
  14. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Only 4 left in stock
    $4,934
    Increase Down Increase Up
  15. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-83 displayed
    $185
    Increase Down Increase Up
  16. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-83 displayed
    $201
    Increase Down Increase Up
  17. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene | 1689-02 displayed
    $236
    Increase Down Increase Up
  18. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  19. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  20. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-07 displayed
    $597
    Increase Down Increase Up
  21. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1690-91 displayed
    $178
    Increase Down Increase Up
  22. Shown with hand glove portion | 1671-08 displayed
    $554
    Increase Down Increase Up
  23. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-50 displayed
    $382
    Increase Down Increase Up
  24. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1670-50 displayed
    $362
    Increase Down Increase Up
  25. Glovebox sleeves, dipped in butadyl
    $157
    Increase Down Increase Up
  26. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $675
    Increase Down Increase Up
  27. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $649
    Increase Down Increase Up
  28. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $650
    Increase Down Increase Up
  29. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $22
    Increase Down Increase Up
  30. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $23
    Increase Down Increase Up
  31. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box. | 1671-56 displayed
    $23
    Increase Down Increase Up
  32. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  33. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  34. Feature raised diamond pattern for superior grips | 1671-50 displayed
    $2
    Increase Down Increase Up
  35. Bellows eyepiece for microscopes | 1681-53 displayed
    $259
    Increase Down Increase Up
  36. Ideal for glovebox isolators and other confined, difficult-to-clean chambers. | 3305-90 displayed
    $544
    Increase Down Increase Up
  37. Shown mounted on a Series 300 glove box. | 1694-75 displayed
    $8,294
    Increase Down Increase Up
  38. Shown mounted on a Series 300 glove box. | 1694-75 displayed
    $8,294
    Increase Down Increase Up
  39. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    $245
    Increase Down Increase Up
  40.  | 2004-32 displayed
    $259
    Increase Down Increase Up
  41. Power cable port protects the isolator environment while allowing for electronic equipment | 2900-70 displayed
    $345
    Increase Down Increase Up
  42. Cordgrip connector plastic .599 inches hole size straight through black | 3305-70 displayed
    $68
    Increase Down Increase Up
  43. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  44. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  45. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  46. Equipment Testing
    Request Quote
    Increase Down Increase Up
  47. Automatic Relief/Bleed valve in stainless steel. Product details may differ. | 1606-60 displayed
    $402
    Increase Down Increase Up
  48. Designed to accommodate a variety of sleeve brands and sizes | 1694-52 displayed
    $365
    Increase Down Increase Up

Insulated Glove Boxes (Constant Temperature Isolators)

Standard Features

  • A Insulated Double-Wall
    Double-wall, insulated glove box isolator boosts thermal efficiency to create stable process temperatures and decrease the cost of heating and cooling cycles.
  • B Powder-Coated Steel Stand with Rolling Casters
    Heavy-duty powder-coated steel stand with rolling casters for hassle-free mobility.
  • D Full View Tilt-Up Window
    Double-glazed polycarbonate viewing windows provide visibility of work-in-progress; tilts up for easy access to equipment and supplies (select partial for full-height window design).
  • E Externally-Mounted Lighting
    Externally mounted fluorescent illuminator. Energy-efficient LED lighting is also available for more concentrated lighting.

Optional Features

  • 1 Range of Glove Choices
    Many gloves available, including one-piece neoprene (shown).
  • 2 Temperature Control System
    Constant-temperature control system provides stable heating and cooling.
  • 3 Inert Gas Airlock
    Optional inert gas airlock provides a controlled environment for moving samples into and out of the glovebox.
  • 4 Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.

Not Shown: Automatic stainless steel RB valve

Not Shown: Range of Options - Dew point and oxygen level controls, partial view tilt up window, and port caps

Temperature Controlled Glove Boxes

  • Refrigerated glove box for pharmaceutical research and development Refrigerated Glove Box for Pharmaceutical Research and Development
  • Refrigerated glove box for testing electronics under different atmospheres and temperatures Refrigerated Glove Box for Testing Electronics Under Different Atmospheres and Temperatures
  • stainless steel refrigerated glove box with full-view tilt-up window Full-View Tilt-Up Window for Convenient Access
  • Interior view of refrigerated stainless steel glove box Configure Accessories to Meet Your Requirements
  • Adjustable ULPA Filtration Enhances Personnel and Product Protection

Features and Benefits

View Glovebox Dimensions

More Information

Front PanelA in. (mm)D in. (mm)E in. (mm)F in. (mm)G in. (mm)H in. (mm)I in. (mm)M in. (mm)N in. (mm)
Full Window28 (711)33 (838)37 (940)41 (1014)35 (889)43 (1092)14 (356)12 (305)
Partial Window31 (787)37 (940)28.25 (718)37 (940)12.81 (325)39 (991)14 (356)12 (305)14 (356)
portable nitrogen generator<br/>

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Full-View Tilt-Up Window for Convenient Access

Corrosion-resistant stainless steel gas struts on both sides of the tilt-up window use compressed nitrogen to lift and hold open the tilt-up window. A one-piece, thermoplastic gasket around the chamber opening compresses to form a tight seal when the window is closed and latched.

Configure Accessories to Meet Your Requirements

Customize your glove box with add-on systems to meet your application requirements. Popular accessories include refrigeration, ion bars, ULPA filtration, automatic nitrogen gas purge, inert air locks, cord pass-throughs, and more.

External Fluorescent Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for light bulb maintenance or replacement.

Double-Wall Insulated Chamber Boosts Thermal Efficiency

Constant Temperature Glove Boxes use double-wall stainless steel construction with 2" thick polyurethane insulation for thermal stability (order refrigeration module separately).

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Integrated Constant Temperature Control Systems

Optional temperature control systems can be integrated to refrigerated glovebox isolators to provide stable heating and cooling cycles. HEPA or ULPA filtration and gas purge systems can also be configured for an inert, low particle environment.

Ergonomic Push-Button Latches Effortlessly Pop Open Tilt-Up Window

Ergonomic push-button latches and gas struts effortlessly pop open and hold up the front window to simplify cleaning and allow transfer of bulky equipment within the spacious interior.

Protein Analysis Isolator

A refrigeration unit and nitrogen purge system facilitate protein analysis of meat samples in an inert gas environment down to -20°C. The 304 stainless steel chamber features double-wall construction with 4" of polyurethane insulation for optimal thermal efficiency. A microscope bellows is included.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Adjustable ULPA Filtration Enhances Personnel and Product Protection
    Optional ULPA filtration allows for open- or closed-loop circulation. The versatile system removes airborne particulates and powders inside the chamber to maintain a Class 100 ultra-low particle environment.
  • Relative Humidity and Temperature Data Logger
    Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
  • High Caliber Hardware
    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Glove Box Stand, Powder-Coated Steel
    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Laboratory Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Many Air Lock Designs!
    Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window).
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Constant-Temperature Control System
    Refrigeration system maintains constant temperature down between 120°C and -5°C, with PLC-based program cycling (shown installed on insulated glove box).
  • Glove Ports with Detachable Iris Port and Covers
    Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities
  • Hinged Stainless Steel Glove Port and Port Cover with Rubber Gaskets
    Stainless steel glove port covers optimize operations with controlled environment gloveboxes. A rubber lining on the inside helps tightly seal and insulate the glovebox. Optional hinges eliminate hassle of misplacing port covers and streamline workflow.
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Bellows Eyepiece Interface
    This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals
    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging
    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.

Hide
You need at least 2 products to compare Compare Clear All
Compare Products
