Product Details
Product Details
Insulated Glove Boxes (Constant Temperature Isolators)
Standard Features
-
A Insulated Double-WallDouble-wall, insulated glove box isolator boosts thermal efficiency to create stable process temperatures and decrease the cost of heating and cooling cycles.
-
B Powder-Coated Steel Stand with Rolling CastersHeavy-duty powder-coated steel stand with rolling casters for hassle-free mobility.
-
D Full View Tilt-Up WindowDouble-glazed polycarbonate viewing windows provide visibility of work-in-progress; tilts up for easy access to equipment and supplies (select partial for full-height window design).
-
E Externally-Mounted LightingExternally mounted fluorescent illuminator. Energy-efficient LED lighting is also available for more concentrated lighting.
Optional Features
-
1 Range of Glove ChoicesMany gloves available, including one-piece neoprene (shown).
-
2 Temperature Control SystemConstant-temperature control system provides stable heating and cooling.
-
3 Inert Gas AirlockOptional inert gas airlock provides a controlled environment for moving samples into and out of the glovebox.
-
4 Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH ControlTerra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
Not Shown: Automatic stainless steel RB valve
Not Shown: Range of Options - Dew point and oxygen level controls, partial view tilt up window, and port caps
Temperature Controlled Glove Boxes
-
Refrigerated Glove Box for Pharmaceutical Research and Development
-
Refrigerated Glove Box for Testing Electronics Under Different Atmospheres and Temperatures
-
Full-View Tilt-Up Window for Convenient Access
-
Configure Accessories to Meet Your Requirements
-
Adjustable ULPA Filtration Enhances Personnel and Product Protection
Refrigerated Glove Box for pharmaceutical research and development; stainless steel, insulated double-wall design, with full-view tilt-up window | 1696-05A displayed
Refrigerated Glove Box for Pharmaceutical Research and Development
This refrigerated glove box for pharmaceutical research and development features a durable stainless steel construction with insulated double-walls to minimize temperature fluctuations. The full-view tilt-up window provides easy access to move large equipment and clean the chamber’s interior.
Refrigerated glove box for testing electronics under different atmospheres and temperatures; configured with automatic nitrogen gas humidity control system | 1696-05A displayed
Refrigerated Glove Box for Testing Electronics Under Different Atmospheres and Temperatures
Refrigerated stainless steel glove box designed for testing electronics under different atmospheres and temperatures. The system is configured with Terra’s Dual Purge™ and NitroWatch™ which automatically purges the chamber with dry nitrogen gas to control relative humidity.
Stainless steel refrigerated glove box with full-view tilt-up window and automatic nitrogen gas purge system | 1696-05A displayed
Full-View Tilt-Up Window for Convenient Access
Corrosion-resistant stainless steel gas struts on both sides of the tilt-up window use compressed nitrogen to lift and hold open the tilt-up window. A one-piece, thermoplastic gasket around the chamber opening compresses to form a tight seal when the window is closed and latched.
Refrigerated double-wall stainless steel glove box to test electronics; with ionizing bar, ULPA filtration system, and automatic nitrogen gas purge system | 1696-05A displayed
Configure Accessories to Meet Your Requirements
Customize your glove box with add-on systems to meet your application requirements. Popular accessories include refrigeration, ion bars, ULPA filtration, automatic nitrogen gas purge, inert air locks, cord pass-throughs, and more.
Refrigerated and insulated stainless steel glovebox, backside view; configured with ULPA filtration system and automatic nitrogen gas purge system | 1696-05A displayed
Adjustable ULPA Filtration Enhances Personnel and Product Protection
Optional ULPA filtration allows for open- or closed-loop circulation. The versatile system removes airborne particulates and powders inside the chamber to maintain a Class 100 ultra-low particle environment.
Features & Benefits
Features and Benefits
View Glovebox Dimensions
Print
Copy Copied
More Information
| Front Panel | A in. (mm) | D in. (mm) | E in. (mm) | F in. (mm) | G in. (mm) | H in. (mm) | I in. (mm) | M in. (mm) | N in. (mm) |
|---|---|---|---|---|---|---|---|---|---|
| Full Window | 28 (711) | 33 (838) | 37 (940) | 41 (1014) | 35 (889) | 43 (1092) | 14 (356) | 12 (305) | — |
| Partial Window | 31 (787) | 37 (940) | 28.25 (718) | 37 (940) | 12.81 (325) | 39 (991) | 14 (356) | 12 (305) | 14 (356) |
Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.
Positive Pressure Isolation vs. Biohazard Containment
Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.
Products Tailored to Your Cleanroom Environment
Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

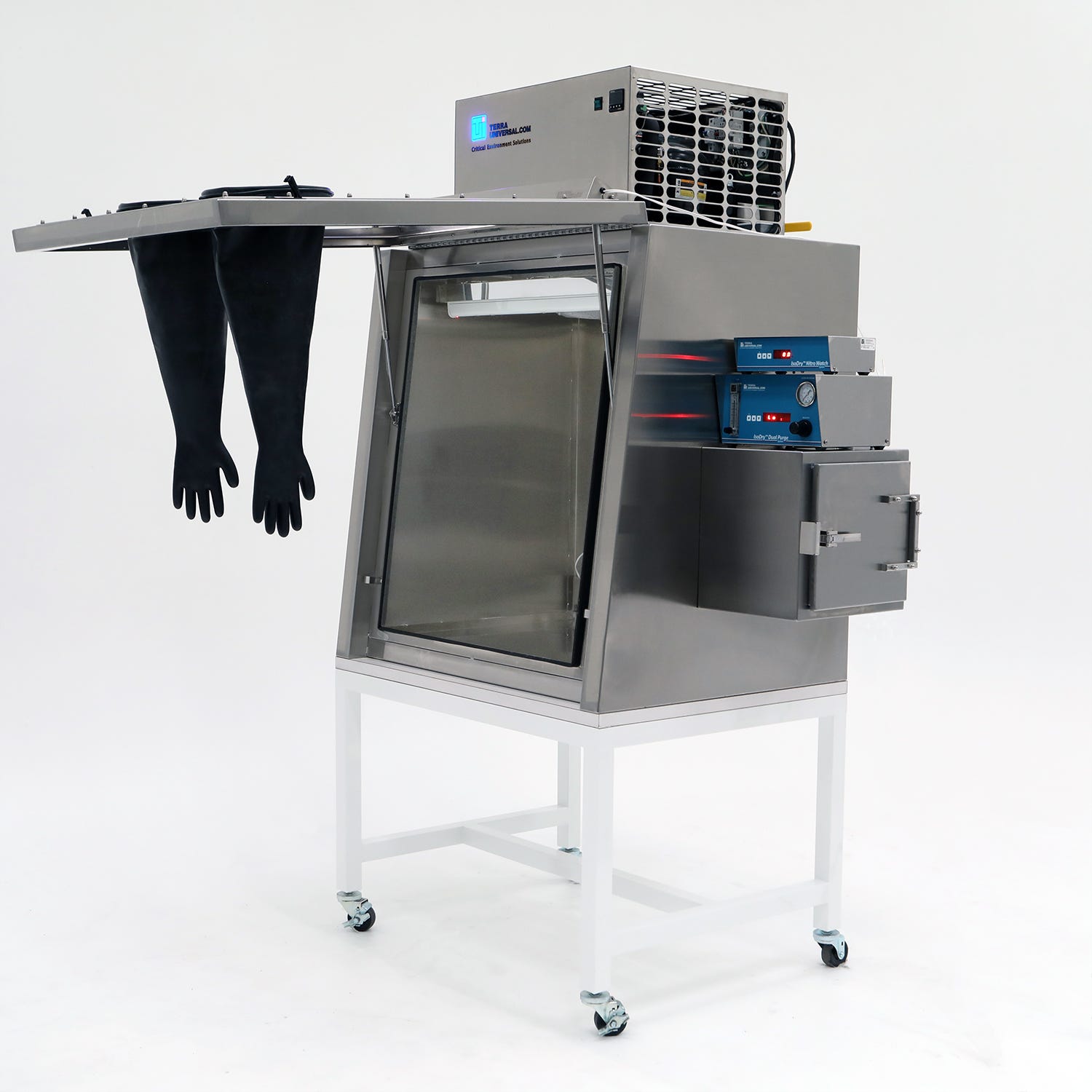

Full-View Tilt-Up Window for Convenient Access
Corrosion-resistant stainless steel gas struts on both sides of the tilt-up window use compressed nitrogen to lift and hold open the tilt-up window. A one-piece, thermoplastic gasket around the chamber opening compresses to form a tight seal when the window is closed and latched.
Configure Accessories to Meet Your Requirements
Customize your glove box with add-on systems to meet your application requirements. Popular accessories include refrigeration, ion bars, ULPA filtration, automatic nitrogen gas purge, inert air locks, cord pass-throughs, and more.
External LED Illuminator
Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.

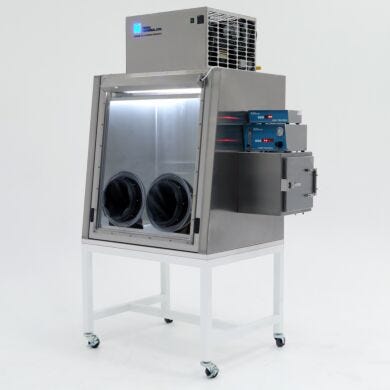

Double-Wall Insulated Chamber Boosts Thermal Efficiency
Constant Temperature Glove Boxes use double-wall stainless steel construction with 2" thick polyurethane insulation for thermal stability (order refrigeration module separately).
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Integrated Constant Temperature Control Systems
Optional temperature control systems can be integrated to refrigerated glovebox isolators to provide stable heating and cooling cycles. HEPA or ULPA filtration and gas purge systems can also be configured for an inert, low particle environment.
Ergonomic Push-Button Latches Effortlessly Pop Open Tilt-Up Window
Ergonomic push-button latches and gas struts effortlessly pop open and hold up the front window to simplify cleaning and allow transfer of bulky equipment within the spacious interior.
Protein Analysis Isolator
A refrigeration unit and nitrogen purge system facilitate protein analysis of meat samples in an inert gas environment down to -20°C. The 304 stainless steel chamber features double-wall construction with 4" of polyurethane insulation for optimal thermal efficiency. A microscope bellows is included.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Service Provider
Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis
Custom Product Designs
Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Adjustable ULPA Filtration Enhances Personnel and Product Protection
Optional ULPA filtration allows for open- or closed-loop circulation. The versatile system removes airborne particulates and powders inside the chamber to maintain a Class 100 ultra-low particle environment. -
Relative Humidity and Temperature Data Logger
Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data. -
High Caliber Hardware
Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship. -
Glove Box Iris Port Adapter for 10" Ports
The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately). -
Glove Box Stand, Powder-Coated Steel
Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor -
Laboratory Nitrogen Generator
Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes. -
Many Air Lock Designs!
Air locks, available in many sizes, materials to match glove box chamber, prevent cross-contaminaton during parts transfer (shown: BioSafe® double-wall stainless steel with all-welded seams, optional window). -
Neoprene Accordion Sleeve Assemblies
Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available). -
Constant-Temperature Control System
Refrigeration system maintains constant temperature down between 120°C and -5°C, with PLC-based program cycling (shown installed on insulated glove box). -
Glove Ports with Detachable Iris Port and Covers
Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities -
Hinged Stainless Steel Glove Port and Port Cover with Rubber Gaskets
Stainless steel glove port covers optimize operations with controlled environment gloveboxes. A rubber lining on the inside helps tightly seal and insulate the glovebox. Optional hinges eliminate hassle of misplacing port covers and streamline workflow. -
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator
Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply. -
Bellows Eyepiece Interface
This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering. -
Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change. -
Data Logging with 113,000 Readings at User Defined Intervals
Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new. -
Plug & Play Data Logging
Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
Shop by Image
Products similar to this one
-
Usually Ships in 20 - 24 days
-
Glovebox; Series 600, 304 Stainless Steel, 37.5" W x 29" D x 39" H, Tempered Glass Window, 120 V$6,905Usually Ships in 35 - 43 days
-
Biosafety Cabinet; SEA-III Class III, 316L SS, 95" W x 25" D x 76" H, 4 Glove Ports, Germfree, 120 VRequest QuoteUsually Ships in 22 - 28 days
Other products you may find relevant
-
Group of 21 productsErgoHeight® Electric Height Adjustable Cleanroom Workstations FromAs low as $1,659Some ship in 1 - 3 days
-
Group of 18 productsElite and Eton Series Ergonomic Laboratory Chairs by BioFit FromAs low as $377Some ship in 5 - 7 days
-
Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H$4,335Usually Ships in 3 - 5 days
-
Some ship in 1 - 3 days
-
Some ship in 20 - 25 days
-
Usually Ships in 1 - 3 days
-
Usually Ships in 8 - 14 days
-
Usually Ships in 20 - 24 days
-
Usually Ships in 0 - 2 days
-
Usually Ships in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 0 - 2 days
-
Some ship in 1 - 3 days
-
Group of 10 productsSure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite FromAs low as $1,043Some ship in 3 - 5 days
-
Group of 8 productsSure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite FromAs low as $1,033Some ship in 8 - 12 days
-
Some ship in 8 - 12 days
-
Some ship in 8 - 12 days
-
Some ship in 8 - 12 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 8 - 14 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
-
Some ship in 0 - 2 days
-
Some ship in 1 - 3 days
-
Some ship in 1 - 3 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.

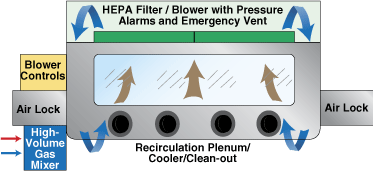

Photoresist Deposition Isolator
Application Requirements:
- Temperature: 68°F (20°C) constant (requires cooling)
- Humidity: 5 - 10% RH
- Process Gas: Various gas mixtures
- Pressure: 0.1" WG
- Access: Accordion sleeve gloves; dual-side air locks; Bottom clean-out
- Particle Control: Class 10 conditions, maintained by laminar flow of HEPA-filtered gas, recirculated via sub-floor & rear plenum chambers
Designed to provide a clean, moisture-free environment for applying photoresist, this isolator is large enough to accommodate wafer spinners used in the deposition process.
It incorporates a high-volume process gas mixer that controls percentages of two process gases. A three-sided plenum design recirculates the process gas through dual filter/fan modules for HEPA filtration (99.99% efficient @ 0.3µm particles). Magnehelic® gauges and backpressure alarms ensure filter/fan efficiency. In addition, the bottom plenum includes cooling coils that compensate for heat-generating process equipment to ensure a constant temperature of 68°F (20°C).
Dual-side air locks afford easy loading and unloading of wafers. The radius corners of all internal seams allow easy wipe-down and eliminate cracks where particles can collect.

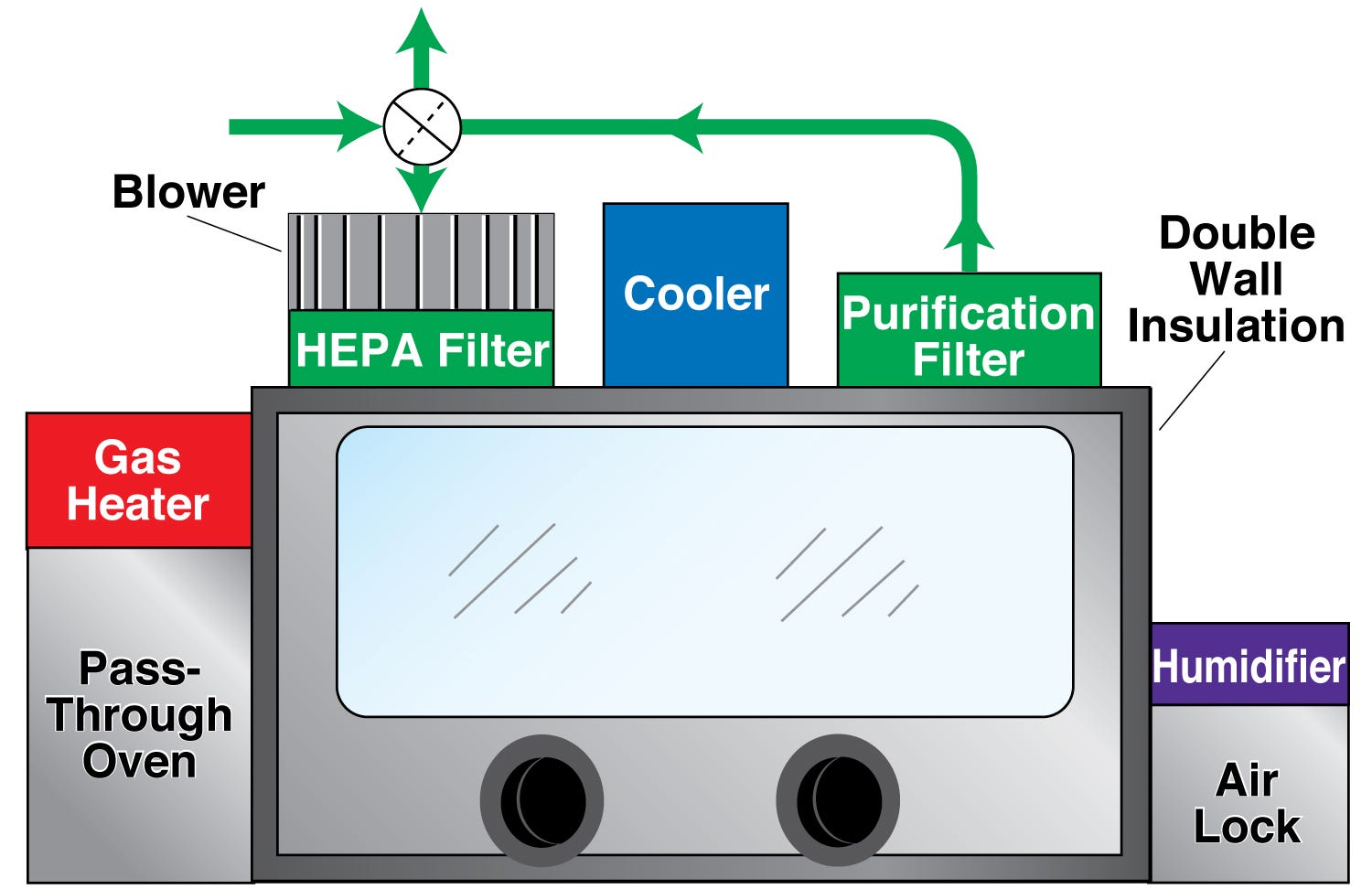

Material Stress Testing Glove Box Isolator
Application Requirements:
- Temperature: Stable, ± 1°F (±18°C) for 30 min. HOLD temperatures from -20°F to +140°F (-29°C to 60°C); Pass-through oven heating to 300°C
- Humidity: 5 to 95% RH, ± 2%
- Process Gas: Air
- Access: Neoprene gloves Hinged port covers for easy glove changes with no impact on chamber environment Air lock for product removal
- Particle Control: Recirculation through HEPA filter (@ >= 4 air changes/minute) to meet class 10 requirements
This glove box isolator is designed for accelerated-life testing of elastomers, fiber composites, and other materials over a broad range of temperature, -20°F to +140°F (-29°C to 68°C) and humidity (5 to 95% RH).
Double-wall construction is required on all sides. Viewing windows are double-pane polycarbonate for strength and temperature resistance. 304 Stainless steel walls include 4" (102 mm) of polyurethane insulation.
A pass-through oven on one side of the processing chamber allows degassing at temperatures up to 300°C, and an opposing-side air lock allows parts removal. A closed-loop recirculation module continuously recycles air through a HEPA filter (rated 99.99% efficient @ 0.3µm particles) and an activated charcoal filter for removal of organic vapors.
A large chamber allows multiple-operator access, and hinged glove ports locking port caps facilitate quick glove change-outs without contamination of the chamber environment.
Protein Analysis Glove Box Isolator
Application Requirements:
- Temperature: -20°C
- Humidity: < 5% RH
- Process Gas: Nitrogen
- Pressure: 1" WG positive pressure
- Particle Control: Class 100 particle conditions
- Access: Air lock pass-through. Accordion-sleeve gloves. Microscope bellows to accommodate microscope optics
This glove box isolator is used for protein analysis of meat samples in a refrigerated, inert atmosphere.
It includes a refrigeration module capable of maintaining temperatures as low as -20°C. The 304 stainless steel chamber features double-wall construction with 4" (102 mm) of polyurethane insulation for optimal thermal efficiency. A humidity control system, including a variable purge controller and automatic humidity controller, regulates the nitrogen process gas to maintain an internal moisture level as low as 2%RH.
A microscope bellows accommodates the protein analysis equipment. The side air lock allows convenient introduction of samples, and tempered glass viewing window can be tilted open for easy removal of large equipment.
Stable Temperature/Humidity Containment Glovebox

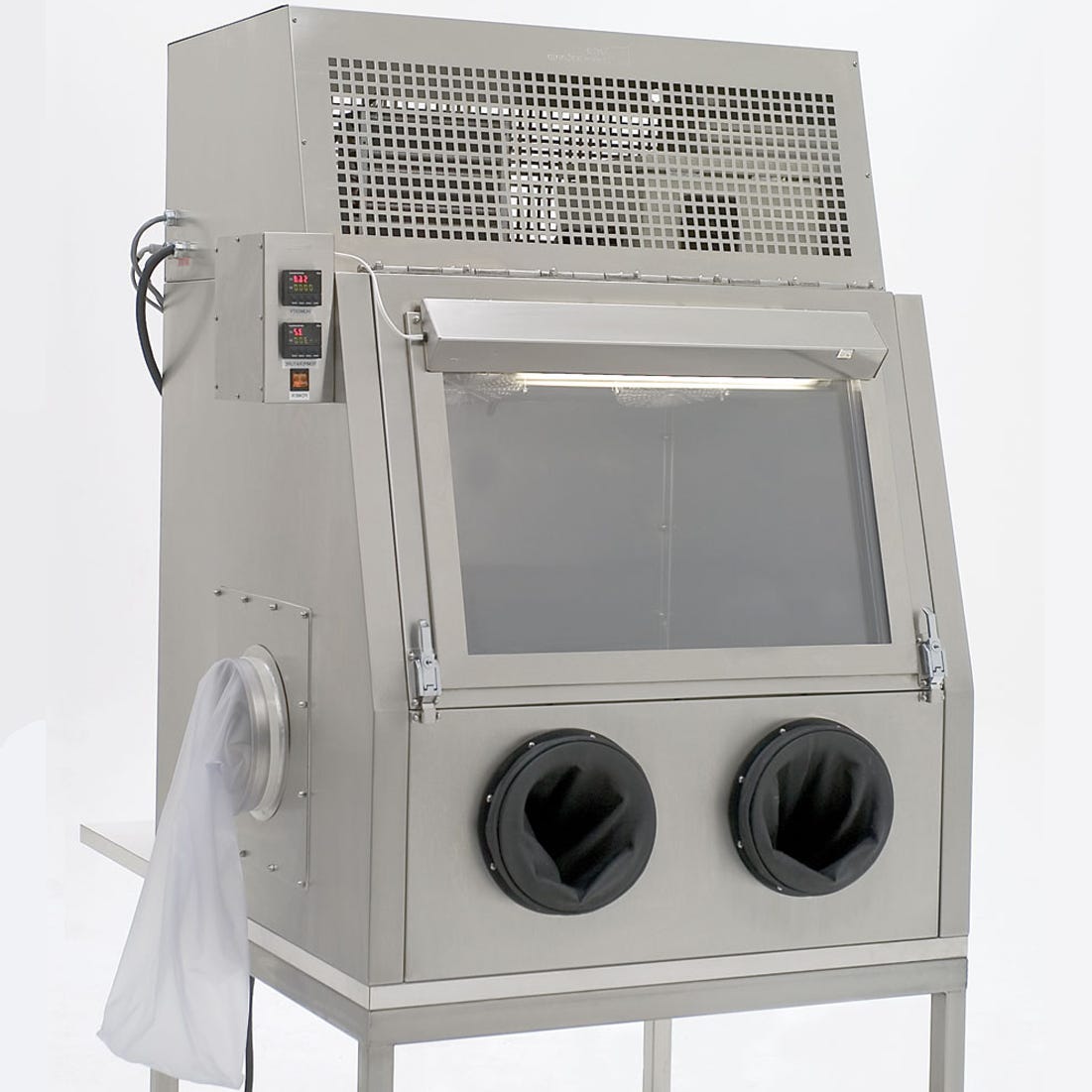

This glovebox safely contains potential biohazards while providing a stable environment over a broad range of temperatures (-2°C to 36°C) tested at various humidity levels between 0 and 75% RH. The stainless steel chamber features 2" (51 mm) of insulation and internal dimensions of 33" x 33" x 33" (838 mm 838 mm x 838 mm), overall dimensions: 37"W x 37"D x 52"H (940 mm x 940 mm x 1321 mm).

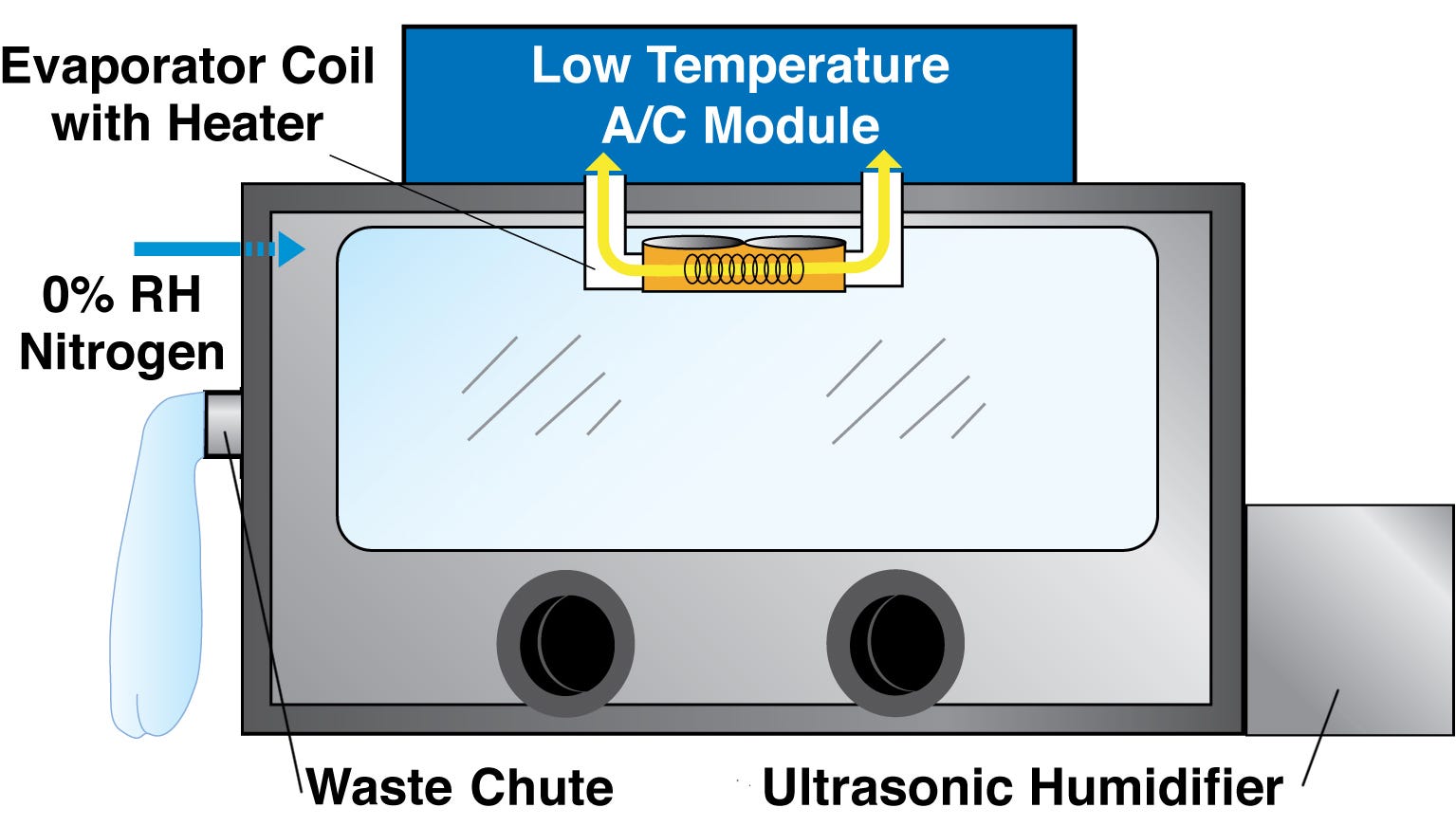

A high-capacity air conditioner holds a stable temperature down to -2°C, and a 4000W heater integrated into the evaporator coil achieves temperature stability to 36°C. The dry nitrogen feed gas provides a low %RH; an ultrasonic humidifier provides elevated RH to 74% without moisture condensation. The chamber includes a bag-in/bag-out port that can be used for transferring waste out of the chamber. The large swing-up access door allows easy cleaning of the chamber.
Contact a Terra Product Specialist to discuss your applications.
