Terra Part # 3306-89
$10,486
Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3306-89
61732
Glovebox; Negative Pressure Exhaust, Acrylic, 35.5" W x 27" D x 30" H, 2 Glove Ports, Left-Side Air Lock, Series 210
  • Maintains vacuum levels down to 29.9 "Hg
  • Left-hand airlock included
  • Includes 8” (203 mm)-diameter acrylic glove ports
  • Dual mini ball valves and vacuum gauge allows monitor and control of vacuum and backfill
  • Dual swing doors allow convenient chamber sealing with glove ports in place
  • Includes nylon leveling feet
  • Safe for intermittent vacuum below 29"; damage to welds may result under continuous full-vacuum pressure
  • Select desired gloves and vacuum/purge controls separately

Chamber Width: 30"

Chamber Depth: 22"

Chamber Height: 22.5"

Maximum Working Height: 23.5"

Material: Acrylic

Airlock Opening: 10" W x 10" H

Configuration: Left-Side Airlock

Number of Glove Ports: 2

Unit of Measure: EA

Weight, Product: 400 lb

Dimensions, Product: 35.5" W x 27" D x 30" H

Weight, Shipping: 545 lb

Dimensions, Shipping: 54" W x 38" D x 35.5" H

Package Type: Crate

Buy Accessories
  1. Releases pressure to prevent damage to samples | 5235-11 displayed
    $123
    Increase Down Increase Up
  2. Dual metering valves allow purging of the chamber with nitrogen or other process gas before vacuum is applied | 5235-09 displayed
    $228
    Increase Down Increase Up
  3. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $568
    Increase Down Increase Up
  4. Neoprene accordion sleeves with nitrile gloves | 1689-47 displayed
    $594
    Increase Down Increase Up
  5. Provides variable gas purge levels to maintain humidity set points | 9500-05 displayed
    $4,659
    Increase Down Increase Up
  6. Trace oxygen analyzer for connection to glovebox. | 2005-97 displayed
    $6,825
    Increase Down Increase Up
  7. Welch 1397 Duoseal vacuum pump, belt-driven, oil-seal | 7906-21 displayed
    $6,792
    Increase Down Increase Up
  8. Welch's oil-free standard duty vacuum pump are lightweight, compact and quiet pumps that provide continuous oil-free pumping without corrosion | 7906-50 displayed
    $1,300
    Increase Down Increase Up

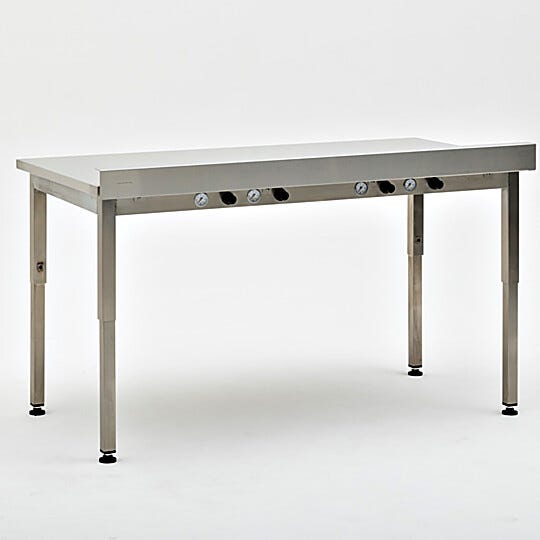

  9. Isolates work surface from building vibration that can cause motion sickness; ideal for high-precision equipment and high-magnification operations | 1570-81A displayed
    $5,446
    Increase Down Increase Up
  10. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    $245
    Increase Down Increase Up
  11.  | 2004-32 displayed
    $259
    Increase Down Increase Up
  12. Power cable port protects the isolator environment while allowing for electronic equipment | 2900-70 displayed
    $345
    Increase Down Increase Up
  13. Cordgrip connector plastic .599 inches hole size straight through black | 3305-70 displayed
    $68
    Increase Down Increase Up
  14. Shown: Vacupass installed in the interior wall of a biosafety cabinet | 4642-49 displayed
    $185
    Increase Down Increase Up
  15. Work station mounting foot. Product details may differ. | 1540-04-2 displayed
    $42
    Increase Down Increase Up
  16. Polyurethane Non Skid Blue Leveling Foot | 2805-99 displayed
    $28
    Increase Down Increase Up
  17. Leveling foot nylon 2 inch diameter | 1540-51 displayed
    $16
    Increase Down Increase Up
  18. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  19. Equipment Testing
    Request Quote
    Increase Down Increase Up
  20. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  21. White Glove Freight Service
    Request Quote
    Increase Down Increase Up

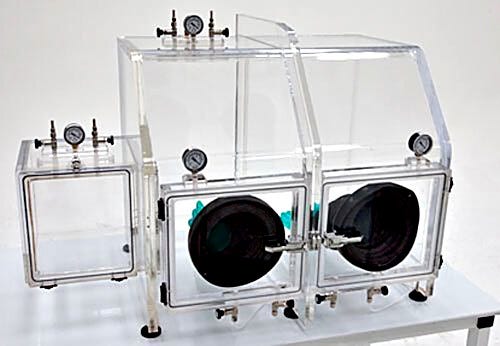

  22. Allows transfer of materials into the glovebox without breaching the controlled environment (shown with left-mount airlock). | 3305-48 displayed
    $3,403
    Increase Down Increase Up
  23.  | 5235-23 displayed
    $57
    Increase Down Increase Up
  24. Senses and indicates vacuums on 0-30 Hg scale | 5235-10 displayed
    $280
    Increase Down Increase Up

Negative Pressure & Vacuum Glove Boxes

  • Single Acyrlic Glovebox Vacuum Right Airlock Right Airlock Acrylic Vacuum Glovebox
  • Acrylic Vacuum Glovebox with Air Lock Series 210 Vacuum Glovebox
  • Acrylic Vacuum Glovebox with Vacuum Air Lock Acrylic Vacuum Glovebox (Series 210)

Features and Benefits

Series 210 Glovebox

Important Application Notes for Series 210 Glove Box

Vacuum Warning

The Series 210 Glovebox is designed for intermittent vacuum service as low as 29.9"Hg, as would typically be required in order to evacuate the chamber and backfill with process gas. Damage to welds can result if the chamber is exposed to continuous vacuum levels below 29" Hg.

How to Attain Extremely Low RH/O2 Concentrations: Vacuum Cycling vs. Purge and Bleed

Vacuum cycling provides the quickest, most economical way to achieve extremely low moisture and oxygen levels inside a glovebox.

Purge-and-bleed displacement relies on a continuous purge of dry process gas (typically, nitrogen or argon) to displace moisture-laded air, which exits through a bleed valve. This process typically requires many hours, consumes a high volume of process gas, and may never achieve very low oxygen concentrations (below 5 ppm) required in many applications.

Vacuum cycling evacuates ambient air – and with it, moisture and oxygen – inside a vacuum chamber or glovebox. When air is removed, you simply backfill the chamber with process gas until the chamber attains neutral pressure. If needed, this process is repeated until oxygen or moisture concentration reaches the desired level. Typically, only a few cycles, requiring only a fraction of the gas and time of a purge-and-bleed protocol, are all that's needed to reach single-digit oxygen concentrations.

Once set point levels are attained, close off vacuum valves and use a Dual Purge System and appropriate controller (NitroWatch™ for relative humidity, Trace Oxygen Analyzer for O2 concentration) to maintain dry, anaerobic conditions.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Duo Seal Vacuum Pump
    Welch DuoSeal Vacuum Pump has a belt-driven, oil-seal design that extends durability and service life even under harsh operation conditions.
  • Vacuum Control Module
    This automatic Vacuum Control Module is especially important in testing or processing applications that require sustained exposure to a precisely regulated vacuum level it helps extend the service life of your vacuum pump by allowing continuous pump operation.
  • Vacuum Connection Kit
    All Turnkey Connection Kits include a solenoid vacuum valve and all necessary hosing, clamps, adapters and other connection hardware for the specified application. Draws power from the Vacuum Control Module.
  • Standard Duty Dry Vacuum Pump
    Vacuum Ovens by Thermo Fisher are compact dry vacuum pump runs quiet and continuously. These pumps are suitable for applications for dry, moist or ethanol vapors.
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Welch Rotary Vane Vacuum Pump
    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging
    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control
    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals
    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging
    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
