3306-88
Terra Part # 3306-88
$6,134
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Only 1 left in stock
Accessories related to Terra Part # 3306-88
61552

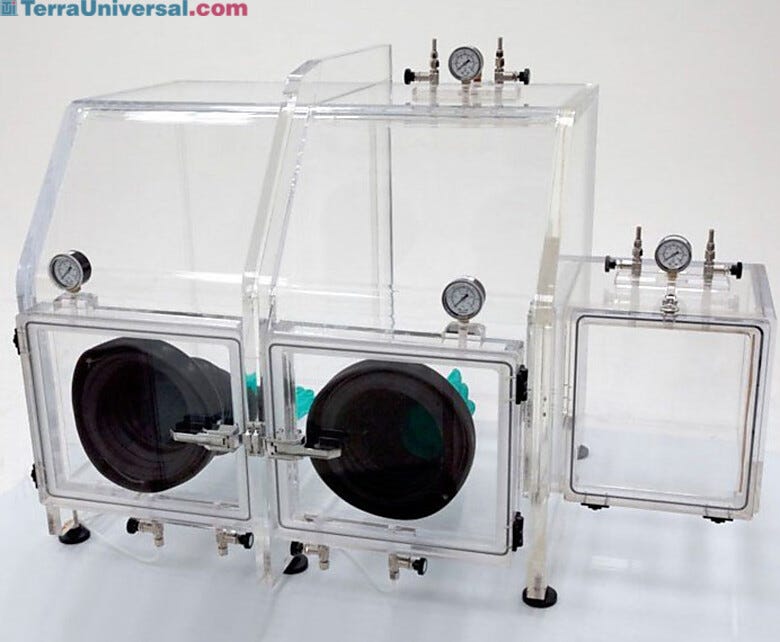

Glovebox; Negative Pressure Exhaust, Acrylic, 38" W x 27" D x 30" H, 2 Glove Ports, Right-Side Air Lock, Series 210
Product Details
  • Available ISO Ratings: ISO 7, ISO 8
  • Maintains vacuum levels down to 29.9 "Hg
  • Right-hand airlock included
  • Includes 8” (203 mm)-diameter acrylic glove ports
  • Dual mini ball valves and vacuum gauge allows monitor and control of vacuum and backfill
  • Dual swing doors allow convenient chamber sealing with glove ports in place
  • Includes nylon leveling feet
  • Safe for intermittent vacuum below 29" Hg; damage to welds may result under continuous full-vacuum pressure
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents. Use only water and mild detergent
  • Select desired gloves and vacuum/purge controls separately

Chamber Width: 30"

Chamber Depth: 22"

Chamber Height: 22.5"

Maximum Working Height: 23.5"

Material: Acrylic

Airlock Opening: 10" W x 10" H

Configuration: Right-Side Airlock

Number of Glove Ports: 2

Unit of Measure: EA

Weight, Product: 400 lb

Dimensions, Product: 38" W x 27" D x 30" H

Weight, Shipping: 546 lb

Dimensions, Shipping: 54" W x 38" D x 35.5" H

Package Type: Crate

Buy Accessories

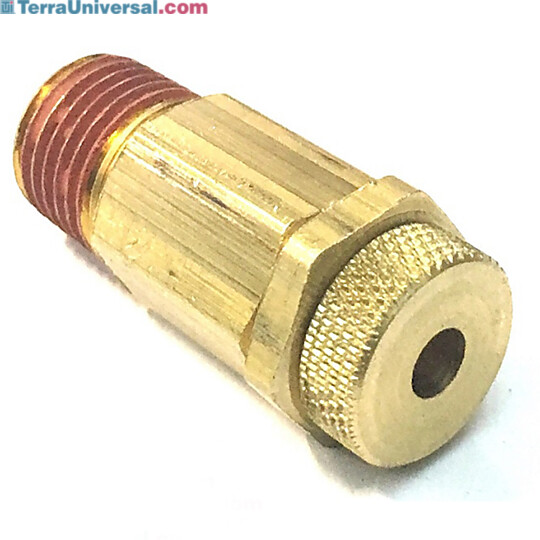

  1. Releases pressure to prevent damage to samples  |  5235-11 displayed
    $123
    Increase Down Increase Up

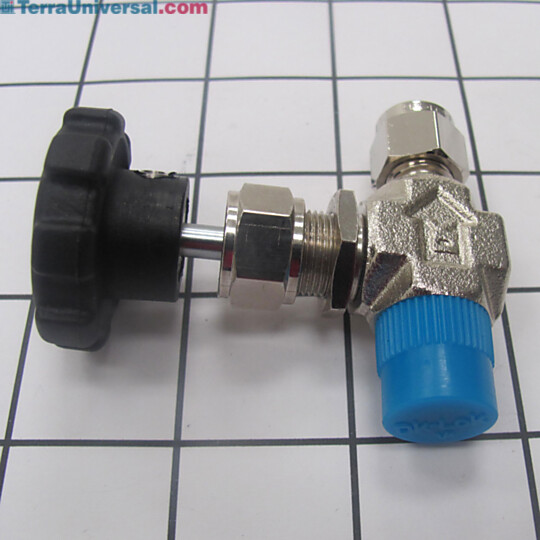

  2. Dual metering valves allow purging of the chamber with nitrogen or other process gas before vacuum is applied  |  5235-09 displayed
    $228
    Increase Down Increase Up
  3. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $569
    Increase Down Increase Up
  4. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $595
    Increase Down Increase Up
  5. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $597
    Increase Down Increase Up
  6. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    $4,194
    Increase Down Increase Up

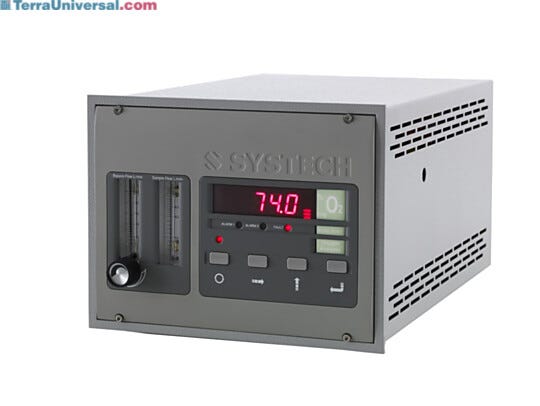

  7. Trace oxygen analyzer for connection to glovebox.  |  2005-97 displayed
    $8,237
    Increase Down Increase Up

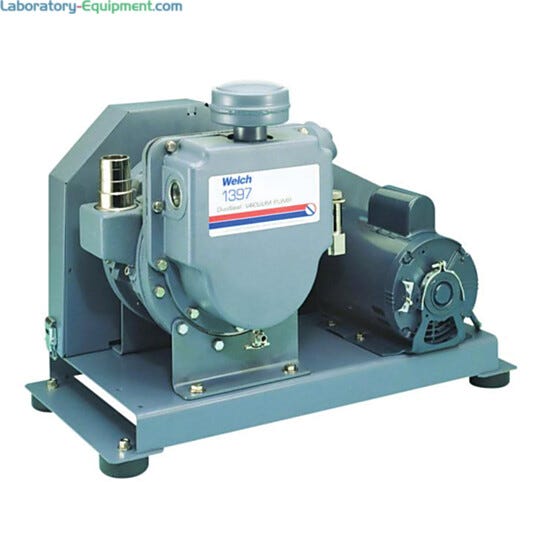

  8. Welch 1397 Duoseal vacuum pump, belt-driven, oil-seal  |  7906-21 displayed
    $6,830
    Increase Down Increase Up
  9.  |  7906-01A displayed
    $4,167
    Increase Down Increase Up

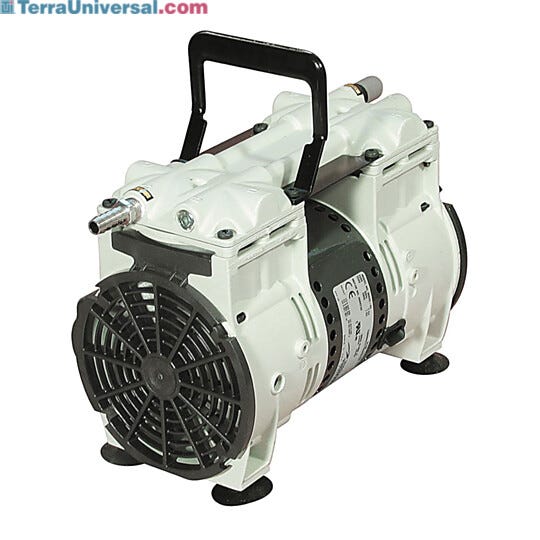

  10. Welch's oil-free standard duty vacuum pump are lightweight, compact and quiet pumps that provide continuous oil-free pumping without corrosion  |  7906-50 displayed
    $1,308
    Increase Down Increase Up
  11. Stainless steel ISO-rated cleanroom table with solid top features ultra-smooth surfaces for easy cleaning and sterilization  |  9603-03 displayed
    $1,380
    Increase Down Increase Up
  12. Solid stainless steel top with a power-coated steel base and telescoping legs  |  1751-00 displayed
    $1,120
    Increase Down Increase Up
  13. Cleanroom-compliant construction with sealed non-dissipative laminate, powder-coated base  |  1722-00 displayed
    $868
    Increase Down Increase Up
  14. Isolates work surface from building vibration that can cause motion sickness; ideal for high-precision equipment and high-magnification operations  |  1570-81A displayed
    $3,923
    Increase Down Increase Up
  15. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    $245
    Increase Down Increase Up
  16.  |  2004-32 displayed
    $259
    Increase Down Increase Up
  17. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    $311
    Increase Down Increase Up
  18. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $61
    Increase Down Increase Up
  19. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $185
    Increase Down Increase Up
  20. Work station mounting foot. Product details may differ.  |  1540-04-2 displayed
    $42
    Increase Down Increase Up
  21. Polyurethane Non Skid Blue Leveling Foot  |  2805-99 displayed
    $28
    Increase Down Increase Up
  22. Leveling foot nylon 2 inch diameter  |  1540-51 displayed
    $15
    Increase Down Increase Up
  23. Warranty; 2 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  24. Warranty; 3 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  25. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  26. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  27. Equipment Testing
    Request Quote
    Increase Down Increase Up
  28. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  29. Service, ISO 7 Rating Declaration
    Request Quote
    Increase Down Increase Up
  30. Allows transfer of materials into the glovebox without breaching the controlled environment (shown with left-mount airlock).  |  3305-48 displayed
    $3,063
    Increase Down Increase Up

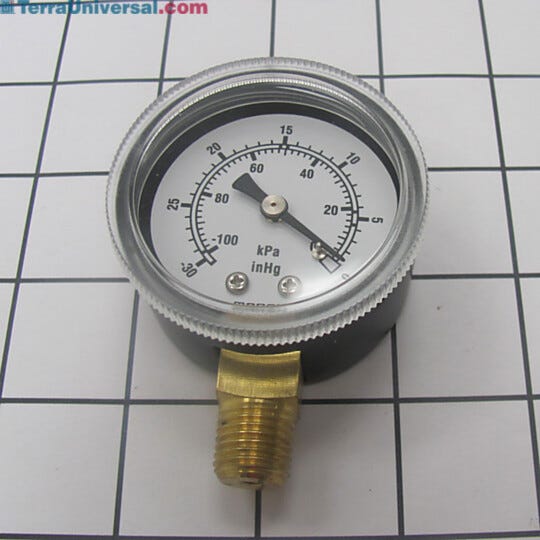

  31. Senses and indicates vacuums on 0-30 Hg scale  |  5235-10 displayed
    Vacuum Gauge 0-30HG, 2"dia, 1/4"NPT Quick Ship+ 194 in stock
    $280
    Increase Down Increase Up
  32.  |  5235-23 displayed
    $57
    Increase Down Increase Up

Negative Pressure & Vacuum Glove Boxes

  • Vacuum chambers animation Watch Terra's Vacuum Chamber Video
  • Single Acyrlic Glovebox Vacuum Right Airlock Right Airlock Acrylic Vacuum Glovebox
  • Acrylic Vacuum Glovebox with Air Lock Series 210 Vacuum Glovebox
  • Acrylic Vacuum Glovebox with Vacuum Air Lock Acrylic Vacuum Glovebox (Series 210)
Vacuum chambers animation

Features and Benefits

Learn More: Vacuum Glove Box

Important Application Notes for Series 210 Glove Box

Vacuum Warning

The Series 210 Glovebox is designed for intermittent vacuum service as low as 29.9"Hg, as would typically be required in order to evacuate the chamber and backfill with process gas. Damage to welds can result if the chamber is exposed to continuous vacuum levels below 29" Hg.

How to Attain Extremely Low RH/O2 Concentrations: Vacuum Cycling vs. Purge and Bleed

Vacuum cycling provides the quickest, most economical way to achieve extremely low moisture and oxygen levels inside a glovebox.

Purge-and-bleed displacement relies on a continuous purge of dry process gas (typically, nitrogen or argon) to displace moisture-laded air, which exits through a bleed valve. This process typically requires many hours, consumes a high volume of process gas, and may never achieve very low oxygen concentrations (below 5 ppm) required in many applications.

Vacuum cycling evacuates ambient air – and with it, moisture and oxygen – inside a vacuum chamber or glovebox. When air is removed, you simply backfill the chamber with process gas until the chamber attains neutral pressure. If needed, this process is repeated until oxygen or moisture concentration reaches the desired level. Typically, only a few cycles, requiring only a fraction of the gas and time of a purge-and-bleed protocol, are all that's needed to reach single-digit oxygen concentrations.

Once set point levels are attained, close off vacuum valves and use a Dual Purge System and appropriate controller (NitroWatch™ for relative humidity, Trace Oxygen Analyzer for O2 concentration) to maintain dry, anaerobic conditions.

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.

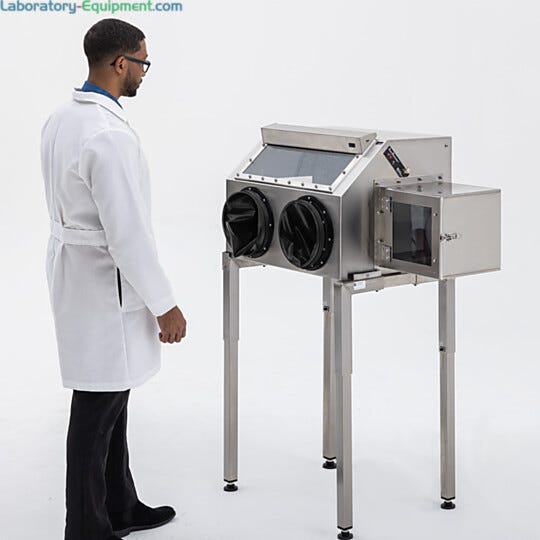

  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.
  • Duo Seal Vacuum Pump

    Welch DuoSeal Vacuum Pump has a belt-driven, oil-seal design that extends durability and service life even under harsh operation conditions.

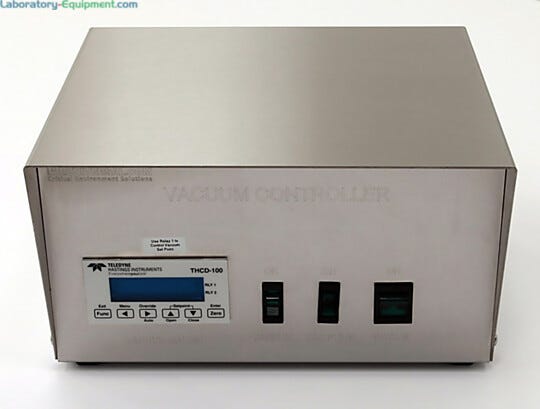

  • Vacuum Control Module

    This automatic Vacuum Control Module is especially important in testing or processing applications that require sustained exposure to a precisely regulated vacuum level it helps extend the service life of your vacuum pump by allowing continuous pump operation.
  • Vacuum Connection Kit

    All Turnkey Connection Kits include a solenoid vacuum valve and all necessary hosing, clamps, adapters and other connection hardware for the specified application. Draws power from the Vacuum Control Module.
  • Standard Duty Dry Vacuum Pump

    Vacuum Ovens by Thermo Fisher are compact dry vacuum pump runs quiet and continuously. These pumps are suitable for applications for dry, moist or ethanol vapors.
  • Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Neoprene Accordion Sleeve Assemblies

    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Welch Rotary Vane Vacuum Pump

    This Rotary Vane vacuum pump offers high water vapor tolerance, light weight and high vacuum performance, making it ideal for many laboratory uses.
  • PC-Based Vacuum Control with Data Logging

    The eVAC Digital Vacuum Controller provides highly flexible control over vacuum levels by incorporating an electronically activated bleed valve, which adds the capability to reduce the applied vacuum.
  • ISO-Rated BioSafe Extra Wide Cleanroom 5 Step Ladder with Rail

    Large-capacity five step cleanroom stairs with safety rails and standing/work platform; BioSafe design simplifies sterilization.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
