6603-56
Terra Part # 6603-56
Request Quote
Usually ships in 40-45 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6603-56
76726

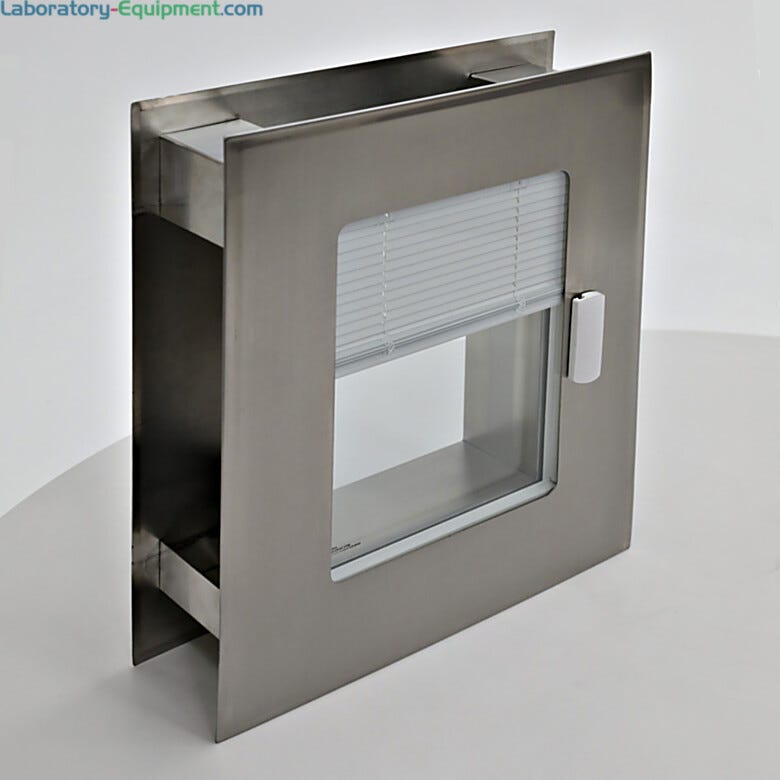

Internal Window Blinds for Cleanroom Window
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Adjustable internal blinds for cleanroom windows provide privacy or visibility when you need it
  • No dusting and maintenance-free; blinds are sealed behind glass, ideal for clean environments
  • Cordless blinds are adjusted (raise/lower/tilt) with the no-battery, magnetic detachable remote
  • Custom blinds-between-the-glass are designed to your specific size requirements
  • Ideal for a wide variety of labs and cleanrooms to meet ISO particle counts and GMP standards
  • Built-in blinds offers ease of use, convenience, and safety by seamlessly incorporating traditional window blinds between an insulated glass panel.
  • Blinds between the glass allow you to control light and privacy levels while eliminating the hassle of cleaning the window blinds.
  • Integrates with flush-mount stainless steel cleanroom windows
  • Custom sizes: 8.625"–80" wide x 13"–80" tall (in 1/16" increments)
  • 6 colors (white, tan, sand, silver moon, slate gray, espresso)
Buy Accessories
  1. Provides clear line of communication with the person behind the tempered-glass or acrylic window.  |  5050-50 displayed
    $270
    Increase Down Increase Up
  2. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  3. White Glove Freight Service
    Request Quote
    Increase Down Increase Up

Windows with Internal Blinds

  • BioSafe cleanroom window Terra Universal's Biosafe® Windows
  • Video demonstrates the switch from opaque glass to clear for privacy or viewing purposes Switch Glass Window
BioSafe cleanroom window
Video demonstrates the switch from opaque glass to clear for privacy or viewing purposes

Features and Benefits

Learn More: BioSafe Switch-Glass Privacy Windows

BioSafe® Switch-Glass Privacy Windows

BioSafe Switch-Glass Privacy Windows
  • Versatile laminated panels with tempered-glass outer layers become conventional viewing windows when energized, opaque privacy panels when de-energized
  • Forms a curtain wall to provide patient privacy in healthcare facilities
  • Ideal for on-demand viewing of sensitive or high-security operations inside medical, pharmaceutical, aerospace and other manufacturing operations
  • Available in BioSafe® framed and frameless designs for use in Terra modular cleanrooms or conventional walls of any thickness (more information)
  • Select standard sizes below or specify custom panes in any size or shape

BioSafe Switch-Glass Privacy Windows provide an elegant, energy-saving way to alternate between viewing windows and privacy panels in a host of industrial, research and government applications.

Operated via a wired switch or WiFi remote control, these laminated panels include a liquid crystal layer that provides 97% light transmission when activated by 65V current. When de-energized, the panel switches to a partially opaque appearance that provides full privacy. The dual-side tempered-glass lamination ensures the same characteristics, including smooth, chemical-resistant surfaces, of standard windows, making these panels easy to clean.

  • An on-demand window for high-security commercial operations: ideal for training or customer viewing of operations that would normally remain private
  • Patient privacy in healthcare facilities: Convenient, easy-to-activate alternative to cumbersome curtains
  • Boardrooms, conference rooms, executive offices: adds convenient display/privacy viewing modes
  • Rear-projection display panel for broadcast, entertainment or commercial presentations
  • Forms an interactive video wall with addition of touch sensors
  • Call Terra to discuss your application!
{{dav_id_a4_alt_tag_8772}}
Frameless Window Design (for BioSafe Cleanrooms)
{{dav_id_a4_alt_tag_8773}}
Framed Window Design (for conventional rooms)
Specifications
  • Glass Type: All laminated, annealed, heat/chemical strengthened, tempered
  • Thickness:
    • Interior Window: 5/16" (8 mm) or 7/16" (11 mm)
    • Door: 9/16" (14 mm)
    • Exterior: 1" (25 mm) insulating glass unit (3/16" tempered outer glass + 3/8" airspace + 7/16" clear laminated glass)
  • Size: Up to 72" x 145" (1,828.6 mm x 3,683 mm)
  • Shape: Any shape, including holes anywhere
  • Environmental Storage: -20°C to 70°C (-4°F to 158°F)
  • Operation: -10°C to 70°C (14°F to 158°F)
  • Electrical *:
    • Voltage: 120VAC/60Hz to power supply; operates on 65VAC ± 5 volts AC
    • Current: less than 20 mA/ft2
    • Power: less than 1 watt/ft2
  • Switching Time: Approx. 100 milliseconds at room temperature
  • Optical Transmission: 75% view angle approx. 140° scattering effectiveness approx. 1 inch
  • Life: Greater than 10 years (indoors); over 3.5 million switches

* For all fixed panel installation, a separate Power Supply shall be provided for each 60 square feet or fraction thereof. Power source of 110VAC, 60Hz electricity must be supplied from a GFI circuit. The power supply should be connected to an accessible standard double junction box connected to ground continuity. Power supply: Panels may be connected in parallel up to 60 square feet total area per single power supply.

The glass uses less than one watt per square foot in the "ON" (clear) state. No electricity is consumed in the "OFF" (translucent) state. The glass can be controlled with either a single or multiple switches or a remote controller.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
