HEPA Filtered Cleanroom Pass-Throughs

Pass-Through; Smart®, Recirculating ULPA Filtration, CleanMount CleanSeam, 30" W x 48" D x 50" H ID, Flush Floor Mount, 316L Stainless Steel, 120 V

Vertical laminar flow of ULPA-filtered air removes and contains particles introduced with the product, keeping surfaces clean and eliminating cross-contamination
Vents along the bottom of the chamber recirculate air back to the filtration module
Electronic interlock with Smart® Control System provides visual and audible door status alerts: red light and dual-side remote chimes indicate a door is open (interlock engaged); green light indicates both doors available for use
Installs in under three minutes in any wall thicker than 2” without screwing into wall surface
Key-switch enables or disables the interlock, which is mounted outside the transfer chamber

• Special Door Configuration: Leak-Rated

• Material: 316L Stainless Steel

• Mounting Position: Flush Floor

• Inside Width: 30"

• Inside Depth: 48"

• Inside Height: 50"

• Expand System Capabilities: 90° Corner Placement, Access Control System, Access Panel, Air Speed Sensor, Electronic Pass-Through Upgrade, Message Panel, Slide-Up Doors, UV Sanitizer, LED Lighting, HEPA-Filtration, Automatic Door, ULPA Air Shower, Intercom, Iris Scanner, Keycard Reader, Fingerprint Scanner, Video Recording, Power Outlet, Load Presence Sensor

• Electropolished: Optional

• HEPA/ULPA Filtration: Yes

• Unit of Measure: EA

Terra Part #: 6705-68-316

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Terra Part # 6705-68-316

$31,947

Usually ships in 35-40 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part #

Pass-Through; Smart®, Recirculating ULPA Filtration, CleanMount CleanSeam, 30" W x 48" D x 50" H ID, Flush Floor Mount, 316L Stainless Steel, 120 V

View Shopping Cart View Quote Cart

Details & Specs

Manuals & Resources

Video

Cleanroom Pass-Through Features and Selection Guide

Video introduction of pass-through designs, construction and accessories for Terra's family of cleanroom pass-through chambers. Discover how these chambers increase efficiency and reduce contamination with between-room transfer of samples and supplies.

Manual [pdf]

Pass-Through Chambers

This manual includes general installation and operating instructions for Terra's Pass-Through Chambers.

Manual [pdf]

Smart Pass-Through Chambers

This manual contains installation and operating instructions for Terra's Smart Pass-Through chamber line. It also addresses various electronic accessories exclusive to the Smart Pass-Through.

Blog Post

Cleanroom Passthrough Features Comparison

HEPA Filtered Cleanroom Pass-Throughs

Smart® Pass-Through Chambers by Terra Universal
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
Hands-Free, Automatic Pass-Through Door
Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H
Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
Extra-Large Smart Pass-Through with Recirculating ULPA Filtration
Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom
Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration
Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab
Floor-Mounted Smart Pass-Through with Recirculating HEPA Filtration
Recirculating HEPA Filtration Pass-Through
HEPA Filtered Smart Cleanroom Pass Through with Intercom System

Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day Smart® Pass-Through Chambers by Terra Universal Terra Universal’s Smart Pass-Through Chamber redefines the capabilities of a pass through by solving a host of challenges that hospitals and labs face every day. When first introduced to the market, the pass through chamber had one-specific purpose: to reduce personnel traffic by providing a convenient means for sample transfer into and out of the cleanroom. With the Smart Pass Through, Terra has reimagined the jobs a pass through can perform by offering a menu of standard, add-on features compatible with every unit. These features are mounted external to the work area, so the integrity of the internal chamber is not impacted. Beyond sample transfer, the Smart Pass Through can disinfect products, log environmental conditions, track personnel or sample lots, streamline employee communication and add layers of security to your cleanroom.

Smart® pass-through with “T” shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.

This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination. Hands-Free, Automatic Pass-Through Door The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.

Pass-Through, Smart; 304 SS, Recirculating HEPA Filtration, 31"W x 26"D x 45"H

Smart cleanroom pass-through for anti-tumor therapy incubation room; 90 degree corner design, electronic interlocking doors, recirculating HEPA filtration | 6705-72 displayed Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.

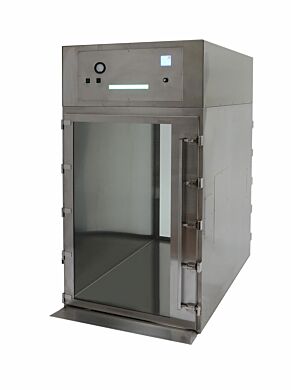

55" W x 36" D x 72" H custom floor mounted Smart™ CleanMount CleanSeam pass-through with recirculating ULPA filtration | 6705-68-316 displayed Extra-Large Smart Pass-Through with Recirculating ULPA Filtration Custom sizes are no problem. Smart ULPA Recirculating Pass-throughs can be customized to your application.

Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom; electronic interlocking doors | 2635-10B-2-316 displayed Smart Pass-through Chamber with ULPA Air Shower for Chemo Compounding Cleanroom Smart Pass-through Chamber with single-pass ULPA air shower for chemo compounding cleanroom. The ULPA air shower provides a single-pass high-velocity air to dislodge particles from surfaces in the pas-through. The Smart pass-through also features electronic interlocking doors, and a control module to provide service alerts when either door is open or left ajar.

Smart pass-through-box for USP 800 compounding of hazardous drugs; side-mount UV light, recirculating HEPA filtration, electronic interlocking doors | 6705-72-316 displayed Smart Pass-Through-Box with Side-Mount UV Light and Recirculating HEPA Filtration Smart pass-through-box for USP 800 compounding of hazardous drugs, configured with a side-mount UV light to help disinfect interior. The HEPA filtration system mounted on top recirculates air through return vents on the wall opposite to the UV-light. Electronic interlocking doors allow only one door to open at a time to prevent cross-contamination.

Vertical stacked Smart® passthroughs for stem cell lab with limited wall space; recirculating HEPA filtration on top chamber; sloped top on clean side | 6705-72-316 displayed Vertically Stacked Smart® Passthrough Chambers with HEPA Filtration on Top for Stem Cell Lab This vertically stacked passthrough chamber system is designed for a stem cell lab with high ceilings and limited wall space. The integrated recirculating filtration system exceeds USP <797> and <800> standards for sterile drug compounding. a sloped-top on the "clean side" minimizes particle build-up.

Vertical flow of HEPA-filtered air inside this floor-mounted pass-through washes away surface particles to protect parts and prevent cross-contamination | 6705-68 displayed Floor-Mounted Smart Pass-Through with Recirculating HEPA Filtration Floor-mounted Smart Pass-Throughs with recirculating HEPA filtration unit scrubs air clean to prevent cross-contamination as carts pass to the cleanroom; includes removable cart ramps.

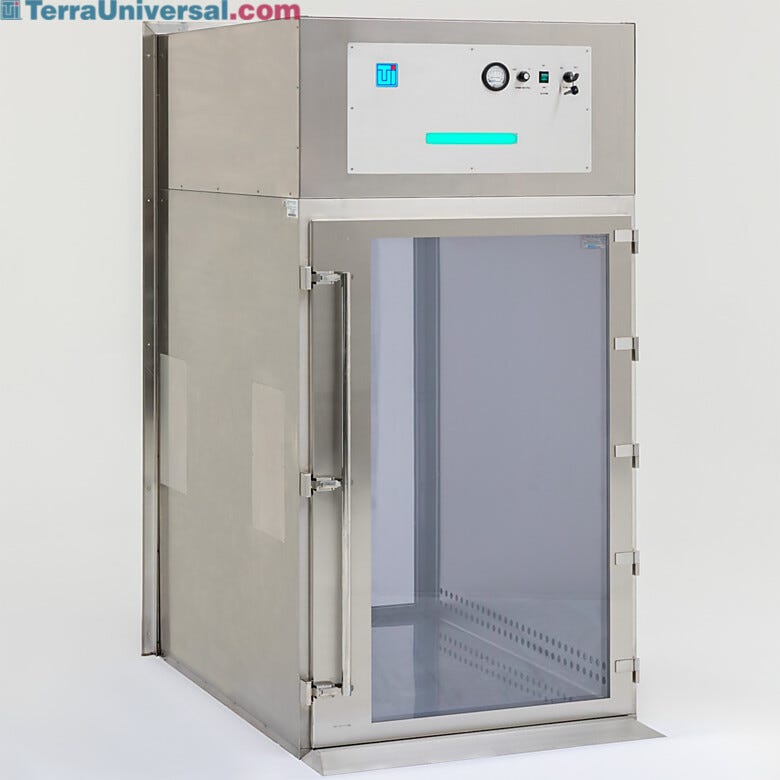

Vertical flow of HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts, minimize cross-contamination | 6705-72 displayed Recirculating HEPA Filtration Pass-Through Vertical flow of recirculating HEPA-filtered air inside this Smart Pass-Through washes away surface particles to protect parts and minimize cross-contamination; mini-helic gauge monitors filter pressure.

HEPA Filtered Smart Cleanroom Pass Through with optional pushbutton intercom system; TUI status indicator light and green/red door indicator light | 6705-72-316 displayed HEPA Filtered Smart Cleanroom Pass Through with Intercom System HEPA filtered Smart cleanroom passthrough uses recirculating HEPA filtration to prevent cleanroom cross-contamination when the chamber opens. Optional pushbutton intercom facilitates through-wall communication.

Features and Benefits

All Stainless Steel FFU with Removable Filter Replacement Screen

The pass through includes an all-stainless steel filter fan unit with a screen for easy HEPA filter replacement. The screen is held in place by double roller catches, which allow the screen to be easily popped out of the ceiling to access the HEPA filter.

Recirculating Air Shower Filtration Diagram

Recirculating HEPA Filtration Diagram

By recirculating the interior air, airborne particles are rapidly removed by successive passes through the HEPA filter. Recirculation also minimizes pressure buildup that can cause leakage into an adjacent positive-pressure cleanroom.

Smart Passthrough Status Indicator Lights

Interlock Status Lights

A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.

Wireless Door Alert

Alarm bell rings when its assigned door is open (two bells per chamber); plugs into a standard wall outlet.

CleanMount Pass-Through Chamber Installation

CleanMount™ Quick Install System

Clean-Mount™ clamping design allows pass-through installation flush against a cleanroom wall in a few minutes, without drilling into the finished wall; mounting brackets clamp flush against walls of any thickness.

Stainless Steel-Reinforced Removable Pass-Through Door

Stainless steel-reinforced CleanMount® doors provide superior strength and durability. Heavy-duty barrel hinges allow the doors to lift off for easy replacement or more thorough cleaning/decontamination.

Cleanroom Pass-Through Flush-Mount Design

Flush-Mount Design Prevents Dust Accumulation

CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.

Radius Corners of CleanMount Pass-Through Chamber

CleanMount® Lipless Chamber Eliminates Clearance Obstructions

Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.

Floor-Mount Pass-Through Cart Ramp Being Removed from Chamber

Removable Cart Ramps on Floor-Mount Models

Floor-mount pass-through chambers include dual-side stainless steel cart ramps, sloped on three sides, that are removable for easy cleaning.

Interior of HEPA filtered Pass through cabinet

Air Return Slots for Recirculating HEPA Filtration

Air return slots along bottom interior of the cleanroom passthrough cabinet circulate air back through the built-in fan and HEPA filter to remove airborne particles inside the chamber.

smart cleanroom passthrough electrical panel

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Iris Scanner

Fully automated iris scanner for secure, hands-free access (includes datalogging and optional secondary keycard reader).
Intercom System

Built-in intercom system lets users easily call and communicate between rooms. No more shouting or awkward sign language.
Automatic Door

Hands-free operation of the pass-through door, governed by the electronic interlock; automatically closes based on delay timer.
Video Camera

Interior HD video camera records continuously or upon door-opening; can also be used for remote monitoring the transfer chamber.
Infrared Load Sensor

Infrared beams detect objects placed inside the transfer chamber; can be used to trigger an audible alert.
Support Brackets for Pass-Through Chambers

Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
Available UV & LED lights

Lights are recessed with a transparent lens for easy cleaning; UV-C module neutrailizes microbes using a timed disinfection cycle.
