Protector Premier Explosion-Proof Laboratory Fume Hoods by Labconco

Manufactured By: Labconco

Need Help?

(714) 578-6100

Mon - Fri, 5:30 AM - 5:30 PM, PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Frame Material All Powder-Coated Steel Sort Order: Descending Ascending	Width All 60" 72" 48" Sort Order: Descending Ascending	Depth All 31.7" Sort Order: Descending Ascending	Height All 66" Sort Order: Descending Ascending	Built-In Blower All Yes Sort Order: Descending Ascending	Service Fixtures All Not Available Installed Sort Order: Descending Ascending	Voltage All 115 V Sort Order: Descending Ascending	Manufacturer SKU All 100500070 100500071 100600070 100600071 100400070 100400071 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
Powder-Coated Steel	60"	31.7"	66"	Yes	Not Available	115 V	100500070	3649-23	$10,381	25-29 Days
Powder-Coated Steel	60"	31.7"	66"	Yes	Installed	115 V	100500071	3649-21	$11,012	25-29 Days
Powder-Coated Steel	72"	31.7"	66"	Yes	Not Available	115 V	100600070	3649-35	$11,393	25-29 Days
Powder-Coated Steel	72"	31.7"	66"	Yes	Installed	115 V	100600071	3649-33	$12,015	25-29 Days
Powder-Coated Steel	48"	31.7"	66"	Yes	Not Available	115 V	100400070	3649-12	$9,376	25-29 Days
Powder-Coated Steel	48"	31.7"	66"	Yes	Installed	115 V	100400071	3649-10	$10,001	25-29 Days

Frame Material

Width

Depth

Height

Built-In Blower

Service Fixtures

Voltage

Manufacturer SKU

Some ship in:

Usually Ships in:

Add to Compare

See Product Details

Back to product group

Select product to see details

Product Details

Features & Benefits

Available Accessories

Products similar to this one

Product Details

• One-piece, fiberglass interior liner for easy cleaning and durability; corrosion- and chemical-resistant

• Meets SEFA-1 standard for high-performance fume hoods, operable at face velocities as low as 60 fpm

• By-pass airflow design and aerodynamic foils help to smooth out airflow around the edges of the sash opening and reduce energy costs

• Labconco’s Eco-Foil™ Air Foil reduces the load on the blower

• Labconco’s Clean-Sweep™ openings reduce turbulence along the bottom edge of the sash

• Side panels are removable for ease of installation (see Labconco installation video)

• Interior hood surfaces have a flame spread less than 25, per ASTM E-84

• 37.5”-tall front window for a clear view of the entire work surface

• Cord-Keeper™ slots on either side of the sash for tucking away wires and tubes

• Service fixtures can be installed in the factory-prepped panels on either side of the hood

• Includes a vapor-proof light fixture and 12.81” ID fiberglass exhaust connection

• Requires work surface and exhaust blower/ductwork (sold separately)

Fume Hoods

8ft Labconco Protector Premier Laboratory Fume Hood

Eight foot Protector Premier laboratory fume hoods by Labconco shown with optional storage cabinets | 3649-36 displayed 8ft Labconco Protector Premier Laboratory Fume Hood Labconco's Protector Premier Laboratory Fume Hood is available in various widths up to 8' (built-in blower is not available on 8' models).

Features & Benefits

Features and Benefits

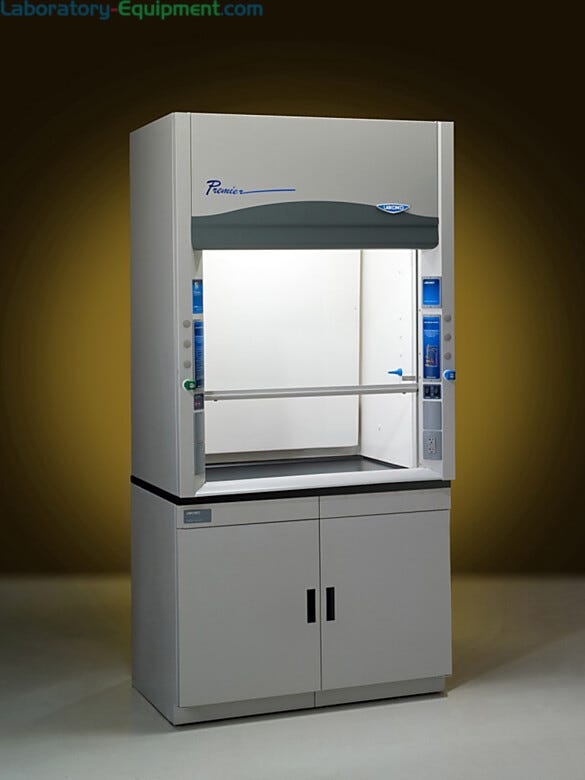

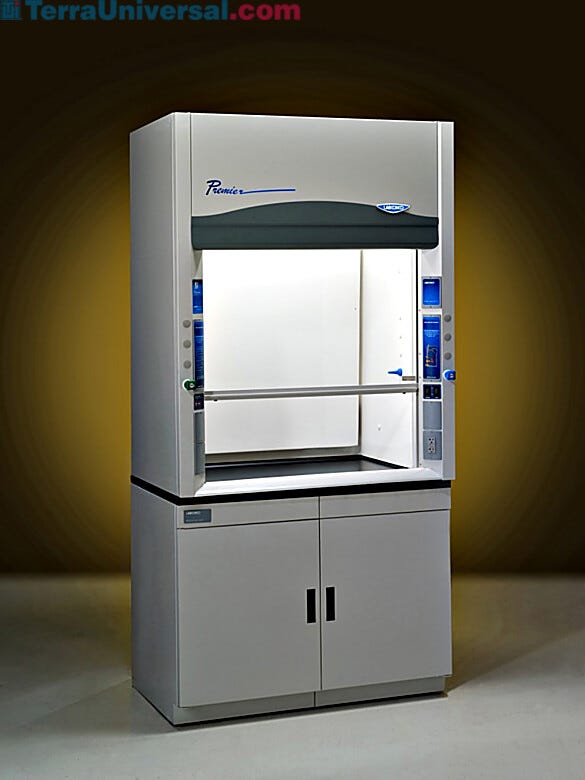

4ft Labconco Protector Premier Laboratory Fume Hood

Labconco's Protector Premier Laboratory Fume Hoods require significantly less energy than typical fume hoods; shown with optional work surface/cabinet.

8ft Labconco Protector Premier Laboratory Fume Hood

Labconco's Protector Premier Laboratory Fume Hood is available in various widths up to 8' (built-in blower is not available on 8' models).

Premier Fume Hood Specs Chart

Premier Hood Built-in Blower Specs Chart

Premier Fume Hood Diagram

Protector Premiere Laboratory Fume Hood Remote Blower Required With Model

Protector Premier Laboratory Hood

Ideal for laboratories dealing with potentially explosive and/or flammable atmospheres Shown with base cabinets and model

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Labconco Solvent Storage Cabinet
Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
Labconco Acid Storage Cabinet
Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
Labconco Coated Steel Blower
Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Labconco Fiberglass Blower
Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
Labconco Spillstopper Work Surfaces
These dished work surfaces are made of corrosion-resistant epoxy resins for durability and a smooth finish. Pass-through holes for venting and plumbing are predrilled into the rear portion of the surface (cut-outs for cup-sinks are optional).
Labconco Corrosive Resistant Remote Blower
Labconco supplies coated steel blowers designed specifically for connection to Class I containment enclosures, including XPert, RXPert, Protector XVS, and Purifier HEPA Filtered Safety Enclosures. Explosion-proof versions also available
