Select Product

Voltage

Width

Base Stand

UV Lamp

Manufacturer SKU

Terra Part #PriceShips in
115 V 48" Included 8" Included 303481101 3651-63 59140 $15,14525-29 Days2
115 V 48" Included 8" Optional 303480101 3651-61 59136 $14,56425-29 Days3
115 V 48" Optional 8" Included 303481001 3651-62 59138 $14,55625-29 Days4
115 V 48" Optional 8" Optional 303480001 3651-60 59134 $13,97625-29 Days5
115 V 72" Included 8" Included 303681001 3651-66 59146 $17,08625-29 Days6
115 V 72" Included 8" Included 303681101 3651-67 59147 $17,69125-29 Days7
115 V 72" Optional 8" Optional 303680001 3651-64 59142 $16,51325-29 Days8
115 V 72" Optional 8" Optional 303680101 3651-65 59144 $17,12325-29 Days9
230 V 48" Included 8" Included 303481111 3651-63-220 59139 $15,14525-29 Days10
230 V 48" Optional 8" Included 303481011 3651-62-220 59137 $14,55625-29 Days11
230 V 48" Optional 8" Optional 303480011 3651-60-220 59133 $13,97625-29 Days12
230 V 48" Optional 8" Optional 303480111 3651-61-220 59135 $14,56425-29 Days13
230 V 72" Included 8" Included 303681111 3651-67-220 59148 $17,69125-29 Days14
230 V 72" Included 8" Included 303681011 3651-66-220 59145 $17,08625-29 Days15
230 V 72" Optional 8" Optional 303680011 3651-64-220 59141 $16,51325-29 Days16
230 V 72" Optional 8" Optional 303680111 3651-65-220 59143 $17,12325-29 Days17
Voltage
Width
Base Stand
Sash Opening
UV Lamp
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Class II Type B2 biological safety cabinet for containment of hazardous agents while supplying HEPA-filtered airflow over the work surface

• Designed for 100% exhaust; no recirculation of contaminated air

• Airflow inlet grilles positioned around the sash opening to reduce turbulence

• Contain-Air™ Negative Pressure Channel draws air in along the top of the sash

• Constant Airflow Profile™ (CAP) technology automatically adjusts airflow volume as HEPA filters become saturated

• MyLogic™ full-color LCD display shows “Filter Life Remaining” bar graph and other useful information; menus are controlled by exterior switches

• Meets Class 5 conditions per ISO 14644-1 and 2

• Electronically Commutated Motor (ECM) uses 60% less energy, is 50% quieter and generates less heat

• Smart-Start™ System allows start-up settings to be preprogrammed

• Includes fluorescent lighting mounted behind the glass sash

• User-programmable lockout system requires a code to operate the cabinet

• ¼”-tempered glass sash with working opening 8""-high for optimal airflow

• Features both supply and exhaust HEPA filters for particle control

• Stainless steel interior for corrosion-resistance and cleanliness

• All controls are ADA-compliant

• Smooth, inclined inlet grille provides comfortable arm support

• Includes interior duplex outlet, hidden behind a flush-mounted cover

• Requires connection to dedicated exhaust system with remote blower (separately available)

Class II B2 Biosafety Cabinets

  • Short animation by Labconco illustrating the airflow patterns in the Type B2 Purifier Logic Biosafety Cabinet Labconco Purifier Logic+ Type B2 Biosafety Cabinet Airflow Animation
  • Biological Safety Cabinets Biological Safety Cabinets
Short animation by Labconco illustrating the airflow patterns in the Type B2 Purifier Logic Biosafety Cabinet
Biological Safety Cabinets

Features & Benefits

Features and Benefits

Class II B2 BSC Specifications

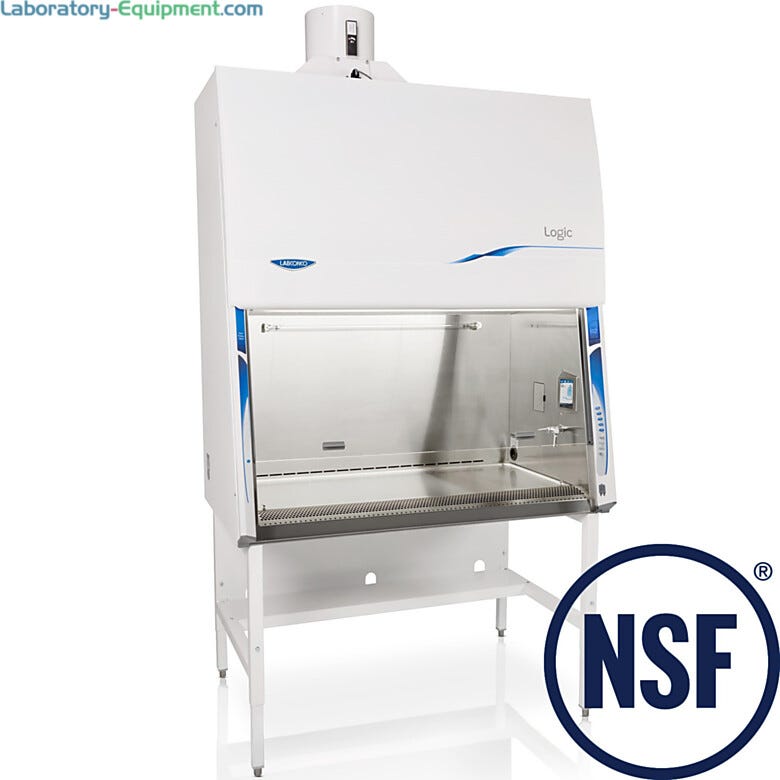

Labconco Purifier Logic+ Class II B2 Biological Safety Cabinets

  • Unit Dimensions 4': 54.3"w x 31.2"d x 72.6"h (1379.22 x 792.48 x 1844.04 mm) 6': 78.3"w x 31.2"d x 100.1-106.1"h (1988.82 x 792.48 x 2542.54-2694.94 mm)
  • Material Stainless steel inlet grille with Reserve-Air™ Secondary Airflow Slots*; removable, seamless type 304 stainless steel, dished work surface with lift out knobs; powder-coated steel exterior
  • Electrical 115 volts, 60 Hz, 12 amps, Domestic 230 volts, 50/60 Hz, 8 amps, North America
  • Nominal Width 4' and 6' models
  • Sash Opening 8'
  • Exhaust Volume 665 CFM (4' models) 998 CFM (6' models)
  • Lighting Fluorescent
  • Air Circulation 0%
  • Noise level < 63 dBA
  • Heat Load 990 BTU/hour (4' models)
  • Inflow/Downflow Velocity 105 feet per minute (fpm) (0.5 m/sec)/ 55 fpm (0.3 m/sec)
  • Includes 10' (3 m) power cord with plug
  • Compliance NSF International and ETL Listed; meets Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)

Counterweighted, Anti-Racking Sash

The sash is angled at 10° for improved ergonomics without introducing glare. During operation, an alarm will be activated if the sash is opened too far, compromising airflow.

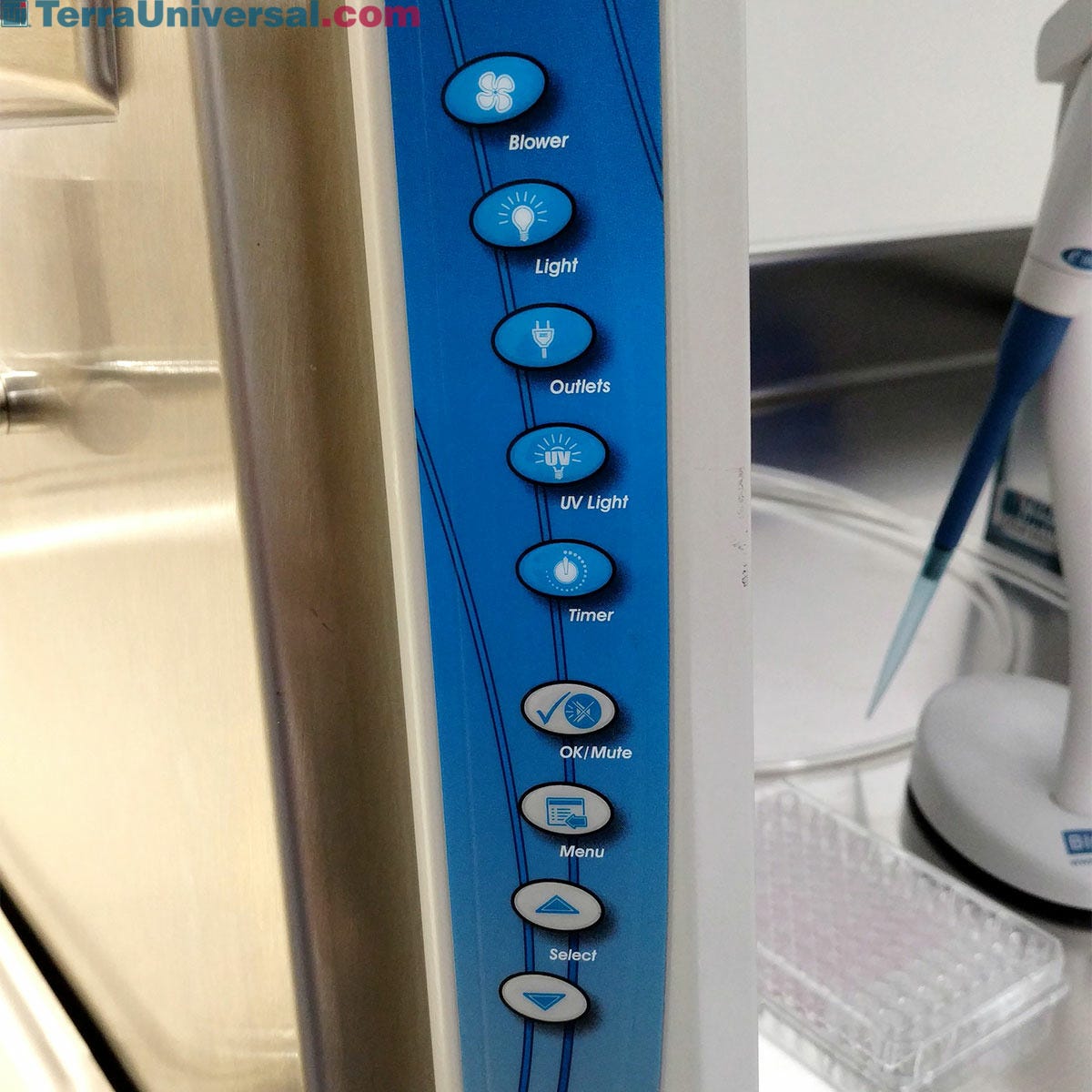

ADA-Compliant Touchpad Controls

The touchpad controls, mounted on the right-hand side of the hood, allow operators to manually toggle the blowers, lights, and power receptacles.

Inclined, Ergonomic Inlet Grille

The curved inlet grille provides comfortable support for the operator’s forearms while working within the hood. The airflow inlet pattern is designed to compensate for any airflow restrictions caused by the operator blocking the slots.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Hydraulic Lift Base Stands by Labconco
    Available with electric or manual lift mechanisms, these height-adjustable stands offer optimal flexibility for operators and ADA-compliance.
  • Hydraulic Lift Base Stand
    Electric height adjustment from 25.5" to 33.5” ideal for operators of varying heights and wheelchair-bound users; compatible with Labconco BSCs, hoods and enclosures
  • Telescoping Base Stand with Fixed Feet
    Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1” increments from 27.5" to 34.5”; used with Labconco BSCs, hoods and enclosures
