Select Product

Chamber Material

Window Material

Chamber Width

Chamber Depth

Chamber Height

Light Fixture

Voltage

PriceUsually
ships in
Polypropylene Tempered Glass 58.5" 23.5" 24.5" Fluorescent Illuminator 120 V 4 $3,0654-6 Days
Acrylic Acrylic 34.5" 23.5" 24.5" 120 V 2 $2,4104-6 Days
Acrylic Acrylic 58.5" 23.5" 24.5" 120 V 4 $2,7454-6 Days
Static Dissipative PVC Static Dissipative PVC 34.5" 23.5" 24.5" 120 V 2 $2,3254-6 Days
Static Dissipative PVC Static Dissipative PVC 58.5" 23.5" 24.5" 120 V 4 $4,1724-6 Days
Polypropylene Tempered Glass 34.5" 23.5" 24.5" 120 V 2 $2,6474-6 Days
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Light Fixture
Voltage
Number of Glove Ports
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Select product to see details

Product Details

Designed in the USA

• ULPA filtration maintains ISO Class 5 conditions in work area

• Optional air lock reduces contaminant inflow during sample transfer

• Ideal for a wide range of packaging and processing operations sensitive to airborne contaminants

• Gasketed, stainless steel-reinforced side door with LiftLatches and removable rear panel permit introduction of samples and process equipment

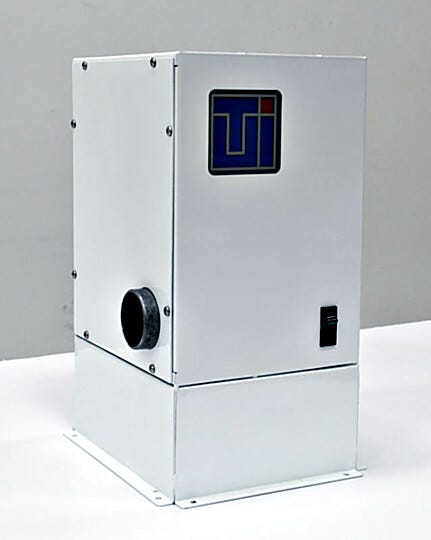

• Economical, lightweight glove boxes include open-loop filtration module that removed sub-micron particles from air entering chamber

• Optional exit filter removes sub-micron particles from exhausted air to protect lab from potentially harmful dust or microbes

• 45° front slope allows the operator an uninterrupted overview of work in progress

• Select optional gas controllers to allow humidity control cycles (not intended to run concurrently with filtration module in open-loop configuration)

• Not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals

• Wide variety of gloves available

• Select from single or twin operator models with choice of cleanroom-compatible materials: acrylic, static-dissipative PVC, polypropylene or polycarbonate

• Features two (single model) or four (twin model) 10" (254 mm) diameter glove ports that provide a wide range of motion (order gloves separately)

• Inlet filter: Ultra-Low Penetration Air (ULPA) rated 99.999% efficient @ 0.12 micron particles

• Brushless DC motor is designed for quiet, non-contaminating operation

Low Particle Isolators

  • Four-Port Polypropylene Particle Filtration Glove Box with Single-Pass Air Design Particle Filtration Glove Box with Single-Pass Air, Four-Port Polypropylene
  • Two-Port Acrylic Particle Filtration Glove Box with Single-Pass Air Design Particle Filtration Glove Box with Single-Pass Air, Two-Port Acrylic
Four-Port Polypropylene Particle Filtration Glove Box with Single-Pass Air Design
Two-Port Acrylic Particle Filtration Glove Box with Single-Pass Air Design

Features & Benefits

Features and Benefits

Filtered Containment Glove Boxes, Closed Loop

More Information

Type A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
Single 16.75 (425) 24 (610) 35 (889) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
Twin 16.75 (425) 24 (610) 59 (1499) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)

Particle Filtration Glove Box: Adjustable Airflow in Recirculation Mode

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (closed-loop containment setting shown).

304 and 316L Stainless Steel Latches

Glove box isolators are equipped with 304 or 316L all-stainless steel latches for ergonomic operation and extended service life.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Particle FIltration Glove Box: Adjustable Airflow (SIngle-Pass Setting Shown)

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (single-pass setting shown).

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • 3-inch Diameter Caster Set
    Casters are easily retrofitted to desiccator stands for mobility. Desiccators can be rolled out of the way when cleaning or relocated as workflow changes.
  • Smart Module Monitors and Controls RH
    The miniaturized LED display and sensor module eliminate the need for external control boxes. This design also simplifies installation; operation requires only one gas and one low voltage power connection.
  • Automatic RB (Relief-Bleed) Valve
    One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).
  • Removable Glove Port Cover
    Removable Glove Port Covers screw onto 10"-diameter glove ports (order separately) for convenient sealing of glove box during glove replacement or off-hours
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Glove Box Stand, Powder-Coated Steel
    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Air Locks Minimize Cross-Contamination
    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (dissipative PVC model shown).
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Ionizing Module for Glove Boxes
    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
