Select Product

Voltage

Chamber Material

Window Material

Chamber Width

Chamber Depth

Chamber Height

Terra Part #PriceShips in
120 VAcrylicAcrylic34.5"23.5"24.5"2 3306-60-CL 62070 $2,3534-6 Days2
120 VAcrylicAcrylic58.5"23.5"24.5"4 3306-61-CL 62071 $2,6964-6 Days3
120 VPolypropyleneTempered Glass34.5"23.5"24.5"2 3306-66-CL 62074 $2,5954-6 Days4
120 VPolypropyleneTempered Glass58.5"23.5"24.5"4 3306-67-CL 62075 $3,0204-6 Days5
120 VStatic Dissipative PVCStatic-Dissipative PVC34.5"23.5"24.5"2 3306-62-CL 62072 $2,2984-6 Days6
120 VStatic Dissipative PVCStatic-Dissipative PVC58.5"23.5"24.5"4 3306-63-CL 62073 $4,1494-6 Days7
Voltage
Chamber Material
Window Material
Chamber Width
Chamber Depth
Chamber Height
Number of Glove Ports
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• ULPA filtration maintains ISO Class 5 conditions in work area

• Optional air lock reduces contaminant inflow during sample transfer

• Ideal for a wide range of packaging and processing operations sensitive to airborne contaminants, including work with pharmaceutical powders or biological samples

• Gasketed, stainless steel-reinforced side door with LiftLatches and removable rear panel permit introduction of samples and process equipment

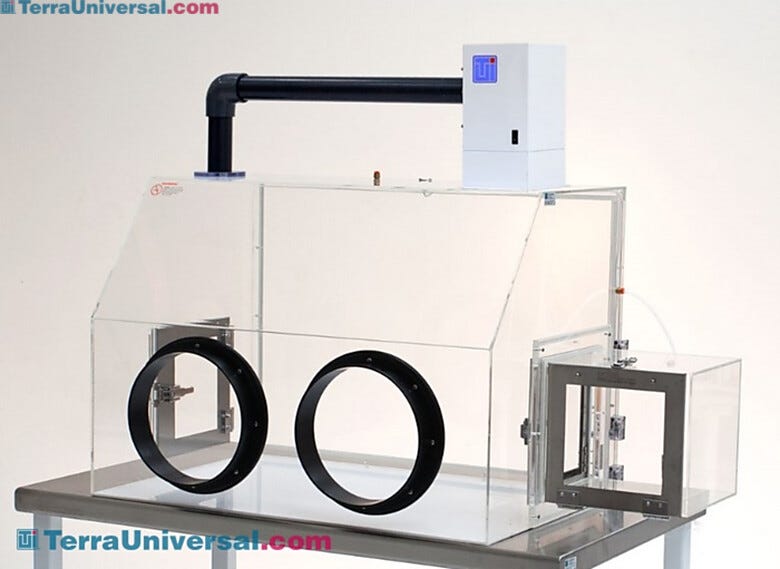

• Economical, lightweight glove boxes include closed-loop filtration module that continuously scrubs the process environment, removing particles down to .12 microns in diameter

• Contains sub-micron particles emanating inside the process chamber, protecting the lab or cleanroom from potentially harmful dust or microbes

• 45° front slope allows the operator an uninterrupted overview of work in progress

• Select optional gas controllers to create low-humidity or other special process gas environment

• Not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals

• Wide variety of gloves available

• Select from single or twin operator models with choice of cleanroom-compatible materials: acrylic, static-dissipative PVC, polypropylene or polycarbonate

• Features two (single model) or four (twin model) 10" (254 mm) diameter glove ports that provide a wide range of motion (order gloves separately)

• Brushless DC motor is designed for quiet, non-contaminating operation

• Optional airlock provides a controlled environment for moving samples into and out of the glovebox; reinforced, stainless-steel framed door ensures airlock longevity

Low Particle Isolators

  • Four-Port Acrylic Particle Filtration Glove Box with Air Recirculation Particle Filtration Glove Box with Recirculating Air, 4-Port Acrylic
  • Four-Port Polypropylene Glove Box with Recirculating ULPA Filtration Particle Filtration Glove Box with Air Recirculation, 4-Port Polypropylene

Features & Benefits

Features and Benefits

Filtered Containment Glove Boxes, Closed Loop

More Information

TypeA in. (mm)D in. (mm)F in. (mm)H in. (mm)I in. (mm)L in. (mm)M in. (mm)N in. (mm)
Single16.75 (425)24 (610)35 (889)25 (635)10.5 (267)10 (254)10 (254)14 (356)
Twin16.75 (425)24 (610)59 (1499)25 (635)10.5 (267)10 (254)10 (254)14 (356)

Particle Filtration Glove Box: Adjustable Airflow in Recirculation Mode

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (closed-loop containment setting shown).

High Caliber Hardware

Don’t be concerned about the quality, durability, and craftsmanship of your latches, ports, glides and hinges. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Particle FIltration Glove Box: Adjustable Airflow (SIngle-Pass Setting Shown)

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (single-pass setting shown).

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Bellows Eyepiece Interface

This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • 3-inch Diameter Caster Set
    Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
  • Smart Module Monitors and Controls RH
    The miniaturized LED display and sensor module eliminate the need for external control boxes. This design also simplifies installation; operation requires only one gas and one low voltage power connection.
  • Automatic RB (Relief-Bleed) Valve
    One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).
  • High Caliber Hardware
    Don’t be concerned about the quality, durability, and craftsmanship of your latches, ports, glides and hinges. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware.
  • Glove Box Iris Port Adapter for 10" Ports
    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • Glove Box Stand, Powder-Coated Steel
    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Air Locks Minimize Cross-Contamination
    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (dissipative PVC model shown).
  • Neoprene Accordion Sleeve Assemblies
    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Ionizing Module for Glove Boxes
    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
