3306-61-CL
Terra Part # 3306-61-CL
$3,485
Accessories related to Terra Part # 3306-61-CL
62071

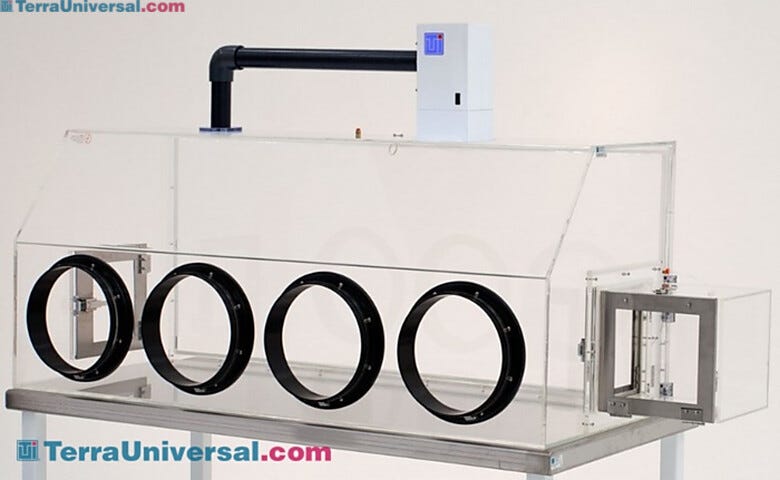

Glovebox; Series 100, Closed Loop Filtration, Acrylic, 59" W x 24" D x 39" H, 4 Glove Ports, 120 V
Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Closed-loop containment glovebox chambers
  • High static-pressure, clean-operating brushless DC motor that reduces electromagnetic interference (EMI)
  • Access doors include stainless steel door frame, which increases structural rigidity
  • Doors include Santoprene® "e"-shape  nonoutgassing rubber gasket to eliminate leaks
  • Features an 1/8" NPT inlet
  • Twin model features four 10" glove ports
  • Recirculating air passes through single ULPA filter
  • Dual gasketed side doors and a fully gasketed back permit introduction of small and large equipment
  • All-stainless steel ergonomic LiftLatches operate without strain to hinges and eliminate corrosion and contamination common with plated hardware
  • Designed for positive-pressure operation, in conjunction with RB valves to relieve overpressure
  • Order illuminator separately
  • Magnehelic gauge and airlock are optional
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents.  Use only water and mild detergent
  • NOTE: Not an air-tight containment chamber; not suitable for use with bio hazards

Model: Series 100

Material Type: Plastic

Number of Glove Ports: 4

Airlock Opening: 10" W x 10" H

Chamber Material: Acrylic

Window Material: Acrylic

Chamber Width: 58.5"

Chamber Depth: 23.5"

Chamber Height: 24.5"

Maximum Working Height: 24.5"

Filter: ULPA

Chamber Dimensions: 58.5" W x 23.5" D x 24.5" H

ISO Rated Air Cleanliness: ISO 4

UL File Number: E484299

Unit of Measure: EA

Marks & Listings: UL, ULC

Electrical Specifications: 120 V, 2 A, 250 W, 50/60 Hz

Weight, Product: 115 lb

Dimensions, Product: 59" W x 24" D x 39" H

Weight, Shipping: 284 lb

Dimensions, Shipping: 64" W x 47" D x 30" H

Package Type: Palletized

HEPA/ULPA Filtered Glove Box Isolators

  • Stainless Steel Glove Box Isolator with Adjustable ULPA Filtration ISO 5 Stainless Steel Glove Box Isolator with Adjustable ULPA Filtration
  • Polypropylene Filtered Glove Box with Adjustable Airflow Control 2 Ports Polypropylene ISO 6Filtered Glove Box with Adjustable Airflow Control
  • Two-Port Acrylic Particle Filtration Glove Box with Air Recirculation Design Particle Filtration Glove Box with Recirculating Air, Two-Port Acrylic
  • Two-Port Acrylic Particle Filtration Glove Box with Single-Pass Air Design Particle Filtration Glove Box with Single-Pass Air, Two-Port Acrylic
  • Ducted Cleaning Glovebox with ULPA Filtration Ducted Cleaning Glovebox with ULPA Filtration
  • Heated Filtered Glovebox with Adjustable Airflow Control Heated ISO 6 Filtered Glovebox with Adjustable Airflow Control
  • portable nitrogen generator<br/> Different N2 Generator Options to Meet Your Needs
Stainless Steel Glove Box Isolator with Adjustable ULPA Filtration
Polypropylene Filtered Glove Box with Adjustable Airflow Control 2 Ports
Two-Port Acrylic Particle Filtration Glove Box with Air Recirculation Design
Two-Port Acrylic Particle Filtration Glove Box with Single-Pass Air Design
Ducted Cleaning Glovebox with ULPA Filtration
Heated Filtered Glovebox with Adjustable Airflow Control
portable nitrogen generator<br/>

Features and Benefits

Filtered Containment Glove Boxes, Closed Loop

More Information

Type A in. (mm) D in. (mm) F in. (mm) H in. (mm) I in. (mm) L in. (mm) M in. (mm) N in. (mm)
Single 16.75 (425) 24 (610) 35 (889) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)
Twin 16.75 (425) 24 (610) 59 (1499) 25 (635) 10.5 (267) 10 (254) 10 (254) 14 (356)

Particle Filtration Glove Box: Adjustable Airflow in Recirculation Mode

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (closed-loop containment setting shown).

Particle FIltration Glove Box: Adjustable Airflow (SIngle-Pass Setting Shown)

Adjustable airflow glove box can be set for open- or closed loop ULPA filtration (single-pass or recirculation) for protecting samples or adding particle containment (single-pass setting shown).

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Removable Rear Wall

Gasketed rear wall allows transfer of large equipment into the main glove box chamber

Bellows Eyepiece Interface

This cutout is sealed with a bellow-type diaphragm to allow viewing of a stereo microscope positioned inside any of Terra's stainless steel glove boxes. Standard cutout size is 8"W x 6"H (203 x 152mm). Specify desired location or custom size when ordering.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Adjustable Glove Box Stand

    Terra's Universal Adjustable Glove Box stands adjust width, depth, and height to accommodate user preference, promote easy cleaning, and provide optimal stability.
  • Air Locks Minimize Cross-Contamination

    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
  • Neoprene Accordion Sleeve Assemblies

    Neoprene accordion sleeves with nitrile gloves allow fast glove replacement without removing sleeve; rigid neoprene sleeve resists blow-back (other glove styles available).
  • Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

    Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Ionizing Module for Glove Boxes

    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
  • High Caliber Hardware

    Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
  • Glove Box Iris Port Adapter for 10" Ports

    The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
  • UL-Listed Smart® Module for Long-Term Reliability

    The Smart® module is UL-listed and built to the highest standards required by defense and semiconductor industries for long-term reliability. The compact controller includes an LED display and sensor to eliminate the need for external control boxes. Installation is simple, requiring only one gas and one low voltage power connection.
  • Automatic RB (Relief-Bleed) Valve

    One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).
  • Laboratory Nitrogen Generator

    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Glove Box Stand, Powder-Coated Steel

    Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
  • 3-inch Diameter Caster Set

    Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
  • Stainless Steel Work Surface Improves Safety and Service Life

    Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.
  • Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

    Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
  • Data Logging with 113,000 Readings at User Defined Intervals

    Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
  • Plug & Play Data Logging

    Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
