1730-00
Terra Part # 1730-00
$957
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available 26 in stock
Quantity Discount Available!
Accessories related to Terra Part # 1730-00
8889

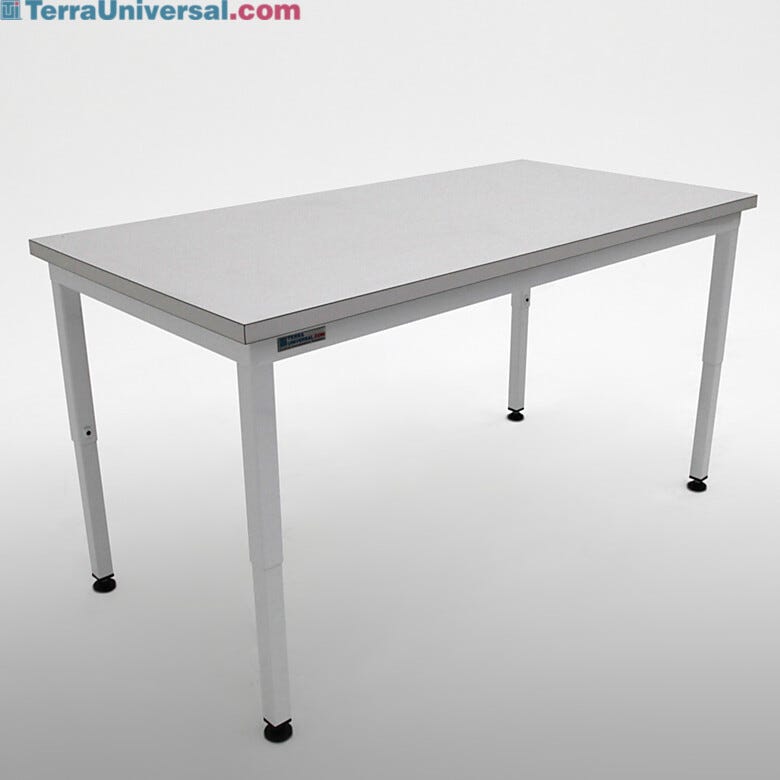

Work Station, Cleanroom, Standard; Static-Dissipative Laminate, Solid Top, 60" W x 30" D x 34" H, A Frame
Qty Unit Price %
1 $957 -
2 $890 7%
6 $861 10%
11 $842 12%
16 $813 15%
Product Details
  • Available ISO Rated Designs: ISO 7, ISO 8
  • Nylon leveling feet resist a wide range of chemicals and provide stability
  • All-welded steel "A" Frame, with height adjustment from 25" to 34" (635 to 864 mm) floor to top
  • Safely dissipate electrostatic charges to allow operations on static-sensitive devices
  • See stainless steel models
  • See three-drawer unit available
  • No assembly required
  • Table Weight Capacity: 150 lbs

Type: Telescoping Legs

Top Design: Solid

Frame Material: PCS

Height: 25"-34"

Manufactured by: Terra Universal

Top Material: Static-Dissipative Laminate

Width: 60"

Depth: 30"

Auto Adjust: No

Unit of Measure: EA

Marks & Listings: ANSI/BIFMA

Electrical Specifications: None

Weight, Product: 128 lb

Dimensions, Product: 60" W x 30" D x 34" H

Weight, Shipping: 193 lb

Dimensions, Shipping: 65" W x 35" D x 36" H

Package Type: Crate

Buy Accessories
  1. Drawers; 304 SS, Left Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  2. Drawers; 304 SS, Right Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  3. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  4. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  5. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate  |  1704-01 displayed
    Request Quote
    Increase Down Increase Up
  6. Suits various weights, floor surfaces, and cleanliness requirements  |  1700-43 displayed
    $1,033
    Increase Down Increase Up
  7. Metro LTFMA, mounts flat screen monitors to a variety of table thicknesses  |  1533-63 displayed
    Swing Arm for Flat Monitor; Surface Mount on Work Table Ships Free Free shipping in contiguous USA In stock
    $466
    Increase Down Increase Up
  8. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    $282
    Increase Down Increase Up
  9. Work station mounting foot. Product details may differ.  |  1540-04-2 displayed
    $44
    Increase Down Increase Up
  10. Polyurethane Non Skid Blue Leveling Foot  |  2805-99 displayed
    $40
    Increase Down Increase Up
  11. Catch tray captures loose supplies that slip through  |  4952-15A displayed
    $353
    Increase Down Increase Up
  12. Catch tray captures loose supplies that slip through  |  4952-15A displayed
    $414
    Increase Down Increase Up
  13. Polypropylene glove dispenser with 1 compartment, wall mount capability and no catch basin, 8" W x 8" D x 17" H  |  4952-70A displayed
    $282
    Increase Down Increase Up
  14. 1 Chamber Polypro Glove Dispenser with hinged top and wall-mount keyhole cutouts  |  4952-75 displayed
    $321
    Increase Down Increase Up
  15.  |  4952-12A displayed
    $623
    Increase Down Increase Up
  16.  |  4952-12A displayed
    $726
    Increase Down Increase Up
  17. Bouffant Loaded 4 Chamber Dispenser  |  4952-86-2-316 displayed
    $809
    Increase Down Increase Up
  18. 2 Chamber Polypro Glove Dispenser  |  4952-76 displayed
    $466
    Increase Down Increase Up
  19. Bouffant Loaded 4 Chamber Dispenser  |  4952-86-2-316 displayed
    $912
    Increase Down Increase Up
  20. 2 Chamber Polypro Glove Dispenser  |  4952-76 displayed
    $539
    Increase Down Increase Up
  21. Dispensers allow easy access to well-organized supplies as well as an easy open top for replenishing.  |  4952-13A displayed
    $837
    Increase Down Increase Up
  22. Dispensers allow easy access to well-organized supplies as well as an easy open top for replenishing.  |  4952-13A displayed
    $1,020
    Increase Down Increase Up
  23. Stainless Steel Wall Mounted 3 Chamber Glove Dispenser  |  4952-83-2-316 displayed
    $1,138
    Increase Down Increase Up
  24. Polypropylene medical glove holder with 3 compartments, wall mount, no catch basin, 24" W x 8" D x 17" H  |  4952-72A displayed
    $618
    Increase Down Increase Up
  25. Stainless Steel Wall Mounted 3 Chamber Glove Dispenser  |  4952-83-2-316 displayed
    $1,295
    Increase Down Increase Up
  26. Polypropylene glove holder with 3 compartments, wall mount design and no catch basin, 24" W x 8" D x 32" H  |  4952-77A displayed
    $738
    Increase Down Increase Up
  27. Wall mount 4-chamber glove dispenser in polypropylene with built-in catch basin and hinged top  |  4952-14A displayed
    $1,085
    Increase Down Increase Up
  28. Bouffant Loaded 4 Chamber Dispenser  |  4952-86-2-316 displayed
    $1,467
    Increase Down Increase Up
  29. 4 Compartment Wall Mounted Polypropylene Glove Dispenser  |  4952-77 displayed
    $657
    Increase Down Increase Up
  30. Bouffant Loaded 4 Chamber Dispenser  |  4952-86-2-316 displayed
    $1,680
    Increase Down Increase Up
  31. 4 Compartment Wall Mounted Polypropylene Glove Dispenser  |  4952-77 displayed
    $790
    Increase Down Increase Up
  32. BioSafe® Foot Rest offers all-stainless-steel construction, height adjustability, and non-shedding leveling feet  |  2803-90 displayed
    $447
    Increase Down Increase Up
  33. ISO-Rated BioSafe Tilting Footrest Maximum 27 Degree Platform Tilt with Model  |  2803-92 displayed
    $887
    Increase Down Increase Up
  34. Leveling foot nylon 2 inch diameter  |  1540-51 displayed
    $15
    Increase Down Increase Up
  35. Service, ISO Grade™ Certificate, ISO 7
    Request Quote
    Increase Down Increase Up
  36. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  37. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Workstations with Static-Dissipative Tops
Workstations with Static-Dissipative Tops
Workstations with Static-Dissipative Tops
  • Static-dissipative laminate (10^7 ohms/sq) safely dissipates charges to reduce ESD danger
  • Sealed undertop and clean materials— compatible with Class 100 / ISO 5 cleanroom
  • Adjustable “A” base is standard. Custom recessed “C” base shown
  • Custom modular overhead fluorescent light fixture provides shadow-free viewing
  • Nylon leveling feet resist a broad range of chemicals and eliminate wobbles for high-precision work
  • Other options include modular drawer unit, casework, shelves, power strip

This work station is ideal for static-sensitive materials that can be degraded or destroyed by the charges generated by conventional benchtops.

It features a dissipative laminate top bonded to a 1.25" (32 mm) high-density, epoxy-bonded fiber core. Edges are covered with plastic, and backing is provided on the bottom of the work surface to meet ISO 5 cleanroom standards.

Static-Dissipative Plastic Laminate combines the chemical- and heat-resistive properties of plastic laminate with a controlled path to ground for dissipation of static charge without voltage suppression ambiguity. This laminate has a micro-thin layer of aluminum oxide (moho hardness of 9; diamond - 10) integrated directly into its surface, creating an extremely hard protective layer, which provides long-term resistance to surface abrasion. This material has also been specifically tested for particle trapping (see test results below.) Each sheet used in fabrication is individually certified to meet the values set forth below:

  • General Thickness: .040 Nominal
  • Chemical Resistance: Resistive to common solvents such as Acetone, Trichloroethylene, Solder Flux, Isopropyl Alcohol, and Naptha
  • Thermal Resistance: 350°F with no charge per NEMA LD 3.06 and NEMA LKD 3.08; molten solder will not mar surface
  • Abrasion Resistivity: Typical NEMA Value—1550 cycles; Wear Rate of .006 gm/100 cycles
  • Cleaning: Clean with water only, or with a mild, nonabrasive, ammoniated detergent and rinse; DO NOT use wax or other coatings
Electrical Specifications
Specification Typical Certified
Surface Resistivity per ASTM D-257: 107 Ω/sq 106-9 Ω/sq.
Resistance to Ground Ohms—NFPA 99: 107 106-9
Decay Rate per Fed Test 101C, Method 4046 (5,000 to 0 Volts): .01 sec. .5 sec
Particle Trapping Test
Particles/cu. ft. Air in 16 Sq. In. Area (microns) Typical Certified
Sample 10 5
Cleanroom Air 0 1
Water Washed Sample 9 9
Ethyl Alcohol Washed Sample 10 15
Acetone Washed Sample 7 10
Freon TF Washed Sample 17 12
Silica Gel & Iron Oxide-Contaminated
Surface Washed with Ethyl Alcohol:
5 20

These counts are very low. Under the same test conditions, a material which does shed particles would give off thousands of particles in the 10- and 5-micron range. This material is thus certified as cleanroom safe.

Non-Conductive Laminate shares many characteristics with static-dissipative laminate, except surface resistivity. In surface resistivity tests, this laminate material measured between 4.1 x 1011 and 7.4 x 1012 Ω/sq. It is generally resistive to most solvents as well as hot solder; however, mineral acids (such as hydrochloric, sulphuric, or nitric acid) should not be allowed to contact to laminate. This material is suitable for cleanroom use and will not outgas.

Clean, Versatile—and Static Safe

The dissipative laminate tops safely dissipate electrostatic charges to allow operations on static-sensitive devices—these benches meet MIL-B-81705-B specifications. They also resist a wide range of chemicals. Standard color is non-glare white.

Like our standard work stations, this station also features a heavy-duty bench frame made of all-welded square tubing. The heavy-wall tubing used in the construction allows the factory-mounted benchtop to support much heavier loads than conventional benches without sagging. The "A" base, adjustable from 25" to 34" (635 mm to 864 mm) floor-to-top feature a white epoxy enamel or powder-coat finish. Finished "A" bases are available with a 304 stainless steel lower leg member to provide this additional scuff protection. Include leveling feet to provide stability.

Other system options include easy-clean Modular Cleanroom Drawers and casework for efficient document and supply organization, with convenient access.

Many other models available: including static-dissipative and acid-resistant work surfaces, vibration-isolation systems, ErgoHeight™ and UltraClean™ work stations!

Adjustable Telescoping Legs

Workstations include telescoping legs to enhance ergonomics, reduce shipping cost, integrate with existing tables or casework, and support multiple operators who require different work surface heights. Each telescoping workstation is tested to ensure a weight load of 1,200 pounds.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

Cleanroom Table

Cleanroom tables with sealed dissipative or non-dissipative laminate tops are durable and cleanroom-compliant; powder-coated steel base with telescoping legs.

Cleanroom Table Work Surface Design

Laminate covers 100% of the fiberboard core; preventing mechanical damage that might cause the laminate to peel off

Durable, High-Quality Glides

Product glides and leveling feet represent the first line of defense against cleanroom contamination. As glides come into contact with cleaners and harsh chemicals, they are often the first component to deteriorate. Terra's glides are durable, chemical resistant, built-to-last, and ISO-rated.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
