Select Product

Frame Material

Width

Depth

Height

Panel Material

Terra Part #PriceShips in
Powder-Coated Steel 10' 6' 8' Polypropylene 2900-72-PP 69182 $20,533.....2
Powder-Coated Steel 10' 10' 8' Polypropylene 2900-92-PP 75623 $24,437.....3
Powder-Coated Steel 16' 8' 8' Polypropylene 2900-78-PP 75614 $27,737.....4
Powder-Coated Steel 12' 10' 8' Polypropylene 2900-91-PP 69183 $26,867.....5
Powder-Coated Steel 12' 12' 8' Polypropylene 2900-94-PP 69184 $29,012.....6
Frame Material
Width
Depth
Height
Panel Material
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

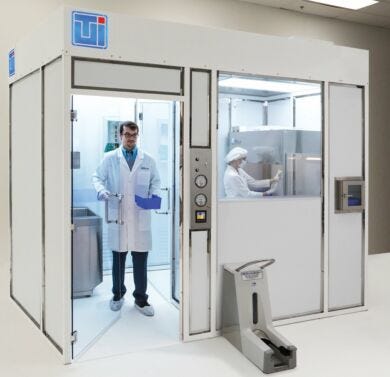

• Designed for compounding sterile preparations to the requirements of USP 797

• Cleanroom-grade polypropylene wall panels stand up to frequent sterilization

• Low-cost compounding cleanroom with easy installation

• Transparent polycarbonate viewing window for light and visibility of work inside

• Verify before you buy: Consultation services available to ensure evaluate compliance with USP, cGMP, DQSA and other regulations

• Combines ISO 8 anteroom and ISO 7 buffer room with cascading pressure levels

• Anteroom can be used for gowning or other prep

• Heavy-duty steel ceiling grid securely holds HEPA-filtered fan units and LED light panels

• Positive-pressure anteroom and buffer room meet prescribed ISO particle requirements and air change rates

• Add optional pass-through chambers for transferring materials and finished products between rooms

• Modular design meets any floor plan requirements; call for a custom quote!

Marks & Listings: UL, ULC

Features & Benefits

Features and Benefits

USP Cleanroom Customization
USP 800 BioSafe Cleanroom, Custom Floor Plan

Affordable customization to unique requirements!

  • Terra’s modular designs allow versatile configurations using standard components, whether you need a small compounding enclosure or a multi-suite processing facility (shown: Stainless steel USP 800 multi-room hazardous materials cleanroom with plastic hardwall ISO 8 transition room)
  • Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
  • Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
  • Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
  • Stand-alone A/C modules or integration with existing air handling system
  • Negative-pressure plenums and exhaust fans accommodate hazardous materials compounding requirements (USP 800)
  • Consultation services available to meet USP 797 and 800 and FDA/cGMP requirements
  • Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges

Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!

In Stock Modular Cleanroom Components

Since each modular cleanroom component is pre-tested and stocked, room pre-assembly is no longer required. Our lead times consist solely of the time it takes draw, package and ship the components to you.

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Hardwall Cleanroom Chemical-Resistant Panels

Chemically resistant polypropylene, mounted in mirror-finish steel brakets

Hardwall Cleanroom Partitioned Anteroom

Swing door separates ISO 7 Buffer room from ISO 8 Anteroom

Viewing Window for Modular Cleanroom

Cleanroom viewing windows provide ambient light and offer full visibility of the workspace. Polycarbonate offers chemical resistance, plus the highest durability (250x the impact resistance of glass). Static-Dissipative PVC panels are also chemical resistant and dissipate static charge to prevent particles from clinging to the window.

LED Lights, Fan Filter Units

HEPA fan/filter units (FFUs) exceed ISO 7 requirements for compounding buffer room; energy-efficient LED lights minimize generated heat

Biosafe Cleanroom Control Panel

Standard control panel includes centralized on/off control of lights and FFUs; displays differential pressue in the anteroom and buffer (compounding) room.

Adjustable Exhaust Vents

Adjustable IsoVents help control internal pressure to meet ISO regulations and maintain cascading pressure differentials.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

Cleanroom LED Light Panel with Emergency Power Supply, 2' x 2'

Cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Seismic Safe Cleanroom Design

Terra’s modular cleanrooms are designed with seismic safety in mind. Rigid steel frames and ceiling grids are designed with sufficient factors of safety to provide vertical and lateral strength recommended by professional engineers. Both hardwall and softwall designs can be installed to adhere to local seismic codes. Optional seismic and structural calculations can be drafted and stamped by a licensed PE to help meet municipal permitting requirements.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

High-Throughput Cleanroom Manufacturing

Over the past 5 years, Terra has manufactured nearly 1,500 UL-approved cleanrooms at industry-leading build times. Terra’s versatile modular cleanroom frame and panel designs adapt to any floor plan requirement. The UL-rated and scalable plug-and-play power distribution system further simplifies installment of FFU's and lights to cleanrooms of any size.

4,000 Worldwide Cleanrooms

Since 1976, Terra has designed and manufactured over 4,000 cleanrooms for companies at the leading edge of high technology

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Lighthouse Handheld Airborne Particle Counters
    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
  • Germicidal UV Lamp Sanitizes Labs, Cleanrooms
    UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
  • Available Environmental Control System
    Standard cleanroom comes with analog pressure gauge and on/off controls; optional touchscreen FFU controller monitors, controls and logs internal pressure, as well as displaying temperature and RH.
  • Bootie Butler Shoe Cover Dispenser
    Bootie butler shoe cover dispenser applies shoe covers quickly and conveniently, reinforcing clean garbing protocol and keeping contaminants out of the cleanroom
  • ISO 5 Laminar Flow Hood
    Laminar flow hood provides the ISO 5 Primary Engineering Control (PEC) stipulated in USP-797 for sterile compounding of non-hazardous preparations.
  • Hardwall Cleanroom Cleanroom Pass-Through
    Easily transfer materials and finished product without leaving the cleanroom
  • Glove and Garb Dispensers
    Wall-mounted cleanroom garb and glove dispensers save ante-room space and promote clean garbing protocol.
  • Biosafe Cleanroom Hands-Free Sink
    Hands-free sink and hand dryer, seen in cleanroom anteroom, boost compliance with hand-washing protocol.
