Product Details
Product Details
- ISO Rating: ISO 7, ISO 8
- Economical transfer hatches that minimize traffic in the lab or cleanroom
- Built with stainless steel components and non-shedding plastics
- Transparent doors offer a clear view of the chamber interior and the opposite-side door
- Plastic bracing and stainless steel stiffeners improve durability and provide a more uniform seal
- Mounts flush with the wall surface on the cleanroom-side
- Plastic chambers include a stainless steel tray to protect the chamber floor
- 304 stainless steel mechanical interlock automatically engages when a door is opened to prevent cross-contamination
- Self-closing 316L stainless steel hinges help both hold open and tightly close doors, plus eliminate corrosion, flaking, and contamination that commonly occur with ordinary chrome-plated hinges
• Marks & Listings: CE
ValuLine™ Pass-Through Chambers
-
ISO 8 ValuLine Polypropylene Passthrough Chamber
-
ISO 8 ValuLine Acrylic Pass-Through Chamber
-
Stainless Steel ValuLine Passthrough Chamber
-
ValuLine Polypropylene Pass-Through Chamber, 12"W x 12"D x 24"H
ISO 8 Polypropylene ValuLine pass-through chambers combine economy and performance | 2634-01A displayed
ISO 8 ValuLine Polypropylene Passthrough Chamber
ValuLine™ pass-through chambers provide a convenient means of transferring materials between rooms, interlocks prevent cross-contamination, and door reinforcements extend service life.

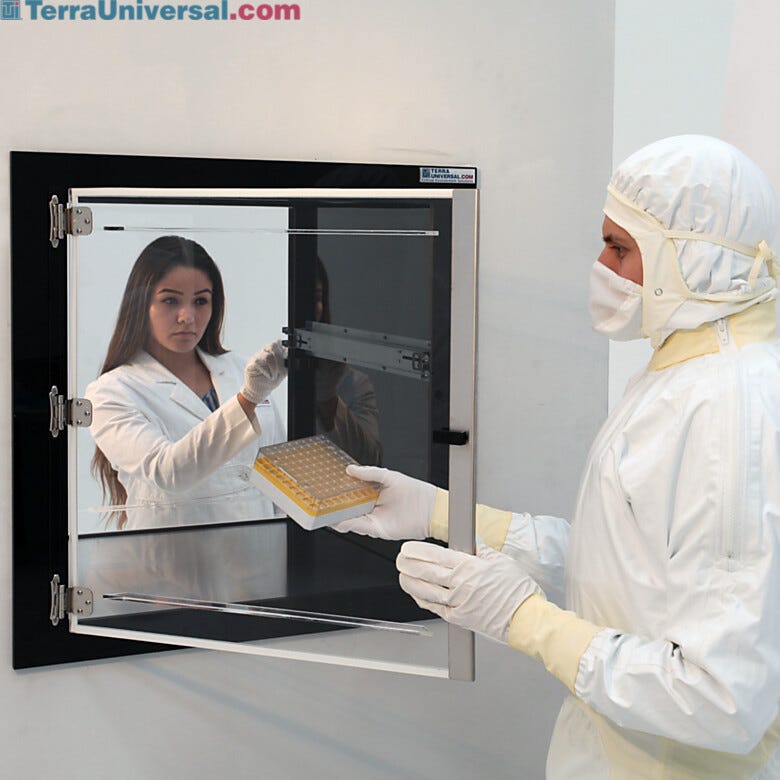

ISO 8 Acrylic ValuLine pass-through chambers combine value and functionality; included interlock prevents cross-contamination | 2634-17A displayed
ISO 8 ValuLine Acrylic Pass-Through Chamber
Acrylic ValuLine pass-through chambers combine value and functionality; included interlock prevents cross-contamination, and door reinforcements extend service life.

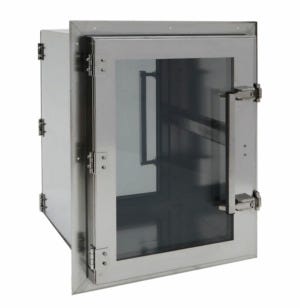

Stainless steel ValuLine pass through chambers include reinforced transparent static-dissipative PVC doors and interlocks to prevent cross-contamination | 2634-42A displayed
Stainless Steel ValuLine Passthrough Chamber
Stainless steel ValuLine pass through chambers include reinforced transparent static-dissipative PVC doors and no-maintenance mechanical interlocks that prevent cross-contamination by automatically engaging the moment a door opens.
Powder-coated steel ValuLine pass-through includes dissipatve PVC viewing windows and mechanical interlock | 2634-02A displayed
ValuLine Polypropylene Pass-Through Chamber, 12"W x 12"D x 24"H
Powder-coated steel ValuLine pass-through includes stainless steel-reinforced dissipatve PVC viewing windows and mechanical interlock that automatically engages when a door is opened.
Features & Benefits
Features and Benefits
Learn More: ValuLine Pass Through Dimensions
Print
Copy Copied
ValuLine Pass-Through Chamber
Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal)* – 0.12”
Height = H (nominal) – 1.25”
* Subtract 0.5” for plastic chambers. Each door adds 0.5” to nominal depth.
Width = W (nominal) – 1.88”
Depth = D (nominal)* – 0.12”
Height = H (nominal) – 1.25”
* Subtract 0.5” for plastic chambers. Each door adds 0.5” to nominal depth.
Wall Cut-Out = W (nominal) +0.5” x H (nominal) + 0.5”
Mounting Illustration with Door Swing Direction
Automatic Mechanical Interlock
The mechanical interlock eliminates the chance of cross-contamination by ensuring that only one door at a time can open. This no-maintenance, all-stainless steel mechanism automatically engages the moment a door opens.
Stainless Steel Shield
The stainless steel shield protects the chamber floor from scratches and any other damage to the plastic surfaces.
Transparent Door
Transparent pass through doors with clear acrylic and static dissipative PVC options are offered in these ValuLine Pass Throughs. Compression latch and steel reinforcements provides stability to the pass-through door.
Dual Expansion Latches
Swell-type latches provide a firm grip via smooth compression that does not scrape any surfaces, particularly when compared to rotary latches. The rubber collar ensures a quiet closure that also dampens vibrations.
Stainless Steel Door Guard
A stainless steel stiffener reinforces the door's leading edge to provide a better seal and protect against damage. These bars also provide additional support to the door latches.
Flush Mounted Chamber
The pass-through chamber mounts flush against the cleanroom-side wall to minimize horizontal surfaces where particles can collect. The main body of the pass-through extends outside of the cleanroom.
Continuous Product Improvement
At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.
Comprehensive Product Portfolio
Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.
Long-Term Customers
Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Products Compliant With Your ISO Rating
Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and certify it with the serial numbers appended to your invoice, to be included in your compliance package.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Support Brackets for Pass-Through Chambers
Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
