Terra Part # 2634-17A
$1,654
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 2634-17A
70499

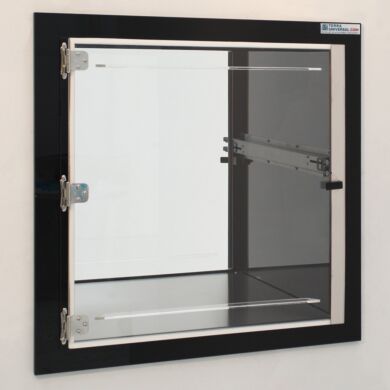

Pass-Through; ValuLine™, 24" W x 24" D x 24" H ID, Standard Wall Mount, Black Acrylic

• Includes two sets of black acrylic mounting brackets

• Standard bracket mounting is flush on the front on the cleanroom side

• Access doors feature a stainless steel stiffener and closed-cell non-contaminating gasket

• Stainless steel work surface prevents scratching

• Dual expansion latches provide firm door closure without generating particles

• 304 stainless steel mechanical interlock automatically engages when a door is opened to prevent cross-contamination

• Self-closing 316L stainless steel hinges help both hold open and tightly close doors, plus eliminate corrosion, flaking, and contamination that commonly occur with ordinary chrome-plated hinges

• CAUTION: Acrylic is damaged by alcohol and many other cleaning agents. Use only water and mild detergent.

Inside Depth: 24"

Inside Height: 24"

Inside Width: 24"

Concealed Interlock: No

Continuous-Seam Welds: No

HEPA/ULPA Filtration: No

Material: Black Acrylic

Model: ValuLine™

Mounting Position: Standard Wall

Opening Dimensions: 23"W x 22"H

Special Door Configuration: None

Window Material: Acrylic

Unit of Measure: EA

Dimensions, Product: 27.5" W x 24" D x 27.5" H

Dimensions, Shipping: 34" W x 35" D x 37" H

Package Type: Crate

Weight, Product: 49 lb

Weight, Shipping: 174 lb

Buy Accessories
  1. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  2. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  3. Equipment Testing and Certification
    Request Quote
    Increase Down Increase Up
  4. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

ValuLine™ Pass-Through Chambers

  • Stainless Steel Value Passthrough Chamber Stainless Steel ValuLine Passthrough Chamber
  • Acryolic Pass-Through Chamber with Models ValuLine Acrylic Pass-Through Chamber
  • ValueLine Pass-Through Chamber with Model ValuLine Polypropylene Passthrough Chamber
  • Polypropylene Pass-Through Chamber ValuLine Polypropylene Pass-Through Chamber, 12"W x 12"D x 24"H

Features and Benefits

Cut-Out Dimensions

ValuLine Pass-Through Chamber

Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal)* – 0.12”
Height = H (nominal) – 1.25”
* Subtract 0.5” for plastic chambers. Each door adds 0.5” to nominal depth.
Wall Cut-Out = W (nominal) +0.5” x H (nominal) + 0.5”
Mounting Illustration with Door Swing Direction

Stainless Steel Shield

The stainless steel shield protects the chamber floor from scratches and any other damage to the plastic surfaces.

Transparent Door

Transparent pass through doors with clear acrylic and static dissipative PVC options are offered in these ValuLine Pass Throughs. Compression latch and steel reinforcements provides stability to the pass-through door.

Dual Expansion Latches

Swell-type latches provide a firm grip via smooth compression that does not scrape any surfaces, particularly when compared to rotary latches. The rubber collar ensures a quiet closure that also dampens vibrations.

Stainless Steel Door Guard

A stainless steel stiffener reinforces the door's leading edge to provide a better seal and protect against damage. These bars also provide additional support to the door latches.

Flush Mounted Chamber

The pass-through chamber mounts flush against the cleanroom-side wall to minimize horizontal surfaces where particles can collect. The main body of the pass-through extends outside of the cleanroom.

Automatic Mechanical Interlock

The mechanical interlock eliminates the chance of cross-contamination by ensuring that only one door at a time can open. This no-maintenance, all-stainless steel mechanism automatically engages the moment a door opens.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Passthrough Chamber Door Stop
    This stainless steel door stop limits the arc of the pass-through door's swing to 90°, preventing damage to wall, door latch and other components. Door stops can be adjusted to allow other angles.
  • Support Brackets for Pass-Through Chambers
    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
