Terra Part # 3504-02A
$3,693
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 3504-02A
68054
Work Station; BioSafe® ErgoHeight, 304 Stainless Steel, Solid Top, 60" W x 30" D x 43" H, 120 V

• Weight Load: 880 lbs

• Lifting Speed: 0.5"/sec

• Program up to 4 pre-set height positions

• Height adjusts from 28"-43" (measured floor to top)

• Base and work surface constructed of 304-grade stainless steel; compatible with alcohol-based cleaners

• Robust motorized lifters automatically raise, lower and level work surface for operator comfort and convenience

• Fully sealed motorized lifters provide smooth up/down motion

• Meets ISO 5 particle standards, sealed design isolates motor to prevent work zone contamination

• Ergonomic control panel mounted on front of benchtop frame

• Cleanroom workbench design tested by UL to meet compliance standards for durability, stability and safety standards from BIFMA (Business and Institutional Furniture Manufacturers Association) and ASTM (American Society for Testing Materials).

Type: Auto Height Adjust

Top Design: Solid

Frame Material: 304 SS

Height: 28"-43"

Top Material: 304 Stainless Steel

Width: 60"

Depth: 30"

Load Capacity: 880 lb

Unit of Measure: EA

Marks & Listings: ANSI/BIFMA

Electrical Specifications: 120 V, 5 A, 600 W, 1 Ph, 50/60 Hz

Weight, Product: 164 lb

Dimensions, Product: 60" W x 30" D x 43" H

Weight, Shipping: 321 lb

Dimensions, Shipping: 35.25" W x 65.25" D x 34" H

Package Type: Crate

Buy Accessories
  1. Drawers; 304 SS, Left Mounted for TUI Work Stations
    Request Quote
    Increase Down Increase Up
  2. Drawers; 304 SS, Right Mounted for TUI Work Stations
    Request Quote
    Increase Down Increase Up
  3. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  4. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  5. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate | 1704-01 displayed
    Request Quote
    Increase Down Increase Up
  6. Suits various weights, floor surfaces, and cleanliness requirements | 1700-43 displayed
    Caster set; 4'' diameter, Heavy Duty, Phenolic Wheels, 304SS, two with Brakes Stocked Item is in stock and ready for immediate shipping
    $836
    Increase Down Increase Up
  7. Optional 3-inch diameter caster set | 1700-44 displayed
    $366
    Increase Down Increase Up
  8. A convenient space-efficient CPU rack | 1741-19 displayed
    $457
    Increase Down Increase Up
  9. Stainless Steel Leg Member
    $49
    Increase Down Increase Up
  10. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    Power Strip; 4 Outlets, 120VAC/60Hz, Installed Stocked Item is in stock and ready for immediate shipping
    $200
    Increase Down Increase Up
  11. BioSafe® Foot Rest offers all-stainless-steel construction, height adjustability, and non-shedding leveling feet | 2803-90 displayed
    BioSafe® Adjustable Footrest; ISO 5, 304 Stainless Steel, 18" W x 12" D x 12" H Stocked Item is in stock and ready for immediate shipping
    $383
    Increase Down Increase Up
  12. FS-1-C Ergonomic adjustable footrest, chrome-plated frame, and 10" slope non-skid platform | 2804-84 displayed
    Footrest; ISO 5, Chrome-Plated Steel, 20" W x 11" D x 11" H, Adjustable, BioFit Stocked Item is in stock and ready for immediate shipping
    $121
    Increase Down Increase Up
  13. FS-1-06 Ergonomic adjustable footrest, black powder-coated frame, and 10" slope non-skid platform | 2804-83 displayed
    Footrest; ISO 5, Black Powder-Coated Steel, 20"W x 11"D x 11"H, Adjustable, BioFit Stocked Item is in stock and ready for immediate shipping
    $104
    Increase Down Increase Up
  14. Stianless steel footrest with a pneumatic cylinder for use in ISO 7 and ISO 8 cleanrooms | 2803-92 displayed
    BioSafe® Tilting/Adjustable Footrest; ISO 5, 304 Stainless Steel Stocked Item is in stock and ready for immediate shipping
    $759
    Increase Down Increase Up
  15. Stianless steel footrest with a pneumatic cylinder for use in ISO 7 and ISO 8 cleanrooms | 2803-92 displayed
    BioSafe® Tilting/Adjustable Footrest; ISO 5, 304 Stainless Steel Stocked Item is in stock and ready for immediate shipping
    $759
    Increase Down Increase Up
  16. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  17. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

ErgoHeight Adjustable Work Stations

  • Ergo Height Auto Adjustable Cleanroom Work Station

Features and Benefits

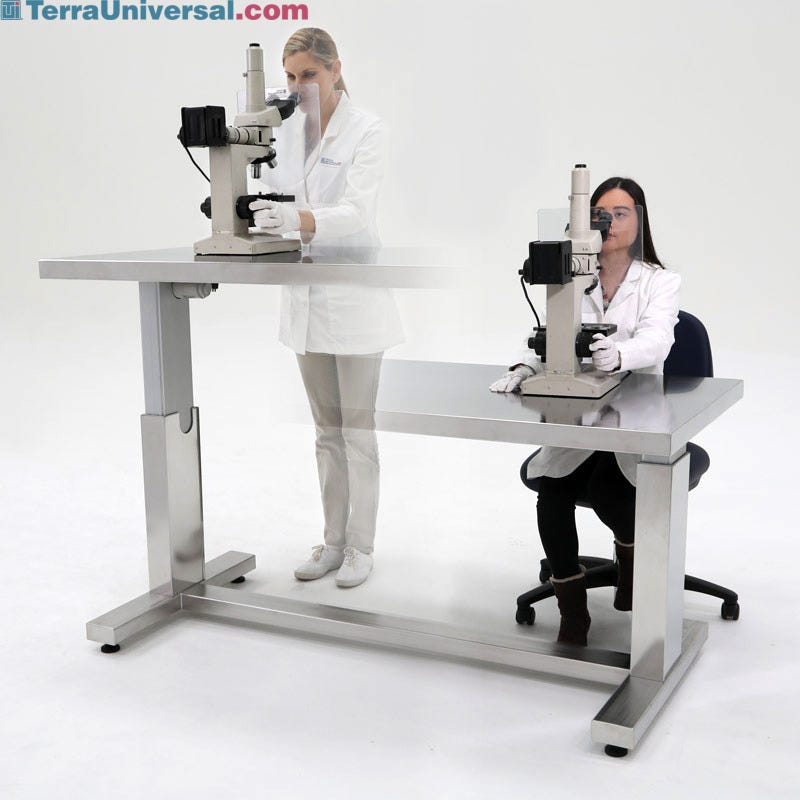

ErgoHeight Auto-Adjusting Cleanroom Work Station

ErgoHeight™ Electric Height Adjustable Cleanroom Workstations

  • Robust motorized lifters automatically raise, lower and level the work surface for optimal operator comfort and convenience while ensuring lateral stability
  • Ergonomic electric adjustable height cleanroom table easily changes height with the push of a button
  • Ergonomic benchtop positioning eliminates back stress—and costly lawsuits!
  • Front keypad stores up to 4 heights and displays exact desk height for hassle free adjustment
  • Quickly change positions throughout the workday for improved health and productivity
  • Sealed design isolates motor to guard against contamination and meet ISO 5 (Class 100) particle standards
  • Heavy duty legs support up to 880 lbs; safely adjust height without moving equipment off table
  • Ideal for work with high-profile processing equipment
  • Height-adjustable from 28" to 43"
Sure, Your Bench is Adjustable—But Do You Adjust It?
ErgoHeight Auto-Adjusting Cleanroom Work Station

Adjustability means nothing if it's inconvenient or unfeasible.

True, many benches feature telescopic legs, but how likely is an operator to perform a manual adjustment if it means temporarily relocating heavy, expensive process equipment? How many helping hands are required? How long will it disrupt critical process operations? And how long will it be before someone else wants the bench just the way it was?

Adjustable cleanroom chairs help solve these problems, but in many cleanroom applications, a chair just isn't enough. Many test and assembly procedures require adjustment outside the range of most adjustable chairs, forcing an operator to hunch their back to meet the occasion. Other processes require an operator to stand or move from one position to another, so chairs of any kind aren't much help. When frequent adjustment entails moving heavy, expensive equipment, the temptation is to let someone suffer—and risk a back injury, lost productivity, even lawsuits.

Note: Because the ErgoHeight Work Bench requires a steady benchtop for safe operation, it is not recommended for use with an over-head light fixture.

Smooth Operation
Adjustable Table Control Panel with Four Presets and Display

The ErgoHeight adjustable height cleanroom table incorporates a high-torque, low RPM motor inside two lifters located on the right and left sides of the table. Each lifter can safely handle 440 pounds (199.6 kg) of net load, for a total net load of 880 pounds (399.2 kg). Lifting speed is 0.5"/second.

A control panel and keypad mounted on the front of the benchtop frame contains all necessary switches for up/down table motion and to level the work surface. This option is ideal for use with process equipment that requires height adjustment to suit individual operators, as well as for leveling the system or interfacing it with adjacent operations. Program up to four pre-set positions.

Standard ErgoHeight electric adjustable height workbenches are height-adjustable from 28" to 43", floor to work surface. Vibration-free height range is 30.375" to 51.375" floor-to-top.

Cleanroom Compatible Design
Reinforced Frame of ErgoHeight Adjustable-Height Cleanroom Table

BioSafe® electric automatic standing workstations are designed for use in a cleanroom environment. The table top features a rigid solid-welded 304 stainless steel construction, suitable for environments with strict cleaning protocol. The thermally protected lifters are completely sealed inside the legs to ensure particle retention and cleanroom compatibility. And because an ErgoHeight Work Station provides smooth, controlled height adjustment under virtually any load, it allows automatic height adjustment of vibration-sensitive equipment. Typically you can bring delicate test equipment, even liquids, to the optimal level without lengthy disruption, thereby making the most of expensive cleanroom time. For enhanced vibration isolation in microscope operations, select Terra's Vibration-Free ErgoHeight Station.

Cleanroom Adjustable Height Work Station

The ErgoHeight electric height adjustable cleanroom table is available with a variety of bench tops to suit your particular application requirement. Non-BioSafe automatic adjustable height workstations offer a lower cost alternative with powder-coated steel base for less stringent cleanliness requirements. Perforated tops feature 0.25"-diameter perforations with an open area of 40% to ensure proper vertical laminar airflow.

ErgoHeight Automatic Adjustable Work Station

ErgoHeight tables provide a 15" range of vertical motion to ensure personnel comfort without disrupting tabletop set-ups; all-stainless steel construction and sealed lifting mechanism for cleanroom use

ErgoHeight Intuitive Controls

ErgoHeight compact control panel includes four buttons for user height presets and a digital display

ErgoHeight Reinforced Frame

The reinforced steel frame of the ErgoHeight adjustable-height table enhances lateral stability, ensuring a stable work surface ideal for microscopy and high-precision benchtop equipment.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for life science applications: no gaps and crevices where microbes can colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceed cGMP, IEST, ASTM and ISO 14644-1 requirements.

OpenTop Perforated Top

Hidden reinforcements minimize dead spots, add strength, and eliminate deflection without dead spaces whereas conventional perforated tops rely on “blank out” support panels, which create turbulence in cleanroom laminar flow.

Bull-Nose Rounded Edge Comparison

Terra's one-piece bull-nose rounded edges increase operator comfort and reduce particulate shedding caused by sharp or abrasive edges. The smooth, continuous-seam welds also eliminate cracks and crevices that can harbor contaminants.

Vibration-Isolated Configurations for Improved Stability

ErgoHeight workstations can be configured with vibration dampening tabletops. The pneumatic vibration-free mounts isolate up to 90% of building vibration to improve stability for vibration sensitive operations and minimize worker fatigue and nausea during high-magnification work.

Benchtop Vertical Laminar Flow Hood with Automatic Height Adjusting Table

Vertical laminar flow hoods provide a HEPA-filtered work area for protection from particle contaminants. Benchtop laminar flow hoods can easily mount to an automatic height adjusting table (28”-43”H). Perfect for workstations with heavy or fragile equipment.

UL-Tested Cleanroom Workbenches for Highest Quality and Safety

Ensuring the safety of your personnel and equipment is essential. UL is recognized around the world as the leader in product safety testing and certification. Terra’s cleanroom workbenches are tested by UL to meet the strictest safety and stability standards.

Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator

Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Vertical Laminar Flow Clean Bench with Automatic Height Adjusting Table

Automatic height adjusting tables fit perfectly inside free-standing laminar flow clean benches. The separate workstation helps isolate vibration from the fans mounted above the hood. Dual motor electric height adjusting columns beneath the table allow users to quickly raise or lower the work surface without moving equipment off the table.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
