Terra Part # 1728-00-E
$1,577
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1728-00-E
75059
Work Station, Cleanroom, ErgoHeight; Static-Dissipative Laminate, Solid Top, 48" W x 30" D x 43" H, PCS Frame

• Adjustable Nylon leveling feel resist a wide range of chemicals and provide stability

• Safely dissipate electrostatic charges to allow operations on static-sensitive devices

• Lifting Speed: 0.5"/sec

• Program up to 4 pre-set height positions

• Height adjusts from 28"-43" (measured floor to top)

• Robust motorized lifters automatically raise, lower and level work surface for operator comfort and convenience

• Ergonomic control panel mounted on front of benchtop frame

• Maximum load capacity with casters: 400 lbs.


• No assembly required

• Cleanroom workbench design tested by UL to meet compliance standards for durability, stability and safety standards from BIFMA (Business and Institutional Furniture Manufacturers Association) and ASTM (American Society for Testing Materials).

Type: Auto Height Adjust

Top Design: Solid

Frame Material: PCS

Height: 28"-43"

Manufactured by: Terra Universal

Top Material: Static-Dissipative Laminate

Width: 48"

Depth: 30"

Load Capacity: 880 lb

Unit of Measure: EA

Marks & Listings: ANSI/BIFMA

Electrical Specifications: 120 V, 5 A, 600 W, 1 Ph, 50/60 Hz

Weight, Product: 130 lb

Dimensions, Product: 48" W x 30" D x 43" H

Weight, Shipping: 307 lb

Dimensions, Shipping: 35.5" W x 53.75" D x 47.5" H

Package Type: Crate

Buy Accessories
  1. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate | 1704-01 displayed
    Request Quote
    Increase Down Increase Up
  2. Stainless Steel Leg Member
    $38
    Increase Down Increase Up
  3. A convenient space-efficient CPU rack | 1741-19 displayed
    $395
    Increase Down Increase Up
  4. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    Power Strip; 4 Outlets, 120VAC/60Hz, Installed Stocked Item is in stock and ready for immediate shipping
    $200
    Increase Down Increase Up
  5. BioSafe® Foot Rest offers all-stainless-steel construction, height adjustability, and non-shedding leveling feet | 2803-90 displayed
    Footrest; ISO 5, 304 Stainless Steel, 18" W x 12" D x 12" H, Adjustable, BioSafe® Stocked Item is in stock and ready for immediate shipping
    $296
    Increase Down Increase Up
  6. Adjustable foot rest. Product details may differ. | 2804-84 displayed
    Footrest; ISO 5, Chrome-Plated Steel, 20" W x 11" D x 11" H, Adjustable, BioFit Stocked Item is in stock and ready for immediate shipping
    $108
    Increase Down Increase Up
  7. Maximizes worker comfort and productivity | 2804-83 displayed
    Footrest; ISO 5, Black Powder-Coated Steel, 20"W x 11"D x 11"H, Adjustable, BioFit Stocked Item is in stock and ready for immediate shipping
    $86
    Increase Down Increase Up
  8. Stianless steel footrest with a pneumatic cylinder for use in ISO 7 and ISO 8 cleanrooms | 2803-92 displayed
    Footrest; ISO 5, 304 Stainless Steel, Tilting/Adjustable Stocked Item is in stock and ready for immediate shipping
    $586
    Increase Down Increase Up
  9. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  10. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

Workstations and Tables

  • Ergo Height Auto Adjustable Cleanroom Work Station

Features and Benefits

Workstations with Static-Dissipative Tops
Workstations with Static-Dissipative Tops
Workstations with Static-Dissipative Tops
  • Static-dissipative laminate (10^7 ohms/sq) safely dissipates charges to reduce ESD danger
  • Sealed undertop and clean materials— compatible with Class 100 / ISO 5 cleanroom
  • Adjustable “A” base is standard. Custom recessed “C” base shown
  • Custom modular overhead fluorescent light fixture provides shadow-free viewing
  • Nylon leveling feet resist a broad range of chemicals and eliminate wobbles for high-precision work
  • Other options include modular drawer unit, casework, shelves, power strip

This work station is ideal for static-sensitive materials that can be degraded or destroyed by the charges generated by conventional benchtops.

It features a dissipative laminate top bonded to a 1.25" (32 mm) high-density, epoxy-bonded fiber core. Edges are covered with plastic, and backing is provided on the bottom of the work surface to meet ISO 5 cleanroom standards.

Static-Dissipative Plastic Laminate combines the chemical- and heat-resistive properties of plastic laminate with a controlled path to ground for dissipation of static charge without voltage suppression ambiguity. This laminate has a micro-thin layer of aluminum oxide (moho hardness of 9; diamond - 10) integrated directly into its surface, creating an extremely hard protective layer, which provides long-term resistance to surface abrasion. This material has also been specifically tested for particle trapping (see test results below.) Each sheet used in fabrication is individually certified to meet the values set forth below:

  • General Thickness: .040 Nominal
  • Chemical Resistance: Resistive to common solvents such as Acetone, Trichloroethylene, Solder Flux, Isopropyl Alcohol, and Naptha
  • Thermal Resistance: 350°F with no charge per NEMA LD 3.06 and NEMA LKD 3.08; molten solder will not mar surface
  • Abrasion Resistivity: Typical NEMA Value—1550 cycles; Wear Rate of .006 gm/100 cycles
  • Cleaning: Clean with water only, or with a mild, nonabrasive, ammoniated detergent and rinse; DO NOT use wax or other coatings
Electrical Specifications
SpecificationTypicalCertified
Surface Resistivity per ASTM D-257:107 Ω/sq106-9 Ω/sq.
Resistance to Ground Ohms—NFPA 99:107106-9
Decay Rate per Fed Test 101C, Method 4046 (5,000 to 0 Volts):.01 sec..5 sec
Particle Trapping Test
Particles/cu. ft. Air in 16 Sq. In. Area (microns)TypicalCertified
Sample105
Cleanroom Air01
Water Washed Sample99
Ethyl Alcohol Washed Sample1015
Acetone Washed Sample710
Freon TF Washed Sample1712
Silica Gel & Iron Oxide-Contaminated
Surface Washed with Ethyl Alcohol:
520

These counts are very low. Under the same test conditions, a material which does shed particles would give off thousands of particles in the 10- and 5-micron range. This material is thus certified as cleanroom safe.

Non-Conductive Laminate shares many characteristics with static-dissipative laminate, except surface resistivity. In surface resistivity tests, this laminate material measured between 4.1 x 1011 and 7.4 x 1012 Ω/sq. It is generally resistive to most solvents as well as hot solder; however, mineral acids (such as hydrochloric, sulphuric, or nitric acid) should not be allowed to contact to laminate. This material is suitable for cleanroom use and will not outgas.

Clean, Versatile—and Static Safe

The dissipative laminate tops safely dissipate electrostatic charges to allow operations on static-sensitive devices—these benches meet MIL-B-81705-B specifications. They also resist a wide range of chemicals. Standard color is non-glare white.

Like our standard work stations, this station also features a heavy-duty bench frame made of all-welded square tubing. The heavy-wall tubing used in the construction allows the factory-mounted benchtop to support much heavier loads than conventional benches without sagging. The "A" base, adjustable from 25" to 34" (635 mm to 864 mm) floor-to-top feature a white epoxy enamel or powder-coat finish. Finished "A" bases are available with a 304 stainless steel lower leg member to provide this additional scuff protection. Include leveling feet to provide stability.

Other system options include easy-clean Modular Cleanroom Drawers and casework for efficient document and supply organization, with convenient access.

Many other models available: including static-dissipative and acid-resistant work surfaces, vibration-isolation systems, ErgoHeight™ and UltraClean™ work stations!

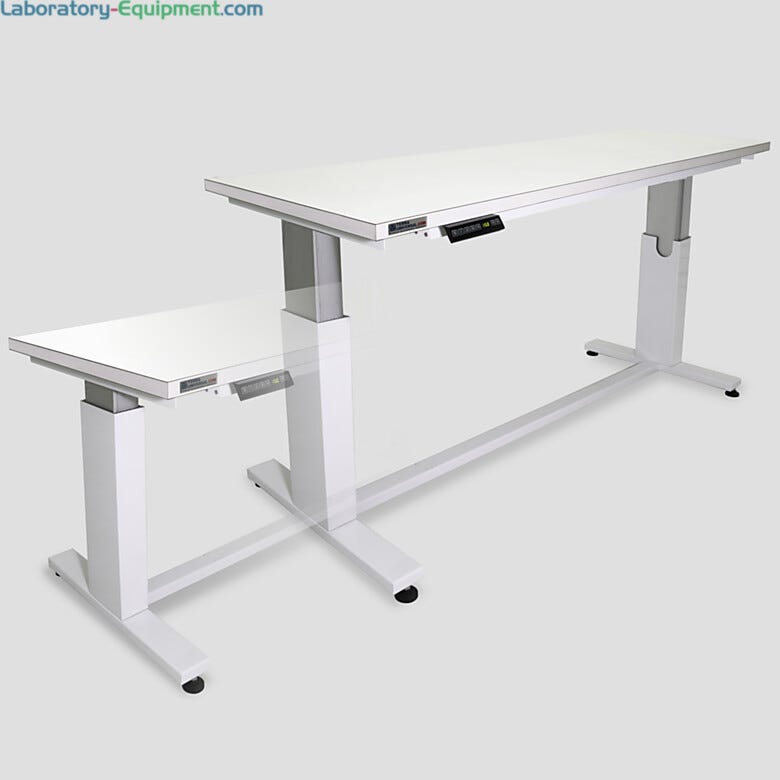

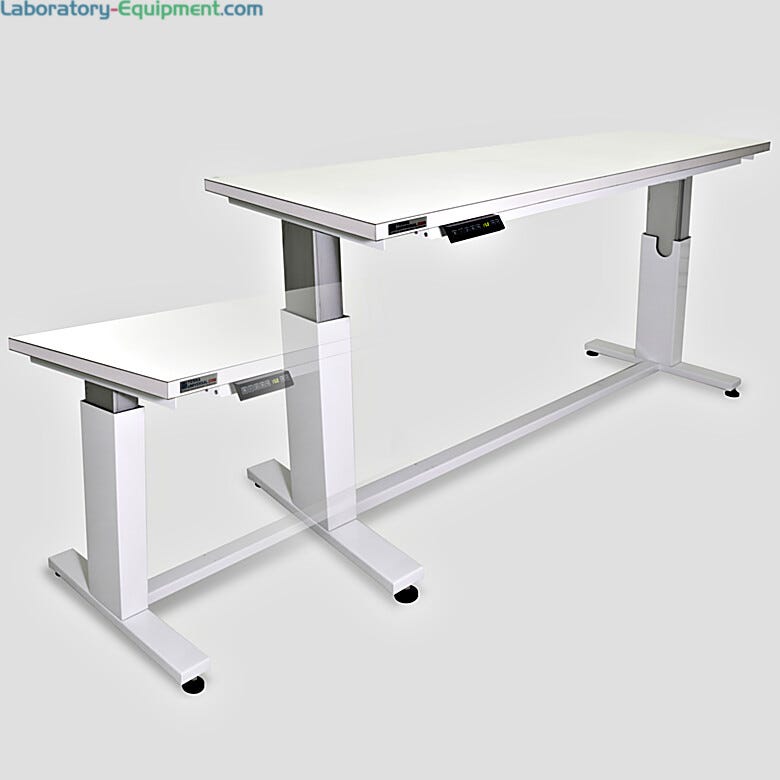

ErgoHeight Automatic Adjustable Work Station

ErgoHeight tables provide a 15" range of vertical motion to ensure personnel comfort without disrupting tabletop set-ups; all-stainless steel construction and sealed lifting mechanism for cleanroom use

ErgoHeight Intuitive Controls

ErgoHeight compact control panel includes four buttons for user height presets and a digital display

ErgoHeight Reinforced Frame

The reinforced steel frame of the ErgoHeight adjustable-height table enhances lateral stability, ensuring a stable work surface ideal for microscopy and high-precision benchtop equipment.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for life science applications: no gaps and crevices where microbes can colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceed cGMP, IEST, ASTM and ISO 14644-1 requirements.

OpenTop Perforated Top

Hidden reinforcements minimize dead spots, add strength, and eliminate deflection without dead spaces whereas conventional perforated tops rely on “blank out” support panels, which create turbulence in cleanroom laminar flow.

Bullnose Front Edge Comparison

Terra's one-piece bullnose enhances worker comfort while optimizing vertical laminar airflow while welded table edges could harbor contaminants

Vibration-Isolated Configurations for Improved Stability

ErgoHeight workstations can be configured with vibration dampening tabletops. The pneumatic vibration-free mounts isolate up to 90% of building vibration to improve stability for vibration sensitive operations and minimize worker fatigue and nausea during high-magnification work.

Benchtop Vertical Laminar Flow Hood with Automatic Height Adjusting Table

Vertical laminar flow hoods provide a HEPA-filtered work area for protection from particle contaminants. Benchtop laminar flow hoods can easily mount to an automatic height adjusting table (28”-43”H). Perfect for workstations with heavy or fragile equipment.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • 3-inch Diameter Caster Set
    Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
  • Work Station Drawers
    Available in ABS plastic or stainless steel, these cleanroom-compatible drawers come in a number of sizes and drawer configurations (6” top drawer/12” bottom drawer shown).
  • Cleanroom Computer Rack
    Space-efficient computer CPU rack mounts below table top; made of powder-coated steel for strength and cleanliness.
