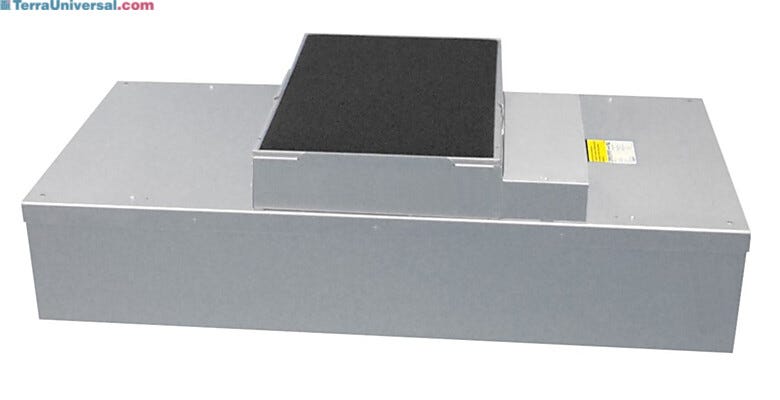

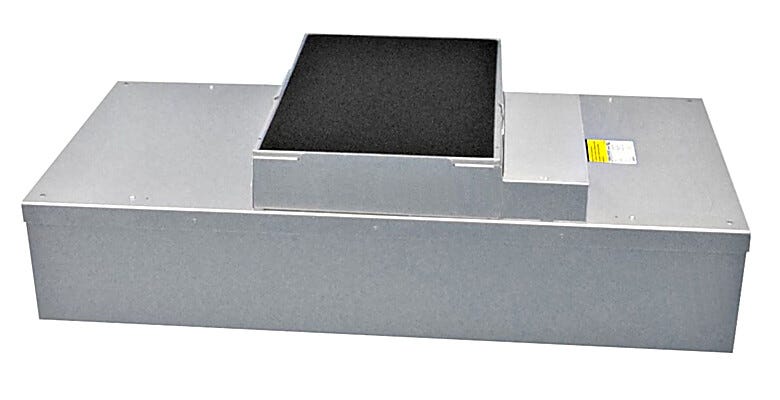

2' x 4' aluminum fan filter unit with HEPA filter and energy-efficient, smart EC motor with network connection for cleanrooms | 6601-24-H-EC-CF displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V

Warranty: 1 year parts, 90 days labor
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Constant airflow design dynamically adjusts for changes in static pressure, filter load, and other conditions to maintain set airflow
  • Electrically commutated (EC), high-efficiency motor regulates torque and speed to provide consistent air volume
  • EC motor shows high performance at low energy requirements at only 235 watts at average speed
  • Internal baffling plates and diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow

• Type: Constant Flow

• Material: Aluminum

• Filter Replacement Access: Top Side

• Size: 2'x4'

• Filter Frame Material: Aluminum

• Filter Type: HEPA

• Filter: HEPA

• Motor Type: Electronically Commutated (EC)

• Airflow: Positive Pressure

• Speed Control: Universal Control Card

• Blower Type: Forward Curved

• Active Filter Face Area: 7.2 ft²

• FFU Control: Automatic

• Unit of Measure: EA

Read more
ULus Listed
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
6601-24-H-EC-CF
Terra Part # 6601-24-H-EC-CF
$1,924
Accessories related to Terra Part # 6601-24-H-EC-CF
85538
Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 20-22 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Constant airflow design dynamically adjusts for changes in static pressure, filter load, and other conditions to maintain set airflow
  • Electrically commutated (EC), high-efficiency motor regulates torque and speed to provide consistent air volume
  • EC motor shows high performance at low energy requirements at only 235 watts at average speed
  • Internal baffling plates and diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow
  • Finger guard-protected inlet to protect users and the equipment
  • 1/4" ( 6 mm) -20 threaded holes in top corners accommodate eyebolts to facilitate installation using suspended guy wires (order eye bolt package separately)
  • Mill finished aluminum exterior
  • HEPA Filter: 99.99% efficient High-Efficiency Particulate Air, rated at particles 0.3µm diameter
  • Universal Control card, 3 modes available:
  •           Network mode – MODBUS RTU with RJ45 serial bus connection
  •           Analog model – 0 -10 VDC input
  •           Onboard Trim pot adjustment
  • Sound level is approximately 51 dBA, at average air flow velocity of 90 FPM (0.46 m/s)
  • Walkable plenum (excluding pre-filter) rated to 250 lbs.
  • Replacement filter (order separately)
  • Snap-in washable MERV 4 pre-filter
  • Because filters are delicate and subject to damage during handling, all filter sales are final; no failure claims can be accepted

• Type: Constant Flow

• Material: Aluminum

• Filter Replacement Access: Top Side

• Size: 2'x4'

• Filter Frame Material: Aluminum

• Filter Type: HEPA

• Filter: HEPA

• Motor Type: Electronically Commutated (EC)

• Airflow: Positive Pressure

• Speed Control: Universal Control Card

• Blower Type: Forward Curved

• Active Filter Face Area: 7.2 ft²

• FFU Control: Automatic

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Electrical Specifications: 115 V, 5 A, 250 W, 1 Ph, 60 Hz

• Weight, Product: 66 lb

• Dimensions, Product: 23.63" W x 47.63" D x 14.32" H

Show more
