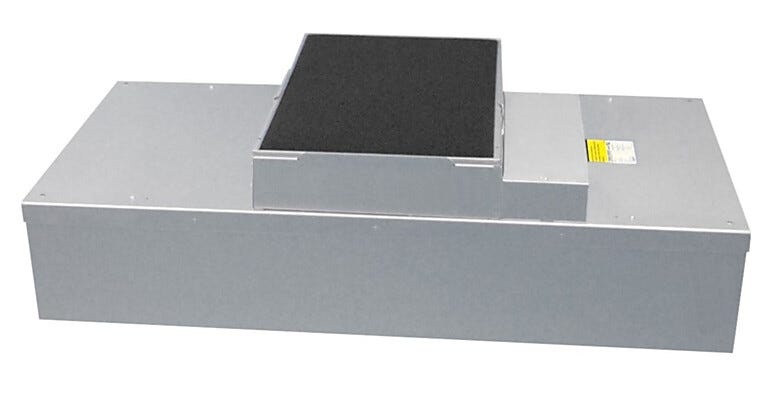

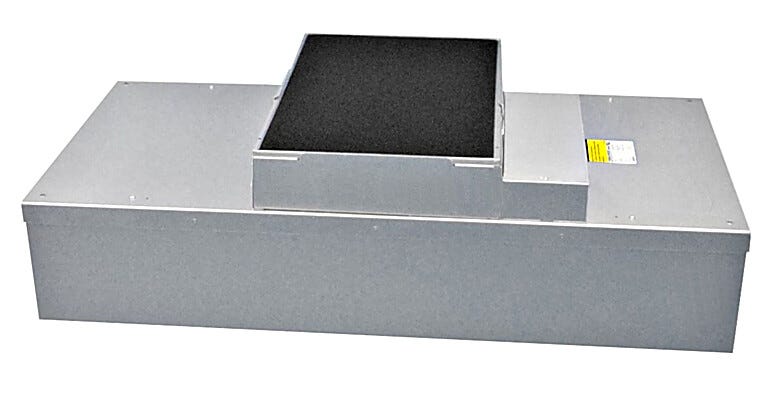

2' x 4' aluminum fan filter unit with HEPA filter and energy-efficient, smart EC motor with network connection for cleanrooms | 6601-24-H-EC-CF displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

Base Part # 6601-24-H-EC-CF

Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V

Warranty: 1 year parts, 90 days labor
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Constant airflow design dynamically adjusts for changes in static pressure, filter load, and other conditions to maintain set airflow
  • Electrically commutated (EC), high-efficiency motor regulates torque and speed to provide consistent air volume
  • EC motor shows high performance at low energy requirements at only 235 watts at average speed
  • Internal baffling plates and diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow

• Type: Constant Flow

• Material: Aluminum

• Filter Replacement Access: Top Side

• Size: 2'x4'

• Filter Frame Material: Aluminum

• Filter Type: HEPA

• Filter: HEPA

• Motor Type: Electronically Commutated (EC)

• Airflow: Positive Pressure

• Speed Control: Universal Control Card

• Blower Type: Forward Curved

• Active Filter Face Area: 7.2 ft²

• FFU Control: Automatic

• Unit of Measure: EA

Read more
ULus Listed
Warranty: 1 year parts, 90 days labor
VIEW SPECS
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
System Summary
Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V
Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V

In stock

$1,924 / system Estimated Total: Tax calculated at checkout $1,924

Save For Later
Usually ships in 20-22 business days
Want it faster? Read about FasTrak
Selected Items
    Customize Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V
    Replacement HEPA and ULPA Filters

    Replacement Filters

    To avoid shutdowns, order replacement filters at time of Fan/Filter Unit purchase
    Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V
    Fan Filter Unit; Aluminum, 2'x4', HEPA, EC Motor, Constant Flow, Top Side Replaceable, 115 V 6601-24-H-EC-CF 1 required
    $1,924
    Increase Down Increase Up
    Replacement HEPA Filter: 2' x 4' MAC 10 Unit
    Replacement HEPA Filter: 2' x 4' MAC 10 Unit
    $790
    Increase Down Increase Up
