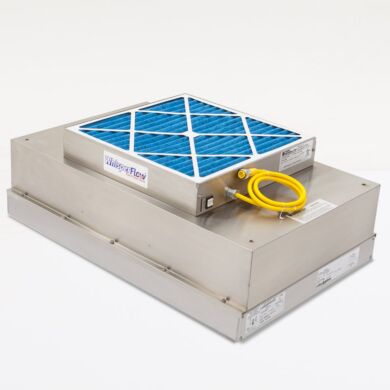

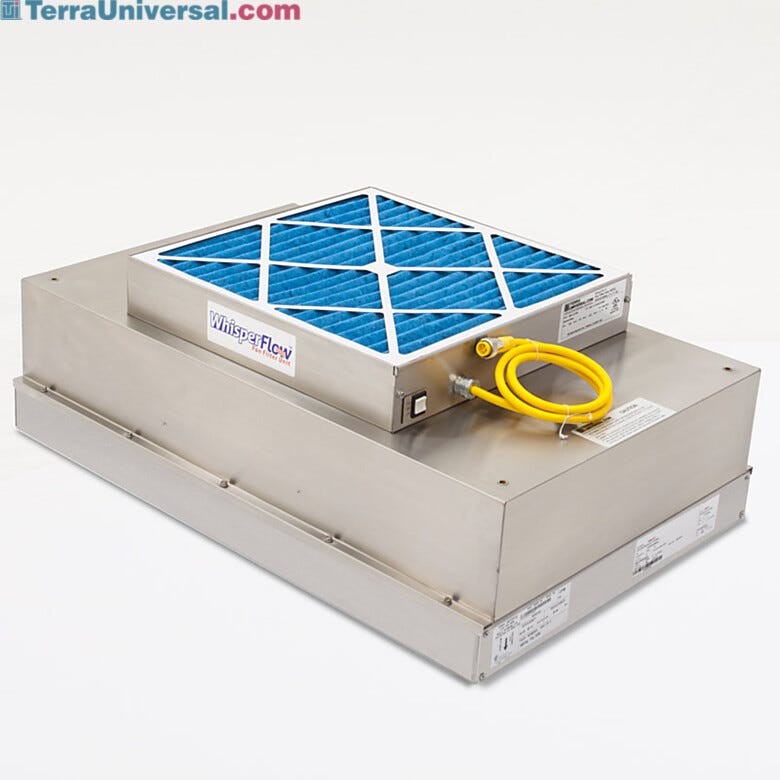

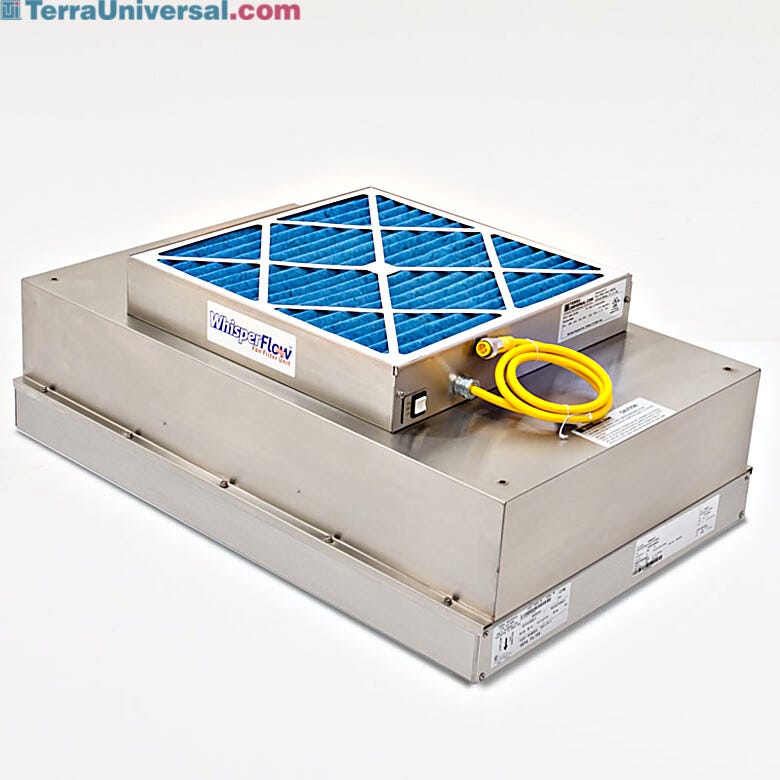

Stainless Steel WhisperFlow® Fan Filter Unit includes 99.995% efficient ULPA filter for ISO 3 compliance | 6601-23-HSS displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units

Fan Filter Unit; WhisperFlow, 2'x3', ULPA, 120 V, Stainless Steel, BioSafe®

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8

• Type: WhisperFlow

• Material: Stainless Steel

• Filter Replacement Access: Top Side

• Size: 2'x3'

• Filter Frame Material: 304 Stainless Steel

• Filter: ULPA

• Motor Type: Permanent Split capacitor (PSC)

• Motor HP: 1/4 hp

• Airflow: Positive Pressure

• Speed Control: 3-Speed Switch

• Blower Type: Forward Curved

• Active Filter Face Area: 5.2 ft²

• Pre-Filter: MERV 7

• Certified ISO Grade Design: ISO 5

• ISO Rated Air Cleanliness: ISO 4

• RoHS: Compliant

• Unit of Measure: EA

Read more
Stocked ULus Listed WhisperFlow BioSafe classic logo Quick Ship +
Terra Part #: 6601-23-USS
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6601-23-USS
Terra Part # 6601-23-USS
$2,287
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available 14 in stock
Accessories related to Terra Part # 6601-23-USS
62717
Fan Filter Unit; WhisperFlow, 2'x3', ULPA, 120 V, Stainless Steel, BioSafe®
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Ultra-Low Particulate Air (ULPA) Filter: 99.999% efficient at 0.12µm particle diameter
  • All-304 stainless steel BioSafe® housing, baffle plate, filter face grille, filter frame and impeller ensure optimal cleanliness and stand up to alcohol and other cleaning agents
  • AC 3-speed blower motor
  • FDA-approved silicone sealant
  • Internal baffling plate and diffuser panel provide quiet uniform air flow across the filter face
  • 1/4-20 UNC threaded inserts on corners to allow suspension by guy-wires
  • MERV 7 pre-filter, 30% ASHRAE rated
  • Low-profile design is ideal for cleanrooms with limited ceiling space
  • Removable yellow power cord with 4-pin connector for easy installation to Terra cleanrooms (connector may be used with an optional wall plug adapter; or  may be removed entirely to hard-wire the FFU)
  • Filters are leak tested in accordance with IEST standards and meet UL 900
  • See performance data and submittal sheets for additional information
  • Optional Accessories:
  •           Challenge port kit
  •           Power plug adapter
  •           Stainless surface mount frame for installing FFU in ceiling without T-grid
  •           12" ducted inlet connection adapter
  •           Replacement filter
  •           Filter replacement alarm
  •           Eye bolt package
  •           Ionizing bar
  •           Pre-filter safety cover, for CE conformance
  •           Control panel with night mode switch and power distribution modules
  • All filter sales are final; returns for this item cannot be accepted
Show more

• Type: WhisperFlow

• Material: Stainless Steel

• Filter Replacement Access: Top Side

• Size: 2'x3'

• Filter Frame Material: 304 Stainless Steel

• Filter: ULPA

• Motor Type: Permanent Split capacitor (PSC)

• Motor HP: 1/4 hp

• Airflow: Positive Pressure

• Speed Control: 3-Speed Switch

• Blower Type: Forward Curved

• Active Filter Face Area: 5.2 ft²

• Pre-Filter: MERV 7

• Certified ISO Grade Design: ISO 5

• ISO Rated Air Cleanliness: ISO 4

• RoHS: Compliant

• Unit of Measure: EA

• Marks & Listings: UL, ULC

• Electrical Specifications: 120 V, 3.8 A, 1 Ph, 60 Hz

• Weight, Product: 53 lb

• Dimensions, Product: 23.63"W x 35.63"D x 13"H

• Weight, Shipping: 73 lb

• Dimensions, Shipping: 53"W x 53"D x 20"H

• Package Type: Palletized

Show more
