3646-05-220
Terra Part # 3646-05-220
$8,323
Usually ships in 18-22 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3646-05-220
44989
Fume Hood; Basic 70, 70" W x 25" D x 53" H, Labconco, 230 V
Product Details
  • By-pass design maintains stable face velocity as air sash is closed
  • Curved air foil lifts off for easy cleaning
  • Blower module provides safe ventilation (requires ductwork)
  • Removable front panel provides easy access to electrical wiring
  • Designed for ducting of exhaust to in-house exhaust system
  • Basic Laboratory Hoods feature a by-pass design that makes them ideal for use with delicate instruments
  • Air enters the enclosure through by-pass openings at the top of the work area and below the curved air foil

• Depth: 25"

• Hood Design: Benchtop

• Frame Material: Powder-Coated Steel

• Height: 53"

• Lighting: Vapor-Proof

• Manufactured by: Labconco

• Manufacturer SKU: 2246301

• Max Opening: 27"H

• Model: Basic 70

• Sash Design: Manual/Sliding

• Sash Height: 20"

• Type: Ducted

• Width: 70"

• Work Area Dimensions: 66.2"W x 18.5"D

• Unit of Measure: EA

• Dimensions, Product: 70" W x 25" D x 53" H

• Dimensions, Shipping: 70" W x 25" D x 53" H

• Electrical Specifications: 230 V, 7 A, 1,610 W, 50 Hz

• Marks & Listings: ASTM E-84-01, ASHRAE 110, NFPA 45, ANSI Z9.5,

• Package Type: Crate

• Weight, Shipping: 450 lb

Buy Accessories
  1. Provides support for the full line of benchtop Labconco fume hoods or glove boxes  |  3646-53 displayed
    $1,735
    Increase Down Increase Up
  2. Features manual-closing, non-locking door(s)  |  3646-03 displayed
    $1,777
    Increase Down Increase Up
  3. Features manual-closing, non-locking door(s)  |  3646-03 displayed
    $1,929
    Increase Down Increase Up
  4. Safely stores corrosive liquids and acids  |  3649-49 displayed
    $1,990
    Increase Down Increase Up
  5. Safely stores corrosive liquids and acids  |  3649-49 displayed
    $1,990
    Increase Down Increase Up
  6. Supports loads up to 800 pounds  |  3646-04 displayed
    $3,138
    Increase Down Increase Up
  7. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,706
    Increase Down Increase Up
  8. Supports loads up to 800 pounds  |  3646-04 displayed
    $3,138
    Increase Down Increase Up
  9. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,706
    Increase Down Increase Up
  10. Safely stores corrosive liquids and acids  |  3649-73 displayed
    Cabinet; Acid Storage, 18"W x 22"D x 36.75"H, Labconco Ships Free Free shipping in contiguous USA
    $1,904
    Increase Down Increase Up
  11. Safely stores corrosive liquids and acids  |  3649-73 displayed
    Cabinet; Acid Storage, 18"W x 22"D x 36.75"H, Labconco Ships Free Free shipping in contiguous USA
    $1,904
    Increase Down Increase Up
  12. Safely stores corrosive liquids and acids  |  3649-73 displayed
    $1,964
    Increase Down Increase Up
  13. Safely stores corrosive liquids and acids  |  3649-73 displayed
    $1,964
    Increase Down Increase Up
  14. Safely stores corrosive liquids and acids  |  3649-49 displayed
    $2,211
    Increase Down Increase Up
  15. Features manual-closing, non-locking door(s)  |  3646-51 displayed
    $2,035
    Increase Down Increase Up
  16. Features manual-closing, non-locking door(s)  |  3646-03 displayed
    $2,106
    Increase Down Increase Up
  17. Supports loads up to 800 pounds  |  3646-09 displayed
    $3,479
    Increase Down Increase Up
  18. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,684
    Increase Down Increase Up
  19. Supports loads up to 800 pounds  |  3646-09 displayed
    $3,551
    Increase Down Increase Up
  20. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,763
    Increase Down Increase Up
  21. Supports loads up to 800 pounds  |  3646-04 displayed
    $3,682
    Increase Down Increase Up
  22. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,886
    Increase Down Increase Up
  23. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,628
    Increase Down Increase Up
  24. Supports loads up to 800 pounds  |  3646-04 displayed
    $3,036
    Increase Down Increase Up
  25. Supports loads up to 800 pounds  |  3646-04 displayed
    $2,628
    Increase Down Increase Up
  26.  |  3646-10 displayed
    Airflow Monitor; for Basic Hood, Guardian Jr., Labconco, 240V Ships Free Free shipping in contiguous USA
    $1,510
    Increase Down Increase Up
  27. Gas Service Fixture Kit  |  3646-55 displayed
    $363
    Increase Down Increase Up
  28.  |  3646-13 displayed
    Cupsink and Turret Kit: for Labconco Basic Laboratory Hoods Ships Free Free shipping in contiguous USA
    $643
    Increase Down Increase Up
  29. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Fume Hoods by Labconco

  • Basic Laboratory Fume Hood with cupboard from Labconco Basic Laboratory Fume Hoods from Labconco

Features and Benefits

Learn More: Basic Laboratory Fume Hoods Compliances

Basic Laboratory Fume Hoods

Compliance
  • EFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1
  • SEFA 1-2005
  • ANSI Z9.5-2003
  • NFPA 45-2004
  • UL 3101-1/61010-1

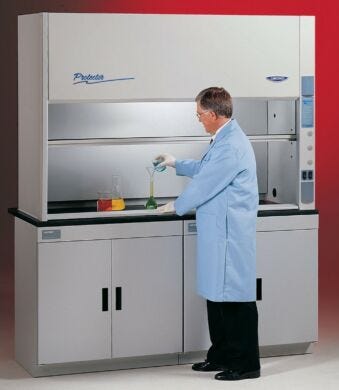

Basic 70 Inch Fume Hood

Designed for ducting of exhaust to in-house exhaust system, these Basic Laboratory Hoods feature a by-pass design that makes them ideal for use with delicate instruments that require a stable air velocity.

Ducted Fume Hoods

These fume hoods are designed to be connected to an in-house exhaust system, typically with an external blower to support the outward flow of air.

Labconco Basic Fume Hood

Labconco Fume Hoods are compliant with SEFA 1-2005, ANSI Z9.5-2003, NFPA 45-2004, UL 3101-1/61010-1, ASTM E84-01, CAN/CSA C22.2 No. 1010.1, and ASHRAE 110-95.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Digital Airflow Monitor

    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
  • Labconco Solvent Storage Cabinet

    Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
  • Labconco Logic Cart and Turntable

    Ergonomically designed and energy efficient, these biosafety cabinets provide safety and comfort to users working with hazardous particulates that require Biosafety Level 1, 2 or 3 containment.
  • Labconco Solid Work Surface

    Solid black epoxy work surfaces are chemical resistant and feature a "dished" surface to contain spills. 304-grade stainless steel work surfaces with 1"-deep front spill trough are also available.
