3305-61B
Terra Part # 3305-61B
$15,793
Usually ships in 35-41 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3305-61B
51764
Glovebox; Negative Pressure Exhaust, BioSafe®, 304 or 316 Stainless Steel,Continuous-Seam Welds, 49" W x 24" D x 28" H, 2 Glove Ports, Left-Side Air
Product Details
  • Available ISO Ratings: ISO 5, ISO 6, ISO 7, ISO 8
  • •  Ideal for negative pressure processing down to -5”Hg (<20% vacuum)
  • Continuous-seam welds with radius corners simplify cleaning and reduce leak rate
  • Provides a clean, low-leak, controlled environment for various manufacturing processes
  • Included vacuum airlock and tilt-up tempered glass window facilitate parts transfer
  • Exterior LED light illuminates interior
  • Front transparent tempered safety glass window and LED light fixture provide safe and clear visibility of the work area.
  • INCLUDES:
  • Air lock mounted on left-side of glovebox.
  • Two 10" (254 mm) diameter ports for a wide range of motion.
  • OPTIONAL:
  • vacuum controls accelerate oxygen removal and backfill with inert process gas.
  • Select Trace Oxygen Analyzer and Dual Purge System to maintain oxygen levels to 1 ppm.
  • NOTE:
  • The gloves cannot be used under negative pressure since the port covers must be shut while the chamber is under vacuum. The chamber must be back-filled to atmospheric pressure before materials inside the glovebox can be handled.
  • Not designed as an air-tight containment chamber, nor should they be used with hazardous substances that require air-tight seals.

Chamber Width: 35"

Chamber Depth: 24"

Chamber Height: 28"

Maximum Working Height: 28"

Material: 304 or 316 Stainless Steel

Airlock Opening: 12"W x 12"D

Sash Design: Manual/Tilt-Up

Window Material: Tempered Glass

Configuration: Left-Side Airlock

Number of Glove Ports: 2

Unit of Measure: EA

Electrical Specifications: 120 V, 0.5 A, 1 Ph, 50/60 Hz

Weight, Product: 375 lb

Dimensions, Product: 49" W x 24" D x 28" H

Weight, Shipping: 503 lb

Dimensions, Shipping: 55" W x 36" D x 30" H

Package Type: Crate

Buy Accessories
  1. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $61
    Increase Down Increase Up
  2. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $185
    Increase Down Increase Up
  3. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    $311
    Increase Down Increase Up

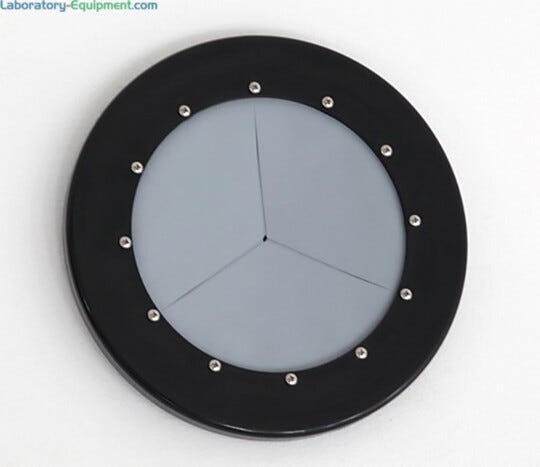

  4. The self-closing Iris Port Adapter attaches to Terra's 10"-diameter glove port (order port separately)  |  1694-54 displayed
    $527
    Increase Down Increase Up
  5. Terra’s products are made of cleanroom compatible, top tier hardware; designed and tested to guarantee the highest quality, durability, and craftsmanship  |  1694-53 displayed
    $290
    Increase Down Increase Up
  6. Dual metering valves allow purging of the chamber with nitrogen or other process gas before vacuum is applied  |  5235-09 displayed
    $228
    Increase Down Increase Up
  7. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $167
    Increase Down Increase Up
  8. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-83 displayed
    $181
    Increase Down Increase Up
  9. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $675
    Increase Down Increase Up
  10. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $649
    Increase Down Increase Up
  11. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $650
    Increase Down Increase Up
  12. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  13. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  14. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    $2
    Increase Down Increase Up
  15. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $22
    Increase Down Increase Up
  16. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  17. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $23
    Increase Down Increase Up
  18. Vacuum control module automatically controls pump operation to maintain stable vacuum levels inside a vacuum chamber.
    Vacuum Control Module; 120 V Quick Ship+ Only 7 left in stock
    $3,552
    Increase Down Increase Up
  19. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    $4,194
    Increase Down Increase Up
  20. Installed inside gas-purge desiccator cabinet or glovebox to measure temperature and humidity; only compatible with Smart® IsoDry® NitroWatch™  |  9500-02B displayed
    $880
    Increase Down Increase Up
  21. Provides variable gas purge levels to maintain humidity set points  |  9500-05 displayed
    Dual Purge System; High-Flow, for Glovebox, 120 V Quick Ship+ Only 7 left in stock
    $5,485
    Increase Down Increase Up
  22. Trace oxygen analyzer for connection to glovebox.  |  2005-97 displayed
    $8,237
    Increase Down Increase Up
  23. Drawers; 304 SS, Left Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  24. Drawers; 304 SS, Right Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  25. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  26. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  27. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate  |  1704-01 displayed
    Request Quote
    Increase Down Increase Up
  28. Warranty; 2 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  29. Warranty; 3 Year, Glovebox, Parts
    Request Quote
    Increase Down Increase Up
  30. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  31. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  32. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  33. Equipment Testing
    Request Quote
    Increase Down Increase Up
  34. Upgrade to 316L stainless steel equipment for increased corrosion resistance and lasting durability  |  9999-316L displayed
    Request Quote
    Increase Down Increase Up

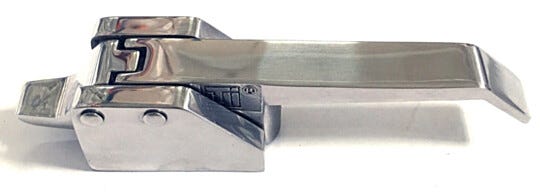

  35. Stainless steel LiftLatch. Product details may differ.  |  1603-67-2 displayed
    $365
    Increase Down Increase Up

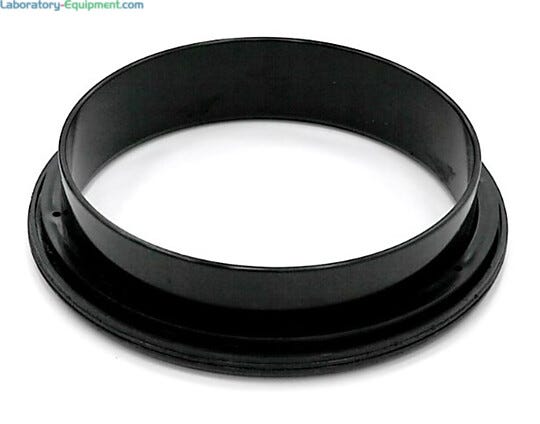

  36. Designed to accommodate a variety of sleeve brands and sizes  |  1694-52 displayed
    $365
    Increase Down Increase Up
  37.  |  5235-23 displayed
    $57
    Increase Down Increase Up
  38. Senses and indicates vacuums on 0-30 Hg scale  |  5235-10 displayed
    Vacuum Gauge 0-30HG, 2"dia, 1/4"NPT Quick Ship+ 217 in stock
    $280
    Increase Down Increase Up
  39. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    $245
    Increase Down Increase Up

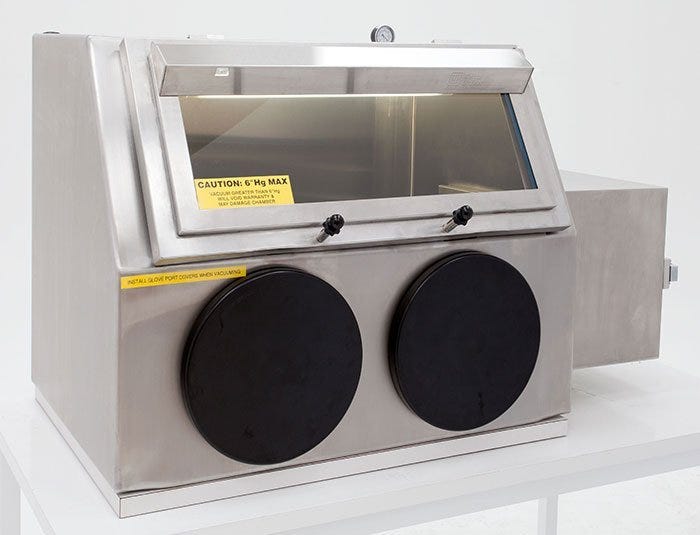

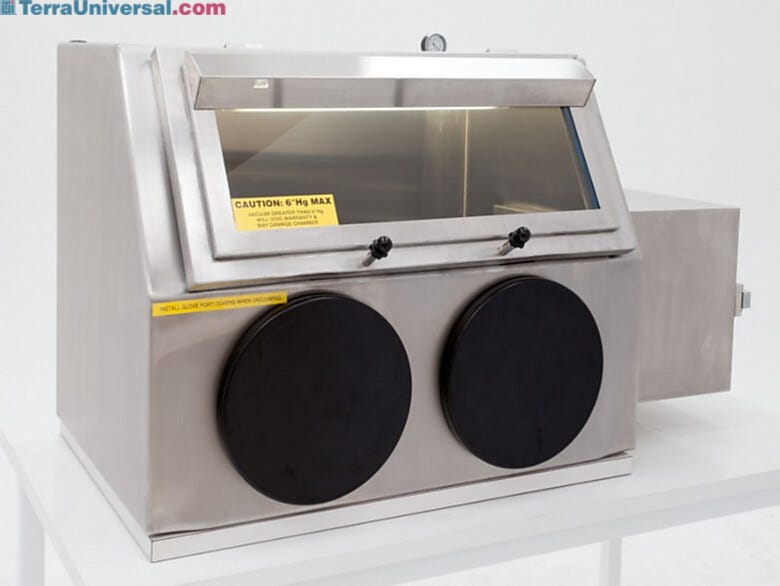

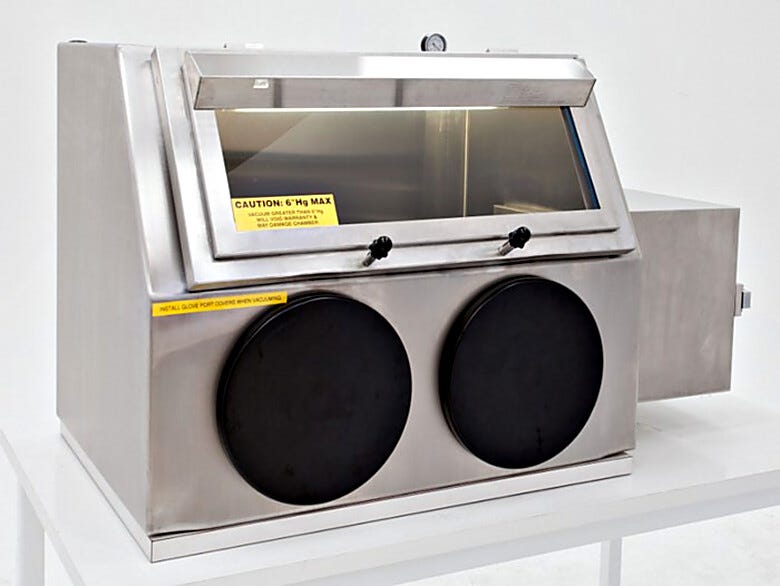

Series 310: Negative Pressure Glove Box
Standard Features
  • A Stainless Steel
    All-304/316L stainless steel construction with continuous seam welds and radius corners for superior sealing and easy cleaning
  • B Tempered glass viewing window
    Tempered glass viewing window
  • C Glove Ports
    10”-diameter glove ports (order desired gloves separately)
  • D Air Lock
    Air Lock
Optional Features
  • 1 Vacuum Valves
    Vacuum valves and gauge
  • 2 Port covers
    Port covers (cover gloves during vacuum cycles)
  • 3 Powder-coated Steel Stand
    Powder-coated steel stand

Not Shown: Connection Ports - Connection ports for process gas purging and oxygen monitoring

Not Shown: Nitrogen Generator - Nitrogen Generator

Negative Pressure & Vacuum Glove Boxes

  • Stainless Steel Glovebox Single Module Negative Pressure Stainless Steel Single Series 310 Negative Pressure Glovebox
  • Negative Pressure Glovebox Negative Pressure Glovebox
  • custom stainless steel glove box isolator Custom BioSafe Stainless Steel Glove Box Isolator
  • Stainless Steel Negative Pressure Exhaust Glovebox with Explosion-Proof LED Stainless Steel Negative Pressure Exhaust Glovebox with Explosion-Proof LED

Features and Benefits

View Glovebox Dimensions

More Information

A in. (mm) D in. (mm) E in. (mm) F in. (mm) G in. (mm) H in. (mm) I in. (mm) M in. (mm) N in. (mm)
16.56 (421) 24 (610) 28.5 (718) 35 (889) 11.75 (298) 28 (711) 16 (406) 14.75 (375) 14 (356)

Negative Pressure ISO 5 Glove Box with Continuous-Seam Welds and Tilt-Up Window

A negative pressure glove box is designed for rapid removal of oxygen and backfill with inert nitrogen or argon to establish an anaerobic processing environment. Continuous-seam welds with radius corners simplify cleaning and reduce leak rate during vacuum cycling. The tilt-up gasketed window facilitates transfer of larger equipment that can't fit through the airlock.

Tilt-Up Access Window

Tilt-up front window allows transfer of large equipment into the Negative Pressure Glove Box; elastomer gasket provides a tight seal.

External LED Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for LED maintenance or replacement.

Inert Gas Air Lock with Autoclavable Doors

BioSafe® inert gas air locks minimize nitrogen loss and contamination inflow when materials are passed through the glove box. The airlock is connected to an inert gas line to purge out ambient air before transferring materials through. The interior features seamless coved corners to simplify sterilization. The BioSeal™ door with blue urethane gasket is autoclavable.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Seam Welds with Radius Corners

Smooth internal surfaces and coved corners eliminate cracks and crevices that can harbor germs. Stainless steel resists biocides and disinfectants, won't corrode or particulate.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.
