Glovebox with glove ports on opposite sides allows 2 operators to work simultaneously from either side of the glovebox | 2689-02-RH displayed

Gas-Purged Plastic Glove Box Isolators

Glovebox; Series 100, Polycarbonate, 4 Glove Ports, 35" W x 35" D x 25" H

Terra Part #: 2689-03-RH

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Available Certified ISO Grade Designs: ISO 7, ISO 8
Dual sided glovebox for operators on opposite sides
To maintain RH levels as low as 7%, purchase nitrogen generator catalog number 2700-99
To maintain RH levels below 1%, purchase nitrogen generator catalog number 2700-12B
Features an 1/8" NPT inlet
Single model features four 10" (254 mm) diameter ports that provide a wide range of motion

• Material Type: Plastic

• Model: Series 100

• Number of Glove Ports: 4

• Window Material: N/A

• Chamber Material: Polycarbonate

• Chamber Width: 34.5"

• Chamber Depth: 34.5"

• Chamber Height: 24.5"

• Chamber Dimensions: 34.5" W x 34.5" D x 24.5" H

• Maximum Working Height: 24.5"

• Airlock Opening: 10" W x 10" H

• UL File Number: E484299

• Unit of Measure: EA

Terra Part #: 2689-03-RH

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Print Copy Copied

More Information

Type	A in. (mm)	D in. (mm)	F in. (mm)	H in. (mm)	I in. (mm)	L in. (mm)	M in. (mm)	N in. (mm)
Single	16.75 (425)	24 (610)	35 (889)	25 (635)	10.5 (267)	10 (254)	10 (254)	14 (356)
Twin	16.75 (425)	24 (610)	59 (1499)	25 (635)	10.5 (267)	10 (254)	10 (254)	14 (356)

Nitrogen Generators give you a reliable point-of-use supply of up to 99%-pure nitrogen. Eliminate the drawbacks of canisters and 3rd-party suppliers! You control volume, purity and rate; all you need is a clean compressed-air feed. Terra's three sizes of maintenance-free membrane generators meet several capacity requirements are ideal for back-filling or continuous flow into desiccators, glove boxes, vacuum chambers and incubators.

Positive Pressure Isolation vs. Biohazard Containment

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 2689-03-RH

$3,524

Accessories related to Terra Part #

Glovebox; Series 100, Polycarbonate, 4 Glove Ports, 35" W x 35" D x 25" H

View Shopping Cart View Quote Cart

Usually ships in 20-24 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Gas-Purged Plastic Glove Box Isolators

Glove Box Isolators and Containment Chambers
Customized to Your Requirements!
Custom Acrylic Isolator Glovebox
Series 100 Plastic Glove Box Isolators
Acrylic Series 100 Glove Box, Four Glove Ports
Polypropylene Twin Laboratory Glove Box
Isolator Glovebox on Ergonomic Height Adjustable Workstation
Isolator Glovebox with Pass-Through Door

Glove Box Isolators and Containment Chamber Glove Box Isolators and Containment Chambers Video overview of Terra's nitrogen-purged glove box isolators and containment chambers designed to provide a clean, dry processing environment

3305-00G

Customized to Your Requirements!

Custom work is no problem! Shown: nitrogen-purged static-dissipative PVC glovebox isolator for up to six operators working at individual test/assembly stations. Configured with automated gas controls and ionizing bars.

Custom work is no problem! Shown: nitrogen-purged isolator for up to six operators working at individual test/assembly stations | 3305-00G displayed Customized to Your Requirements! Custom work is no problem! Shown: nitrogen-purged static-dissipative PVC glovebox isolator for up to six operators working at individual test/assembly stations. Configured with automated gas controls and ionizing bars.

1689-PP-01

Custom Acrylic Isolator Glovebox

Custom acrylic glovebox featuring a front access port between glove ports and dual access side doors for flexible sample transfer and optimal chamber access.

Custom acrylic glovebox featuring a front access door and dual access side doors for optimal chamber access | 1689-00G-RH displayed Custom Acrylic Isolator Glovebox Custom acrylic glovebox featuring a front access port between glove ports and dual access side doors for flexible sample transfer and optimal chamber access.

1689-PP-01

Series 100 Plastic Glove Box Isolators

Series 100 Plastic Glove Boxes provide a low-humidity, particle-free environment; acrylic twin model shown with optional gloves and Dual Purge and NitroWatch nitrogen controllers.

Series 100 Plastic Glove Boxes provide a low-humidity, particle-free environment; acrylic twin model shown with optional gloves, RH controls | 1689-16G-RH displayed Series 100 Plastic Glove Box Isolators Series 100 Plastic Glove Boxes provide a low-humidity, particle-free environment; acrylic twin model shown with optional gloves and Dual Purge and NitroWatch nitrogen controllers.

10730

Acrylic Series 100 Glove Box, Four Glove Ports

1681-30H

Polypropylene Twin Laboratory Glove Box

Polypropylene laboratory glove box for inert gas bleeding includes four 10" (254 mm)-diameter glove ports and dual-side stainless steel-reinforced access doors (shown with optional bleed valve).

Polypropylene laboratory glove box includes four glove ports (shown with optional air lock and bleed valves) | 1681-30H displayed Polypropylene Twin Laboratory Glove Box Polypropylene laboratory glove box for inert gas bleeding includes four 10" (254 mm)-diameter glove ports and dual-side stainless steel-reinforced access doors (shown with optional bleed valve).

1689-PP-01

Isolator Glovebox on Ergonomic Height Adjustable Workstation

Engineered isolator glovebox optimizes operator comfort during extended protocols. Dual glove ports enable contamination-free sample handling while transparent enclosure maintains visibility and control.

Isolator glovebox with dual glove ports for contamination-free material handling in cleanrooms | 1689-00G-RH displayed Isolator Glovebox on Ergonomic Height Adjustable Workstation Engineered isolator glovebox optimizes operator comfort during extended protocols. Dual glove ports enable contamination-free sample handling while transparent enclosure maintains visibility and control.

1689-PP-01

Isolator Glovebox with Pass-Through Door

Isolator glovebox with integrated pass-through door enables sterile material transfer while maintaining contamination control. Multiple glove ports and ergonomic height-adjustable workstation optimize operator comfort during extended use.

Isolator glovebox features pass-through door and multiple glove ports on height-adjustable stand for sterile material transfer in pharmaceutical labs | 1689-00G-RH displayed Isolator Glovebox with Pass-Through Door Isolator glovebox with integrated pass-through door enables sterile material transfer while maintaining contamination control. Multiple glove ports and ergonomic height-adjustable workstation optimize operator comfort during extended use.

Features and Benefits

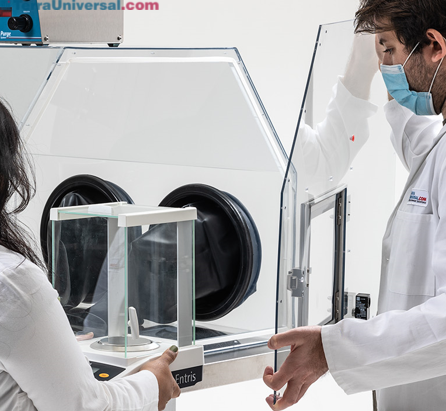

Removable Side Wall

Gasketed side wall allows transfer of large equipment into the main glove box chamber

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Side Access Doors for Plastic Glove Boxes

Dual-side access doors features stainless steel reinforcement frames that increase structural rigidity and built-in LiftLatch™; acccommodate standard air locks to allow contamination-free parts transfer.

Glove Ports with Detachable Iris Port and Covers

Unique glove ports accept wide range of gloves and feature screw-on Iris Port Adapters (shown) and Port Covers for additional system capabilities

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 50 years of engineering and application expertise, and our commitment to continuously improve.

Comprehensive Service Provider

Terra’s portfolio of services includes white glove delivery, product installation, equipment certification, validation documentation, cleaning and disinfection services, engineering consultation, and structural seismic analysis

Custom Product Designs

Product customization is no problem, Terra’s engineering team will work with you to design a product that meets your unique requirements

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

Learn More
Quickly Evacuates Ambient Air

Terra's MicroVac rapidly evacuates ambient air from glove boxes to allow for backfilling with Nitrogen gas, shortening time to reach setpoint
Air Locks Minimize Cross-Contamination

Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
Pass-Through Air Lock for Series 100 Glove Box

Pass-through air lock is available with wire racks is ideal for transferring shelves or trays with kitted components (order shelves & trays separately).
Universal Air Lock for Series 100 Glove Box

Universal air locks allow connection of multiple glove boxes in series (polypropylene model shown); mounts to either right or left side of glove box.
Automatic RB (Relief-Bleed) Valve

One way-valve continuously bleeds gas to relieve pressure and release moisture-laden air. Available in several sizes, materials for process combatibility (acrylic shown).
Glove Box Stand, Powder-Coated Steel

Powder-coated steel stands are made of 1.5" (38 mm) square steel tubes to support loads to 400 lbs. (181 kg) and includes nylon leveling feet; positions chamber 30" above floor
High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Glove Box Iris Port Adapter for 10" Ports

The self-closing, clean silicone Iris Port Adapter attaches to Terra's 10"-diameter glove ports to allow easy access to chamber parts and processes (order port separately).
Relative Humidity and Temperature Data Logger

Simply plug the USB-502 logger into any USB port on your PC to name the logger, set your start time and date, sample rate, units (ºC or ºF), and hi/lo alarms—then place in controlled atmospher chamber to start logging data.
Learn More
Laboratory Nitrogen Generator

Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
3-inch Diameter Caster Set

Casters are easily retrofitted for mobility. Products can be rolled out of the way when cleaning or relocated as workflow changes.
Stainless Steel ISO 6 Glovebox on Automatic Height Adjusting Table with N2 Generator

Gloveboxes can easily mount to an automatic height adjusting table (28"-43"H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
Stainless Steel Work Surface Improves Safety and Service Life

Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.
Ionizing Module for Glove Boxes

Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction
Learn More
Dual Purge™ and NitroWatch™ Work Together to Fully Automate RH Control

Terra's Dual Purge™ and NitroWatch™ operate in tandem to precisely and automatically control the flow of nitrogen and maintain a preset humidity level (from ambient to 0% ± 1.5% RH), no matter how operating conditions may change.
Data Logging with 113,000 Readings at User Defined Intervals

Terra's Smart® IsoDry® Nitro-Watch™ logs RH, temp, door open/close, purge on/off, and sensor removal/attachment. The max data file size is roughly 4 MB or 113,000 readings. This is approximately 32 hours of data when logging at 1 second intervals, 2 weeks at 10 second intervals, 6 weeks at 30 second intervals, or 12 weeks at 1 minute intervals. When the system reaches the 4MB limit, data begins to wrap, overwriting oldest data with new.
Plug & Play Data Logging

Plug in a USB flash drive to your Smart® IsoDry® Nitro-Watch™ to transfer data in .CSV format. No software required.
