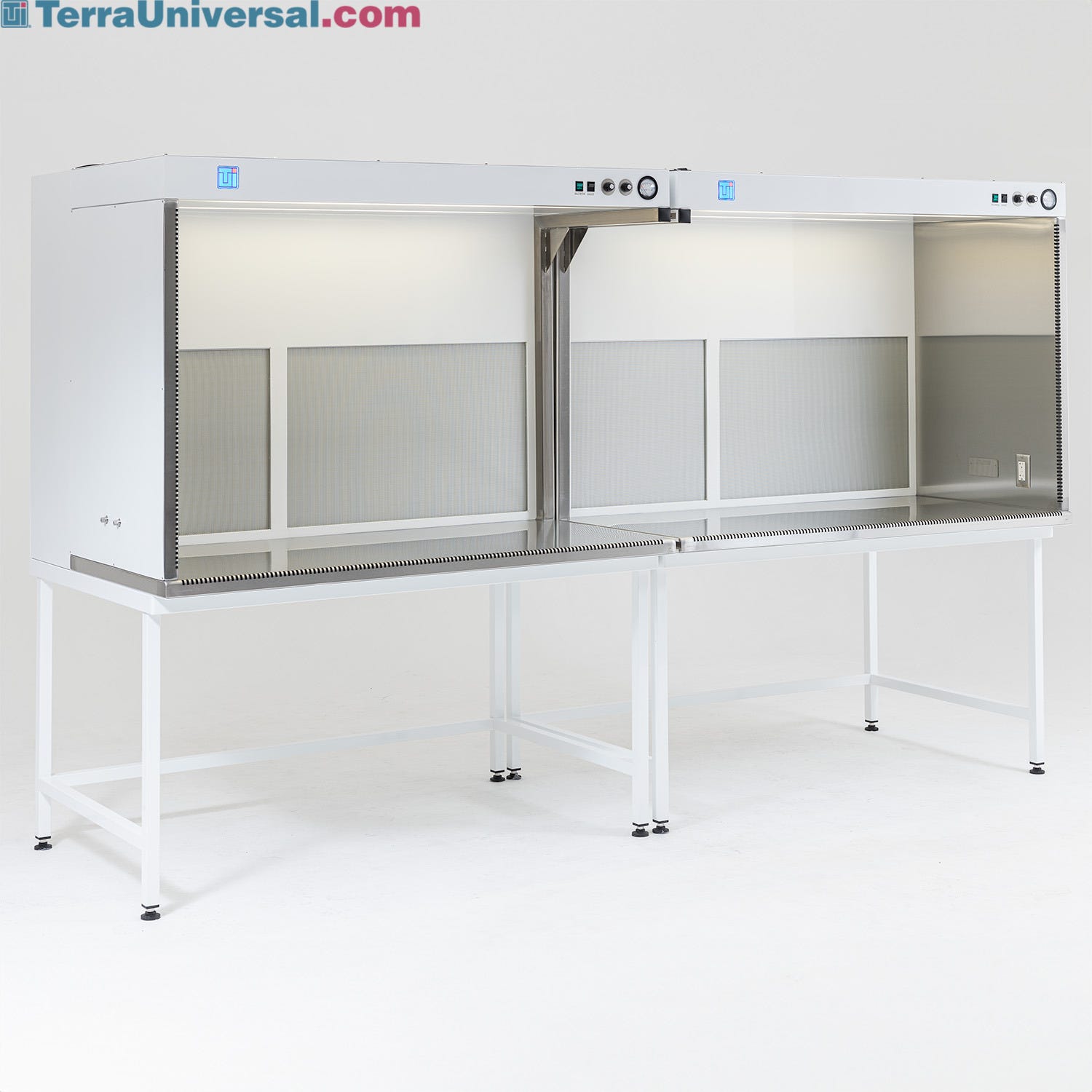

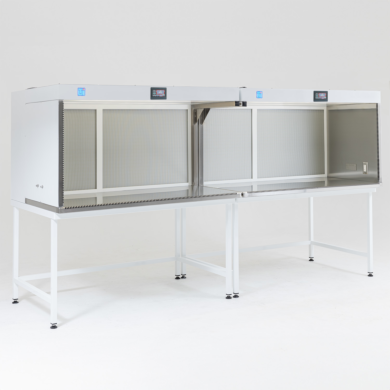

Side panels can be removed to connect multiple hoods for larger work areas
Smart® Horizontal Laminar Flow Hoods

Hood; Smart® Horizontal Laminar Flow Station, Removable Sides, Powder-Coated Steel, 76" W x 44" D x 63.75" H, 240 V

Terra Part #: 9620-64C-220
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Includes hood, built-in recessed illuminator, duplex power outlet, and an EC FFU
  • Smart® PLC touch screen control panel allows easy adjustment of airflow speed and lights
  • A filter monitor displays back-pressure and sends e-mail alerts to signal the need for filter replacement
  • This horizontal hood contains removable side panels that can be adjusted to combine hoods for a larger work area
  • The entirety of the hood back panel is the filter face, eliminating dead spaces that cause turbulence

• Airflow Design: Horizontal

• Depth: 44"

• Hood Design: Floor

• Electronic Air Speed Control: Yes

• Filter Type: HEPA

• Frame Material: Powder-Coated Steel

• Height: 63.75"

• Inside Depth: 30"

• Inside Height: 28"

• Inside Width: 72"

• Light Fixture: LED

• Manufactured by: Terra Universal

• Max Opening: 28" H

• Model: Smart® Horizontal Laminar Flow Station

• Side Panels: Removable

• Width: 76"

• Work Area Dimensions: 72.38" W x 30" D x 28.13" H

• ISO Rated Air Cleanliness: ISO 5

• Unit of Measure: EA

Read more
CE Mark Logo ULus Logo WhisperFlow ISO 6 Icon
Terra Part #: 9620-64C-220
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
LTL freight shipment. Dock or liftgate may be required.
Print
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
9620-64C-220
Terra Part # 9620-64C-220
$14,749
Accessories related to Terra Part # 9620-64C-220
87887
Hood; Smart® Horizontal Laminar Flow Station, Removable Sides, Powder-Coated Steel, 76" W x 44" D x 63.75" H, 240 V
View Shopping Cart View Quote Cart
CONFIGURE & ADD TO CART
Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

Details & Specs
Manuals & Resources
Related Products
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Includes hood, built-in recessed illuminator, duplex power outlet, and an EC FFU
  • Smart® PLC touch screen control panel allows easy adjustment of airflow speed and lights
  • A filter monitor displays back-pressure and sends e-mail alerts to signal the need for filter replacement
  • This horizontal hood contains removable side panels that can be adjusted to combine hoods for a larger work area
  • The entirety of the hood back panel is the filter face, eliminating dead spaces that cause turbulence
  • Powder-coated steel housing and frame with stainless steel interior hood surfaces are cleanroom compatible and easy to clean
  • Clean bench operates with energy-efficient electrically commutated (EC) HEPA Fan/Filter Units (FFUs)
  • HEPA (High Efficiency Particulate Air) Filter is rated 99.99% efficient at removing 0.3-micron particles (ULPA filters available)
  • Advanced baffling technology ensures uniform airflow across filter face and attenuates sound for quiet operation: approximately 53 dBA @ 100 feet/minute
  • Features return ducts along the front and side edges of the work area to reduce backflow turbulence
  • Includes powder coated steel stand with adjustable leveling feet that can raise surface to 31"
  • Operation Status Indicator that flashes if fan is not operational
  • Optional ionization equipment safely neutralizes static charges throughout the work area for effective ESD protection

• Airflow Design: Horizontal

• Depth: 44"

• Hood Design: Floor

• Electronic Air Speed Control: Yes

• Filter Type: HEPA

• Frame Material: Powder-Coated Steel

• Height: 63.75"

• Inside Depth: 30"

• Inside Height: 28"

• Inside Width: 72"

• Light Fixture: LED

• Manufactured by: Terra Universal

• Max Opening: 28" H

• Model: Smart® Horizontal Laminar Flow Station

• Side Panels: Removable

• Width: 76"

• Work Area Dimensions: 72.38" W x 30" D x 28.13" H

• ISO Rated Air Cleanliness: ISO 5

• Unit of Measure: EA

• Dimensions, Product: 76" W x 44" D x 63.75" H

• Dimensions, Shipping: 82" W x 50" D x 72" H

• Electrical Specifications: 240 V, 4 A, 1,920 W, 50/60 Hz

• Marks & Listings: CE, UL, ULC

• Package Type: Palletized

• Weight, Product: 590 lb

• Weight, Shipping: 943 lb
