Terra Part # 3642-10
Usually ships in 25-29 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3642-10

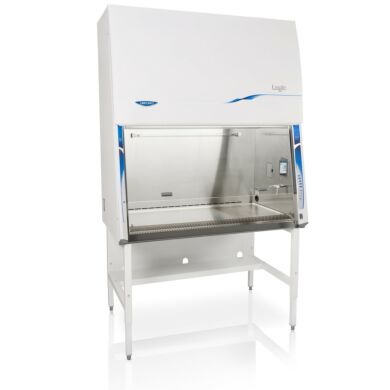

Biosafety Cabinet; Purifier Logic+, Class II A2, 60" W, 10" Opening, Base Stand, Labconco, 60 Hz, 115 V
  • NSF-Listed 5’ Class II Type A2 BSC ideal for COVID-19 handling
  • Ergonomic MyLogic OS Interface with line-on-sight screen displays cabinet information
  • Built-in options: UV Light, Valves (Air, Vacuum, etc.), Cord, Cable and Tubing Portal
  • Includes Base Stand
  • Exhaust Volume: 470-562 CFM (with optional canopy)
  • ECM and CAP pairing achieves proper airflow even as HEPA filters load
  • Conformance: ADA, CAN/CSA C22.2, ETL, NSF 49, UL
  • One Service Fixture
  • Applications: handling and research of infectious microorganisms, hazardous particulates, full-length genomic RNA, blood and respiratory specimens requiring BSL Level 1, 2, 3 and 4 (per CDC recommendation)
  • Material: leak-tight 304 stainless steel construction and safety glass and ¼” tempered safety glass sash (fully closing)
  • MyLogic OS Interface displays filter life, status messages for alarm conditions and alerts. 8 languages
  • Recirculates 70% of the HEPA-filtered air into laboratory, 30% through exhaust system
  • 99.99% efficient HEPA filters and nominal inflow of 105 fpm creates ISO 5 environment; ULPA option available
  • Smart-Start™ System user-programmable startup & shut down
  • Night-Smart™ System reduces blower speed when sash is closed
  • Lighting: UV, LED
  • Constant Airflow Profile (CAP): protects users and samples with continuous monitoring and maintaining of inflow and downflow
  • Electronically Commuted Motor (ECM) blowers provide 60% energy efficiency, quiet operation(<63 dBA), 50k hours of motor life, reserve power and promotes cooler working conditions
  • Inclined sliding sash: 10” slope for unobstructed viewing
  • Nominal inflow velocity of 105 fpm (0.5 m/sec)
  • Nominal downflow velocity of 55 fpm (0.3 m/sec)
  • 22.6" (57 cm) max. sash opening & 27.0" (69 cm) viewing height
  • Features: Vacu-Pass cord and cable portal, Reserve-Air Inflow Slots, LCD Information Center, curved inlet grill, ADA-compliant touchpad control, Air-Wave™ Entry System, Contain-Air™ Negative Pressure Channel, code-activated electronic security lock, removable towel catch, electrical outlet cover

Biosafety Class: Class II A2

Model: Purifier Logic+

Manufactured by: Labconco

Width: 60"

Sash Opening: 10"

UV Lamp: Included

Base Stand: Included

Work Area Dimensions: 60.5"W x 17.6"D x 21.7"H

Manufacturer SKU: 302511101

Unit of Measure: EA

Marks & Listings: UL, NSF, ADA

Electrical Specifications: 115 V, 16 A, 1,840 W, 60 Hz

Weight, Product: 810 lb

Dimensions, Product: 66.3" W x 31.2" D x 95.2" H

Weight, Shipping: 834 lb

Dimensions, Shipping: 44" W x 86" D x 78" H

Package Type: Crate

Buy Accessories
  1. Converts Telescoping Base Stands with Fixed Feet to mobile stands | 3642-36 displayed
    Increase Down Increase Up
  2. Secures Telescoping Base Stand to floor | 3642-37 displayed
    Increase Down Increase Up
  3. Supports laptop computer for easy view of operator | 3642-38 displayed
    Increase Down Increase Up
  4. Can be mounted on left or right side interior | 3642-56 displayed
    Increase Down Increase Up
  5. Bar supports intravenous solution bottles and bags | 3647-35 displayed
    Increase Down Increase Up
  6. Shown: Vacupass installed in the interior wall of a Labconco BSC | 3651-63 displayed
    Increase Down Increase Up
  7. Contains cords and keeps them away from work area | 3647-39 displayed
    Increase Down Increase Up
  8. Adjusts exhaust airflow | 3645-67 displayed
    Increase Down Increase Up
  9. Adjusts Biosafety Cabinets exhaust airflow | 3642-48 displayed
    Increase Down Increase Up
  10. Inflow and Downflow Sensor Kit
    Increase Down Increase Up
  11. RS 232 Connection Kits, 9-pin connection
    Increase Down Increase Up
  12. RS 232 Connection Kits, 25-pin connection
    Increase Down Increase Up
  13. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Class II A2 Biosafety Cabinets

  • Short animation illustrating the airflow pattern of a Purifier Logic+ Type A2 biosafety cabinet Labconco Purifier Logic+ Type A2 Biological Safety Cabinet Airflow
  • Video of smoke testing Labconco BSC and glovebox isolator Smoke Testing a Labconco BSC and Glovebox
  • Identifying the Smoke Split
  • Video of HEPA filter leak testing using a particle counter and tracer aerosol Testing HEPA Filters on a Labconco BSC
  • Biological Safety Cabinets Biological Safety Cabinets
Short animation illustrating the airflow pattern of a Purifier Logic+ Type A2 biosafety cabinet
Video of smoke testing Labconco BSC and glovebox isolator
Video of HEPA filter leak testing using a particle counter and tracer aerosol

Features and Benefits
