Terra Part # 3651-63
$14,649
Usually ships in 25-29 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3651-63
59140

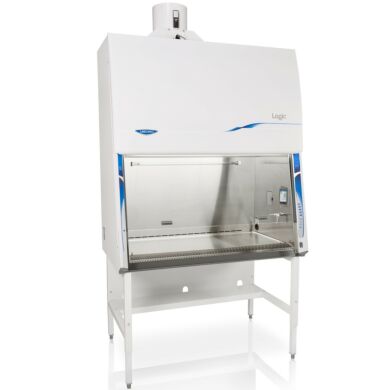

Biosafety Cabinet; Purifier Logic+, Class II B2, 48" W, UV Lamp, Base Stand, Labconco, 115 V

• Exhaust Volume: 665 CFM

• Total Exhaust Safety Cabinet meets Class 5 conditions per ISO 14644-1 and 2

• Smart-Start™ System allows user to program start up and shut down operations

• LCD information center with Filter Life bar graph

• Draws room air into top of cabinet and supply HEPA filter

• 10" diameter exhaust outlet with air-tight damper

• 0% air recirculation

Noise level < 63 dBA

• Heat load 990 BTU/hour (4' models)

• Nominal inflow velocity of 105 feet per minute (fpm) (0.5 m/sec)

• Nominal downflow velocity of 55 fpm (0.3 m/sec)

• Conformance: ADA, CAN/CSA C22.2, CE, ETL, NSF 49, UL

• Provides personnel, product and environmental protection from hazardous particulates that require Biosafety Level 1, 2 or 3 containment

• Applications: antineoplastic drugs, genetic material, asbestos and additional substances that generate hazardous airborne particulates; for use with agents treated with volatile toxic chemicals and radionuclides

• Filtered air flows downward through work area

• Draws room air into the inlet grille located at the work access opening

• Dedicated exhaust system and remote blower discharge 100% of the filtered exhaust air from work area

• Constant Airflow Profile™ (CAP) Technology airflow monitoring system communicates with the ECM to deliver the precise volume of air as required and automatically adjust as filters load without relying on airflow sensors

• Contain-Air™ Negative Pressure Channel

• Electronic security lock (optional activation) that requires code to operate the cabinet

• Fully-closing, clear 1/4" tempered safety glass sash

• Supply and exhaust 99.99% efficient HEPA filters

• Interior-mounted, line-of-sight, full color LCD information center with easy-to-understand MyLogic™ OS

• ADA-compliant touchpad

• Flush-mounted stainless steel electrical receptacle covers with dampened hinges

Biosafety Class: Class II B2

Model: Purifier Logic+

Manufactured by: Labconco

Width: 48"

Sash Opening: 8"

UV Lamp: Included

Base Stand: Included

Manufacturer SKU: 303481101

Unit of Measure: EA

Electrical Specifications: 115 V

Dimensions, Product: 54.3" W x 31.2" D x 106.1" H

Weight, Shipping: 720 lb

Dimensions, Shipping: 72" W x 44" D x 82" H

Package Type: Crate

Buy Accessories

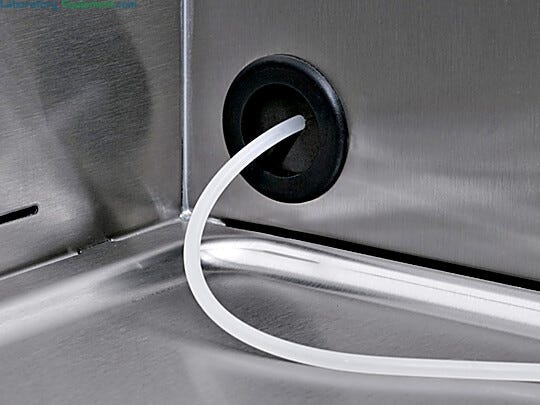

  1. Shown: Vacupass installed in the interior wall of a Labconco BSC | 3651-63 displayed
    $173
    Increase Down Increase Up

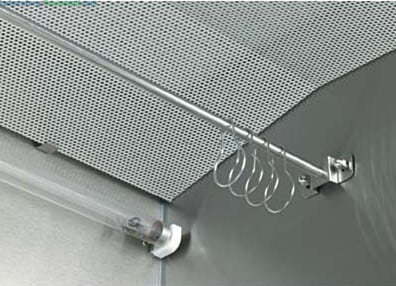

  2. Bar supports intravenous solution bottles and bags | 3647-35 displayed
    $135
    Increase Down Increase Up
  3. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Class II B2 Biosafety Cabinets

  • Biological Safety Cabinets Biological Safety Cabinets
  • Short animation by Labconco illustrating the airflow patterns in the Type B2 Purifier Logic Biosafety Cabinet Labconco Purifier Logic+ Type B2 Biosafety Cabinet Airflow Animation
Short animation by Labconco illustrating the airflow patterns in the Type B2 Purifier Logic Biosafety Cabinet

Features and Benefits

Class II B2 BSC Specifications

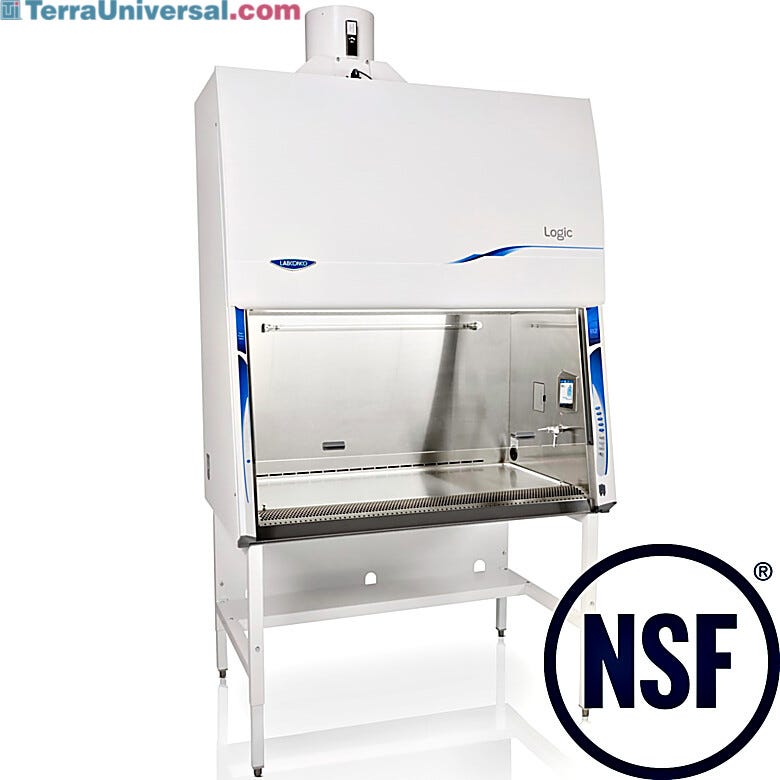

Labconco Purifier Logic+ Class II B2 Biological Safety Cabinets

  • Unit Dimensions 4': 54.3"w x 31.2"d x 72.6"h (1379.22 x 792.48 x 1844.04 mm) 6': 78.3"w x 31.2"d x 100.1-106.1"h (1988.82 x 792.48 x 2542.54-2694.94 mm)
  • Material Stainless steel inlet grille with Reserve-Air™ Secondary Airflow Slots*; removable, seamless type 304 stainless steel, dished work surface with lift out knobs; powder-coated steel exterior
  • Electrical 115 volts, 60 Hz, 12 amps, Domestic 230 volts, 50/60 Hz, 8 amps, North America
  • Nominal Width 4' and 6' models
  • Sash Opening 8'
  • Exhaust Volume 665 CFM (4' models) 998 CFM (6' models)
  • Lighting Fluorescent
  • Air Circulation 0%
  • Noise level < 63 dBA
  • Heat Load 990 BTU/hour (4' models)
  • Inflow/Downflow Velocity 105 feet per minute (fpm) (0.5 m/sec)/ 55 fpm (0.3 m/sec)
  • Includes 10' (3 m) power cord with plug
  • Compliance NSF International and ETL Listed; meets Class 5 conditions per ISO 14644-1 and 2 (formerly Class 100)

Counterweighted, Anti-Racking Sash

The sash is angled at 10° for improved ergonomics without introducing glare. During operation, an alarm will be activated if the sash is opened too far, compromising airflow.

ADA-Compliant Touchpad Controls

The touchpad controls, mounted on the right-hand side of the hood, allow operators to manually toggle the blowers, lights, and power receptacles.

Inclined, Ergonomic Inlet Grille

The curved inlet grille provides comfortable support for the operator’s forearms while working within the hood. The airflow inlet pattern is designed to compensate for any airflow restrictions caused by the operator blocking the slots.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Telescoping Base Stand
    Ergonomically designed and energy efficient, these biosafety cabinets provide safety and comfort to users working with hazardous particulates that require Biosafety Level 1, 2 or 3 containment.
  • Hydraulic Lift Base Stand
    Unlike telescoping base stands that are locked in position, a hydraulic base stand can be adjusted as needed to best suit the heights of different operators.
  • Hydraulic Lift Base Stands by Labconco
    Available with electric or manual lift mechanisms, these height-adjustable stands offer optimal flexibility for operators and ADA-compliance.
