Terra Part # 3305-34A
$2,895
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Stocked Item is in stock and ready for immediate shipping
Accessories related to Terra Part # 3305-34A
51753
Smart® Glovebox; 304 Stainless Steel, 26" W x 20" D x 18" H, 2 Glove Ports, 120/240 V

• Smart® gas-purge glove box automates low-humidity control down to 0% RH

• Ideal for moisture-sensitive materials: microelectronics, medical devices, pharmaceutical powders

• Gas control system auto-adjusts nitrogen purge to maintain sub-ambient humidity set point

• Fast-acting and economical; maintains below 10% RH with 78% less nitrogen than manual flow meter

• Fully integrated turnkey system takes only a few minutes to install and program

• Smart® controlled atmosphere glove box isolator features automated RH control that toggles nitrogen inflow (binary on/off) for fast setpoint response.

• Mini LED display and built-in RH sensor simplifies installation. Operation requires only one gas line, one low voltage power connection, and a pair of gloves.

UL-listed Smart® control module is designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Chamber Design:

Durable stainless steel construction is suitable for heavy-duty, sterile, and ESD-safe applications.

CleanSeam™ design features fully-welded single piece enclosure with seamless interiors to eliminate hard-to-clean cracks and crevices that can harbor contaminants. The continuous-seam welds are ground smooth to simplify cleaning and sterilization.

Access doors mounted on left and right side feature stainless steel frames and hardware to increase structural rigidity for a longer service life.

Santoprene® “e”-shape non-outgassing rubber gasket installed to door frames firmly compresses for a tighter seal. Resilient rubber maintains its shape after compression and won't flatten, warp, crack, or degrade like ordinary foam gasket. Gasket is also mechanically attached to the door frame to avoid adhesive failure common with gasket tapes.

Round ABS plastic glove ports provide a wide range of motion, and compatibility with numerous glove types. ABS Plastic offers excellent tensile strength and stiffness. Resists heat, most oils, acids, and alkalis.

Automatic relief/bleed (RB) valves continuously bleed off excess internal gas in only one direction. Helps maintain a slight positive pressure inside the glove box without allowing contaminants inside.

Static-dissipative PVC (SD-PVC) viewing window offers chemical resistance and won't shatter into dangerous pieces.

External mounted fluorescent illuminator brightens interior for optimal visibility.

Requires gloves (sold separately): available as one-piece, fully dipped gloves or two-piece glove and sleeve combinations with Glove-Under-Sleeve (GUS) connectors to allow fast, inexpensive glove replacement.

Optional Accessories:

Inert gas airlock: minimize nitrogen loss and contamination inflow when materials are passed through the glove box. The airlock is connected to an inert gas line to purge out ambient air before the inside door is opened to allow materials to transfer into or out of the main chamber.

Nitrogen generator: provides a continuous, reliable supply of pure, dry nitrogen to eliminate dependence on bulky canisters.

ErgoHeight™ automatic height adjusting table: perfect for workstations holding heavy or fragile equipment that require frequent height adjustment.

NOTE: Glove box is designed for positive-pressure operation and is therefore not tested as a hermetically sealed chamber, and is not designed for containment of hazardous materials.

Material Type: Stainless Steel

Model: Smart® Glovebox

Number of Glove Ports: 2

Window Material: Static-Dissipative PVC

Chamber Material: 304 Stainless Steel

Chamber Width: 25.875"

Chamber Depth: 19.875"

Chamber Height: 17.875"

Chamber Dimensions: 25.875" W x 19.875" D x 17.875" H

Maximum Working Height: 17.875"

Airlock Opening: 10" W x 10" H

Unit of Measure: EA

Marks & Listings: CE

Electrical Specifications: 120/240 V, 0.5 A, 50/60 Hz

Weight, Product: 100 lb

Dimensions, Product: 26" W x 20" D x 18" H

Weight, Shipping: 163 lb

Dimensions, Shipping: 32" W x 26" D x 26" H

Package Type: Crate

Buy Accessories
  1. Automatic Relief/Bleed valve in stainless steel. Product details may differ.  |  1606-60 displayed
    Automatic RB Valve; Stainless Steel, for SS Gloveboxes Stocked Item is in stock and ready for immediate shipping
    $287
    Increase Down Increase Up
  2. Acrylic smart glovebox shown with optional stainless steel worksurface  |  3305-44 displayed
    $325
    Increase Down Increase Up
  3. Provide a buffer space for sample or material transfer  |  3305-42 displayed
    Standard Air Lock; 304 SS, Right-mount Stocked Item is in stock and ready for immediate shipping
    $669
    Increase Down Increase Up
  4. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene  |  1689-02 displayed
    Glovebox Gloves; One-Piece, Bonded, Neoprene, for 8" dia. Port, Size 8 Stocked Item is in stock and ready for immediate shipping
    $163
    Increase Down Increase Up
  5. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene  |  1689-02 displayed
    Glovebox Gloves; One-Piece, Bonded, Neoprene, for 8" dia. Port, Size 9 Stocked Item is in stock and ready for immediate shipping
    $188
    Increase Down Increase Up
  6. Sleeves and glove combination, fabricated of heavy duty chemical-resistant neoprene  |  1689-02 displayed
    Glovebox Gloves; One-Piece, Bonded, Neoprene, for 8" dia. Port, Size 10 Stocked Item is in stock and ready for immediate shipping
    $184
    Increase Down Increase Up
  7. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-07 displayed
    Glovebox Gloves; One-Piece, Fully Dipped, Hypalon, for 8" dia. port, Size 8 Stocked Item is in stock and ready for immediate shipping
    $390
    Increase Down Increase Up
  8. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-07 displayed
    Glovebox Gloves; One-Piece, Fully Dipped, Hypalon, for 8" dia. port, Size 9 Stocked Item is in stock and ready for immediate shipping
    $282
    Increase Down Increase Up
  9. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-07 displayed
    Glovebox Gloves; One-Piece, Fully Dipped, Hypalon, for 8" dia. port, Size 10 Stocked Item is in stock and ready for immediate shipping
    $390
    Increase Down Increase Up
  10. Glove and sleeve combo  |  1671-01 displayed
    $273
    Increase Down Increase Up
  11. Glove and sleeve combo  |  1671-01 displayed
    $192
    Increase Down Increase Up
  12. Glove and sleeve combo  |  1671-01 displayed
    $300
    Increase Down Increase Up
  13. Glove and sleeve combo  |  1671-01 displayed
    $391
    Increase Down Increase Up
  14. Butadyl, one-piece fully dipped glove and sleeve combo
    Glovebox Gloves; One-Piece, Fully Dipped, Butadyl, for 8" dia. port, Size 8 Stocked Item is in stock and ready for immediate shipping
    $185
    Increase Down Increase Up
  15. Butyl, one-piece fully dipped glove and sleeve combination  |  1670-12 displayed
    Glovebox Gloves; One-Piece, Fully Dipped, Butyl, for 8" dia. port, Size 9 Stocked Item is in stock and ready for immediate shipping
    $133
    Increase Down Increase Up
  16. Butadyl, one-piece fully dipped glove and sleeve combo
    Glovebox Gloves; One-Piece, Fully Dipped, Butadyl, for 8" dia. port, Size 10 Stocked Item is in stock and ready for immediate shipping
    $131
    Increase Down Increase Up
  17. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1690-91 displayed
    Glovebox Sleeves; Straight, Neoprene, for 8" dia. Port, 22" Sleeve Stocked Item is in stock and ready for immediate shipping
    $169
    Increase Down Increase Up
  18. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1690-91 displayed
    Glovebox Sleeves; Straight, Neoprene, for 10" dia. Port, 22" Sleeve Stocked Item is in stock and ready for immediate shipping
    $258
    Increase Down Increase Up
  19. Shown with hand glove portion  |  1671-08 displayed
    Glovebox Sleeves; Straight, Hypalon, for 8" dia. Port, 22" Sleeve Stocked Item is in stock and ready for immediate shipping
    $389
    Increase Down Increase Up
  20. Shown with hand glove portion  |  1671-08 displayed
    Glovebox Sleeves; Straight, Hypalon, for 10" dia. Port, 24" Sleeve Stocked Item is in stock and ready for immediate shipping
    $388
    Increase Down Increase Up
  21. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1670-50 displayed
    Glovebox Sleeves; Heavyweight High Performance, Butyl, for 8" dia. Port Stocked Item is in stock and ready for immediate shipping
    $391
    Increase Down Increase Up
  22. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $424
    Increase Down Increase Up
  23. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $444
    Increase Down Increase Up
  24. Neoprene accordion sleeves with nitrile gloves  |  1689-47 displayed
    $446
    Increase Down Increase Up
  25. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    Glovebox Gloves; Nitrile, Size 8, 15 mil Stocked Item is in stock and ready for immediate shipping
    $7
    Increase Down Increase Up
  26. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    Glovebox Gloves; Nitrile, Size 9, 15 mil Stocked Item is in stock and ready for immediate shipping
    $7
    Increase Down Increase Up
  27. Feature raised diamond pattern for superior grips  |  1671-50 displayed
    Glovebox Gloves; Nitrile, Size 10, 15 mil Stocked Item is in stock and ready for immediate shipping
    $7
    Increase Down Increase Up
  28. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    Glovebox Gloves; Neoprene, Size 8, 18 mil Stocked Item is in stock and ready for immediate shipping
    $20
    Increase Down Increase Up
  29. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    Glovebox Gloves; Neoprene, Size 9, 18 mil Stocked Item is in stock and ready for immediate shipping
    $20
    Increase Down Increase Up
  30. Provides quick and easy glove replacement while leaving the sleeves attached to the glove box.  |  1671-56 displayed
    $20
    Increase Down Increase Up
  31. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems  |  2700-99 displayed
    $3,744
    Increase Down Increase Up
  32. Small nitrogen generator, 20"W x 12"D x 35.5"H, with compact footprint produces up to 99% pure N2 gas  |  2700-12B displayed
    Nitrogen Generator; 20"W x 12"D x 35.5"H, 10 ft³/hr @ 99% purity, 100 psig Stocked Item is in stock and ready for immediate shipping
    $6,388
    Increase Down Increase Up
  33. Stores 16,382 temperature readings and 16,382 relative humidity measurements.  |  9500-10 displayed
    Data Logger; Relative Humidity/Temperature Stocked Item is in stock and ready for immediate shipping
    $240
    Increase Down Increase Up
  34. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    Power Strip; 4 Outlets, 120VAC/60Hz, Installed Stocked Item is in stock and ready for immediate shipping
    $200
    Increase Down Increase Up
  35.  |  2004-32 displayed
    Power Strip; 6 Outlets, 120VAC/60Hz, Installed Stocked Item is in stock and ready for immediate shipping
    $247
    Increase Down Increase Up
  36. Power cable port protects the isolator environment while allowing for electronic equipment  |  2900-70 displayed
    Power-Cord Pass-Through, for All Glove Boxes Stocked Item is in stock and ready for immediate shipping
    $258
    Increase Down Increase Up
  37. Cordgrip connector plastic .599 inches hole size straight through black  |  3305-70 displayed
    $56
    Increase Down Increase Up
  38. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $176
    Increase Down Increase Up
  39. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  40. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  41. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  42. Equipment Testing
    Request Quote
    Increase Down Increase Up
  43. Smart® Module with LED display and gas inlet automatically monitors and maintains low-RH set point to conserve nitrogen  |  1911-30B-VL displayed
    Humidity Module; for Smart® Desiccator/Smart® Glovebox Stocked Item is in stock and ready for immediate shipping
    $1,261
    Increase Down Increase Up
  44. Automatic Relief/Bleed valve in stainless steel. Product details may differ.  |  1606-60 displayed
    Automatic RB Valve; Stainless Steel, for SS Gloveboxes Stocked Item is in stock and ready for immediate shipping
    $287
    Increase Down Increase Up
  45. Glove port ring, ABS plastic 8/9" diameter, 10-32 threaded brass insert, TPE over mold  |  1694-51A displayed
    $254
    Increase Down Increase Up

Smart® Controlled Atmosphere Glove Box Isolators

  • Acrylic Smart Glovebox with Air Lock Polycarbonate Smart Glovebox
  • Smart Glove Box Set-up
  • Polypropylene Smart Glovebox with Gloves Polypropylene Smart Glovebox
  • Polypropylene Smart Glovebox with Air Lock Polypropylene Smart Glovebox and Air Lock
  • Stainless Steel Smart Glovebox with Air Lock Stainless Steel Smart Glovebox with Air lock
  • Acrylic inert gas glove box isolator for moisture-sensitive materials Acrylic Inert Glove Box for Moisture-Sensitive Materials
  • Plastic Smart Glovebox with Air Lock Acrylic Smart Glovebox with Air Lock
  • Single Stainless Steel Glovebox Front View Stainless Steel Smart Glovebox
  • Smart GloveBox Stainless Steel Smart GloveBox Stainless Steel
Acrylic Smart Glovebox with Air Lock
Polypropylene Smart Glovebox with Gloves
Polypropylene Smart Glovebox with Air Lock

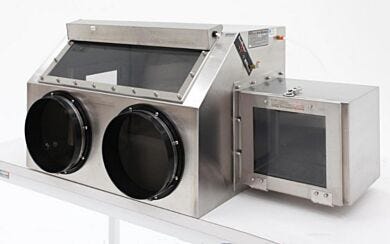

Stainless Steel Smart Glovebox with Air Lock
Acrylic inert gas glove box isolator for moisture-sensitive materials
Plastic Smart Glovebox with Air Lock
Single Stainless Steel Glovebox Front View
Smart GloveBox Stainless Steel

Features and Benefits

Low-Moisture Isolators Smart Glovebox

Smart™ Glovebox

Stainless Steel controlled atmosphere glove box for inert environment
  • Humidity set point controls
  • %RH display
  • Choice of six materials, including 304/316L SS and dissipative PVC
  • Automatic RB Valve
  • 9" (229 mm)-diameter glove ports (order desired gloves separately)
  • Airlock (optional)
  • Stainless steel model comes with fluorescent illuminator
  • Nitrogen Generator (not shown)
  • Automates low-humidity processing to prevent degradation of moisture-sensitive parts
  • Gas control system auto-adjusts nitrogen purge to maintain humidity set point
  • Ideal for work with semiconductor components, medical devices and pharmaceutical powders
  • Fully integrated turnkey system takes seconds to install and program
Positive Pressure Isolation vs. Biohazard Containment
Polycarbonate Smart Glovebox with Air Lock, Shown in Use

Terra glove boxes are designed as positive-pressure isolation chambers that operate with a continuous inflow of process gas and include bleed valves to relieve overpressures. Unless specified, they are not designed as low-leak or air-tight containment chambers, nor should they be used with hazardous substances that require air-tight seals. In containment applications, a glove box should typically be operated under continuous negative pressure, via a ventilated duct, so that any small leaks do not contaminate the operator or the environment.

Terra Universal's Smart™ Glovebox automatically maintains a low-humidity environment to protect moisture-sensitive parts.

Its quick-response feedback system continuously monitors the chamber’s relative humidity level and indicates the measured value on a bright LED display.

The minute the %RH climbs above a set point value, the Smart™ Glovebox activates a flow of dry nitrogen for as long as needed to restore the desired humidity level.

This fast-acting control system economizes on nitrogen use. Comparison testing reveals that the Smart™ Glovebox maintaining a 10% RH level uses only 22% of the nitrogen required by a flowmeter-based system of identical size. More importantly, this automated operation maintains the integrity of sensitive parts, such as semiconductor chips, medical devices or pharmaceutical powders, without operator monitoring.

For optimal performance, select a pass-through air lock, which functions as a transfer buffer zone.

The Smart™ Glovebox includes a control system, Automatic RB valve, and inlet/outlet fittings for 0.25" (6 mm)-diameter gas line. A removable back wall allows introduction of large process equipment. Select air lock, work surface and gloves separately.

Automatic Nitrogen-Purged Stainless Steel Glove Box for Inert Environment

Terra’s Smart® glove box includes a nitrogen control module that maintains a low-humidity set point to protect oxygen- and moisture-sensitive parts; takes only seconds to program. An optional inert gas airlock minimizes nitrogen loss and contamination inflow from materials transferred through the glovebox.

Stainless Steel Inert Glove Box for Medical Devices

Smart® stainless steel glovebox is suitable for heavy-duty, sterile, and ESD-safe applications. CleanSeam™ design features fully-welded single piece enclosure with smooth and seamless interiors to eliminate hard-to-clean cracks and crevices that can harbor contaminants.

Acrylic Inert Glove Box for Moisture-Sensitive Materials

Smart® plastic glove box isolator with low cost Plexiglass acrylic offers durability (17x impact resistance of glass), superior clarity, and UV resistance (won't yellow from exposure to sun).

Polypropylene Inert Glove Box for Corrosive Chemicals

Smart® automatic inert glove box isolator with opaque white polypropylene offers the best resistance to a wide range of corrosive acids, solvents, and disinfectants. The solid frame and walls feature continuous-seam welds for easy cleaning and maximum protection against chemical splashes and spills.

ESD-Safe Inert Glove Box for Microelectronics

Static-dissipative PVC (SD-PVC) construction dissipates electro-static charges and eliminates static-cling of dust particles to help maintain clean surfaces. Bonded dissipative layers resist abrasion and retains surface resistivity of 106 - 108 ohms/square longer than spray-on coatings that can wear off after a few years. Easy to clean with increased chemical resistance to isopropyl alcohol and other cleaning agents.

Polycarbonate Inert Glove Box for Pharmaceutical Packaging

Smart® inert glove box isolator with Lexan polycarbonate offers visual clarity plus several benefits over acrylic. Superior durability cracks less easily with 250x the impact resistance of glass, 15x the impact resistance of acrylic. Chemical resistant formula withstands many cleaning agents such as isopropyl alcohol. Increased thermal resistance (115–130 °C / 239–266 °F) helps withstand repeated steam sterilization.

UL-Listed Smart® Module for Long-Term Reliability

The Smart® module is UL-listed and built to the highest standards required by defense and semiconductor industries for long-term reliability. The compact controller includes an LED display and sensor to eliminate the need for external control boxes. Installation is simple, requiring only one gas and one low voltage power connection.

External Fluorescent Illuminator

Light fixture mounted outside the glovebox illuminates the interior and is easy to access. The hinged cover lifts up for light bulb maintenance or replacement.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Manufacturer, Distributor and Service Provider

Terra is not just a product manufacturer, we provide a suite of services to help our customers navigate the complex process of ensuring their equipment is operational

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Stainless Steel Glovebox on Automatic Height Adjusting Table with N2 Generator
    Gloveboxes can easily mount to an automatic height adjusting table (28”-43”H). Ideal for workstations with sensitive equipment that undergo frequent height adjustment. A compact Nitrogen generator requires only a compressed air supply for continued nitrogen gas supply.
  • Sleeve and Glove Assemblies
    Sleeve/glove combinations, available in many materials, allow fast, inexpensive glove replacement without removing sleeves from the glove box port (shown: Hypalon with glove/sleeve connectors).
  • Laboratory Nitrogen Generator
    Terra’s Nitrogen Generators provide a continuous, reliable supply of clean, dry nitrogen up to 99% pure to eliminate dependence on bulky canisters to operate desiccators and glove boxes.
  • Air Locks Minimize Cross-Contamination
    Air locks provide a buffer space that minimizes cross-contamination and moisture fluctuation during parts transfer; standard mounting is right side (static-dissipative PVC model shown).
  • Stainless Steel Work Surface Improves Safety and Service Life
    Installed inside on the floor of a plastic glove box, a conductive stainless steel surface improves ESD-safety, simplifies cleaning, and extends service life by protecting from scratches and heavy impacts of dropped items.
  • Ionizing Module for Glove Boxes
    Safe, low-voltage static-neutralizing unit includes fans to eliminate static charges throughout the glove box chamber to prevent electro-static discharge (ESD) and particle attraction

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.

Hide
You need at least 2 products to compare Compare Clear All
Compare Products
