Terra Part # 3648-09
$18,746
Usually ships in 40-44 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3648-09
61043

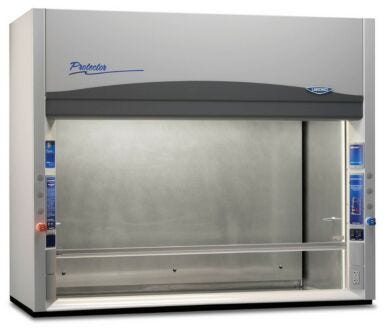

Hood; Protector Radioisotope, 72" W x 32" D x 59" H, Service Fixtures, Duplex Outlet, Labconco, 115 V

• By-pass airflow design and by-pass block

• Coved stainless steel interior and one-piece liner prevents build-up of residue

• Clean-Sweep pulls inflow air from under curved air foil and away from operator

• Front and side panels are removable for easy cleaning and access to plumbing and wiring

• Cord-Keeper slots on left and right side of air foil keeps cord organized

Depth: 32"

Hood Design: Benchtop

Frame Material: Powder-Coated Steel

Height: 59"

Manufactured by: Labconco

Manufacturer SKU: 120600002

Max Opening: 28" H

Model: Protector Radioisotope

Side Panels: Tempered Glass

Sash Design: Manual/Tilt-Up

Sash Height: 28"

Sash Opening: 1"

Width: 72"

Special Application: Radioisotope

Unit of Measure: EA

Dimensions, Product: 72" W x 31.7" D x 59" H

Dimensions, Shipping: 80" W x 44" D x 78" H

Electrical Specifications: 115 V, 10 A, 1,150 W, 50/60 Hz

Package Type: Crate

Weight, Shipping: 845 lb

Buy Accessories
  1. Safely stores corrosive liquids and acids | 3649-49 displayed
    $1,280
    Increase Down Increase Up
  2. Safely stores corrosive liquids and acids | 3649-49 displayed
    Cabinet; Acid Storage, 48"W x 22"D x 36.75"H, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,433
    Increase Down Increase Up
  3. Features manual-closing, non-locking door(s) | 3646-03 displayed
    Cabinet; Acid Storage, Hinge, 36"W x 22"D x 36.75"H, Manual Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,357
    Increase Down Increase Up
  4. Features manual-closing, non-locking door(s) | 3646-51 displayed
    Cabinet; Acid Storage, Hinge, 30"W x 22"D x 36.75"H, Dual Doors, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,310
    Increase Down Increase Up
  5. Safely stores corrosive liquids and acids | 3649-73 displayed
    $1,261
    Increase Down Increase Up
  6. Safely stores corrosive liquids and acids | 3649-73 displayed
    $1,216
    Increase Down Increase Up
  7. Safely stores corrosive liquids and acids | 3649-73 displayed
    $1,261
    Increase Down Increase Up
  8. Safely stores corrosive liquids and acids | 3649-73 displayed
    $1,216
    Increase Down Increase Up
  9. Supports loads up to 800 pounds | 3646-04 displayed
    Cabinet; Solvent Storage, Hinge, 48"W x 22"D x 36.75"H, Manual Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,904
    Increase Down Increase Up
  10. Supports loads up to 800 pounds | 3646-04 displayed
    Cabinet; Solvent Storage, Hinge, 36"W x 22"D x 36.75"H, Manual Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,825
    Increase Down Increase Up
  11. Supports loads up to 800 pounds | 3646-04 displayed
    Cabinet; Solvent Storage, Hinge, 30"W x 22"D x 36.75"H, Manual Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,767
    Increase Down Increase Up
  12. Supports loads up to 800 pounds | 3646-04 displayed
    Cabinet; Solvent Storage, Hinge, 48"W x 22"D x 36.75"H, Automatic Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $2,467
    Increase Down Increase Up
  13. Supports loads up to 800 pounds | 3646-09 displayed
    Cabinet; Solvent Storage, Hinge, 36"W x 22"D x 36.75"H, Automatic Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $2,374
    Increase Down Increase Up
  14. Supports loads up to 800 pounds | 3646-09 displayed
    Cabinet; Solvent Storage, Hinge, 30"W x 22"D x 36.75"H, Automatic Door, Labconco Stocked Item is in stock and ready for immediate shipping
    $2,326
    Increase Down Increase Up
  15. Features manual-closing, non-locking door(s) | 3646-03 displayed
    Cabinet; Standard Storage, Hinge, 48"W x 22"D x 35.5"H, Dual Doors, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,234
    Increase Down Increase Up
  16. Features manual-closing, non-locking door(s) | 3646-03 displayed
    Cabinet; Standard Storage, Hinge, 36"W x 22"D x 36.75"H, Dual Doors, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,127
    Increase Down Increase Up
  17. Provides support for the full line of benchtop Labconco fume hoods or glove boxes | 3646-53 displayed
    Cabinet; Standard Storage, Hinge, 30"W x 22"D x 36.75"H, Dual Doors, Labconco Stocked Item is in stock and ready for immediate shipping
    $1,100
    Increase Down Increase Up
  18. Superior corrosion resistance and ideal for moderate to highly corrosive hood applications/conditions | 3646-57 displayed
    $2,930
    Increase Down Increase Up
  19. Superior corrosion resistance and ideal for moderate to highly corrosive hood applications/conditions | 3646-57 displayed
    $3,942
    Increase Down Increase Up
  20. Labconco Guardian Digital Monitor alerts operator of low or unsafe airflow | 3646-94 displayed
    $2,227
    Increase Down Increase Up
  21. Senses and alerts the operator to low airflow conditions. | 3646-56 displayed
    $893
    Increase Down Increase Up
  22. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Fume Hoods by Labconco

  • Labconco Protector ClassMate Labconco Protector ClassMate
  • Labconco Xpert Balance Enclosure – 8 ft Labconco Xpert Balance Enclosure – 8 ft
  • Labconco Xpert Nano Ductless Exhaust Hood Labconco Xpert Nano Ductless Exhaust Hood
  • Labconco Protector XVS Ventilation Stations Labconco Protector XVS Ventilation Stations
  • Labconco Protector® Echo – Floor Mounted Labconco Protector® Echo – Floor Mounted
  • Exploson-Proof Ductless Fume Hood in Use Powder-Coated Explosion-Proof Ductless Fume Hood
  • Hardwall Modular Cleanroom with Multiple Suites Multi-Suite Hardwall Modular Cleanroom
  • Protector XStream Laboratory Fume Hoods by Labconco Protector XStream Laboratory Fume Hoods by Labconco

Features and Benefits

Radioisotope Fume Hoods Specifications

Protector Stainless Steel Radioisotope Laboratory Fume Hoods

  • Seamless 304 stainless steel baffle and liner
  • By-pass air flow and by-pass block
  • Clean-Sweep™ sash handle and tracks, Eco-Foil™ air foil and Cord-Keeper™ slots
  • 37.5" obstruction free sightline
  • Performance tested to ASHRAE 110-1995
  • Required Accessories: Remote Blowers, Base Cabinets, Ductwork (See Available Accessories Below)
  • One-Year Manufacturer Warranty for Parts and Labor from date of Installation or Two-Year Warranty from Date of Shipment
MaterialCorrosion-resistant 304 stainless steel interior; glacier white, dry powder epoxy-coated steel exterior; black enamel-coated hardboard surface; tempered safety glass vertical-rising sash with frame of epoxy-coated aluminum and PVC
Electrical115 volts, 50/60 Hz, 10 amps
Conformance and Listings
  • Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA C22.2, CFR 29, NFPA 45, SEFA 1, SEFA 8 (Cabinet Surface Finish), UL
  • Listings: ETL-listed certified to UL 61010-1, UL 1805 and CAN/CSA C22.2 No. 61010.1
  • ASHRAE 110-1995 Performance tested
TypeBenchtop
Required Remote BlowerNot included (sold separately)
Required AccessoriesRemote Blowers, Base Cabinets, Ductwork
Optional AccessoriesAirflow Monitors, Sash Stops, Rear Finish Panel Kits, Three-Sided Ceiling Enclosure Kits
Airflow
  • By-pass airflow for stable face velocities
  • By-pass block controls and reduces minimum air volume demanded by obstructing the by-pass opening above the sash
  • Eco-Foil air foil saves energy by 7-10% compared to flat air foil; curved air foil maximizes containment by sweeping work surface with air
  • Clean-Sweep sash handle and tracks bleeds air into hood chamber and away from breathing zone of operator; saves energy by 7-10% compared to flat air foils
Construction
  • Corrosion-resistant 304 stainless steel baffle and liner
  • Tempered safety glass sash
  • Seamless interior with coved corners
  • Removable front and side panels for easy lamp replacement and access to plumbing and electrical connections
  • 37.5" sightline provides unobstructed view from work surface to header panel; ideal for taller operators
  • Cord-Keeper slot on left and right side of air foil keeps electrical cords away from operator and allows for complete sash closure when cords are plugged into receptacles on corner posts
  • Access to plumbing from front of hood through service access panels
  • Pre-wired electrical components: factory wired fluorescent lights and switches at single point junction; each hood factory prepared for up to 4 electrical duplexes and an airflow monitor; models with one electrical duplex with right side receptacle; 8 ft. models with one duplex with receptacles mounted on each side
  • Hardboard surface supports integral work surface
  • 11" OD Type 304 stainless steel exhaust connection(s)
  • Remote control optional color-coded service fixtures for gas, air water, vacuum and other services; can be used regardless of sash position; select models have two pre-plumbed service fixtures; each corner post factory prepared for up to 4 service fixtures (8 fixtures per hood). Talk to a Terra product specialist about additional service fixtures
LightingTwo high-efficiency T8 fluorescent lights outside hood interior for easy replacement and corrosion protection

Labconco Radioisotope Laboratory Fume Hood

Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.

Labconco Corrosive Resistant Remote Blower

Labconco supplies coated steel blowers designed specifically for connection to Class I containment enclosures, including XPert, RXPert, Protector XVS, and Purifier HEPA Filtered Safety Enclosures. Explosion-proof versions also available

Sash Stop Kit for Labconco Fume Hoods

Restricts opening of vertical-rising sash; easily installed on fixture panel of Protector hood.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Solvent Storage Cabinet
    Solvent storage cabinets are insulated and include two vent connections to ensure safe storage of flammable liquids. Double-wall construction uses epoxy-coated steel for durability. Models with self-closing doors are available.
  • Labconco Acid Storage Cabinet
    Acid storage cabinets are constructed of epoxy-coated steel with a corrosion-resistant, polyethylene interior coating. Each cabinet can support up to 800 lbs. and includes a vacuum-formed PVC tray to contain spillage inside the cabinet.
  • Labconco Standard Base Storage Cabinet
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Coated Steel Blower
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Fiberglass Blower
    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Labconco Digital Airflow Monitor
    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
