Hoods for Wet Processing

14 products meet your criteria.

per page
  1. ISO 7 IconISO 7 IconcULus LogocULus Logo
    1 Type2 Material1 Work Area Depth2 Work Area Width2 ISO Class

    • Available ISO Ratings: ISO 7, ISO 8
    Type: Cleaning Station
    Material: Polypropylene, 304 Stainless Steel
    Work Area Depth: 24"
    Work Area Width: 72", 96"
    ISO Class: ISO 7, ISO 6
  2. Stocked
    ValuLine™ Polypropylene Wash Station
    Group of 2 products
    As low as $1,008
    Some ship in 1 - 3 days
    ISO 8 Icon
    ISO 8 Icon<br/>New Lower Price DiscountNew Lower Price DiscountStockedStocked
    1 Type1 Material1 Work Area Depth2 Work Area Width1 ISO Class

    • Versatile wet cleaning station is ideal for chemical rinsing and other wet chemical processes
    • Self-contained, easy-to-clean utility sink is suitable for commercial and industrial applications
    • Polypropylene utility tub is mold and mildew-resistant; withstands corrosive chemicals
    • Deep and spacious industrial trough sink makes it easy to wash big things
    • Economical free-standing wash station is shipped fully assembled
    Type: Cleaning Station
    Material: Polypropylene
    Work Area Depth: 23"
    Work Area Width: 48", 72"
    ISO Class: ISO 8
  3. Modular Wet Cleaning Benches
    Group of 4 products
    As low as $12,407
    Some ship in 9 - 15 days
    ISO 7 IconISO 7 IconcULus LogocULus Logo
    1 Voltage1 Type1 Material1 Work Area Depth4 Work Area Width1 ISO Class

    • Available ISO Ratings: ISO 7, ISO 8
    Voltage: 120 V
    Type: Cleaning Bench
    Material: Polypropylene
    Work Area Depth: 23"
    Work Area Width: 36", 48", 60", 84"
    ISO Class: ISO 7
  4. ISO 6 IconISO 6 Icon

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8

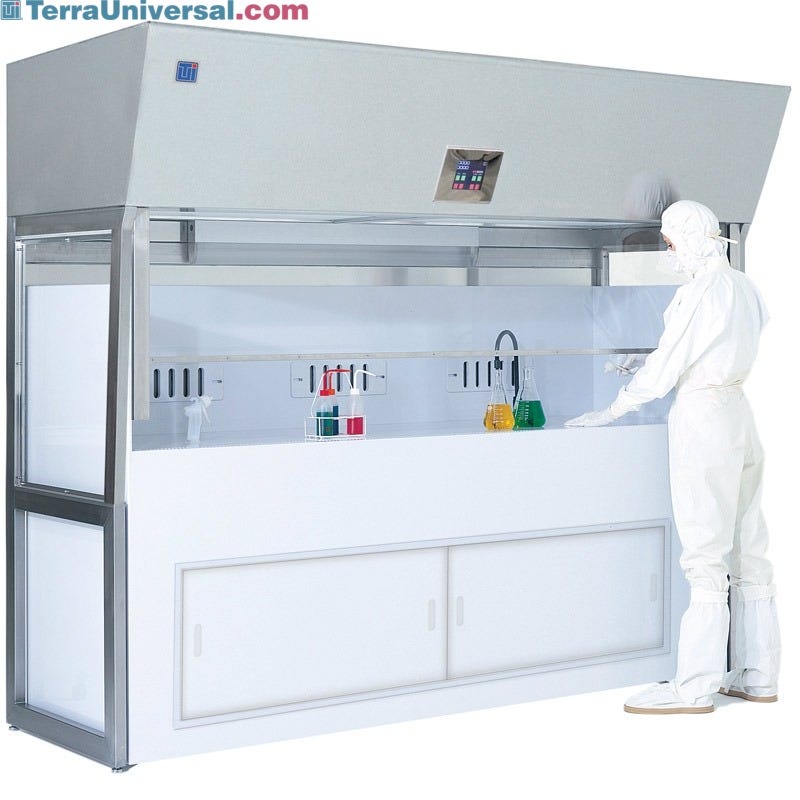

  5. Vertical Laminar Flow Hoods for Wet Processing Benches
    Group of 3 products
    As low as $4,391
    Some ship in 20 - 30 days
    ISO 6 IconISO 6 IconULus LogoULus LogoBioSafe classic logoBioSafe classic logoWhisperFlowWhisperFlow
    2 Voltage2 Frame Material1 Model2 Filter Type2 ISO Class3 Inside Width2 Inside Depth2 Inside Height

    • Available ISO Ratings: ISO 6, ISO 7, ISO 8
    Voltage: 120 V, 240 V
    Frame Material: Powder-Coated Steel, 304 Stainless Steel
    Model: Wet Processing Station
    Filter Type: HEPA, RSR
    ISO Class: ISO 7, ISO 6
    Inside Width: 97", 57", 45"
    Inside Depth: 28", 32"
    Inside Height: 74", 67"
Page 1 of 1

14 products meet your criteria.

per page

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Recessed Lighting and Optional UV-C Sterilization

Included recessed light fixture simplifies cleaning and minimizes airflow disruptions (shown next to optional UV sterilization bulb).

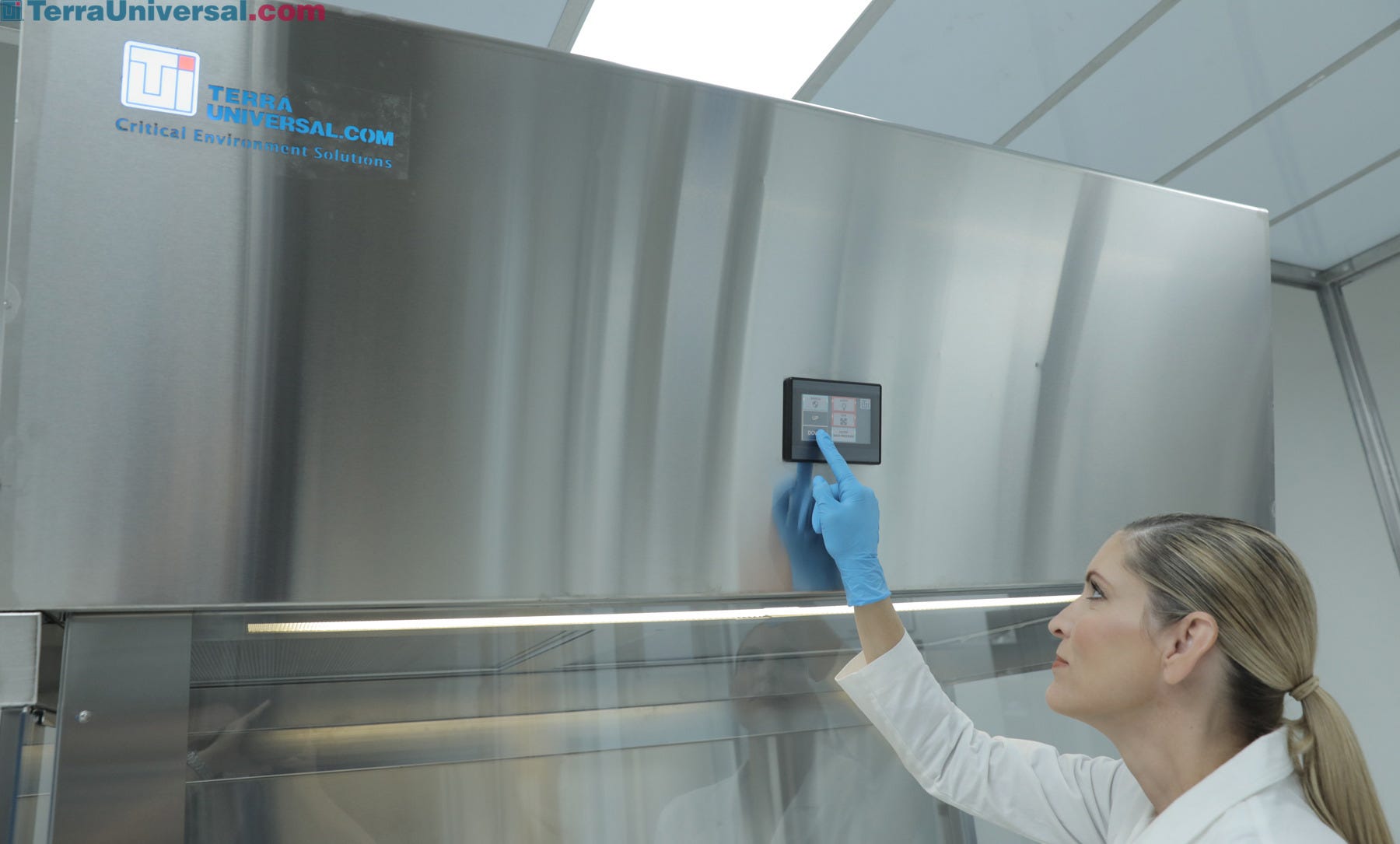

Touchscreen Control Panel

PLC control panel provides control of fan speed, lights, and motorized shield; digital gauge monitors backpressure and issues alerts when filter(s) need replacement

Motorized Access Shield

Motorized access shield, included on select models, enhances laminar flow and protects operator from chemical fumes and other environmental nuisances.

Integrated Stands Isolates Hood from Work Surface

Built-in stand with dissipative PVC side panels allows VLF Stations to be positioned over any table or processing equipment without transferring hood vibration to work surface (shown integrated with optional modular wet station).

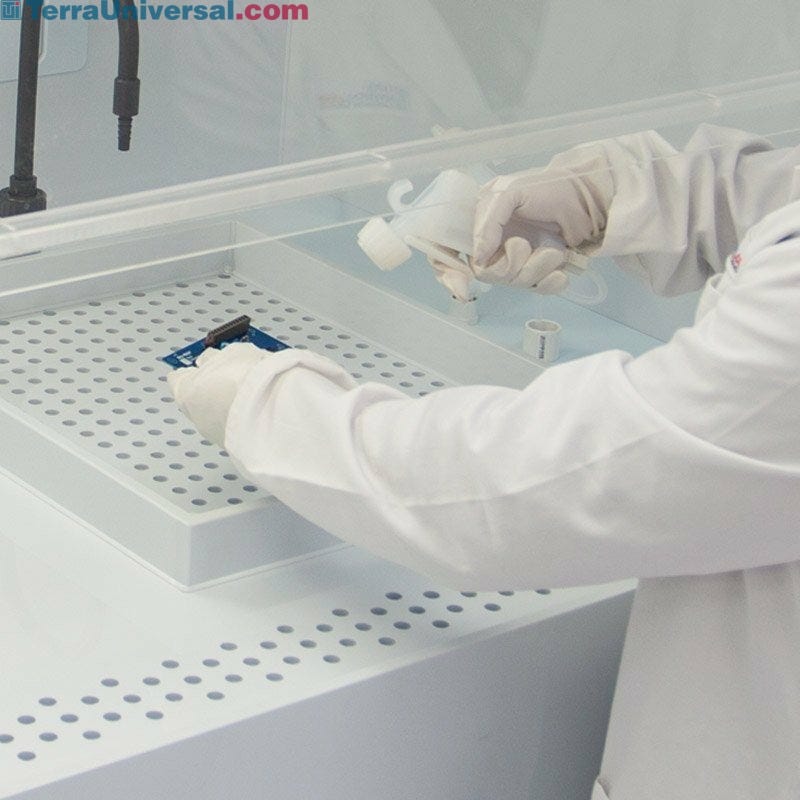

N2 and DI Water Spray Guns

Handy spray guns provide a ready sources of nitrogen or deionized water installed in locations to suit your process requirements (shown: DI water spray gun installed on cleaning station).

Gooseneck Faucet

Angled to dispense water in a focused stream, this faucet is made of chemical-resistant PVC

Adjustable Rear Baffles

Adjust air flow direction, speed and volume by changing position of the easy-to-reach baffle plates at the rear of the station countertop.

Explosion-Proof Light and Fire Sprinklers

Incandescent illuminator lights up work area and is wired per NEC guidelines. It is appropriate for Class I, II and III, Divisions 1 and 2 applications using ignitable mixtures. Sprinkler heads located above each sink add an extra layer of safety when working with flammable chemicals.

Split Perforated Sink for Two Users

The removable perforated stainless steel surface safely guides liquids to the bottom drain and prevents parts from falling into the sink. The center partition allows for separate operations and minimizes splashing or mixing of chemicals from the adjacent sink.

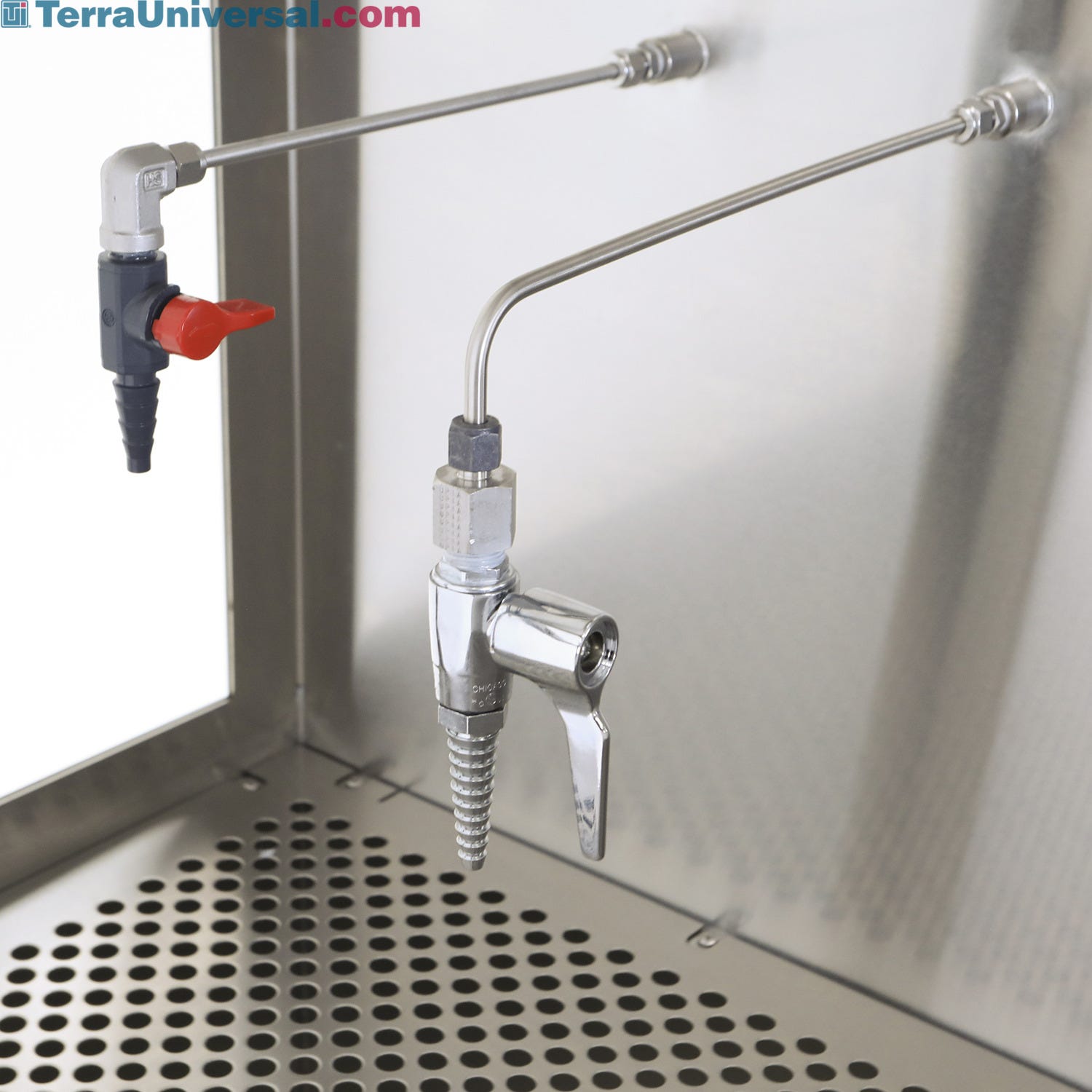

Gas and Solvent Service Lines

Downward spraying petcock nozzles above each sink deliver liquid solvents for rinsing and nitrogen/air for drying. The nozzles extend outward for extra clearance and point down to facilitate cleaning procedures.

Pneumatic Foot Pedals for Hands-Free Operation

Pneumatic foot pedals installed at the base of the stainless steel solvent cleaning station allow users to safely control flow of solvent and nitrogen gas at each sink. Hands-free operation reduces risk of contamination.

Exhaust Duct Connection For Safe Fume Extraction

Stainless steel solvent station is equipped with exhaust duct to safely carry fumes away from workers. This view from the top also shows plumbing that feeds two fire sprinklers, and encased wiring for the explosion-proof light.

Hoods for Wet Processing

  • HEPA Filtration for Particle-Free Airflow HEPA Filtration for Particle-Free Airflow
  • Vertical Laminar Flow Station with Vibration Isolated Work Surface Isolated Work Surface Enhances High Magnification Viewing
  • High-Clearance, Wide-Access Vertical Laminar Flow Hoods ValuLine™ Vertical Laminar Flow Stations
  • PLC Touchscreen Controls on Vertical Laminar Flow Hood PLC Touchscreen Panel on Vertical Laminar Flow Hood
  • Vertical Laminar Flow Tilt-Up Shield Tilt-Up Shield
