Terra Part # 1993-12D
$1,981
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Only 3 left in stock
Accessories related to Terra Part # 1993-12D
55203

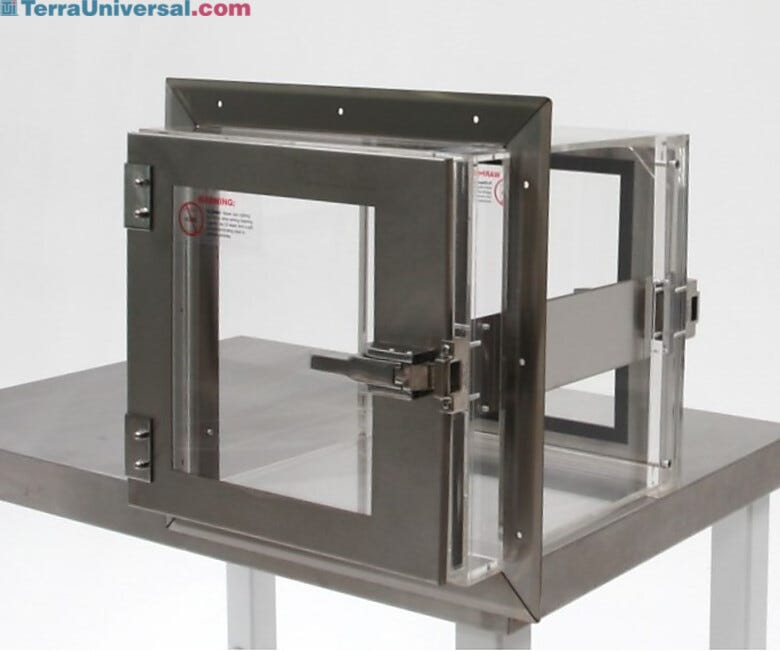

Pass-Through; General-Use, 12" W x 12" D x 12" H ID, Standard Wall Mount, Clear Acrylic
  • Interlock minimizes contamination exposure while materials are transferred to and from cleanroom
  • Included chrome-plated LiftLatches don't strain hinges
  • Includes dual gasketed access doors with stainless steel door frames to extend door life
  • Locking LiftLatches available by specifying at time of order
  • Includes two sets of stainless steel mounting brackets and mechanical interlock
  • Standard bracket mounting is 2" (51mm) from the front on the cleanroom side - specify other desired location
  • Optional upgrade: to prevent users on both sides from forcefully pulling the doors open at the same time and risking damage, Smart CleanMount Pass-Throughs offer visual red/green status lights to notify users when a door can be opened safely.
  • All-acrylic construction includes dual gasketed access doors
  • CAUTION: Acrylic is damaged by alcohol and many other cleaning agents.  Use only water and mild detergent

Inside Width: 12"

Inside Depth: 12"

Inside Height: 12"

Concealed Interlock: No

Continuous-Seam Welds: No

HEPA/ULPA Filtration: No

Material: Clear Acrylic

Model: General-Use

Mounting Position: Standard Wall

Special Door Configuration: Leak-Rated

Marks & Listings: CE, UL, ULC

Window Material: Acrylic

Unit of Measure: EA

Dimensions, Product: 15" W x 16" D x 15" H

Dimensions, Shipping: 20.25" W x 21.25" D x 19" H

Marks & Listings: CE, UL, ULC

Package Type: Crate

Weight, Product: 19 lb

Weight, Shipping: 51 lb

Buy Accessories
  1. Increases security of desiccators and accommodates most standard padlocks. | 1603-33 displayed
    $46
    Increase Down Increase Up
  2. Shown on reference grid of 1-inch (25mm) squares | 1603-40-2-316 displayed
    $370
    Increase Down Increase Up
  3. Small (4") locking latch, catcher included. Grid shows one-inch squares. | 1603-80 displayed
    $108
    Increase Down Increase Up
  4. Removes solvents and other hazardous vapors from materials while they are in the pass-through | 6705-23 displayed
    $569
    Increase Down Increase Up
  5. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  6. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  7. Equipment Testing
    Request Quote
    Increase Down Increase Up
  8. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

General-Use Pass-Through Chambers

  • Cleanroom Pass-Through Chamber Video Overview Cleanroom Pass-Through Features and Selection Guide
  • Stainless steel hospital pass-through for primary, secondary, tertiary services Stainless Steel Hospital Pass-Through for Primary, Secondary, Tertiary Services
  • Stainless Steel Cleanroom Pass-Through Chamber Stainless Steel Cleanroom Pass-Through Chamber, 24"W x 24"D x 24"H
  • Powder-Coated Steel Cleanroom Pass-Through Chamber Powder-Coated Steel Pass-Through Chamber, 36"W x 36"D x 36"H
  • Polypropylene plastic pass-through for medical device manufacturing Polypropylene Plastic Cleanroom Pass-Through for Medical Device Manufacturing of Extremity Instruments
Cleanroom Pass-Through Chamber Video Overview

Features and Benefits

Pass-Through Basics

General Use Pass-Through Chamber

Don't risk operational delays or cleanroom shutdown because of a damaged door!
Terra's pass-through chambers last indefinitely, much longer than our standard product revision cycle. Pass-Through doors, however, are subject to damage, and ordering a legacy replacement can be costly and disrupt cleanroom operation. To avoid these problems, order replacements at the time you purchase the pass-through chamber; simply add “-RH” (for right-side hinge) or “-LH” (for left-side hinge) to the part number of the chamber.

Shutting the Door on Contamination
These Pass-Through Chambers cut down significantly on traffic and contamination by providing a better, safer way to transfer equipment and paperwork.

304 Stainless steel or powder-coated steel pass-throughs ensure clean operation. For especially stringent particle requirements, select an UltraClean™ electropolished 304 stainless steel pass-through.

Polypropylene and PVC models are suitable for chemical pass-through applications, and Static-Dissipative PVC models combine excellent chemical resistance with a surface resistivity of about 107ohms/square for enhanced static and particle control. Each model features viewing windows of a compatible material.

Doors on either side are outfitted with an automatic mechanical interlock that allows only one door at a time to open. The no-maintenance interlock has no power, gas, or other facility requirement, so it continues to operate when other systems shut down. It engages at the same time the latch is lifted to open the door; no additional hands-on manual steps are required.

Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal)* – 0.12”
Height = H (nominal) – 1.25”
* Subtract 0.5” for plastic chambers. Each door adds 0.5” to nominal depth.
Standard Pass-Through Mounting
All models include mounting brackets (stainless or powder-coated steel) and required hardware. Mounting brackets require 0.25” (6 mm) clearance between the wall cut-out and the pass-through. Standard mounting is 2” (51 mm) from the front of the cleanroom side (specify other desired location).
Wall Cut-Out = W (nominal) +0.5” x H (nominal) + 0.5”
Pass-Through Chamber Support Brackets
Order optional support brackets for wall-mount pass-through chambers that are 36"D or larger. They support the weight of the pass-through, and are designed to allow chambers to protrude 2" (51mm) on the cleanroom side. Indicate other desired position when ordering.

Pass-Through Chamber Interlock

Terra’s automatic mechanical interlock prevents cross-contamination by allowing one door to be open at a time. Encased in stainless steel, the mechanism is rated for millions of operations, more than enough to last the lifetime of the pass-through.

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

Stainless Steel Reinforced Doors and Handles

Doors on professional-grade pass-through chambers are reinforced with stainless steel frames, which lend rigidity, improve the seal, and extend the service life of the doors.

One Piece Elastomer Gasket

The white, “e”-shaped gasket provides a flexible seal that will not creep or deform over time. The gasket is made of a non-outgassing, thermoplastic elastomer that is resistant to harsh chemicals and extreme temperatures.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Comprehensive Product Portfolio

Terra’s comprehensive product portfolio includes solutions for every application and budget. Our technical sales staff will guide you toward the product most suitable for your requirements.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Passthrough Ventilation Exhaust Ducts

    Adding a duct flange to the top of the passthrough allows the chamber to be ventilated by a remote blower. The ULPA-filtered inlet, housed in a perforated stainless steel cage, provides the necessary make-up air without contaminating the chamber.
  • CleanTop™

    The CleanTop™ is designed for installations that require the chamber to be centered in the wall. The 30° sloping top on the cleanroom-side minimizes particle accumulation and accommodates laminar downward airflow.
  • Replacement Pass-Through Doors to Avoid Costly Down-Time

    Avoid costly disruptions and down time - keep a replacement door on hand! Doors attach in munites and can prevent a costly shut-down if the original is damaged. To order, add "-LH" (left-side hinge) or "-RH" (right-side hinge) to the pass-through part number.
  • Grounding Terminals

    Grounding terminals are ideal for the most static-sensitive applications (must be ordered with chamber; cannot be retrofitted).
  • Support Brackets for Pass-Through Chambers

    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
