2640-79
Terra Part # 2640-79
$24,574
Usually ships in 0-2 business days

Want it faster ? Read about FasTrak

Quick Ship+ Available Only 3 left in stock
Accessories related to Terra Part # 2640-79
53212
Pass-Through; Rugged, 36" W x 36" D x 36" H ID, Flush Wall Mount, 316L Stainless Steel w/Brackets
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Recessed pull-to-open latch withstands up to 50lbs of force without damaging the pass-through.
  • Self-closing doors simplify operation and minimze the chance of contamination.
  • Ideal for heavy use (and abuse!) applications - a nearly indestructible pass-through!
  • All-stainless steel construction with double-wall, 2.5" (64mm) thick doors and heavy duty hardware.
  • Doors feature 14"W x 24"H x 0.25"-thick fire-rated wired-glass viewing windows.

Inside Depth: 36"

Inside Height: 36"

Inside Width: 36"

Concealed Interlock: No

Continuous-Seam Welds: No

Electropolished: Optional

HEPA/ULPA Filtration: No

Material: 316L Stainless Steel

Model: Rugged

Mounting Position: Flush Wall

Opening Dimensions: 33"W x 33"H

Special Door Configuration: Ruggedized

Unit of Measure: EA

Dimensions, Product: 36" W x 36" D x 36" H

Dimensions, Shipping: 43" W x 41" D x 43" H

Package Type: Crate

Weight, Product: 195 lb

Weight, Shipping: 325 lb

Buy Accessories
  1. Stainless steel support brackets are recommended for pass-throughs deeper than 24"  |  1993-60C displayed
    $542
    Increase Down Increase Up
  2. Stainless steel support brackets are recommended for pass-throughs deeper than 24"  |  1993-60C displayed
    $443
    Increase Down Increase Up
  3. Removes solvents and other hazardous vapors from materials while they are in the pass-through  |  6705-23 displayed
    $496
    Increase Down Increase Up
  4. To prevent doors from opening completely, use a 90 degree door stop for flush mount pass through doors  |  6705-98 displayed
    $354
    Increase Down Increase Up
  5. To prevent doors from opening completely, use a 90 degree door stop for flush mount pass through doors  |  6705-98 displayed
    $354
    Increase Down Increase Up
  6. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  7. Electropolish Service
    Request Quote
    Increase Down Increase Up
  8. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  9. Equipment Testing
    Request Quote
    Increase Down Increase Up
  10. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  11. UL Listing Declaration for Leak-Rated Pass-Throughs
    Request Quote
    Increase Down Increase Up

Specialty Pass-Through Chambers

  • 8-chamber wall-mounted pass-through desiccator cabinet installed 8 Chamber Stainless Steel Wall Mounted Desiccator Cabinet
  • double door pass through cabinet with adjustable shelving 304 stainless steel Spacious Pass Through Cabinet for Efficient Re-Stocking
  • Stainless Steel Specimen Passthrough Stainless Steel Specimen Passthrough
  • Ruggedized Passthrough Ruggedized Passthrough
  • Built-In 1-Way Mirror
  • Cleanroom Air Shower Cart Pass Through Air Shower Cart Pass Through, Powder-Coated Steel

Features and Benefits

Learn More: Ruggedized Chamber Dimensions

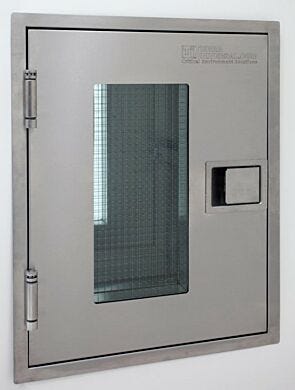

Ruggedized Pass-Through Chamber

Access Clearances
Width = W (nominal) – 1.88”
Depth = D (nominal) – 0.12”
Height = H (nominal) – 1.25”

Wall Cut-Out = W (nominal) +0.5” x H (nominal) + 0.5”

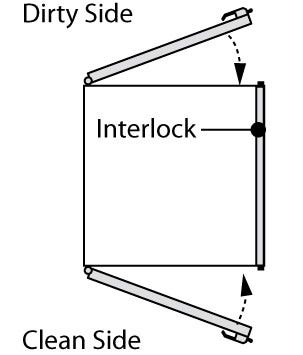

Mounting Illustration with Door Swing Direction

Self-Closing Passthrough Hinge

Spring-loaded hinges create a self-closing door, a convenient safety feature for operators with hands full

Double-Wall Passthrough Doors

2.5" thick stainless steel doors and heavy-duty hardware contribute to a sturdy, rigid chamber that withstands abuse!

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Support Brackets for Pass-Through Chambers

    Stainless steel support brackets are recommended for pass-throughs deeper than 24". Brackets fasten to the wall and the body of the chamber rests upon the horizontal bar; no fasteners are used on the pass-through itself.
  • Passthrough Chamber Door Stop

    This stainless steel door stop limits the arc of the pass-through door's swing to 90°, preventing damage to wall, door latch and other components. Door stops can be adjusted to allow other angles.

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
