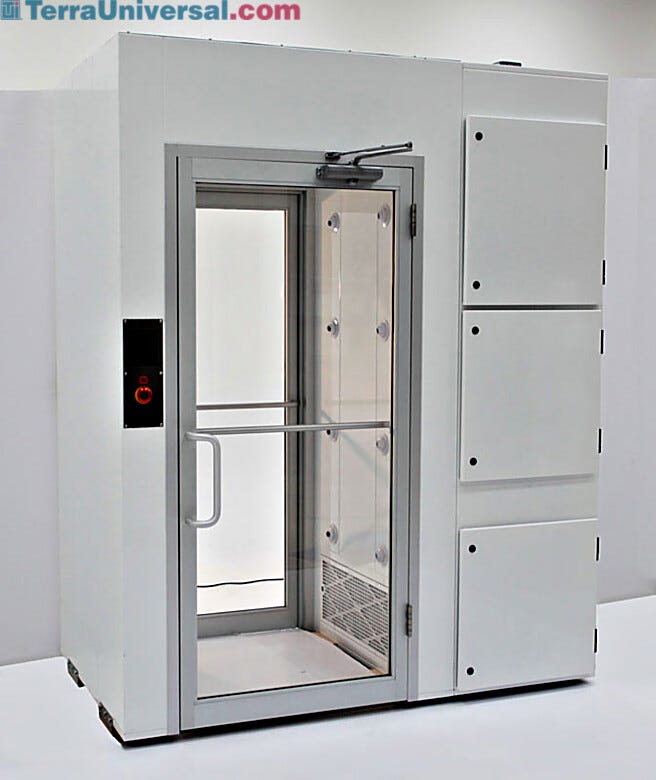

Helps Solve Decontamination Problems. Powder-coated Steel Airshower shown
Air Showers & Tunnels,Air Showers,Air Showers,Air Showers,Air Showers

Air Shower; Low-Profile, 79.25" W x 44" D x 90" H, Powder-Coated Steel, PLC, Email Alert

  • Available Certified ISO Grade™ Designs: ISO 7, ISO 8
  • Users can configure the system to send an email alert when a filter needs replacement
  • Includes an Ethernet feedthrough
  • Fabricated of powder-coated steel with powder-coated aluminum door frames and SDPVC panels
  • Blower: 3600 RPM with 13.5" (343 mm) wheel diameter, produces 1820 CFM at 2" WG
  • PLC touchscreen includes back-pressure gauge to monitor for filter replacement

• Material: Powder-Coated Steel

• Type: Low-Profile

• Height: 90"

• Width: 79.25"

• Depth: 44"

• Number of Blowers: 1 Blower

• Approx. Occupancy: 1

• Available Certified ISO Grade™ Designs: ISO 7, ISO 8

• Certified ISO Grade™ Design: ISO 7

• Door Clearance: 35.5" W x 81" H

• Chamber Dimensions: 39.75" W x 36" D x 83" H

• ISO Rated™ Air Cleanliness: ISO 5

• Unit of Measure: EA

Read more
ISO 7 Icon
Terra Part #: 6010-14D-LP
Manufactured By: Terra Universal
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
6010-14D-LP
Terra Part # 6010-14D-LP
$26,434
Usually ships in 25-31 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6010-14D-LP
84431
Air Shower; Low-Profile, 79.25" W x 44" D x 90" H, Powder-Coated Steel, PLC, Email Alert
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade™ Designs: ISO 7, ISO 8
  • Users can configure the system to send an email alert when a filter needs replacement
  • Includes an Ethernet feedthrough
  • Fabricated of powder-coated steel with powder-coated aluminum door frames and SDPVC panels
  • Blower: 3600 RPM with 13.5" (343 mm) wheel diameter, produces 1820 CFM at 2" WG
  • PLC touchscreen includes back-pressure gauge to monitor for filter replacement
  • Set up maximum of two email addresses for email alerts when fan filters need replacement
  • Quicker filter replacements eliminate down time when air is stagnant and unfiltered, and ensures air purity is maintained
  • Programmable shower cycle duration
  • Air shower chamber does not include a floor
  • Self-contained unit solves decontamination problems
  • Air velocity ensures efficient scrubbing action to remove particulate matter
  • Interlocking door prevents cleanroom cross-contamination
  • Microprocessor panel provides programmable control of access door operation
  • Options include HEPA-filtered ceiling, ionized grid, and safety glazing
  • Low-Profile design reduces height to 90" for installation in facilities with restricted overhead clearance
  • Blower and HEPA filter modules are mounted on right side
  • Specify Voltage when ordering
Show more

• Material: Powder-Coated Steel

• Type: Low-Profile

• Height: 90"

• Width: 79.25"

• Depth: 44"

• Number of Blowers: 1 Blower

• Approx. Occupancy: 1

• Available Certified ISO Grade™ Designs: ISO 7, ISO 8

• Certified ISO Grade™ Design: ISO 7

• Door Clearance: 35.5" W x 81" H

• Chamber Dimensions: 39.75" W x 36" D x 83" H

• ISO Rated™ Air Cleanliness: ISO 5

• Unit of Measure: EA

• Weight, Product: 1,600 lb

• Dimensions, Product: 79.25" W x 44" D x 90" H

• Weight, Shipping: 2,032 lb

• Dimensions, Shipping: 85" W x 50" D x 96" H

• Package Type: Palletized

Show more
Other products you may find relevant
  1. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
    Group of 4 products
    Lighthouse Handheld Airborne Particle Counters by LWS From
    As low as $4,139
    Some ship in 5 - 10 days
  2. High-velocity cleanroom air curtain installed above the entryway of a hardwall Terra Universal Cleanroom | 6601-50A displayed
    Group of 2 products
    High-Velocity Cleanroom Air Curtains From
    As low as $4,780
    Some ship in 1 - 3 days
  3. ProClean disposable garments are three times cleaner yet cost less than traditional disposables; shown with coveralls, hood, boots | 1350-52 displayed
    Group of 4 products
    ProClean® Coveralls From
    As low as $139
    Some ship in 15 - 21 days
  4. | 1850-40A displayed
    Group of 12 products
    IsoClean® Garments: Cleanroom Coveralls From
    As low as $166
    Some ship in 5 - 7 days
  5. | PA06689 displayed
    Prefilters for Air Shower; Replacements, 4 Pack, 5.25" W x 11.25" D x 0.25" H, Electrostatic
    $233
    Usually Ships in 1 - 1 days
  6. Gowning platform with optional stainles steel lean rail to assist with gowning | 9605-49 displayed
    Gowning Platform; 48"W x 96"D x 2"H
    $937
    Usually Ships in 20 - 26 days
  7. CleanLean Rail Dual Support System | 9605-50 displayed
    Lean Rail; Dual Support Rail System, 304 Stainless Steel, 48" W x 11" D x 36" H, Floor Mounted
    $1,517
    Usually Ships in 1 - 3 days
  8. Free Standing Solid Top Gowning Bench, ISO 5-Compliant | 1530-27-2 displayed
    Group of 16 products
    Free-Standing Clean Room Gowning Benches From
    As low as $480
    Some ship in 1 - 3 days
  9. ISO-compliant BioSafe Cleanroom Garment Hamper allows clean, easy disposal of soiled cleanroom garments; polypropylene withstands wide range of corrosive chemic | 5151-51A displayed
    Group of 4 products
    BioSafe® Garment Hampers From
    As low as $1,433
    Some ship in 1 - 3 days
  10. These wall mounted garment racks are perfect wherever cleanliness and space are critical concerns | 5656-05 displayed
    Group of 3 products
    Wall-Mount Garment Racks by Advance Tabco From
    As low as $1,340
    Some ship in 10 - 20 days
  11. These Garment Storage Racks provide a clean, convenient way to keep your cleanroom garments clean and organized | 9602-75A displayed
    Group of 9 products
    Free Standing Garment Racks From
    As low as $821
    Some ship in 1 - 3 days
  12. Garment storage cabinet. Product details may differ.
    Group of 45 products
    Garment Cabinets; Hanger Rod without Divider From
    As low as $1,475
    Some ship in 1 - 3 days
  13. The MET ONE HHPC 6+ is a full-featured, six-channel handheld particle counter | 1505-50 displayed
    Group of 4 products
    MET ONE Handheld Air Particle Counters by Beckman Coulter From
    As low as $2,192
    Some ship in 3 - 5 days
  14. BioSafe® stainless steel glove dispenser is mounted on a stainless steel waste disposal cabinet | 4951-34A-2 displayed
    Group of 4 products
    BioSafe® Stainless Steel Glove Dispensers with Waste Bin From
    As low as $1,684
    Some ship in 1 - 3 days
  15. Automatically removes shoe covers with a hands-free operation and without the need to bend over
    Group of 2 products
    Automatic Shoe Cover Dispenser From
    As low as $248
    Some ship in 5 - 7 days
  16. 304 stainless steel cubbies with slotted footplates, double-sided with 28 compartments, 14 per side | 4955-05 displayed
    Group of 11 products
    BioSafe® Stainless Steel Garment Dispenser Stations From
    As low as $2,311
    Some ship in 1 - 3 days
  17. 24-Gallon stainless steel ISO 4 BioSafe waste receptacle with a hands free foot pedal. | 1456-18B displayed
    Group of 9 products
    BioSafe® Cleanroom Waste Receptacles From
    As low as $431
    Some ship in 0 - 2 days
Buy Accessories
  1. Warranty; 3 Year, Air Showers, Parts
    Warranty; 3 Year, Air Showers, Parts
    Request Quote
    Increase Down Increase Up
  2. Warranty; 2 Year, Air Showers, Parts
    Warranty; 2 Year, Air Showers, Parts
    Request Quote
    Increase Down Increase Up
  3. | 6600-33 displayed
    UL Listing Declaration for Air Showers
    Request Quote
    Increase Down Increase Up
  4. Air Shower Installation
    Air Shower Installation
    Request Quote
    Increase Down Increase Up
  5. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  6. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  7. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  8. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up
  9. Service, ISO Grade™ Certificate, ISO 7
    Service, ISO Grade™ Certificate, ISO 7
    Request Quote
    Increase Down Increase Up
  10. HEPA Filter for Air Showers with aluminum housing | 6010-73 displayed
    HEPA Filter; 24" W x 24" D x 11.5" H, For Air Showers 33 in stock
    $855
    Increase Down Increase Up
  11. | PA06689 displayed
    Prefilters for Air Shower; Replacements, 4 Pack, 5.25" W x 11.25" D x 0.25" H, Electrostatic
    $233
    Increase Down Increase Up
  12. Powder-coated steel, HEPA-filtered Air Shower with interlocking doors and touchscreen control panel | 6010-07A displayed
    ADA Compliant Upgrade for Air Showers
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Customized Air Showers
Print Copy Copied

Custom Air Shower Systems Available

Terra Universal offers custom fabrication to provide the optimal solution for your application.

Examples of requested modifications include:

  • Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
  • 3-door configurations for connecting multiple rooms
  • Custom flooring: stainless steel floor, no-floor, or raised aluminum floor grates
  • Safety glass substituted for the SD-PVC panels on the doors
  • Explosion-proof designs for safe operation near explosive or flammable materials
  • Static ionization within the air shower enclosure
  • Bumpers mounted on the interior walls to protect nozzles from carts

Air Shower Floor Plan Style Diagram

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Motion Sensor

Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.

Recirculation Vents

The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.

LED Lighting

Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.

Electromagnetic Interlock Door

Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.

Emergency Exit Button

The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.

Adjustable Air Shower Nozzles

Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.

Touchscreen Control Panel

The touchscreen panel controls cycle durations and entrance/exit delay times. Users can adjust these settings, as well as choose the operating mode for the LED lighting: always on; always off; or motion-detecting mode with shutoff-delay.

Product Prices Honored Worldwide

From Argentina to Zimbabwe, Terra's customers pay a single web-listed price for each product
Products similar to this one

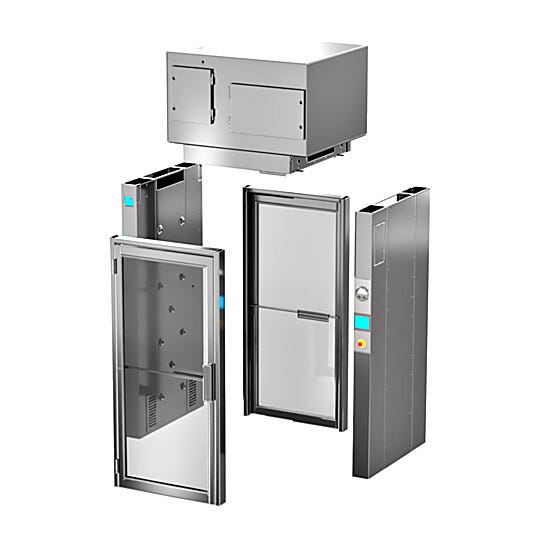

  1. Knock-Down Air Showers are disassembled into sections for installation in areas with limited access due to small doorways or narrow hallways | 6010-14-KD displayed
    Group of 48 products
    Knock-Down Air Showers From
    Request Quote
    Some ship in 25 - 31 days
  2. Powder-coated steel, HEPA-filtered Air Shower with interlocking doors and touchscreen control panel | 6010-07A displayed
    Group of 22 products
    Air Showers and Tunnels From
    As low as $21,940
    Some ship in 20 - 26 days
  3. Pressurized cleanroom airlock for personnel with interlocking doors, 2’x 4’ low-energy EC fan filter unit, room-side replaceable HEPA filter | 6010-17A-PAL displayed
    Group of 3 products
    Cleanroom Airlocks for Personnel From
    As low as $10,110
    Some ship in 25 - 31 days
Other products you may find relevant
  1. Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
    Group of 4 products
    Lighthouse Handheld Airborne Particle Counters by LWS From
    As low as $4,139
    Some ship in 5 - 10 days
  2. High-velocity cleanroom air curtain installed above the entryway of a hardwall Terra Universal Cleanroom | 6601-50A displayed
    Group of 2 products
    High-Velocity Cleanroom Air Curtains From
    As low as $4,780
    Some ship in 1 - 3 days
  3. ProClean disposable garments are three times cleaner yet cost less than traditional disposables; shown with coveralls, hood, boots | 1350-52 displayed
    Group of 4 products
    ProClean® Coveralls From
    As low as $139
    Some ship in 15 - 21 days
  4. | 1850-40A displayed
    Group of 12 products
    IsoClean® Garments: Cleanroom Coveralls From
    As low as $166
    Some ship in 5 - 7 days
  5. | PA06689 displayed
    Prefilters for Air Shower; Replacements, 4 Pack, 5.25" W x 11.25" D x 0.25" H, Electrostatic
    $233
    Usually Ships in 1 - 1 days
  6. Gowning platform with optional stainles steel lean rail to assist with gowning | 9605-49 displayed
    Gowning Platform; 48"W x 96"D x 2"H
    $937
    Usually Ships in 20 - 26 days
  7. CleanLean Rail Dual Support System | 9605-50 displayed
    Lean Rail; Dual Support Rail System, 304 Stainless Steel, 48" W x 11" D x 36" H, Floor Mounted
    $1,517
    Usually Ships in 1 - 3 days
  8. Free Standing Solid Top Gowning Bench, ISO 5-Compliant | 1530-27-2 displayed
    Group of 16 products
    Free-Standing Clean Room Gowning Benches From
    As low as $480
    Some ship in 1 - 3 days
  9. ISO-compliant BioSafe Cleanroom Garment Hamper allows clean, easy disposal of soiled cleanroom garments; polypropylene withstands wide range of corrosive chemic | 5151-51A displayed
    Group of 4 products
    BioSafe® Garment Hampers From
    As low as $1,433
    Some ship in 1 - 3 days
  10. These wall mounted garment racks are perfect wherever cleanliness and space are critical concerns | 5656-05 displayed
    Group of 3 products
    Wall-Mount Garment Racks by Advance Tabco From
    As low as $1,340
    Some ship in 10 - 20 days
  11. These Garment Storage Racks provide a clean, convenient way to keep your cleanroom garments clean and organized | 9602-75A displayed
    Group of 9 products
    Free Standing Garment Racks From
    As low as $821
    Some ship in 1 - 3 days
  12. Garment storage cabinet. Product details may differ.
    Group of 45 products
    Garment Cabinets; Hanger Rod without Divider From
    As low as $1,475
    Some ship in 1 - 3 days
  13. The MET ONE HHPC 6+ is a full-featured, six-channel handheld particle counter | 1505-50 displayed
    Group of 4 products
    MET ONE Handheld Air Particle Counters by Beckman Coulter From
    As low as $2,192
    Some ship in 3 - 5 days
  14. BioSafe® stainless steel glove dispenser is mounted on a stainless steel waste disposal cabinet | 4951-34A-2 displayed
    Group of 4 products
    BioSafe® Stainless Steel Glove Dispensers with Waste Bin From
    As low as $1,684
    Some ship in 1 - 3 days
  15. Automatically removes shoe covers with a hands-free operation and without the need to bend over
    Group of 2 products
    Automatic Shoe Cover Dispenser From
    As low as $248
    Some ship in 5 - 7 days
  16. 304 stainless steel cubbies with slotted footplates, double-sided with 28 compartments, 14 per side | 4955-05 displayed
    Group of 11 products
    BioSafe® Stainless Steel Garment Dispenser Stations From
    As low as $2,311
    Some ship in 1 - 3 days
  17. 24-Gallon stainless steel ISO 4 BioSafe waste receptacle with a hands free foot pedal. | 1456-18B displayed
    Group of 9 products
    BioSafe® Cleanroom Waste Receptacles From
    As low as $431
    Some ship in 0 - 2 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
