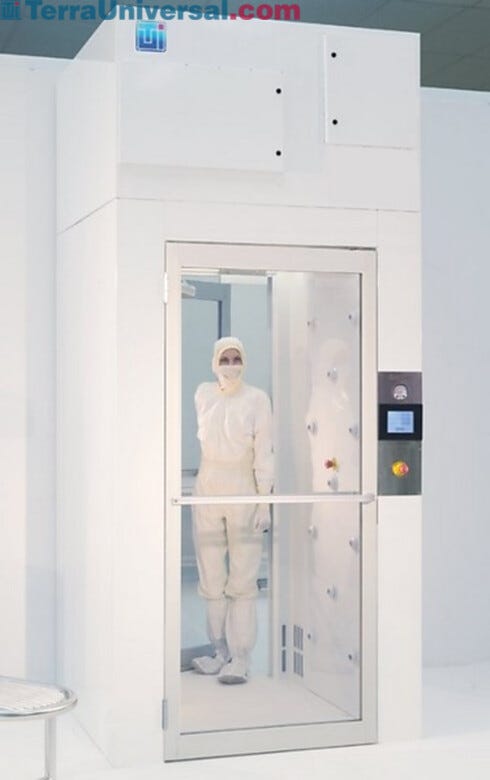

Cleanroom Powder Coated Steel Air Shower with model | 6010-00A displayed

Air Showers & Tunnels,Air Showers,Air Showers,Air Showers,Air Showers

Air Shower; Standard, 52" W x 44" D x 120" H, Powder-Coated Steel, PLC, Email Alert

Terra Part #: 6010-14C

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Available Certified ISO Grade Designs: ISO 7, ISO 8
Users can configure the system to send an email alert when a filter needs replacement
Includes an Ethernet feedthrough
Fabricated of powder-coated steel with powder-coated aluminum door frames and SDPVC panels
Blower: 3600 RPM with 13.5" (343 mm) wheel diameter, produces 1820 CFM at 2" WG
PLC touchscreen includes back-pressure gauge to monitor for filter replacement

• Material: Powder-Coated Steel

• Type: Standard

• Height: 120"

• Width: 52"

• Depth: 44"

• Number of Blowers: 1 Blower

• Approx. Occupancy: 1

• Available Certified ISO Grade Designs: ISO 7, ISO 8

• Certified ISO Grade Design: ISO 7

• UL File Number: E326560

• UL Standard: UL 507

• Door Clearance: 36" W x 81" H

• Chamber Dimensions: 39.5" W x 36" D x 83" H

• ISO Rated Air Cleanliness: ISO 5

• Unit of Measure: EA

Terra Part #: 6010-14C

Manufactured By: Terra Universal

Warranty: 1 year parts, 90 days labor

LTL freight shipment. Dock or liftgate may be required.

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 6010-14C

$23,476

Accessories related to Terra Part #

Air Shower; Standard, 52" W x 44" D x 120" H, Powder-Coated Steel, PLC, Email Alert

View Shopping Cart View Quote Cart

Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Details & Specs

Manuals & Resources

Air Showers & Tunnels

Air Shower and Tunnel Systems
Air Shower Smoke Study
Watch Terra's Video on Pharmaceutical Air Lock Designs
Air Showers
Custom Personnel Air Shower for EV Battery Production Facility
BioSafe Stainless Steel Cleanroom – Integrated Air Shower

Designed to exceed ISO 5 standards, these enclosed chambers use high-velocity, HEPA-filtered air jets to remove contaminants from personnel and materials Air Shower and Tunnel Systems Step into a cleaner, safer environment with Terra’s advanced air showers and tunnels. Designed to exceed ISO 5 standards, these enclosed chambers use high-velocity, HEPA-filtered air jets to remove contaminants from personnel and materials before they enter your cleanroom. Enjoy easy installation, user-friendly controls, and medical-grade filtration for reliable protection and compliance.

Terra's air shower system that provides a self-contained cleanroom environment by removing contaminants Air Shower Smoke Study Terra's advanced air shower systems provide a self-contained ISO 5 Class 100 mini cleanroom environment, effectively removing contaminants from personnel and equipment before they enter or exit controlled spaces.

Airlocks safeguard cleanrooms, preventing cross contamination during transfers Watch Terra's Video on Pharmaceutical Air Lock Designs Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.

Air Showers Air showers add convenience to cleanrooms by allowing personnel to cleanly enter the controlled environment. Watch this video to understand how air showers work.

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

Set of 5 Images

6600-PP-05

BioSafe Stainless Steel Cleanroom – Integrated Air Shower

This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.

This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow | 6600-31 displayed BioSafe Stainless Steel Cleanroom – Integrated Air Shower This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Motion Sensor

Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.

Recirculation Vents

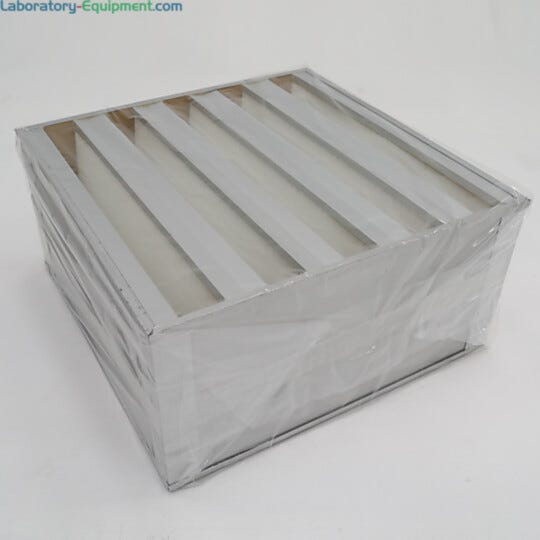

The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.

LED Lighting

Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.

Electromagnetic Interlock Door

Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.

Emergency Exit Button

The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.

Adjustable Air Shower Nozzles

Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.

Touchscreen Control Panel

The touchscreen panel controls cycle durations and entrance/exit delay times. Users can adjust these settings, as well as choose the operating mode for the LED lighting: always on; always off; or motion-detecting mode with shutoff-delay.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

High-Velocity Cleanroom Air Curtain

Cleanroom air curtains provide a blade-shaped shower of ULPA-filtered air to dislodge particles from personnel entering a cleanroom
Adjustable Stainless Steel Air Shower nozzles

Stainless steel air shower nozzles withstand frequent sterilizing and minimize particle shedding. Recessed design provides more clearance inside air shower and protects nozzle from collisions. Protruding design has smaller footprint and greater adjustability.
Stainless Steel Cleanroom Doors

The all-stainless steel construction and dual-pane flush-mount design greatly simplifies cleaning and sterilization. Terra's stainless steel cleanroom doors are pre-hung to a stainless steel door frame, easy to install in a regular wall or modular air shower.
Intergrated Air Shower Sprinkler Head

Intergrated air shower sprinkler heads are designed to resist recurring steralization and diminish particle shedding. The recessed sprinkler head is conveniently flush to the ceiling of the air shower.
