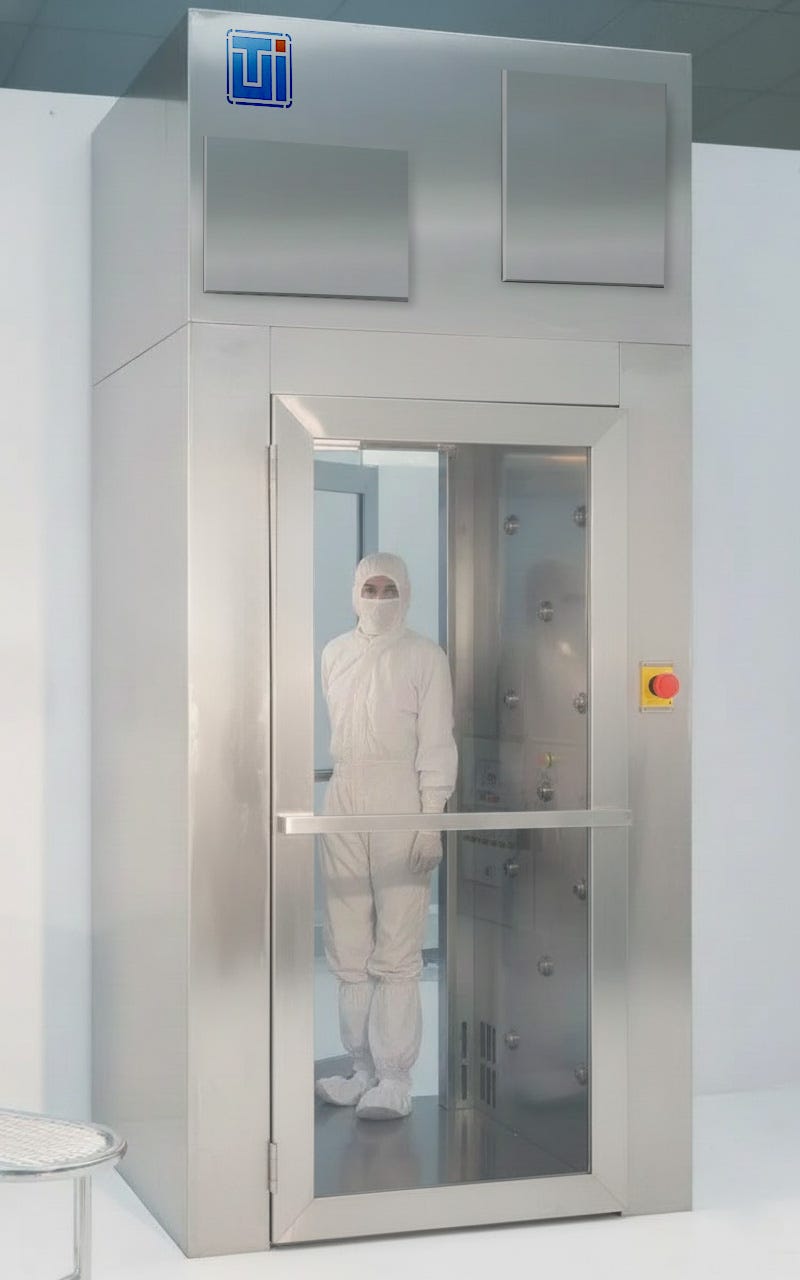

Stainless steel explosion proof air shower removes ignition sources and operates with a pneumatic push button | 6010-00-XP displayed

Air Showers & Tunnels,Air Showers,Air Showers,Air Showers,Air Showers,Specialty Pass-Through Chambers

Explosion-Proof Air Showers and Tunnels

Manufactured By: Terra Universal

Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
Pneumatic push-button operator interface with remote, hinged-panel PLC controls for hazardous locations
Programmable shower cycle duration
Fabricated of stainless steel or powder-coated steel with stainless steel door frames or powder-coated aluminum door frames
Motor/Blower: 460V/3Ph/60Hz capable of producing 1000 CFM at 4" S.P.
Explosion-proof air showers remove ignition sources

• Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8

• Certified ISO Grade Design: ISO 6

• UL File Number: E326560

• UL Standard: UL 507

Manufactured By: Terra Universal

Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Material All Powder-Coated Steel Stainless Steel Sort Order: Descending Ascending	Width All 52" 58" Sort Order: Descending Ascending	Number of Blowers All 1 Blower 2 Blowers 3 Blowers 4 Blowers Sort Order: Descending Ascending	Depth All 44" 56" 60" 72" 84" 96" 120" 144" 240" Sort Order: Descending Ascending	Height All 120" Sort Order: Descending Ascending	Certified ISO Grade Design All ISO 6 ISO 7 Sort Order: Descending Ascending	Approx. Occupancy All 1 2 3 4 7 Sort Order: Descending Ascending	ISO Rated Air Cleanliness All ISO 5 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
Powder-Coated Steel	58"	1 Blower	60"	120"	ISO 7	1	ISO 5	6010-21-XP	$46,616	30-45 Days	2
Powder-Coated Steel	58"	1 Blower	84"	120"	ISO 7	2	ISO 5	6010-23-XP	$50,784	30-45 Days	3
Powder-Coated Steel	58"	1 Blower	72"	120"	ISO 7	2	ISO 5	6010-22-XP	$48,011	30-45 Days	4
Powder-Coated Steel	58"	2 Blowers	120"	120"	ISO 7	3	ISO 5	6010-58-XP	$85,731	30-45 Days	5
Stainless Steel	52"	1 Blower	44"	120"	ISO 6	1	ISO 5	6010-00-XP	$41,317	30-45 Days	6
Stainless Steel	52"	1 Blower	56"	120"	ISO 6	1	ISO 5	6010-01-XP	$47,472	30-45 Days	7
Powder-Coated Steel	52"	1 Blower	44"	120"	ISO 7	1	ISO 5	6010-14-XP	$37,561	30-45 Days	8
Stainless Steel	52"	1 Blower	72"	120"	ISO 6	2	ISO 5	6010-03-XP	$55,066	30-45 Days	9
Stainless Steel	52"	1 Blower	84"	120"	ISO 6	2	ISO 5	6010-04-XP	$58,596	30-45 Days	10
Stainless Steel	58"	1 Blower	60"	120"	ISO 6	1	ISO 5	6010-07-XP	$55,066	30-45 Days	11
Stainless Steel	58"	1 Blower	72"	120"	ISO 6	2	ISO 5	6010-08-XP	$56,724	30-45 Days	12
Stainless Steel	58"	1 Blower	84"	120"	ISO 6	2	ISO 5	6010-09-XP	$60,021	30-45 Days	13
Powder-Coated Steel	52"	1 Blower	56"	120"	ISO 7	1	ISO 5	6010-15-XP	$40,109	30-45 Days	14
Powder-Coated Steel	52"	1 Blower	72"	120"	ISO 7	2	ISO 5	6010-17-XP	$46,616	30-45 Days	15
Powder-Coated Steel	52"	1 Blower	84"	120"	ISO 7	2	ISO 5	6010-18-XP	$49,580	30-45 Days	16
Stainless Steel	52"	2 Blowers	96"	120"	ISO 6	3	ISO 5	6010-42-XP	$90,887	30-45 Days	17
Stainless Steel	52"	3 Blowers	144"	120"	ISO 6	4	ISO 5	6010-44-XP	$94,303	30-45 Days	18
Stainless Steel	58"	2 Blowers	120"	120"	ISO 6	3	ISO 5	6010-48-XP	$94,303	30-45 Days	19
Stainless Steel	58"	4 Blowers	240"	120"	ISO 6	7	ISO 5	6010-51-XP	$173,329	30-45 Days	20
Powder-Coated Steel	52"	2 Blowers	96"	120"	ISO 7	3	ISO 5	6010-52-XP	$82,624	30-45 Days	21
Powder-Coated Steel	52"	3 Blowers	144"	120"	ISO 7	4	ISO 5	6010-54-XP	$85,731	30-45 Days	22
Powder-Coated Steel	58"	4 Blowers	240"	120"	ISO 7	7	ISO 5	6010-61-XP	$157,572	30-45 Days	23

Material

Width

Number of Blowers

Depth

Height

Certified ISO Grade Design

Approx. Occupancy

ISO Rated Air Cleanliness

* *

CONFIGURE & ADD TO CART

Qty

Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.

See Product Details

Some ship in:

Usually Ships in:

Back to product group

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Available Accessories

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
Pneumatic push-button operator interface with remote, hinged-panel PLC controls for hazardous locations
Programmable shower cycle duration
Fabricated of stainless steel or powder-coated steel with stainless steel door frames or powder-coated aluminum door frames
Motor/Blower: 460V/3Ph/60Hz capable of producing 1000 CFM at 4" S.P.
Explosion-proof air showers remove ignition sources

Dedicated panel for quick filter replacements

Programmable shower cycle duration

Air shower chamber does not include a floor

Self-contained unit solves decontamination problems

High air velocity ensures efficient scrubbing action to remove particulate matter

Interlocking door prevents cleanroom cross-contamination

Explosion-proof construction meets Class I, Division 2 hazardous location requirements

Manual pneumatic door lock access plate for safe operator access

PLC, NEMA rated HMI module controls remotely housed

Explosion proof LED strip specifications for Group C & D standards

Specify Voltage when ordering - 240V standard - specify 208V, 460V or 480V when ordering

Standard and/or extended warranty coverage for this air shower requires professional installation by Terra Universal. Consult your Terra representative for details.

Forklift is required to lift filter/blower module in place.

• Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8

• Certified ISO Grade Design: ISO 6

• UL File Number: E326560

• UL Standard: UL 507

• Marks & Listings: UL, ULC

Explosion Proof Air Showers and Tunnels

Standard Features

A Emergency Stop Buttons
Emergency Stop Buttons (2)
B Air Nozels
Hand-adjustable Air Nozzles
C Explosion Proof Lighting
Explosion Proof LED Strip Lights
D Electrical Access Panel
Electrical Access Panel
E Fan Filter Housing
Fan Filter Housing
F Swing Doors
Swing Doors (2)
G 16-gauge Stainless Steel
Material: 16-gauge Stainless Steel

Air Showers & Tunnels

Air Shower and Tunnel Systems
Air Shower Smoke Study
Watch Terra's Video on Pharmaceutical Air Lock Designs
Air Showers
Custom Personnel Air Shower for EV Battery Production Facility
BioSafe Stainless Steel Cleanroom – Integrated Air Shower

Designed to exceed ISO 5 standards, these enclosed chambers use high-velocity, HEPA-filtered air jets to remove contaminants from personnel and materials Air Shower and Tunnel Systems Step into a cleaner, safer environment with Terra’s advanced air showers and tunnels. Designed to exceed ISO 5 standards, these enclosed chambers use high-velocity, HEPA-filtered air jets to remove contaminants from personnel and materials before they enter your cleanroom. Enjoy easy installation, user-friendly controls, and medical-grade filtration for reliable protection and compliance.

Terra's air shower system that provides a self-contained cleanroom environment by removing contaminants Air Shower Smoke Study Terra's advanced air shower systems provide a self-contained ISO 5 Class 100 mini cleanroom environment, effectively removing contaminants from personnel and equipment before they enter or exit controlled spaces.

Airlocks safeguard cleanrooms, preventing cross contamination during transfers Watch Terra's Video on Pharmaceutical Air Lock Designs Airlocks are a crucial part of protecting your cleanroom from contamination while maintaining the required ISO rating. By preserving pressure differentials between adjoining rooms, air locks prevent cross contamination when personnel, materials and samples are transferred between contiguous spaces. The pressure cascade created from the gowning room to the personnel air lock to the ISO-rated cleanroom acts as a safeguard against the accidental influx of particles, dust and microbial contaminants.

Air Showers Air showers add convenience to cleanrooms by allowing personnel to cleanly enter the controlled environment. Watch this video to understand how air showers work.

6010-PP-03

Custom Personnel Air Shower for EV Battery Production Facility

Set of 5 Images

6600-PP-05

BioSafe Stainless Steel Cleanroom – Integrated Air Shower

This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.

This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow | 6600-31 displayed BioSafe Stainless Steel Cleanroom – Integrated Air Shower This stainless steel BioSafe cleanroom features an integrated air shower and pass-through chamber to minimize the inflow of contaminants.

Features & Benefits

Features and Benefits

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Motion Sensor

Air shower cycles are initiated by a motion sensor located on the ceiling of the chamber. If the LED lighting is set to Smart Lighting mode, the motion sensor will also turn on the lights when personnel enter the air shower.

Recirculation Vents

The closed-loop, recirculating design uses floor-level vents and plenums built into the walls to pull the contaminated air back through the HEPA filter, which removes 99.99% of particles as small as 0.3 microns.

LED Lighting

Low-profile LED lighting offers excellent visibility and power savings. Lights can either be manually controlled or set to automatic on/off via the touchscreen control panel.

Electromagnetic Interlock Door

Electromagnetic interlocking doors prevent personnel from accidentally opening both air shower doors at the same time, thereby preventing cross-contamination of the cleanroom and the external environment.

Emergency Exit Button

The emergency bypass button immediately shut down the air shower and release the doors when depressed; the doors also release when a power outage occurs to ensure operator safety.

Adjustable Air Shower Nozzles

Adjustable air nozzles on the walls and ceilings provide multi-directional flow of high-velocity, HEPA-filtered air to dislodge and remove particles from surfaces of personnel and parts before they enter the cleanroom.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

ADA Compliance for Air Showers

Air showers can be upgraded to be ADA compliant through a combination of changing the dimensions, adding automatic door openers, consulting local code officials and verifying with adjacent building walls.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.

High-Velocity Cleanroom Air Curtain

Cleanroom air curtains provide a blade-shaped shower of ULPA-filtered air to dislodge particles from personnel entering a cleanroom
Adjustable Stainless Steel Air Shower nozzles

Stainless steel air shower nozzles withstand frequent sterilizing and minimize particle shedding. Recessed design provides more clearance inside air shower and protects nozzle from collisions. Protruding design has smaller footprint and greater adjustability.
Stainless Steel Cleanroom Doors

The all-stainless steel construction and dual-pane flush-mount design greatly simplifies cleaning and sterilization. Terra's stainless steel cleanroom doors are pre-hung to a stainless steel door frame, easy to install in a regular wall or modular air shower.
Intergrated Air Shower Sprinkler Head

Intergrated air shower sprinkler heads are designed to resist recurring steralization and diminish particle shedding. The recessed sprinkler head is conveniently flush to the ceiling of the air shower.

Other products you may find relevant

Buy Accessories

Manuals & Resources

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Air Shower Frequently Asked Questions

What is an air shower?

An air shower is a self-contained enclosure that uses high velocity jets of HEPA filtered air to help decontaminate personnel and equipment prior to entering or exiting a controlled environment. The inside of the airshower is lined with multiple evenly distributed nozzles, pointed at various angles to optimize the air scrubbing process. The nozzles shoot concentrated streams of class 100 micro-filtered air to shake off and wash away loose particles and other contaminants clinging to the surface of personnel or equipment.

Operating as a closed-loop system, the particle-laden air is vacuumed out through exit vents along the bottom of the air shower. The air passes through pre-filters to capture larger particles before being pushed by the fan blower through HEPA or ULPA filters to capture remaining smaller particle contaminants. The pressurized filtered air then recirculates through the nozzles to continue the cleaning process.

Read more about air shower designs and applications.

What are some common air shower applications?

Decontamination air showers are used across many industries in facilities with different policies and cleanliness requirements. The most common industries include semiconductor, pharmaceutical, biological, industrial, and food/beverage.

In most cases, air showers are used to protect sensitive products/procedures inside a controlled environment, such as a cleanroom, from microscopic contaminants carried in by personnel. For cleanroom or lab applications, most facilities place an air shower at the entrance to a gowning room to reduce contaminants carried or generated by street clothes, prior to garbing with cleanroom apparel. These contaminants include fine particles such as dust that can ruin sensitive electronics, and also biological contaminants such as infectious fungus spores that can ruin sensitive plant crops or other cell cultures. Other facilities position air showers between the gowning area and the cleanroom, for workers to enter after they complete the garbing process. Cleanroom air showers and tunnels are also used to decontaminate equipment and other bulky materials (such as carts or loaded pallets) prior to entering a cleanroom.

For manufacturing facilities or construction areas with excessive hazardous metallic or organic dusts (for example lead, silica, asbestos, or wood dust), decontamination air showers can be used at exits to remove the microscopic particles from personnel or equipment. This helps contain the dangerous dusts produced in the manufacturing area and protect people outside manufacturing from harmful exposure that can cause serious if not fatal diseases.

What are the available air shower designs and configurations?

Terra offers standard cleanroom air shower and tunnel configurations plus countless customizable options for any application. The most popular and economical air shower design is the standard 2 door straight configuration, with the blower module mounted on-top of the enclosure.

Below is a list of common configurations and options. Call or chat with a product specialist to find the optimal solution for your unique requirements:

Custom floor plans, including 90º turns and U-shaped chambers (see examples below)
3-door configurations to connect multiple rooms
Low profile air shower designs with side-mounted blowers for ceilings as low as 96"
Disassembled knock-down air shower configurations for easier shipping and transfer through space-restricted areas like small doorways or narrow hallways
All-stainless steel air shower designs (chamber, doors, nozzles) for aseptic applications requiring frequent wipe downs
Air shower pass through designs for transferring carts and other smaller equipment.
Third-party UL or ETL safety certification for high voltage equipment
Hygienic hands-free automatic doors
Electronic interlocking and connection to building management system (BMS) for remote control
Keycard readers or hands-free iris scanners for secure access
ADA compliant air showers for wheelchair access
Explosion-proof air shower designs for facilities with flammable substances
ESD-safe ionizers are ideal for static sensitive applications and help more effectively dislodge particles attached by electrical forces such as static cling.
Raised flooring to optimize laminar flow and more effectively sweep away loose contaminants
Bumpers mounted on the interior walls to protect nozzles from carts
Mobile air shower designs on a raised pallet can be quickly moved via forklift and re-installed where it's needed.

What are the benefits of UL-listed or ETL-listed air showers?

Terra Universal offers UL-listed and ETL-listed air showers for third party safety certification.These listings help meet municipal and other permitting requirements that may apply while ensuring the safety and integrity of high voltage electrical components.

Both are certified by OSHA as nationally recognized testing labs (NRTL) that test to nationally accepted safety standards. ETL can offer a quicker turnaround time for highly custom projects with short timelines. The NRTL status tells all customers that the testing services performed by these third party companies are reliable and legally binding throughout the United States. ETL,originally known as Edison Testing Laboratories, is an old, respected, nationwide testing group with credibility equal to UL or CSA.

How are air showers shipped?

Terra offers two shipping options:

Air showers can be pre-installed at Terra, and then partially disassembled to ship out as multiple sub-assemblies, where the blower modules are separated from the rest of the pre-installed enclosure. These sub-assemblies are typically shipped on a flatbed truck and require a forklift to offload and re-assemble the air shower at the install site. This method saves assembly time at the install site.
Air showers can be shipped out fully disassembled in a "knock-down" design for easier shipping as well as transport through space-restricted areas (narrow entries for example) to reach the install site. This method also requires a forklift to offload the equipment from the truck.

Air Shower Tunnel Exploded View Illustration

What control settings are available on the air shower’s PLC?

All of Terra’s air showers feature a fully customizable and easy-to-use touch-screen PLC. This microprocessor control comes programmed with the ability to:

Adjust cycle operation times, entrance/exit delays, and when the lights turn on/off
Measure filter back pressure and adjust setpoint for filter replacement
Reverse the function of the entrance and exit doors at the touch of a button
Count total number of cycles and total run time

The control panel can be easily programmed for other unique requirements such as custom interlocking sequences and connection to building management systems (BMS).

When does the cleanroom air shower’s HEPA filter need to be replaced?

The frequency at which the air shower HEPA filter needs to be replaced varies depending on several factors such as total operation time, quality of ambient air (dirty or humid ambient air will shorten the life of the filter), and maintenance of air shower prefilters.

Under average conditions, Terra recommends replacing HEPA filters every 2-3 years to avoid unexpected maintenance delays. Below are a few methods to determine when to replace the HEPA filter. It is important to note air showers use one HEPA filter per blower. Thus larger air shower systems may have multiple HEPA filters (one for each blower).

The control panel includes the ability to measure filter back pressure and alarm for filter replacement when the backpressure reaches the user defined setpoint. The control panel also includes a "run times" feature where personnel can keep track of how much air shower operation time and cycles have elapsed to help in setting up a filter replacement maintenance protocol.

Lastly, it is recommended to periodically monitor the air velocity at the nozzles with an air velocity meter. The air velocity will initially average up to about 8,000 FPM, measured at each air nozzle. When the readings drop to below 80% of the initial value, the corresponding HEPA filter is approaching the end of its useful service life and is recommended to be replaced.

What is the air flow velocity inside the air shower?

When the shower cycle commences, pressurized air streams from adjustable nozzles at a velocity of up to 8,000 feet per minute (41 meters per second). This ensures the necessary efficient scrubbing action to remove particulate matter.

How can you rate the efficacy of your air shower?

You can rate the efficacy of the air shower by measuring the air flow velocity at each nozzle. Each nozzle is designed to provide up to 8,000 feet per minute of air flow. If the measured velocities fall significantly short of 8,000 feet per minute, check whether the HEPA filters need to be replaced.

Explosion-Proof Air Showers and Tunnels

Air Showers & Tunnels

Custom Personnel Air Shower for EV Battery Production Facility

Custom Personnel Air Shower for EV Battery Production Facility

Custom Personnel Air Shower for EV Battery Production Facility

Custom Personnel Air Shower for EV Battery Production Facility

Custom Personnel Air Shower for EV Battery Production Facility

BioSafe Stainless Steel Cleanroom – Integrated Air Shower
