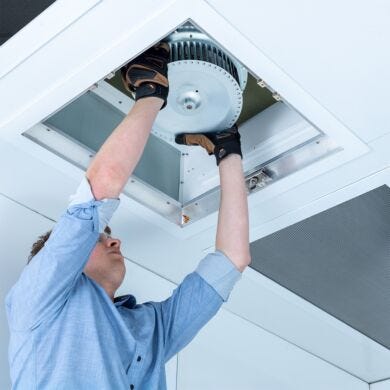

RSRE Fan filter unit is designed to permit access and replacement of all the unit's internals from inside the cleanroom | 6601-22-HRM displayed
Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan Filter Units,Fan/Filter Units
Product Group:
6601-PP-36
6601-PP-36

Fan Filter Units with Roomside-Replaceable Motors

Manufactured By: Terra Universal
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Room-Side Replaceable Everything (RSRE) design allows quick filter/motor replacement from the inside of the cleanroom
  • RSRE models greatly reduces maintenance time and costs by eliminating the need for roof access or breaching the cleanroom
  • Mounts into ceiling bay to remove sub-micron particles and provide safe exhaust
  • Cleanroom FFU provides avg velocity of 90+ FPM, airflow of 640+ CFM at Medium speed
  • WhisperFlow® design for quiet, low-vibration operation; only 49 dBA, measured 30" from filter face @ 90 FPM

• Type: WhisperFlow®, RSRE

• Material: Powder-Coated Steel

• Filter Type: HEPA, RSR

• Airflow: Positive Pressure

• Certified ISO Grade Design: ISO 6

• Unit of Measure: of 1

Read more
Stocked CE Mark Logo ULus Listed WhisperFlow BioSafe classic logo ISO 6 Icon
Manufactured By: Terra Universal
Need Help?

(714) 578-6100

Mon-Fri, 7am - 6pm PST

Chat

Want a quote quickly ?
Submit a QuickQuote request
Learn More: Terra's Stocking Programs
Select Product
Voltage

Sort Order:
Material

Sort Order:
Type

Sort Order:
Size

Sort Order:
Filter

Sort Order:
Filter Replacement Access

Sort Order:
Pre-Filter

Sort Order:

 Terra Part #Price Ships in
120 V Powder-Coated Steel WhisperFlow®, RSRE 2'x2' HEPA Room-Side MERV 7 6601-22-HRM $1,086 30-45 Days2
In stock soon
120 V Powder-Coated Steel WhisperFlow®, RSRE 2'x3' HEPA Room-Side MERV 7 6601-23-HRM $1,086 30-45 Days3
In stock soon
120 V Powder-Coated Steel WhisperFlow®, RSRE 2'x4' HEPA Room-Side MERV 7 6601-24-HRM $870 30-45 Days4
In stock soon
115/208-230/277 V Powder-Coated Steel Smart® ECM, RSRE 2'x2' HEPA Room-Side MERV 7 6601-22-HRM-EC $1,533 30-45 Days5
In stock soon
115/208-230/277 V Powder-Coated Steel Smart® ECM, RSRE 2'x3' HEPA Room-Side MERV 7 6601-23-HRM-EC $1,505 30-45 Days6
In stock soon
115/208-230/277 V Powder-Coated Steel Smart® ECM, RSRE 2'x4' HEPA Room-Side MERV 7 6601-24-HRM-EC $1,317 30-45 Days7
In stock soon
Voltage
Material
Type
Size
Filter
Filter Replacement Access
Pre-Filter
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes web discount for online orders Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
CONFIGURE & ADD TO CART
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
See Product Details
Free shipping in contiguous USA
Some ship in:
Usually Ships in:
Back to product group
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Room-Side Replaceable Everything (RSRE) design allows quick filter/motor replacement from the inside of the cleanroom
  • RSRE models greatly reduces maintenance time and costs by eliminating the need for roof access or breaching the cleanroom
  • Mounts into ceiling bay to remove sub-micron particles and provide safe exhaust
  • Cleanroom FFU provides avg velocity of 90+ FPM, airflow of 640+ CFM at Medium speed
  • WhisperFlow® design for quiet, low-vibration operation; only 49 dBA, measured 30" from filter face @ 90 FPM
  • Performance Data and Submittals
  • High Efficiency Particulate Air (HEPA) Filter: 99.99% efficient at 0.3µm particle diameter.
  • Backward-curved fan optimizes airflow efficiency.
  • Optional duct collar attachment allows connection to ducting for safe exhaust outside of room.
  • FDA-approved silicone sealant without harmful chemicals seals inside housing to prevent air leakage.
  • RSRE designs allow quick and safe Bag-in/Bag-out (BIBO) filter replacement from the inside of the room for contact-free removal of filters with potentially hazardous airborne contaminants. Because it eliminates the need for roof access or breaching the cleanroom, an RSRE model also greatly reduces maintenance time and related costs.
  • Internal baffling plate and diffuser panel provide quiet and uniform air flow across the filter face
  • MERV 7 pre-filter, 30% ASHRAE rated
  • Removable yellow power cord with 4-pin connector for easy installation to Terra cleanrooms (connector may be used with an optional wall plug adapter; or  may be removed entirely to hard-wire the FFU)
  • Filters are leak tested in accordance with IEST standards and meet UL 900
  • See performance data and submittal sheets for additional information.
  • Optional Accessories:
  •           Power plug adapter
  •           Stainless steel surface mount frame for installing FFU in ceiling without T-grid
  •           12" ducted inlet connection adapter
  •           Replacement filters
  •           Filter replacement alarm
  •           Eye bolt package for cable suspension
  •           Control panel with night mode switch and power distribution modules

• Type: WhisperFlow®, RSRE

• Material: Powder-Coated Steel

• Filter Type: HEPA, RSR

• Airflow: Positive Pressure

• Certified ISO Grade Design: ISO 6

• Unit of Measure: of 1

• Marks & Listings: CE, UL, ULC

Show more

Fan Filter Units

  • Terra Universal WhisperFlow® Filter Fan Units Terra Universal WhisperFlow® Filter Fan Units
Terra Universal WhisperFlow® Filter Fan Units
Overview video of Terra Universal's comprehensive portfolio of filter fan units Terra Universal WhisperFlow® Filter Fan Units Overview video of Terra Universal's comprehensive portfolio of filter fan units
Features & Benefits

Features and Benefits

Learn More: Filter Fan Units Prevent Infection
Print Copy Copied

Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.

Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • SARS-CoV-2: Coronavirus (COVID-19)
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertussis : Whooping cough
  • Mycoplasma pneumoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Chlamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii: Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alcaligenes: Opportunistic infections
  • Streptococcus pyogenes: Scarlet fever
  • Mycobacterium Tuberculosis: Tuberculosis

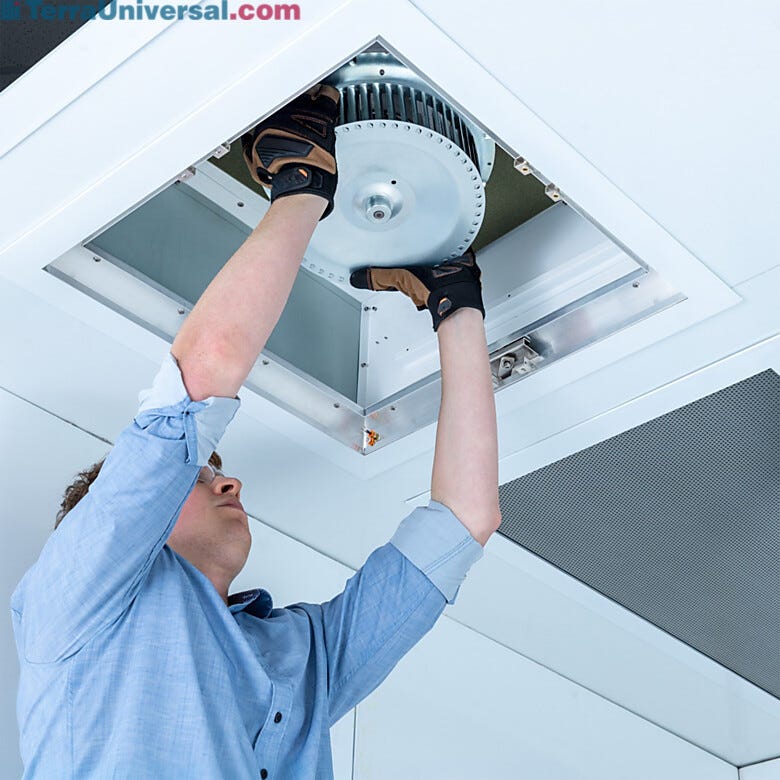

Roomside-Replaceable Motor FFU

Roomside-replaceable everything (RSRE) FFUs are designed to be able to perform motor maintenance and filter replacement from the cleanroom, eliminating the need to access the ceiling or breach the room, risking contamination.

Protect Against Contaminants and Pathogens

HEPA and ULPA filters help capture many bacteria, viruses (COVID-19), and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Airflow Uniformity Improves Laminar Flow

Non-uniform air speeds produce turbulence that can recirculate particles into the air stream. Unique WhisperFlow® FFU baffling system and anodized diffuser plate promotes uniform laminar airflow to minimize turbulence and effectively carry away contaminating particles.

Clean and Durable Powder Coat Finish

Terra’s signature white powder coat finish provides a high quality, durable barrier to protect against corrosion, plus a clean and attractive aesthetic. The advanced heat-fused formulation exceeds ASTM and ISO paint standards to resist chipping, scratching, fading, and wearing.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Products Compliant With Your ISO Rating

High-capacity, durable, ISO-compliant system rated for thousands of operating hours.
