1870-21
Terra Part # 1870-21
$5,633
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Quick Ship+ In stock soon
Accessories related to Terra Part # 1870-21
75093
Hood; Portable CleanBooth, Horizontal Airflow, 2 FFUs, ISO 6, Vinyl, 106" W x 43" D x 71.5" H, 120 V
Product Details
  • Available ISO Ratings: ISO 6, ISO 7, ISO 8
  • HEPA-filtering maintains ISO 6 conditions within work area
  • Includes set of 4 casters, 2 with locking brakes
  • Includes frame, anti-static vinyl side paneling, LED lighting and FFU's
  • Quiet operation: 50 dBA measured 30" from filter face
  • Flexible continuous side panels create a 3-sided enclosure, enhancing air laminarity
  • Positions the filtered air outlet 37.5" above the floor
  • Cleanbooth ceiling made of Polypropylene
  • Powerful, low-energy fan/filter modules provide a back-to-front laminar flow of HEPA-filtered air across the work surface
  • Castered frame positions Fan Filter Unit (FFU) behind benchtop or large process equipment for repair operations wherever you need a temporary horizontal laminar flow of filtered air
  • Internal baffling plates and anodized aluminum diffuser panel ensure uniform air speed across the work area
  • Ideal for operations with probe stations, screen printers and other free-standing process equipment, as well as benchtop kitting or assembly
  • Unit ships disassembled to reduce transportation costs and optimize product storage or relocation
  • Fully-assembled units available upon request

ISO Class: ISO 6

Airflow Design: Horizontal

Width: 106"

Depth: 43"

Height: 71.5"

Inside Width: 100.5"

Inside Depth: 29.5"

Inside Height: 71"

Work Area Dimensions: 100.5" W x 29.5" D x 71" H

Hood Design: Floor

Electronic Air Speed Control: No

Filter Type: HEPA

Frame Material: Powder-Coated Steel

Light Fixture: LED

Manufactured by: Terra Universal

Side Panels: Vinyl

Unit of Measure: EA

Dimensions, Product: 106" W x 43" D x 71.5" H

Dimensions, Shipping: 85" W x 43" D x 80" H

Electrical Specifications: 120 V, 6 A, 720 W, 50/60 Hz

Marks & Listings: UL, ULC

Package Type: Skid

Weight, Product: 400 lb

Weight, Shipping: 1,380 lb

Buy Accessories
  1. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.
    $997
    Increase Down Increase Up
  2. Panels shown installed.
    $689
    Increase Down Increase Up
  3. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet  |  1681-80 displayed
    $282
    Increase Down Increase Up
  4.  |  2004-32 displayed
    $298
    Increase Down Increase Up
  5. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    $616
    Increase Down Increase Up
  6. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    $635
    Increase Down Increase Up
  7. Shown: Vacupass installed in the interior wall of a biosafety cabinet  |  4642-49 displayed
    $213
    Increase Down Increase Up
  8. Ceanroom-compliant, ISO 7 construction with sealed non-dissipative laminate, powder-coated base  |  1724-00A displayed
    $975
    Increase Down Increase Up
  9. Cleanroom-compliant construction with sealed non-dissipative laminate, powder-coated base  |  1722-00 displayed
    $1,167
    Increase Down Increase Up
  10. Polypropylene top resists a broad range of chemicals, including most acids. Powder-coated steel base includes telescoping legs  |  1522-00 displayed
    $1,330
    Increase Down Increase Up
  11. Solid stainless steel top with a power-coated steel base and telescoping legs  |  1751-00 displayed
    $1,541
    Increase Down Increase Up
  12. Cleanroom-compliant, ISO 4, table with perforated top to optimize airflow and minimize dust accumulation  |  9604-57 displayed
    $1,972
    Increase Down Increase Up
  13. EroHeight™ workstations are ideal for boosting productivity and comfort.
    $2,220
    Increase Down Increase Up
  14. EroHeight™ workstations are ideal for boosting productivity and comfort.
    $4,082
    Increase Down Increase Up
  15. EroHeight™ workstations are ideal for boosting productivity and comfort.
    $2,534
    Increase Down Increase Up
  16. ISO 6 ErgoHeight™ workstation isolates surface from intrinsic vibrations  |  3504-82B displayed
    $4,418
    Increase Down Increase Up
  17. ISO 6 ErgoHeight™ workstation isolates surface from intrinsic vibrations  |  3504-82B displayed
    $4,818
    Increase Down Increase Up
  18. Drawers; 304 SS, Left Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  19. Drawers; 304 SS, Right Mounted for TUI Work Stations and Hoods
    Request Quote
    Increase Down Increase Up
  20. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  21. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  22. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate  |  1704-01 displayed
    Request Quote
    Increase Down Increase Up
  23. Unit ships disassembled to reduce transportation costs and optimize product storage or relocation.
    Request Quote
    Increase Down Increase Up
  24. Service, ISO 6 Rating Declaration
    Request Quote
    Increase Down Increase Up
  25. Service; UL Listing Declaration, for Laminar Flow and Fume Hoods
    Request Quote
    Increase Down Increase Up
  26. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  27. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  28. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  29. Equipment Testing
    Request Quote
    Increase Down Increase Up
  30. WhisperFlow Fan/Filter Units feature internal baffling and anodized aluminum diffuser panels provide quiet, uniform air fow  |  6601-24-H displayed
    $1,151
    Increase Down Increase Up
  31. Panels shown installed.
    $614
    Increase Down Increase Up
  32. Light shown installed.  |  1870-10 displayed
    $430
    Increase Down Increase Up

Portable CleanBooth™ Laminar Flow Stations

  • portable cleanroom with horizontal airflow for pharmaceutical manufacturing CleanBooth™ Portable Cleanroom with Horizontal Laminar Airflow
  • Horizontal Laminar Flow Hood Smoke Test
  • 4'W x 4'D Portable CleanBooth ISO 5 Enclosure Portable ISO-Rated Flow Hood
  • Mobile Protection for Workstations Mobile Protection for Workstations
  • CleanBooth Portable Cleanroom Enclosure, 100”W x 52”D x 84”H Portable CleanBooth™, 8’W x 4’D x 8’H
  • Portable HEPA Filtration System Watch Terra's Portable HEPA Filtration System Video
Portable HEPA Filtration System

Features and Benefits

Softwall Panel Use

Flexible Side Panels Restrict Air Flow to Optimize Cleanliness

Flexible panels attach to the frame by means of a smooth, non-contaminating Grip-Track™ mounting system that minimizes cracks and seams where particles can collect. The optional side panels are available in three materials:

  • Cleanroom-Grade Vinyl is fire retardant and low outgassing.
  • Static-Dissipative Vinyl is manufactured with permanent built-in static inhibitors that, unlike topical treatments, will not wear off.
  • Non-outgassing Polyurethane is made from inherently static-dissipative polyurethane that provides permanent, humidity-independent ESD protection for sensitive manufacturing conditions. Polysim contains no plasticizer, making it virtually non-outgassing.

Casters for Easy Positioning

Heavy-duty non-marring casters, two with locks, provide smooth rolling and easy positioning of the CleanBooth™

Softwall Side Panels

The CleanBooth includes transparent, 40-mil anti-static vinyl panels that mount in an external track to create a three-sided enclosure; select optional strip shields to enclose the remaining side.

CleanBooth™ Steel Frame

CleanBooth™ frame is fabricated of 1" x 2" powder-coated steel members for strength and includes heavy-duty casters for easy positioning above a table or process equipment.

Portable Horizontal Flow CleanBooth

The Portable CleanBooth wheels into position above a workbench or instrument to provide an ISO-compliant flow of HEPA-filtered air.

Portable Horizontal Flow CleanBooth Fan Filter Unit

HEPA Fan Filter Unit is securely mounted to the CleanBooth frame to provide horizontal laminar air flow.

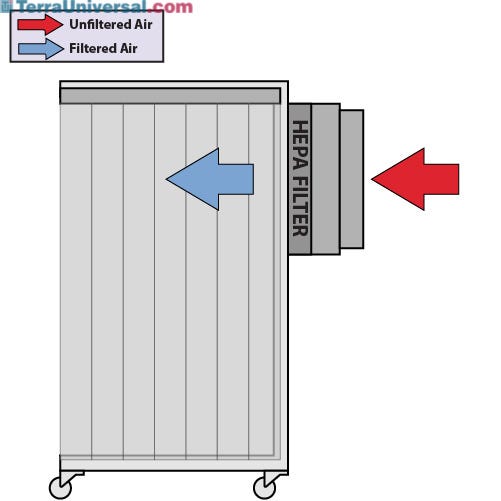

Horizontal Cleanbooth Airflow Diagram

Horizontal flow CleanBooths provide a mobile ISO-rated particle-free mini-environment.

Unit Ships Disassembled

Unit ships disassembled to reduce transportation costs and optimize product storage or relocation.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Ionizing Bar Mounts to Cleanroom Ceiling

    Intrinsically safe low-voltage ionizing bar mounts to a fan/filter unit on a cleanroom ceiling or inside a laminar flow hood to neutralize static charges on the work station below.
  • Isolated Work Surfaces in Many Materials

    Tables in many styles and materials, including dissipative laminate, chemical-resistant polypropyene and epoxy resin, are isolated from hood to reduce vibration (shown: solid stainless steel top with adjustable powder-coated legs).
  • Strip Shield Entry

    60-mil softwall strip shields provide a convenient, low-cost entry to a portable CleanBooth enclosure.
  • Fan Filter Unit with External UPS Battery

    Uninterruptible Power Supply (UPS) system provides backup battery power to keep critical equipment running without interruption when utility power is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
  • Lighthouse Handheld Airborne Particle Counters

    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
