2000-17
Terra Part # 2000-17
$14,207
Usually ships in 9-15 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 2000-17
10147

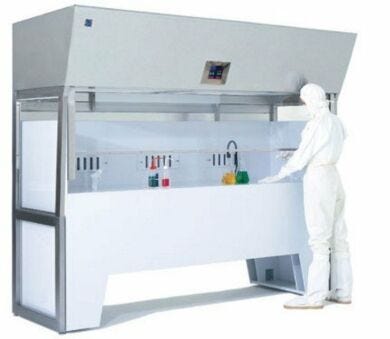

Modular Wet Cleaning Bench ; 60.5"W x 36"D x 58"H, Polypropylene
Product Details
  • •  Available ISO Ratings: ISO 7, ISO 8
  • Approximate dimensions: 60.5"W x 36"D x 58"H (1537 x 914 x 1473 mm)
  • Number of panels: four (4)
  • Standard deck accommodates cut-outs up to 23.75"D (603 mm)- (cut-out widths depends on station width) - user must specify configuration at time of order
  • Constructed of white polypropylene with PVC plumbing
  • Bi-directional exhaust system safely removes hazardous fumes
  • Exhaust duct located in rear (please specify flange size when ordering)
  • Front panel controls allow easy operation

Type: Cleaning Bench

Material: Polypropylene

Work Area Width: 48"

Work Area Depth: 23"

Available ISO Ratings: ISO 7, ISO 8

ISO Class: ISO 7

Unit of Measure: EA

Electrical Specifications: 120 V

Weight, Product: 400 lb

Dimensions, Product: 60.5" W x 36" D x 58" H

Weight, Shipping: 650 lb

Dimensions, Shipping: 67" W x 42" D x 64" H

Package Type: Crate

Buy Accessories
  1. Offers excellent chemical resistance and easy cleaning  |  7018-22 displayed
    $917
    Increase Down Increase Up
  2. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $2,008
    Increase Down Increase Up
  3. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $2,237
    Increase Down Increase Up
  4. Shown with optional liquid overfill sensor.  |  2800-75 displayed
    $3,321
    Increase Down Increase Up
  5. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.
    $997
    Increase Down Increase Up
  6. Duplex power outlet: 120VAC shown.  |  6704-34 displayed
    $443
    Increase Down Increase Up
  7. Duplex Power Outlet; GFCI-Type for Wet Processing Installed; 120VAC, 50/60Hz
    $26
    Increase Down Increase Up
  8. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  9. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: Wet Processing Materials
Process Control, Safety, and Consistency
Polypropylene
  • Economical plastic with broad chemical compatibility
  • Ideal for wet processing station panels
  • Loses some chemical resistance at high temperatures
  • Suitable for HF and KOH processes
Quartz
  • The preferred material for ultra-pure applications
  • Provides greater uniformity in heat transfer than plastic baths—ideal for very tight temperature control
  • Suitable for most chemicals (but not HF acid)
  • Hard surfaces won’t scuff, stain, or absorb impurities
PVDF (polyvinyldilene fluoride)
  • Broader range of chemical resistance than polypropylene
  • Suitable for high process temperatures
  • Ideal for HF and BOE processes at high temperatures
PTFE (Teflon®)
  • Resistant to an extremely wide range of chemicals
  • Perfect for KOH and HF acid (which etch quartz)
  • Softer than quartz, so care must be taken to avoid scuffing, staining

Terra’s comprehensive range of constant-temperature baths, etching baths, dump risers, and other processing equipment is ideally suited for the high-purity requirements of the semiconductor industry. Microprocessor controls ensure the integrity of your operations.

The chart below indicates the baths best suited for common semiconductor operations. Once you select the equipment that meets your requirements, a Terra process engineer will help configure a turnkey solution.

Product Application Chart
Commercial or Generic Name Process Chemical Composition Concentration Typical Temperature Recommended Product
Aqua Regia Gold Etchant Hydrochloric Acid (HCl)
Nitric Acid (HNO3)
75%
25%
90° C Series
Buffered Oxide
Etch (BOE)
Etch SiO2 Ammonium Fluoride (NH4F) Aqueous
Hydrofluoric Acid (HF) Aqueous
40% 15-40°C
Ambient
A Series
RCe Series
CP8 Etch Nitric Acid (HNO3)
Hydrofluoric Acid (HF)
  Ambient A Series
Etch (Indium)
Molybdenum Platinum
Nichrome
Etch Hydrochloric Acid (HCl) Aqueous
Nitric Acid (HNO3)
37-38%
70-71%
  QA Series
Metal Etch Etch A,
AlSi Al Si Cu
Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
85-87% 30-60°C QA Series
Nitride Etch Etch Phosphoric Acid (H3PO4)
DI Water (H20)
85-87%
15-13%
150-185°C Nb Series
Organic Stripper Resist Removal PRS-1000
S-43
Lozolin
No Phenol-922
Full strength Room Temperature
120°C
Nb Series
Oxide Resist Strip SiO2 Resist Stripping Sulfuric Acid (H2SO4)
Ammonium Persulfate (NH4S2O2)
95-96% QA Series
Phenolic Stripper Resist Removal J100
Bermar 712D
R-10
  95-100°C C Series
Resist Series (Metalized) Resist Removal Chromic Sulfuric Acid (CrO3+H2SO4)     A Series
R.C.A. Clean Pre-Diffusion Cleans
Quartzware
Step 1: Water
Hydrogen Peroxide (H2O2)
Ammonium Fuoride (NH4CH)
Step 2: DI Water (H2O)
Hydrogen Peroxide (H2O2)
Hydrochloric Acid (HCL)
40% 75-85°C Qa Series
Silicon Etch Etch Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
HydroFuoric Acid (HF)
  Ambient A Series
Sirtl Etch Etch Chromium Trioxide (CrO3)
DI Water (H20)
Hydrofluoric Acid (HF)
  Ambient A Series
Slope Etch Etch Phosphoric Acid (H3PO4)
Acetic Acid (CH3COOH)
Nitric Acid (HNO3)
  55°C Qa Series
Standard Resist Strip (do not use w/aluminum) SiO2 Resist Strip Sulfuric Acid (H2SO4)
Hydrogen Peroxide (H2O2)
95-96% 110-140°C Qa Series
2:1 Etch Etch DI Water (H2O)
Hydrofuoric Acid (HF)
  Ambient A Series
Wafer Rinsing Rinsing DI Water (H2O) 100% Ambient DR-Series
Particle Trapping Test

Products Compliant With Your ISO Rating

Provide Terra with your desired ISO rating. We will tailor the product to meet your rating and supply a certificate of compliance appended to your invoice, to be included in your compliance package. All certificates are archived in Terra's system for quick retrieval.

Gooseneck Faucet

Angled to dispense water in a focused stream, this faucet is made of chemical-resistant PVC

Adjustable Rear Baffles

Adjust air flow direction, speed and volume by changing position of the easy-to-reach baffle plates at the rear of the station countertop.

Airflow in Wet Processing

The standard bench is designed for operation with Terra’s Vertical Laminar Flow Station and features exhaust controls mounted at the rear of the processing area. The Vertical Laminar Flow Station provides a continuous flow of filtered air to the work area.

Industry-Leading Product Quality

At Terra, we strive to produce the highest quality products for our customers. Our product quality is enabled by high-grade manufacturing equipment, over 45 years of engineering expertise, and our commitment to continuously improve.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.

Website Metric Conversion Tool

Easily convert any product specification to metric units of measure using Terra's web-based metric conversion tool
