Select Product

Air Flow

Terra Part #PriceShips in
Vertical 6600-38 58458 Request Quote.....2
Horizontal 6600-99 76698 Request Quote30-40 Days3
Air Flow
Item ordered before. Click on bagde to see the order.
Demo Available
Some ship in:
Usually Ships in:
Item is in stock and ready for immediate shipping
Free shipping in contiguous USA
Custom-configured product: Terra will quote.
Custom-configured product: Terra will quote.
Select a product line for product summary

Product Details

• Maintain negative pressure to ensure safe patient isolation and complete infection control

• Reverse-flow filter fan units include duct collar for facility exhaust connection

• Built to project-specific dimensions and ratings

• Optional accessories include UV germicidal lights, casters for room mobility and LED lights

• Designed for exam rooms, patient waiting areas, home isolation, package quarantine, and workplace isolation

• Refer to sales order and/or drawings for dimensions and other details

• Panel material to be specified on per-project basis

• Includes powder-coated steel ceiling grid that forms 2' x 4' (610 mm x 1219 mm) bays for filter/fans, lights or blank panels (order ceiling modules separately)

• Mirror-finish 304 SS control panel with all specified blower, light and other utility switches


• Mirror-finish 304 stainless steel control panel is easy to clean

• Since regulations vary considerably in different locations, Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes. Check your local planning department to see what regulations apply to your installation

• Other options include access doors, air conditioning, air locks, antechambers, air flow, pressure gauges, and furnishings

• To assure proper air flow and installation, allow an additional 11” (279 mm) between the top of the FFUs and the ceiling or other overhead obstruction (total of 24” (610 mm) between the cleanroom filter face and the surrounding facility ceiling).

• Control Panels provide on/off switches for FFUs, lights and other system options, and includes Status Indicators

• Unless otherwise specified, Unit Price includes packaging costs.

• Seismic analysis available; specify Part Number 6600-98. Changes required after approval, if any, are to be covered by change orders.

Modular Hardwall Cleanrooms

Standard Features

  • A Status indicator
    Status Indicator Lights: Glow to indicate FFUs are operational; flash when FFUs are off
  • B Fan Filter Unit
    Select HEPA or ULPA fan/filter units to provide a laminar flow of clean air
  • C LED Panels
    LED panels and strip fixtures accommodate any ceiling grid configuration
  • D Control Panel
    Control panel includes pressure and temperature/RH gauges plus other selected instruments
  • E Range of Door Options
    Several door designs: stainless steel, aluminum swing or sliding; manual or electronic
  • F Range of Materials
    Select acrylic, static-dissipative PVC, glass or polycarbonate panels
  • G Steel Supports
    Steel supports require no external bracing

Not Shown: Range of Options - Options include Night Service setting, pass-through chambers, A/C, vacuum, DI water and gas utilities

Hardwall Cleanrooms

  • Video of Hardwall Modular Cleanroom Design, Manufacture and Installation On-Site Hardwall Cleanroom Installation
Video of Hardwall Modular Cleanroom Design, Manufacture and Installation

Features & Benefits

Features and Benefits

Affordable Customization

Affordable customization to unique requirements!

  • Terra's modular designs allow versatile configurations using standard components, whether you need a small equipment enclosure or a multi-suite processing facility
  • Versatile plug-and-play Power Distribution Modules allow addition of ceiling fan/filter units and lights to meet any cleanliness requirement or to upgrade ISO levels or lighting levels after installation
  • Modular frame and panel designs, in several application-specific materials, adapt to any floor plan requirement
  • Automated fan controls simplify pressure balancing, Building Management System (BMS) integration, and certification of large, multi-suite facilities
  • Stand-alone A/C modules or integration with existing air handling system
  • Consultation services available to meet industry-specific regulations, such as USP 797/800 compounding requirements
  • Terra’s full engineering services adapt designs to accommodate unique equipment or facility integration challenges

Call or submit a QuickQuote Form for assistance with a modular cleanroom tailor-made to your application!

Cleanroom LED Light Panel

LED panels mount flush on ceiling grid, have longer life, and use less energy (emitting less heat) than conventional fluorescent lights.

Power Distribution Module (PDM)

Power Distribution Modules (PDMs) feature quick-connect ports and safely house all cleanroom electrical components to allow plug-and-play addition of FFUs and lights.

Operation Status Indicators

Modular Cleanrooms include a status indicator light in each corner, which glows when fan/filter units are operating and blinks when they are inactive.

Application-Specific Doors

Select aluminum, stainless steel frame or frameless cleanroom-rated doors with tempered glass, polycarbonate, acylic or dissipative PVC panels (shown: SS frame with polycarbonate panel).

Germicidal UV Lamp Sanitizes Labs, Cleanrooms

UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.

Eliminate Contaminants and Pathogens

HEPA and ULPA filters capture many bacteria, viruses, and mold spores that contribute to a host of infections for both humans and plant/animal tissue cultures

COVID-19 Infection Control

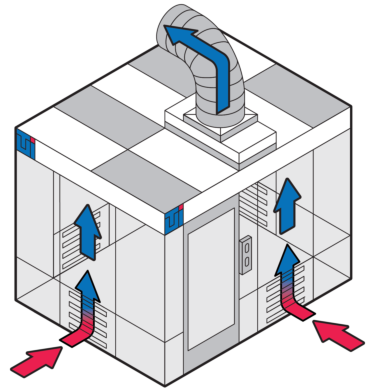

Terra’s in-stock ceiling-mounted reverse-flow ducted filter fan units convert any space into a negative pressure isolation room

COVID-19 Isolation Room

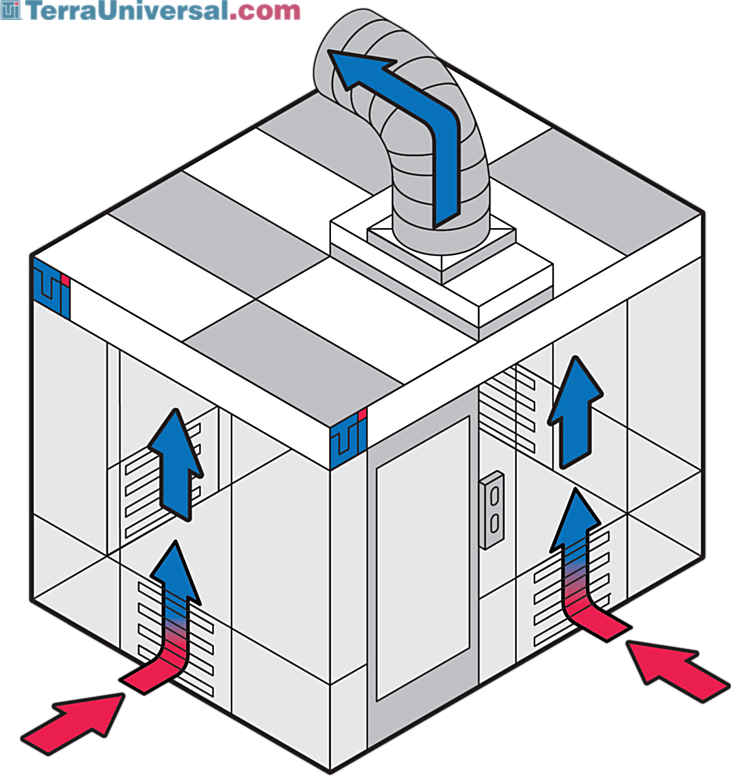

Terra’s modular negative pressure isolation rooms, built to your specs, support patient infection control, home isolation and package quarantine

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

Available Accessories

Popular Accessories

For a full list of accessories, select a product then click Choose Accessories on that product page.
  • WhisperFlow® Cleanroom Fan Filter Units
    Design features internal baffling and an aluminum diffuser to provide quiet operation along with uniform air speed for ISO-compliant laminar flow.
  • Wall-Mounted Benches
    Use the cleanroom’s frame uprights to support an adjustable bench, shelf or countertop
  • Cleanroom Access and Automated Fan Controls
    Standard panel include pressure gauge, on/off and night switches; security system adds access restriction; automated fan system monitors and controls fan speed, pressure, temperature and RH.
  • Germicidal UV Lamp Sanitizes Labs, Cleanrooms
    UV-C Germicidal Lamp installs on a cleanroom ceiling grid for line-of-sight room disinfection; safety occupancy sensor prevents personnel exposure.
