Select Product


Frame Material


Shield Type


Manufacturer SKU

Terra Part # Price Ships in
115 V Ducted Powder-Coated Steel 37.7" Horizontal Protector XL 112016002 3651-83 60829 $22,459 40-44 Days 2
115 V Ducted Powder-Coated Steel 37.7" Horizontal Protector XL 112116002 3651-86 60832 $25,864 40-44 Days 3
115 V Ducted Powder-Coated Steel 37.7" Horizontal Protector XL 112216002 3651-89 60835 $32,618 40-44 Days 4
115 V Ducted Powder-Coated Steel 37.7" Horizontal Protector XL 112816002 3651-80 60826 $19,080 40-44 Days 5
115 V Ducted Powder-Coated Steel 37.7" Vertical Protector XL 112417002 3651-68 60814 $13,860 40-44 Days 6
115 V Ducted Powder-Coated Steel 37.7" Vertical Protector XL 112517002 3651-71 60817 $15,608 40-44 Days 7
115 V Ducted Powder-Coated Steel 37.7" Vertical Protector XL 112617002 3651-74 60820 $17,318 40-44 Days 8
115 V Ducted Powder-Coated Steel 37.7" Vertical Protector XL 112817002 3651-77 60823 $20,269 40-44 Days 9
115 V Ducted Powder-Coated Steel 43.7" Horizontal Protector XL 112026002 3651-84 60830 $23,329 40-44 Days 10
115 V Ducted Powder-Coated Steel 43.7" Horizontal Protector XL 112126002 3651-87 60833 $26,723 40-44 Days 11
115 V Ducted Powder-Coated Steel 43.7" Horizontal Protector XL 112226002 3651-90 60836 $33,484 40-44 Days 12
115 V Ducted Powder-Coated Steel 43.7" Horizontal Protector XL 112826002 3651-81 60827 $19,950 40-44 Days 13
115 V Ducted Powder-Coated Steel 43.7" Vertical Protector XL 112427002 3651-69 60815 $14,745 40-44 Days 14
115 V Ducted Powder-Coated Steel 43.7" Vertical Protector XL 112527002 3651-72 60818 $16,463 40-44 Days 15
115 V Ducted Powder-Coated Steel 43.7" Vertical Protector XL 112627002 3651-75 60821 $18,203 40-44 Days 16
115 V Ducted Powder-Coated Steel 43.7" Vertical Protector XL 112827002 3651-78 60824 $21,150 40-44 Days 17
115 V Ducted Powder-Coated Steel 55.7" Horizontal Protector XL 112036002 3651-85 60831 $24,893 40-44 Days 18
115 V Ducted Powder-Coated Steel 55.7" Horizontal Protector XL 112136002 3651-88 60834 $28,290 40-44 Days 19
115 V Ducted Powder-Coated Steel 55.7" Horizontal Protector XL 112236002 3651-91 60837 $35,059 40-44 Days 20
115 V Ducted Powder-Coated Steel 55.7" Horizontal Protector XL 112836002 3651-82 60828 $21,514 40-44 Days 21
115 V Ducted Powder-Coated Steel 55.7" Vertical Protector XL 112437002 3651-70 60816 $16,358 40-44 Days 22
115 V Ducted Powder-Coated Steel 55.7" Vertical Protector XL 112537002 3651-73 60819 $18,090 40-44 Days 23
115 V Ducted Powder-Coated Steel 55.7" Vertical Protector XL 112637002 3651-76 60822 $19,796 40-44 Days 24
115 V Ducted Powder-Coated Steel 55.7" Vertical Protector XL 112837002 3651-79 60825 $22,740 40-44 Days 25
Frame Material
Shield Type
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Aerodynamic air foils and bypass airflow openings allow the hood to be operated at low face velocities (down to 60 fpm)
  • Low face velocities provide energy savings, lower noise levels, and have less of an impact on sensitive operations
  • Opti-Zone Baffle perforations concentrate exhaust airflow within the working areas where fumes are likely to be produced
  • Vertical-rising sashes glide within steel tracks, operated via a cable pulley system
  • Chemical-resistant, fiberglass-reinforced panel liner and baffle plate with flame spread index less than 25, per ASTM E84
  • All models are preconfigured for installation of water/gas fixtures and duplex outlets using Labconco’s kits
  • Specific models are available with basic service fixtures preinstalled, with conversion possible to air or vacuum
  • Powder-coated steel exhaust collars are provided (12.81” ID)
  • Cord-Keeper slots, located on either side of the sash opening, for tucking power cables out of the way
  • Optional horizontal-sliding sash available on 8’ or wider models for increased opening height up to 73.5”
  • Includes vapor-proof, fluorescent light fixture with separate power switch
  • ADA-compliant controls
  • Requires connection to exhaust system with remote blower (sold separately)

Fume Hoods by Labconco

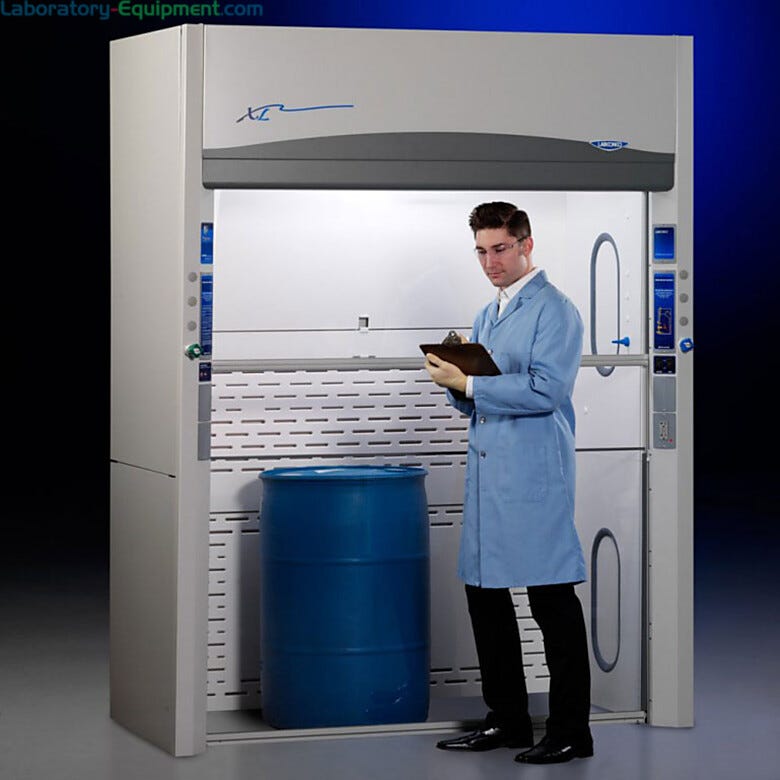

  • Labconco Protector XL Labconco Protector XL
Features & Benefits

Features & Benefits

Learn More: Fume Hoods

Fume Hood Frequently Asked Questions

Selecting the appropriate fume hood or ductless exhaust hood, ensuring operator protection, and maintaining optimum hood performance can be a monumental task. Asking the right questions will help drive your decision-making process toward the right system for your application and support your standard operating procedures in maintaining a safe environment.

Does my work require a fume hood?

Use of a chemical fume hood is required to enclose work involving toxic gasses, reactive or explosive materials, volatile chemicals, carcinogens, flammable chemicals, hazardous substances and processes producing aerosols or nuisance odors.

What’s the difference between a ducted fume hood and a ductless exhaust hood?

Exhaust fume hoods vent air from the work area directly outside of the building by connecting to the facility’s ducted exhaust system. Ductless exhaust, or stand-alone, fume hoods use integral blowers to draw air away from the work area through a set of filters before safely releasing the air back into the ambient lab. Ductless hoods commonly use a two-stage filtration system composed of a charcoal filter for vapor containment and a final HEPA filter for particle containment. Charcoal filters capture chemical vapors with varying degrees of efficiency; review your list of chemicals - along with solvent concentrations and aliquoted volumes - with your fume hood specialist to ensure the appropriate filter is purchased. Laboratory fume hoods are required to safely enclose chemicals, such as methanol, that are not captured efficiently by charcoal filtration. Small-footprint ductless fume hoods fit onto crowded benchtops or into areas of the lab without access to the facility exhaust system. The effectiveness of a ductless exhaust hood is contingent upon regular filter maintenance; talk to your hood specialist or EH&S representative to prepare a standard filter replacement schedule.

What’s the difference between DH I, DH II, and DH III?

These acronyms define the different types of ductless hoods outlined by The Scientific Equipment and Furniture Association (SEFA):

  • Ductless Hood I (Type I): These light duty exhaust hoods are equipped with filtration only suitable for non-toxic chemicals, nuisance odors and particulates. They are not required to have a warning sensor for chemical breakthroughs.
  • Ductless Hood II (Type II): This type of fume hood meets all DH I requirements, and can filter manufacturer approved toxic contaminants, making it suitable for toxic or hazardous applications. It also includes a chemical detection sensor and alarm in the event of chemical breakthrough beyond the filter. However this design does not provide secondary containment in the event the primary filter fails.
  • Ductless Hood III (Type III): This filtered fume hood is equivalent to a DH II with the added benefit of backup secondary filtration that is the same type and efficiency as the primary filter. DH III hoods also include a sensor between the primary and secondary filter, to ensure secondary filtration is available in case the primary filter fails.
Do I need a light duty chemical hood or a high-performance fume hood?

Although the primary purpose of a laboratory fume hood is operator safety, demand has increased for hoods designed to carry lower operating costs and reduced environmental impact. As fume hoods consume an average of 70,000 cubic feet of pre-conditioned air per hour, their operating costs are tied primarily to their air consumption, cited as volumetric rate (CFM) or face velocity (fpm). High-performance fume hoods - also called green ventilation hoods, high efficiency hoods or low-flow hoods – provide the highest level of containment at the lowest operating cost. High-performance fume hoods are designed to safely operate while maintaining a face velocity of 60 fpm, the lowest acceptable ASHRAE performance standard as outlined by SEFA. In addition to reduced face velocities, high efficiency fume hoods can integrate with Variable Air Volume (VAV) building automation systems to ensure minimum allowable room air changes, safe room pressurization and desirable temperature and humidity set points. A conventional light-duty, or by-pass, fume hood carries a lower up-front cost than a high-performance hood, but does not include design features allowing for reduced air volume ventilation or VAV integration. Most light-duty exhaust hoods safely operate at face velocities between 90 – 110 fpm, equal to an increase in air consumption of 30 – 50% annually. To decide between a light-duty chemical hood and a high-performance fume hood, a life cycle cost analysis is required to compare energy cost, ambient climate conditions and usage rate.

Does my work require a benchtop fume hood, walk-in hood or canopy hood?

Bench top fume hoods are mounted on an existing work surface, or casework, to create a negative-pressure environment for fume containment. A walk-in fume hood, or floor-mounted hood, includes no work surface or cabinetry, allowing the user to place large items into the hood at floor level. A canopy fume hood is installed on the wall or suspended from the ceiling; it does not include a hood frame or physical barrier between the fume hood area and the ambient lab. Benchtop fume hoods are designed to enclose singular processes on a crowded benchtop, like small-scale solvent evaporation or ethanol extraction. Walk-in fume hoods can accommodate bulk storage systems, like 50-gallon drums, large processing equipment and heavy items transported by lab carts. Canopy exhaust hoods are designed to vent non-toxic materials like heat, steam and nuisance odors emanating from ovens, steam baths or autoclaves.

Should I purchase a remote blower or dedicated, built-in blower with my lab fume hood?

Built-in blowers, or exhaust fans, are installed within the body of the fume hood and positioned above the work area. Remote exhaust blowers are installed on the building exterior and connect to the fume hood through a duct system. Built-in blowers are easier to install and less expensive, but can be noisy. As integral, built-in blowers can place sections of the ductwork under positive pressure, thus pushing contaminants through duct leaks back into the lab, they are recommended for non-hazardous applications, short duct runs, or mobile labs. Remote blowers, though more expensive and complex to install, can be sized for the specific situation, taking into account the duct diameter and run length and quantity of 90-degree or 45-degree elbow turns. Remote blowers keep the ductwork under constant negative pressure; any leaks in the duct system will draw air into the duct for exhaust from the building. Remote blowers include exhaust stacks and zero-pressure weather caps, ensuring the exhausted air is terminated at least 10 feet above the roofline to prevent fumes from returning to the building through the HVAC system.

Which blower should I choose for a ducted fume hood?

To maintain the safety and containment of your lab hood, selecting the proper motor blower is critical. Exhaust blowers are composed of three materials: steel, fiberglass and polyvinyl chloride (PVC). Review your chemical list with your fume hood specialist; steel blowers are designed for low-to-moderate corrosives, fiberglass blowers resist harsh solvent and acids, and PVC blowers can withstand exposure to high corrosives, such as perchloric acid. To determine the proper blower size, or capacity, you must calculate your fume hood resistance, measured is static pressure loss. Fume hood resistance is calculated by accounting for hood face velocity, volumetric rate and static pressure along with exhaust duct diameter, number of duct turns, operating temperature, and facility altitude. Talk to your laboratory hood specialist to calculate your hood resistance and determine an appropriate blower size. Most blowers can safely maintain airflow between 250 – 3,500 CFM.

If I’m working with flammable chemicals, do I need an explosion-proof hood?

Not necessarily. All fume hood electrical components are mounted on the corner posts, outside of the flammable vapor trail. Additionally, air constantly exhausting through the work area continually dilutes the air inside the fume hood, creating conditions under which few chemicals reach their lower explosive or flammability limits, according to the NFPA (National Fire Protection Association). Explosion-proof fume hoods are required if a flammable chemical’s concentration exceeds 25% of the LEL (Lower Explosion Limit) or LFL (Lower Flammability Limit). Talk to your fume hood specialist to calculate your dilution factor and volumetric air flow rate, along with each chemical’s LEL and LFL, to determine if an explosion-proof hood is required.

How do you organize the work area inside a fume hood?

In general, the work area should only contain supplies and reagents dedicated to ongoing experiments. If you must store equipment - such as balances, centrifuges, hot plates or rotary evaporators - inside the fume hood, please ensure the equipment is located away from the rear air baffles and elevated at least 2” off the work surface. Any equipment, sample racks, or consumables positioned downstream of an experiment may block contaminants from safe exhaust, reducing the effectiveness of the fume hood. All open chemicals must be placed at least 6 inches from the front edge of the fume hood airfoil to prevent eddy currents from pushing the vapors through the front of the hood face.

How can I reduce eddy currents in my work zone?

Eddy currents are sporadic, turbulent airflow patterns generated by disruptions inside the work area or at the hood face. Limiting eddy currents are vital to maintaining containment and operator protection. Keep lab doors and windows closed to prevent extra sources of air from sweeping across the hood face. Restrict personnel traffic near the hood when the shield is raised to prevent cross-drafts. Electrical cords, gas hoses or water lines running into the hood must be inserted underneath the air foil or through petcock connections to ensure the hood shield closes properly.

Protecting Personal Information

Terra is committed to ensuring that our customer’s personal information is secure. In order to prevent unauthorized access or disclosure, Terra has developed procedures to safeguard and secure information collected online and offline.

Long-Standing Industry Expertise

For 45 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets. We intimately understand the cGMP, GLP, ISO, ASTM , IEST and OSHA requirements.

Top-Tier Clients

Terra’s key customers include some of the largest research labs, production facilities and universities in the world

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Labconco Spillstopper Work Surfaces

    These dished work surfaces are made of corrosion-resistant epoxy resins for durability and a smooth finish. Pass-through holes for venting and plumbing are predrilled into the rear portion of the surface (cut-outs for cup-sinks are optional).
  • Labconco Fiberglass Blower

    Constructed with a 304 stainless steel one-piece liner with coved corners, Protector Stainless Steel Radioisotope Hoods have no joints, crevices or cracks. Units effectively contain radiochemicals.
  • Remote Blower

    Labconco offers energy-efficient remote blowers with an ECM motor that handle airflow from 250 CFM to 3200 CFM satisfying various exhaust requirements
  • Labconco Digital Airflow Monitor

    The Guardian 1000 Airflow Monitor measures the air speed within the fume hood and alerts users to unsafe conditions.
