6082-24A
Terra Part # 6082-24A
$4,434
Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 6082-24A
42303

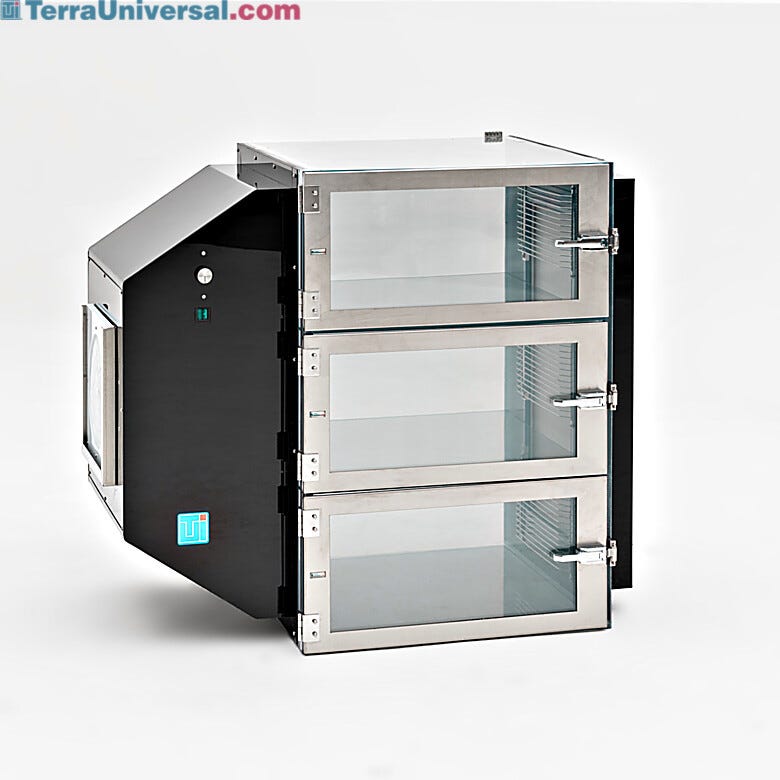

Storage Cabinet; Curing/Drying, 3 Chambers, Single Side Blower, 43.625" W x 24.5" D x 36" H, Static-Dissipative PVC, 120 V
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • Dimensions, Product: 43.625" W x 24.5" D x 36" H
  • Dimensions, Chamber: 22.625" W x 24" D x 12" H (575 mm x 610 mm x 305 mm)
  • Material: Static-Dissipative PVC for maximum static and particle control, with hinges and chrome-plated latches,  black acrylic filter/blower housings
  • Stainless Steel Racks can be adjusted on racks to accommodate various part sizes
  • Inlet Blower: (1) 1200 CFM (2040 m^3/hr)
  • Outlet (exhaust) housing for one filter (order separately).
  • Fan delivers 1200 CFM (2040 m^3/hr) at 0"SP - filter(s) reduce flow.
  • Power: 120VAC, 50/60Hz
  • No. of Chambers: 3
  • Comes with standard LiftLatch.  Locking Liftlatches also available - specify Locking Liftlatch No. 1603-79 for each chamber when the cabinet is ordered.
  • For particle protection (inlet and outlet filtration)

• Height: 36"

• Chamber Height: 12"

• Depth: 25"

• Width: 44"

• Material: Static-Dissipative PVC

• Design: Free Standing

• Type: Curing/Drying

• Configuration: Particle Protection

• Number of Chambers: 3 Chambers

• Unit of Measure: EA

• Electrical Specifications: 120 V, 7 A, 840 W, 1 Ph, 50/60 Hz

• Weight, Product: 278 lb

• Dimensions, Product: 43.625" W x 24.5" D x 36" H

• Weight, Shipping: 298 lb

• Dimensions, Shipping: 49" W x 30" D x 40" H

• Package Type: Crate

Buy Accessories
  1. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    $520
    Increase Down Increase Up
  2. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    Filter, ULPA; 27.75" W x 13" D x 3" H Quick Ship+ Available 393 in stock
    $725
    Increase Down Increase Up
  3.  |  1976-02 displayed
    $255
    Increase Down Increase Up
  4. Shelf supports ensure that this plastic chamber holds weight  |  2200-21 displayed
    Adjustable Shelf Support; 15"/26" Quick Ship+ Available In stock
    $124
    Increase Down Increase Up
  5. Stainless steel shield, installed on the floor of a plastic desiccator chamber, protects against scratching  |  1976-06 displayed
    $277
    Increase Down Increase Up
  6. Shown on reference grid of 1-inch (25mm) squares  |  1603-40-2-316 displayed
    $370
    Increase Down Increase Up
  7. Service, ISO Gradeâ„¢ Certificate, ISO 6
    Request Quote
    Increase Down Increase Up
  8. Warranty; 2 Year, Desiccator, Parts
    Request Quote
    Increase Down Increase Up
  9. Warranty; 3 Year, Desiccator, Parts
    Request Quote
    Increase Down Increase Up
  10. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  11. Equipment Testing
    Request Quote
    Increase Down Increase Up
  12. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  13. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  14. Small (4") LiftLatch with Catcher  |  1603-84 displayed
    LiftLatch; Chrome-Plated, Small Non-Locking Quick Ship+ Available In stock
    $196
    Increase Down Increase Up
  15. 1504-01-rack-storage-chamber-EPSS  |  1504-01 displayed
    $5
    Increase Down Increase Up

HEPA-Filtered Storage Cabinets

  • Maximum Drying Power in a Nitrogen Desiccator Cabinet
  • universal adjustable base stands Universal Base Stands Offer Excellent Versatility
  • Adjusting universal stand Universal Stand Adjusts to Fit a Wide Range of Equipment
  • Cleanroom Gowning Procedures Cleanroom Gowning Protocol
  • Smart® Humidity Module upgrade tutorial Installing Terra's ValuLineâ„¢ Desiccator Smart® Controller
  • Smart Module with LED Display for Relative Humidity Smart Module with LED Display
  • Desiccators: Features and Design overview
  • terra desiccator video ValuLineâ„¢ Desiccators from Terra Universal
  • Two plastic desiccator cabintes in a municipal water treatment facility ValuLineâ„¢ ES Desiccators in Water Treatment Plant
  • Portable stainless steel cleanroom storage cabinet with laminar air flow Portable Cleanroom Storage Cabinet with Laminar Air flow
  • PureFlow Laminar Flow Storage Cart PureFlowâ„¢ Laminar Flow Transport Cart, Double Door
  • COVID-19 Contamination Control Products by Terra Universal
  • UV Sanitizing Cabinet for nursing home to help sterilize everyday high-contact items UV Sanitizing Cabinet for Nursing Home
  • UV Sanitizer cabinet with hepa filtration for sanitizing PPE UV Sanitizer Cabinet with HEPA Filter for Sanitizing PPE
  • Storage Cabinet, Photomask/Reticle Reticle/Photomask Storage Cabinets
  • Plastic Cleanroom Storage Cabinets Plastic Cleanroom Storage Cabinets
  • Cleanroom Storage Cabinet, SDPVC Model Cleanroom Storage Cabinet, SDPVC Model
  • Humidity Storage Cabinet Humidity Storage Cabinet
  • Stocking, Kitting and Dispensing Cabinet by Terra Universal Stocking, Kitting and Dispensing Cabinet
Cleanroom Gowning Procedures
Smart® Humidity Module upgrade tutorial
terra desiccator video

Features and Benefits

Learn More: Filter Fan Units Prevent Infection

Did You Know?
HEPA/ULPA Filters Do More Than Meet ISO Requirements - they also prevent infection.

Most cleanroom professionals understand that HEPA and ULPA filters capture contaminants that degrade particle-sensitive samples. But they also help remove bacteria, mold spores, and many viruses that contribute to a host of infections.

Most common bacteria are contained by the 0.3-micron pore size of high-efficiency particular air (HEPA) filters. Ultra-Low Penetration Air (ULPA) filters, which are rated 99.999% efficient at retaining particles of 0.12 microns and larger in diameter, capture ultra-fine contaminants, including many large viruses and mold spores.

These filters also remove aerosol-born pathogens - germs that hitch a ride on larger particles and liquid droplets that are captured in a HEPA or ULPA filter. HEPA- or ULPA-based Fan/Filter Units (FFUs) thus can play an important role in infection prevention in surgical theaters, ICUs and other medical settings.

Additionally, HEPA filters can help filter pollen, tiny insects, bacteria, mold, and other fungal spores that might be present during plant tissue culture or cannabis production. Contaminants such as these can find a way in via personnel or normal HVAC units and can blight crops and reduce yields. HEPA Filters help increase crop yields, pass inspection/meet regulations, and reduce contamination.

Here is a list of common human pathogens that HEPA/ULPA filters capture and remove from circulation:

Pathogens: Bacteria and Diseases
  • SARS-CoV-2: Coronavirus (COVID-19)
  • Escherichia coli: Gastrointestinal infection
  • Bacillus anthracis : Anthrax
  • Aspergillus brasiliensis: Sinus infections
  • Francisella tularensis: Tularemia
  • Bordetella pertusis : Whooping cough
  • Mycoplasma pneumoniae: Pneumonia
  • Chlamydia pneumoniae: Bronchitis
  • Clamydia psittaci : Psittacosis
  • Klebsiella pneumoniae: Opportunistic infections
  • Haemophilus influenzae : Meningitis
  • Coxiella burnetii: Q fever
  • Pseudomonas aeruginosa: Opportunistic infections
  • Actinomyces israelii: Actinomycosis
  • Legionella pneumophila: Legionaire's disease
  • Thermoactinomyces sacchari: Farmer's lung
  • Alkaligenes: Opportunistic infections
  • Streptococcus pyogenes: Scarlet fever
  • Mycobacterium Tuberculosis: Tuberculosis

HEPA-Filtered Cabinet for Contamination-Sensitive Curing, Drying, and Storage

Terra’s Curing and Drying cabinets provide a continuous wash of HEPA filtered air for clean, controlled adhesive curing, PC-board drying, and parts storage. The cabinet can be configured with a motor on both sides to improve horizontal laminar flow. A carbon filter can also be added at the exhaust to capture vapors leaving the cabinet.

Clean, Spacious, and Transparent HEPA Filtered Cabinet

Transparent HEPA-filtered cleanroom drying cabinets offer high visibility, contamination-free storage to dry, cure, or store components. ESD-safe designs feature static-dissipative PVC and grounding tape to the stainless steel racks and door frames.

Stainless Steel Shelf Racks for Optimal Batch Processing

Electropolished 304 Stainless steel racks allow shelves to be easily transferred and organized to optimize storage space and speed up batch processing.

Reinforced Doors with Non-adhesive Gaskets

Stainless steel door frames extend desiccator life; one-piece fused gaskets are non-outgassing, will not creep or sag

Durable Embedded Static-Dissipative Layers

Terra's SDPVC features bonded dissipative layers that resist abrasion. SDPVC desiccators retain their surface resistivity of 106 - 108 ohms/square indefinitely (unlike spray-on coatings that can wear off after a few years), protecting your materials against ESD damage. Further, the control of static charges eliminates particle attractions, helping maintain clean surfaces.

Available Stainless Steel Shelves and Trays

Adjustable, non-contaminating shelves and trays slide on stainless steel racks, allowing easy parts access (one perforated shelf included)

High Caliber Hardware

Seemingly small details like latches, ports, glides and hinges are often overlooked or ignored by other manufacturers, and later become the point of costly recurring maintenance or equipment failure. Terra’s products are made of long lasting, cleanroom compatible, top tier hardware. Individual components are carefully designed and rigorously tested to guarantee the highest quality, durability, and craftsmanship.

ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation

Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks with heavy equipment on the workspace, such as this Smart® Desiccator Cabinet connected to a Nitrogen Generator.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Protecting Personal Information

Terra is committed to ensuring that our customer’s personal information is secure. In order to prevent unauthorized access or disclosure, Terra has developed procedures to safeguard and secure information collected online and offline.

Long-Standing Industry Expertise

For 45 years, Terra has served the life science, academic research, pharmaceutical, biotechnology, medical device, semiconductor and aerospace markets. We intimately understand the cGMP, GLP, ISO, ASTM , IEST and OSHA requirements.

Long-Term Customers

Terra is committed to building long-term relationships with satisfied clients; 94% of orders each year come from repeat customers

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
