Select Product
Voltage

Filter Type

Width

Depth

Height

Sash Opening

Hood Material

Model

Inside Width

Inside Depth

Inside Height

Terra Part # Price Ships in
120 V ISO 5 HEPA 48" 35" 59" 15" 304 Stainless Steel Solid Wall Recirculating Vertical Laminar Flow 46" 28" 28" 1675-62-48 80602 $3,708 10-12 Days 2
In stock
120 V ISO 5 HEPA 36" 35" 59" 15" 304 Stainless Steel Solid Wall Recirculating Vertical Laminar Flow 34" 28" 28" 1675-62-36 80601 $3,506 10-12 Days 3
In stock
120 V ISO 5 HEPA 60" 35" 59" 15" 304 Stainless Steel Solid Wall Recirculating Vertical Laminar Flow 58" 28" 28" 1675-62-60 81418 $4,594 10-12 Days 4
In stock
120 V ISO 5 HEPA 72" 35" 59" 15" 304 Stainless Steel Solid Wall Recirculating Vertical Laminar Flow 70" 28" 28" 1675-62-72 80603 $5,480 10-12 Days 5
In stock
Voltage
Certified ISO Grade Design
Filter Type
Width
Depth
Height
Sash Opening
Hood Material
Model
Inside Width
Inside Depth
Inside Height
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Terra by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available ISO Rated Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Recirculating clean bench exceeds ISO 5 conditions to protect work area from particle contamination
  • Adjustable back plenum recirculates air to minimize turbulence in work area and extend filter life
  • All stainless steel construction is easy to disinfect and resistant to alcohol-based cleaners
  • Turnkey laminar flow hood system can be easily configured with LED lights and ESD-safe ionizers
  • Suitable for life science applications such as genomics, proteomics, and cell biology
  • Vertical laminar flow hood includes built-in fan filter unit (FFU) that supplies ISO 5 HEPA filtered air to protect content within the hood from particulate contamination.
  • Includes recessed LED lighting to brighten work area.
  • Includes SDPVC tilt up shield to help control airflow.
  • FFU provides air flow speed up to 109 feet/minute measured from HEPA filter face.
  • Baffling plates inside the FFU and an anodized aluminum diffuser panel ensure uniform air speed across the work area.
  • Quiet WhisperFlow® FFU operates at 50 dBA measured 12" away from filter face.

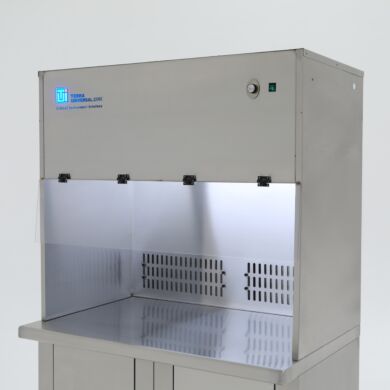

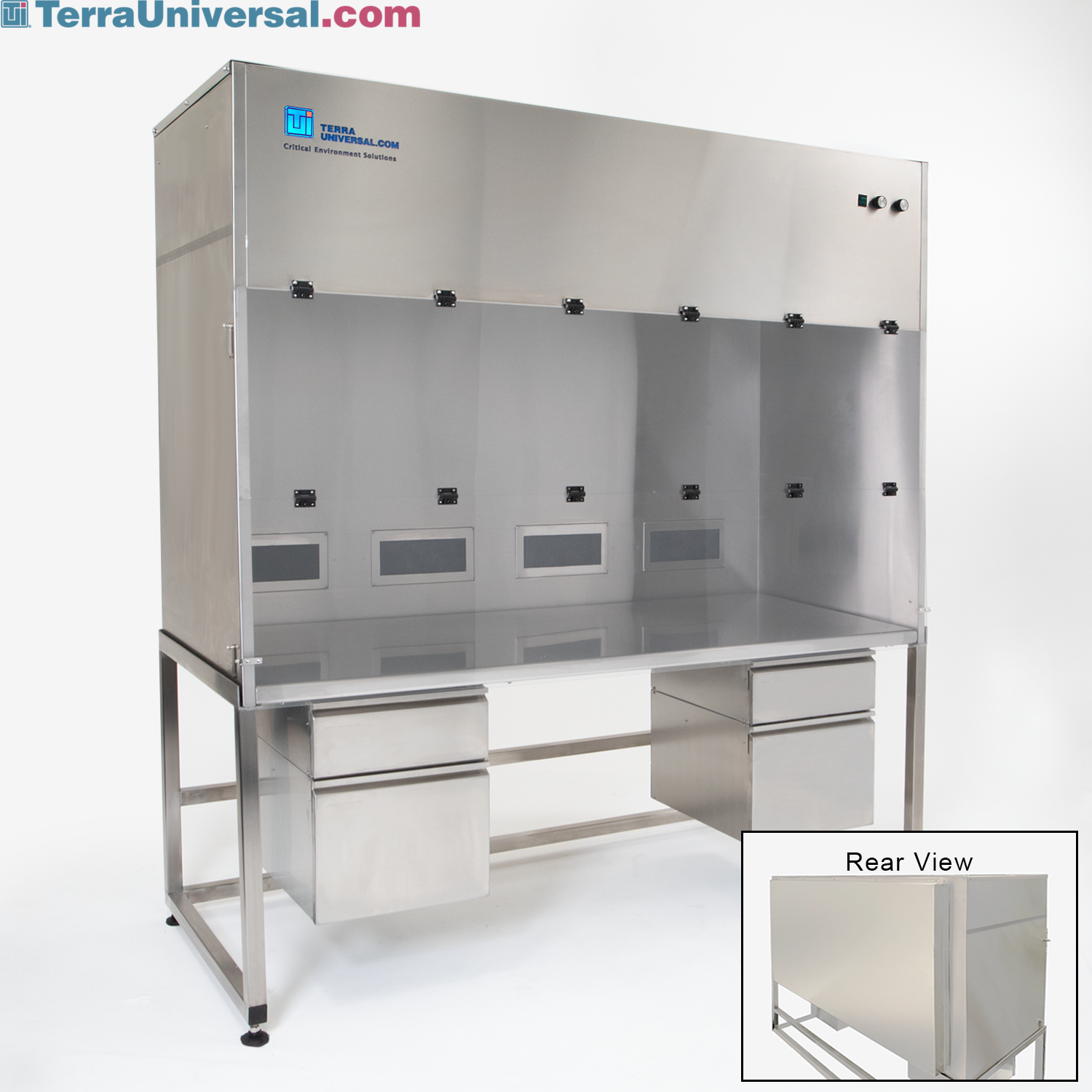

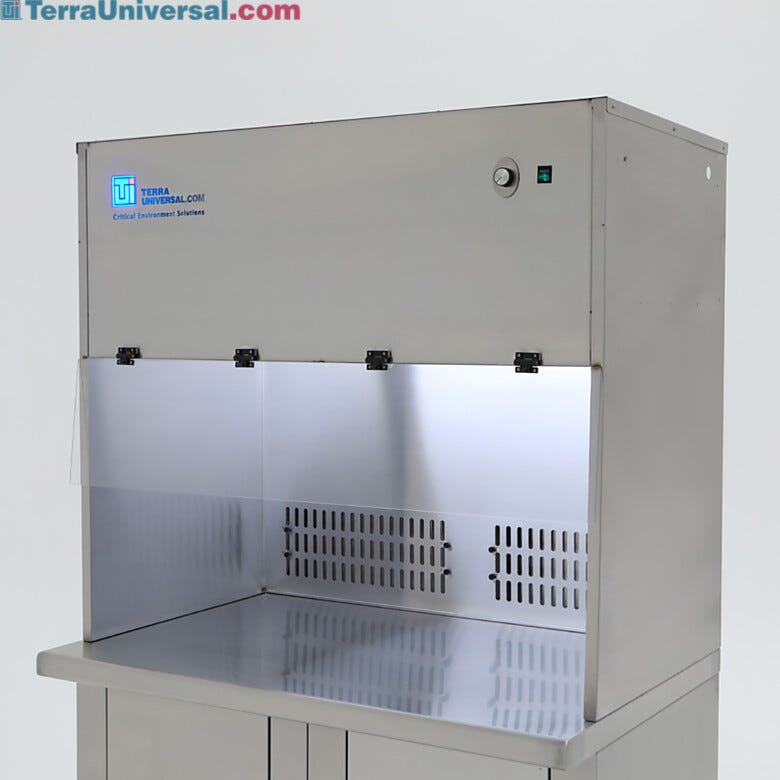

Benchtop Recirculating Vertical Laminar Flow Hoods
Standard Features
  • A Stainless Steel Work Surface
    All stainless steel construction is easy to disinfect and resistant to alcohol-based cleaners
  • B Status Indicator
    Status indicator light on Whisperflow® hoods glows to show filtration unit is operating, flashes when filter is turned off.
  • C Tilt-up Sash
    Tilt-up sash enhances laminar airflow and prevents air from blowing directly at the operator’s face. Static-dissipative PVC material resists chemicals and eliminates particle attraction from static charges.
  • D LED Light Fixture
    Recessed LED Light Fixture
  • E Recirculating Air Return
    Adjustable back plenum recirculates air to minimize turbulence in work area and extend filter life
Optional Features
  • 1 Base Cabinet
    Optional all stainless steel base cabinet

Not Shown: Range of Options - Optional equipment includes digital air speed monitor and filter backpressure gauge

BioSafe Universal Recirculating Hoods

  • ISO 5 BioSafe Flowhood Watch Terra's BioSafe® Universal Benchtop Hoods Video
  • Vibration isolation stand adjustable video Watch Terra's Vibration Isolation Stand Video
  • Adjustable isolation stand Vibration Isolation Stand
  • ErgoHeight® workstations Watch Terra's ErgoHeight® Workstations Video
  • Terra Universal WhisperFlow Laminar Flow Hoods Terra Universal WhisperFlow Laminar Flow Hoods
  • Laminar Flow Hood Smoke Test
  • recirculating vertical laminar flow clean bench in 304 stainless steel, for nanoparticle research Recirculating Vertical Laminar Flow Clean Bench for Nanoparticle Sensing Research
  • BioSafe® WhisperFlow Benchtop Laminar Flow Hood with Model BioSafe® WhisperFlow Benchtop Laminar Flow Hood
  • Hood Brand & Features
ISO 5 BioSafe Flowhood
Vibration isolation stand adjustable video
ErgoHeight® workstations
Terra Universal WhisperFlow Laminar Flow Hoods
Features & Benefits

Features and Benefits

Learn More: Flow Hood Materials

How to Order:

Optional panel kits are available for models with interchangeable side panels. Application specific materials help support required conditions inside your laminar flow hood.

    Standard Panel Configurations:
    • [-SS] 304 Stainless Steel (with transparent SD-PVC sash)
      • Solid stainless steel walls simplify cleaning by minimizing cracks and crevices where particles or germs can accumulate.
      • Superior durability resists corrosion from a wide range of chemicals/solvents
      • Preferred material wherever frequent cleaning and sterilization are required
      • Not compatible with interchangeable panel kits
    • [-SD] Static-Dissipative PVC (SD-PVC)
      • Transparent with blue-gray tint
      • Safely conducts surface charges to ground, protects against particle aggregation
      • Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
    Additional high performance panel kits available:
    • [-PC] Polycarbonate
      • Transparent with slight gray tint
      • Cracks less easily with approx. 250x impact resistance of glass and 15x impact resistance of acrylic
      • Increased thermal resistance (115–130 °C (239–266 °F)) helps withstand repeated steam sterilization
      • Broad resistance to wide range of cleaning agents such as isopropyl alcohol for easy sterilization
    • [-BA] Black Acrylic (with transparent SD-PVC sash)
      • Opaque black panels block ambient light for photo-sensitive applications or improved privacy
      • Economical, and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-TG] Tempered Glass
      • Combines visual clarity with broad chemical resistance
    • [-AA] Amber Acrylic
      • Orange tint filters out UV and blue light to protect light sensitive materials from degrading, or changing composition
      • Economical and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-WA] White Acrylic (with transparent SD-PVC sash)
      • Translucent, diffuses ambient light and provides some privacy
      • Economical and provides high tensile strength
      • Damaged by frequent contact with alcohol and other common cleaning agents
    • [-FP] FM4910 Polypropylene (with transparent SD-PVC sash)
      • Opaque white panels block light for light-sensitive applications or improved privacy
      • FM 4910 compliant, flame retardant
      • Excellent chemical resistance
    • [-FV] FM4910 CPVC
      • Transparent with slight blue tint
      • FM 4910 compliant, flame retardant
      • Controls static electricity, prevents charge generation on the surface thereby controlling particle attraction
      • Excellent chemical resistance, surface hardness, and mar resistance

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Recirculating Design Minimizes Turbulence

Recirculating ISO 5 vertical laminar flow hood exceeds Class 100 cleanroom conditions to protect your work area from particle contamination. The adjustable rear vents pull air back through the fan/filter unit mounted on top. Bench top hoods can also mount on top of base cabinets (sold separately) for easily accessible storage space underneath your workstation.

Adjustable Top Vent and Removable Rear Plenum

Recirculating laminar flow hoods feature an adjustable top vent to control the amount of recirculated air. The rear plenum is removable for cleaning and maintenance.

Adjustable Rear Plenum for Precise Airflow Control

Recirculating clean bench designs feature an adjustable rear plenum to minimize turbulence in the work area and extend the life of the HEPA filter.

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

BioSafe® WhisperFlow Hoods: One-Piece Design With Seamless Tracks

BioSafe® Whisper Flow Hoods feature a one-piece design free of cracks or crevices that harbor microbes and contaminants. Surface are easy to wipe down, resistant to alcohol-based cleaners and harsh biocides.

Recessed LED Lighting Illuminates Work Area

Laminar flow hoods include long-lasting LED lighting to illuminate the work area. The LED strip is flush-mounted for easy disinfection.

Versatile Removable Panels

Removable side-panels increase the versatility of your hood by improving visibility plus simplifying equipment access. The side-panels are lined with foam gasket and slide into the hood’s frame for a simple yet effective seal. Each panel is easily removed to simplify cleaning and disinfection.

Tilt-Up Sash

Tilt-up sash enhances laminar airflow and prevents air from blowing directly at the operator’s face. Static-dissipative PVC material resists chemicals and eliminates particle attraction from static charges.

Integrated Status Indicator Light

Operation status indicator (OSI) light glows continuously when hood is plugged in and turned on to confirm filtration unit is operational. The OSI blinks when the unit is plugged in but switched off.

BioSafe®: Terra's Ultimate Cleanliness Rating

Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.

HEPA Fan Filter Unit with Integrated LED Light and Ionizer

FFU with built-in, flush-mount LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Eliminates hard-to-clean, exposed light fixture and ion bar. Includes internal baffling plate and diffuser panel.

Continuous Product Improvement

At Terra, we strive to develop and produce the highest quality products for our customers to improve health, safety, performance, and yields. Our product quality is enabled by high-grade manufacturing equipment and processes, 45 years of engineering and application expertise, and our commitment to continuously improve.

Terra's QuickBuild Program

Build your system using in-stock components and accessories. We’ll assemble your system, package and ship your order in 6 business days.

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Vibration Isolation Stand

    Width and height adjustable stand supports the user on vibration sensitive applications by isolating their equipment from the work surface
  • HEPA Fan Filter Unit with Integrated LED Light and Ionizer

    FFU with built-in, flush-mount LED and ionizing bar provides HEPA filtered air and neutralization of static charges. Eliminates hard-to-clean, exposed light fixture and ion bar. Includes internal baffling plate and diffuser panel.
  • Vapor-Sealed Fluorescent Illuminator

    This fluorescent light fixture is enclosed in a vapor-sealed, static-dissipative PVC housing to protect the light source from dust, dirt, and vapors. The housing extends the useful life of the light fixture and provides an easy-to-clean surface.
  • Vibration-Isolated Table

    Works surface and stand pair provide vibration-isolated solution for Biosafe Universal Hoods
  • Ionizing Bar with Installation Kit

    Ionizer emits equal quantities of positive and negative ions to neutralize static charges within the work area, system requires no calibration or adjustments.
  • UV Germicidal Lamp

    The V-Ray germicidal UV lamp is installed within a Terra hood to inhibit microbial growth on the work surface
  • Benchtop ISO 5 Vertical Laminar Flow Hood with Automatic Height Adjusting Table

    Vertical laminar flow hoods provide a HEPA-filtered work area for protection from particle contaminants. Benchtop laminar flow hoods can easily mount to an automatic height adjusting table (28”-43”H). Perfect for workstations with heavy or fragile equipment.
  • Replacement Filters

    Purchase replacement filters ahead of time to prevent costly operational interruptions and avoid damage to fan blowers caused by excessive backpressure from long overdue filter replacements.
  • Fan Filter Unit with External UPS Battery

    Uninterruptible Power Supply (UPS) system provides backup battery power to keep critical equipment running without interruption when utility power is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
