Terra Part # 1870-01A
$3,798
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Only 8 left in stock
Accessories related to Terra Part # 1870-01A
70829

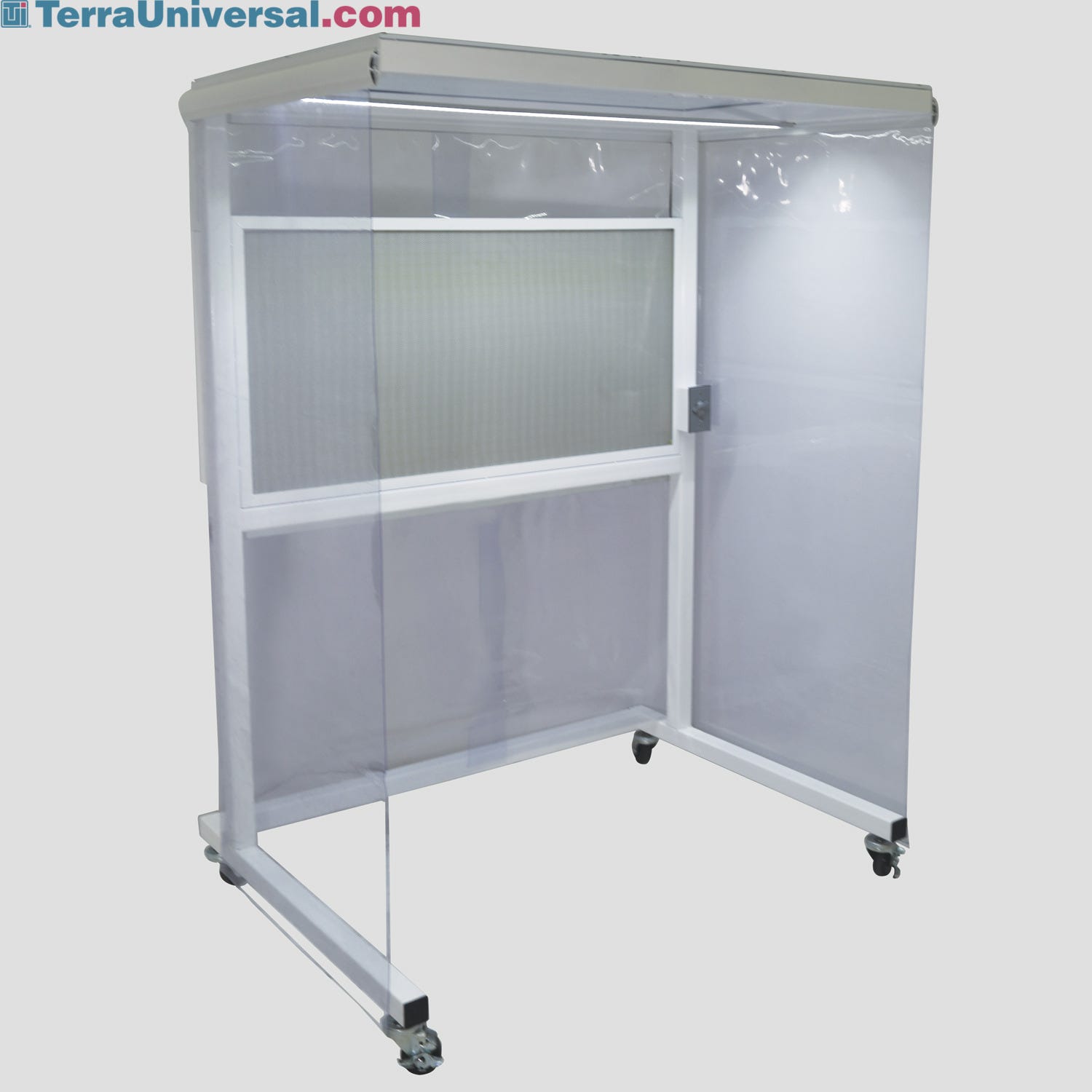

Hood; Portable CleanBooth; Vertical Airflow, ISO 5, Vinyl, 54" W x 32" D x 82" H, 120 V
  • Full HEPA-filtered ceiling coverage helps maintain ISO 5 conditions within work area
  • Includes set of 4 casters, 2 with locking brakes
  • Includes frame, anti-static vinyl paneling, lighting and FFU
  • Quiet operation: 50 dBA measured 30" from filter face
  • Flexible continuous side panels create a 3-sided enclosure, enhancing air laminarity
  • Positions the filtered air outlet 70" above the floor
  • Internal baffling plates and anodized aluminum diffuser panel ensure uniform air speed across the work area
  • Ideal for operations with probe stations, screen printers and other free-standing process equipment, as well as benchtop kitting or assembly
  • Castered frame positions Fan Filter Unit (FFU) above benchtop or large process equipment for repair operations wherever you need a temporary laminar flow of filtered air
  • Packaged knocked down for streamlined transportation and delivery
  • Hardware-free installation in under 15 minutes
  • Fan filter units add 13 inches to the overall height of portable CleanBooths

ISO Class: ISO 5

Airflow Design: Vertical

Width: 54"

Depth: 32"

Height: 82"

Inside Width: 48.25"

Inside Depth: 28.25"

Inside Height: 65"

Work Area Dimensions: 48.25" W x 26.3" D x 70.1" H

Hood Design: Floor

Electronic Air Speed Control: No

Filter Type: HEPA

Frame Material: Powder-Coated Steel

Light Fixture: LED

Manufactured by: Terra Universal

Model: Portable CleanBooth

Side Panels: Vinyl

Unit of Measure: EA

Dimensions, Product: 54" W x 32" D x 82" H

Dimensions, Shipping: 60" W x 40" D x 91" H

Electrical Specifications: 120 V, 6 A, 720 W, 50/60 Hz

Marks & Listings: UL, ULC

Package Type: Skid

Weight, Product: 145 lb

Weight, Shipping: 578 lb

Buy Accessories
  1. Provides a stream of static-neutralizing ions to protect ESD-sensitive components.
    $1,108
    Increase Down Increase Up
  2. Panels shown installed.
    $428
    Increase Down Increase Up
  3. Bring power safely and conveniently to wherever you need it with a full line Plug-In Outlet | 1681-80 displayed
    $245
    Increase Down Increase Up
  4.  | 2004-32 displayed
    $259
    Increase Down Increase Up
  5. High Efficiency Particle Filter is rated 99.99% efficient @ 0.3 µm diameter particles | 6601-25 displayed
    $536
    Increase Down Increase Up
  6. High Efficiency Particle Filter is rated 99.99% efficient @ 0.3 µm diameter particles | 6601-25 displayed
    $552
    Increase Down Increase Up
  7. Shown: Vacupass installed in the interior wall of a biosafety cabinet | 4642-49 displayed
    $185
    Increase Down Increase Up
  8. Polypropylene top resists a broad range of chemicals, including most acids. Powder-coated steel base includes telescoping legs | 1522-00 displayed
    $1,231
    Increase Down Increase Up
  9. Drawers; 304 SS, Left Mounted for TUI Work Stations
    Request Quote
    Increase Down Increase Up
  10. Drawers; 304 SS, Right Mounted for TUI Work Stations
    Request Quote
    Increase Down Increase Up
  11. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  12. Stackable drawers mount easily under work surfaces and shelves.
    Request Quote
    Increase Down Increase Up
  13. These polymer Mobile Drawer Cabinets have a smooth design that eliminates sharp edges and corners where dust can accumulate | 1704-01 displayed
    Request Quote
    Increase Down Increase Up
  14. Service; UL Listing Declaration, for Laminar Flow and Fume Hoods
    Request Quote
    Increase Down Increase Up
  15. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  16. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  17. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  18. Equipment Testing
    Request Quote
    Increase Down Increase Up
  19. WhisperFlow Fan/Filter Units feature internal baffling and anodized aluminum diffuser panels provide quiet, uniform air fow | 6601-24-H displayed
    $1,279
    Increase Down Increase Up
  20. Light shown installed. | 1870-10 displayed
    $478
    Increase Down Increase Up
  21. Panels shown installed.
    $682
    Increase Down Increase Up

Portable CleanBooth™ Laminar Flow Stations

  • 4'W x 4'D Portable CleanBooth ISO 5 Enclosure Portable ISO-Rated Flow Hood
  • CleanBooth Portable Cleanroom Enclosure, 100”W x 52”D x 84”H Portable CleanBooth™, 8’W x 4’D x 8’H
  • Mobile Protection for Workstations Mobile Protection for Workstations
  • Terra Universal WhisperFlow Laminar Flow Hoods Terra Universal WhisperFlow Laminar Flow Hoods
  • Laminar Flow Hood Airflow Fog Test
Terra Universal WhisperFlow Laminar Flow Hoods

Features and Benefits

Softwall Panel Use

Flexible Side Panels Restrict Air Flow to Optimize Cleanliness

Flexible panels attach to the frame by means of a smooth, non-contaminating Grip-Track™ mounting system that minimizes cracks and seams where particles can collect. The optional side panels are available in three materials:

  • Cleanroom-Grade Vinyl is fire retardant and low outgassing.
  • Static-Dissipative Vinyl is manufactured with permanent built-in static inhibitors that, unlike topical treatments, will not wear off.
  • Non-outgassing Polyurethane is made from inherently static-dissipative polyurethane that provides permanent, humidity-independent ESD protection for sensitive manufacturing conditions. Polysim contains no plasticizer, making it virtually non-outgassing.

Long Running FFU Motors

Terra’s filter fan unit motors are rated for 5 years of continuous, 24/7 operation, if the HEPA filters are consistently replaced. To accurately monitor your HEPA filter’s saturation levels, purchase Terra’s audible and visual filter replacement alarm system.

HEPA Fan Filter Units (FFUs)

The 2' x 4' FFU houses a HEPA filter, rated 99.99% efficient with 0.3 micron particles, that provides an ISO-compliant air flow in the enclosure. Advanced baffle technology and air diffuser grille ensures uniform face velocity.

LED Light Fixture

The low-energy LED light enhances visibility without disrupting airflow from the FFU.

Casters for Easy Positioning

Heavy-duty non-marring casters, two with locks, provide smooth rolling and easy positioning of the CleanBooth™

Softwall Side Panels

The CleanBooth includes transparent, 40-mil anti-static vinyl panels that mount in an external track to create a three-sided enclosure; select optional strip shields to enclose the remaining side.

CleanBooth™ Steel Frame

CleanBooth™ frame is fabricated of 1" x 2" powder-coated steel members for strength and includes heavy-duty casters for easy positioning above a table or process equipment.

Cleanroom LED Light Panel with Emergency Power Supply, 2' x 2'

Cleanroom LED lights are equipped with emergency back-up batteries to ensure continued operation in the event of a power failure.

Mix and Match Different-Sized Cleanrooms

ValuLine cleanroom design offers a variety of configurations, ideal for both small enclosures and multi-suite facilities. The modular frame and panel structure accommodates equipment and facility demands specific to unique floor plan requirements.

Portable Horizontal Flow CleanBooth

The Portable CleanBooth wheels into position above a workbench or instrument to provide an ISO-compliant flow of HEPA-filtered air.

Portable Horizontal Flow CleanBooth Fan Filter Unit

HEPA Fan Filter Unit is securely mounted to the CleanBooth frame to provide horizontal laminar air flow.

WhisperFlow Quiet Operation Reduces Distracting Background Noise

Exposure to loud noises can lower the ability to focus on work and listen selectively, which may also lead to safety issues. Typical AC units can be annoyingly loud, measuring in the range of 70 dB (comparable to a vacuum cleaner). Terra’s WhisperFlow design produces far lower noise levels for a quiet environment comparable to a library. At 90 ft/min output, units measure under 50 dB from only 1 ft away (roughly 75% quieter than 70dB).

Highest Standards For Electronic Components

Terra’s electronic components are designed and built to the highest standards required by defense and semiconductor industries for long-term reliability and protection against damage, injuries, and electrical hazards.

Complete Order Transparency

Using Terra’s OnTrak system, our customers can view real-time production updates, receive shipment notifications and track their orders until they arrive at their facility

Vertical Laminar Flow Clean Bench with Automatic Height Adjusting Table

Automatic height adjusting tables fit perfectly inside free-standing laminar flow clean benches. The separate workstation helps isolate vibration from the fans mounted above the hood. Dual motor electric height adjusting columns beneath the table allow users to quickly raise or lower the work surface without moving equipment off the table.

Wide Selection of Global Shipping Options

Terra offers a broad range of global shipping services including door-to-door and white glove delivery. Each product is safely packaged in a heat-treated wooden crate that meets international shipping standards.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Ionizing Bar Mounts to Cleanroom Ceiling

    Intrinsically safe low-voltage ionizing bar mounts to a fan/filter unit on a cleanroom ceiling or inside a laminar flow hood to neutralize static charges on the work station below.
  • Isolated Work Surfaces in Many Materials

    Tables in many styles and materials, including dissipative laminate, chemical-resistant polypropyene and epoxy resin, are isolated from hood to reduce vibration (shown: solid stainless steel top with adjustable powder-coated legs).
  • Strip Shield Entry

    60-mil softwall strip shields provide a convenient, low-cost entry to a portable CleanBooth enclosure.
  • Fan Filter Unit with External UPS Battery System

    Uninterruptible Power Supply (UPS) system provides backup battery power supply to keep critical equipment running without interruption when utility power supply is unavailable. The separate system can be retrofitted to an existing 2’x4’ FFU. Stainless steel model available.
  • Lighthouse Handheld Airborne Particle Counters

    Lightouse portfolio of handheld airborne particle counters ensure accurate readings of cleanrooms and critical environments
