- Available ISO Ratings: ISO 6, ISO 7, ISO 8
Specialty Pass-Through Chambers

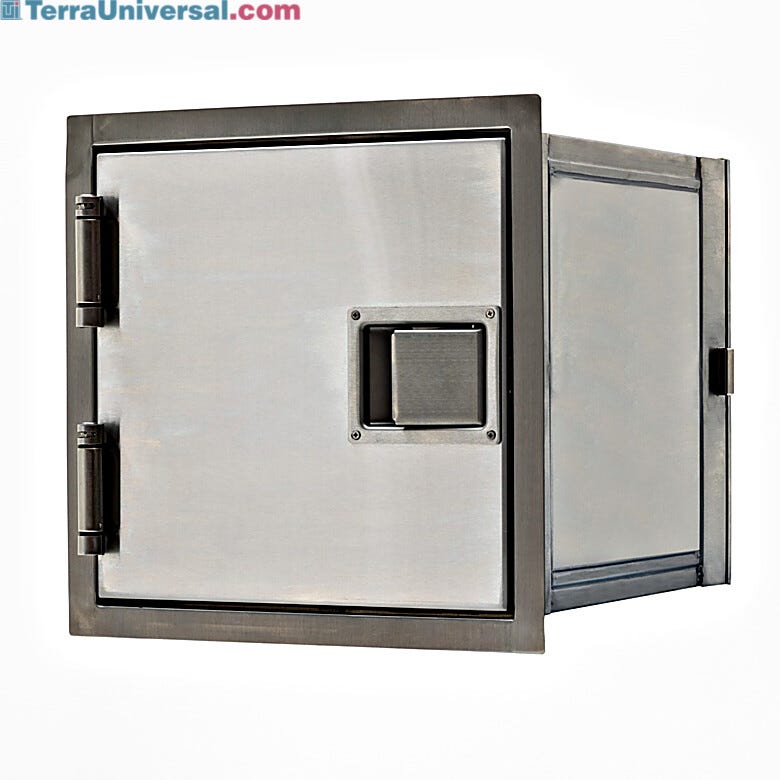

Lead-lined Cleanroom Pass-Through
Custom-configured product: Please request quote. Terra will contact you for requirements.
Read more
Terra Part #: 2636-20
Manufactured By: Terra Universal
Print
Want a quote quickly ?
Submit a QuickQuote request
Specialty Pass-Through Chambers
-
Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
-
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
-
Hands-Free, Automatic Pass-Through Door
-
Smart Pass-Through Chamber, 24"W x 24"D x 24"H
Smart cleanroom pass-through for anti-tumor therapy incubation room; 90 degree corner design, electronic interlocking doors, recirculating HEPA filtration | 6705-72 displayed
Smart Cleanroom Pass-Through with 90 Degree Corner and HEPA Filtration
Smart cleanroom pass-through chambers feature electronic interlocking doors that allow for countless add-on capabilities, plus special door configurations. This unit is designed for an anti-tumor therapy incubation room. It features a 90 degree corner design with re-circulating HEPA filtration.

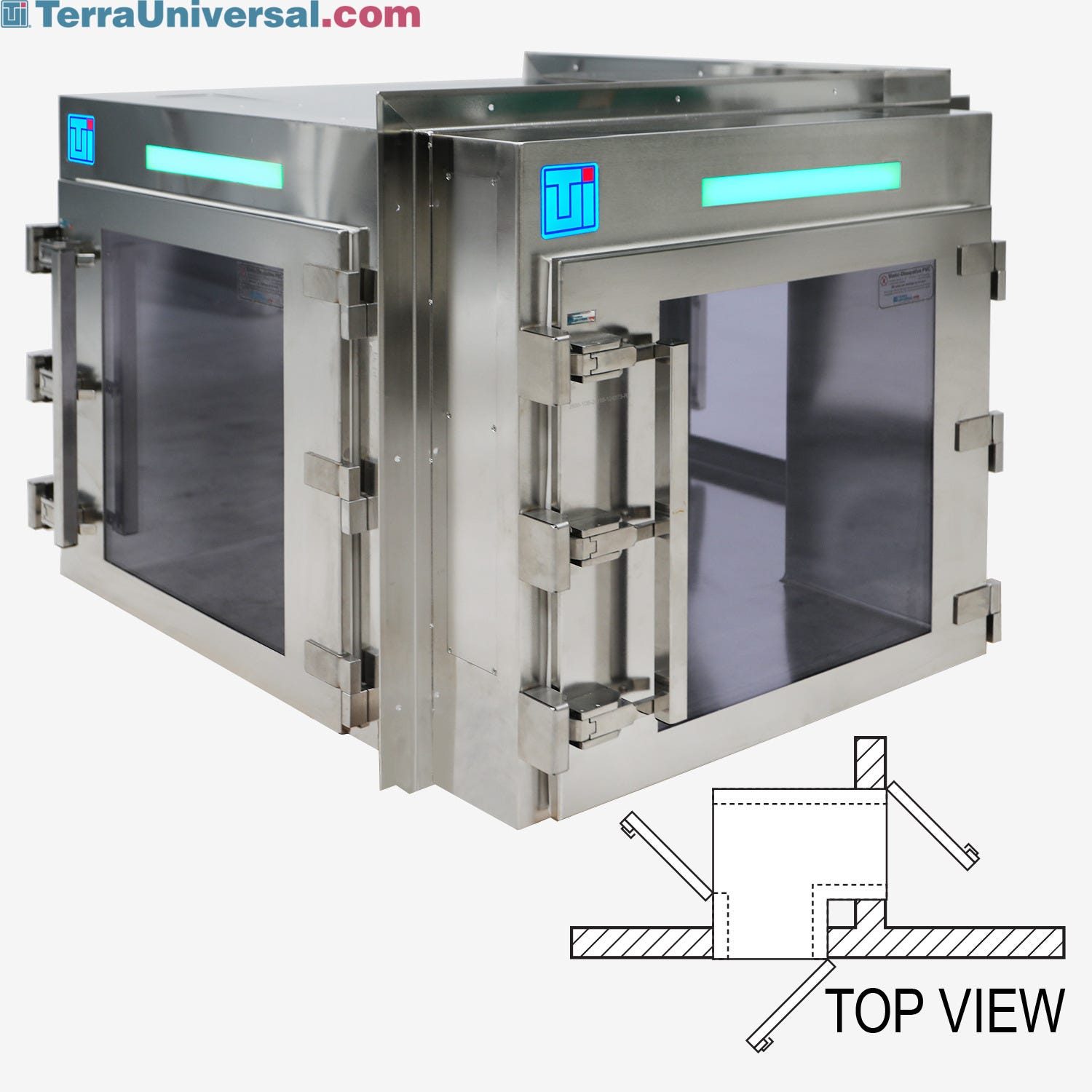

Smart® pass-through with “T” shape 3-door design, for USP 800 hazardous compounding; interconnects chemo room, USP 800 room, and ante room | 2635-10B-2-316 displayed
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
This video shows how the hands-free operation of the Automatic Pass-Through Door minimizes the potential for touch contamination.
Hands-Free, Automatic Pass-Through Door
The Automated Pass-Through Door (exclusive to Terra's Smart Pass-Through Chambers) prevents personnel from inadvertantly contaminating their gloves or surfaces around the cleanroom.
Smart Pass-Throughs include audible/visible status alerts to indicate when the opposing door is open (interlock engaged). | 2635-10B-2-316 displayed
Smart Pass-Through Chamber, 24"W x 24"D x 24"H
Smart Pass-Through Chambers feature 316L stainless steel construction, an electronic interlock, and audio/visual status alerts to indicate when the opposing door is open (interlock engaged).
Features and Benefits
90° Corner Design
Custom door configurations are no problem. Install Smart pass-throughs in corner walls, with door swings in either direction.
Smart® Pass-Through with “T” Shape 3-Door Design for USP 800 Hazardous Compounding
Terra’s Smart® pass-through chambers can be configured as a “T” or “X” shape to connect multiple rooms. This 3-door configuration for an in-patient pharmacy interconnects the USP 800 room (negative pressure), chemo room (negative pressure), and ante room.
Door Configurations for 90 Degree Corner Passthrough Chamber
Cleanroom passthroughs with 90 degree corners can be designed with unique door swing directions to avoid obstructions such as adjacent doors. The Smart control panel can be on the inside or outside of the 90 degree bend to simplify install and maintenance.
Removable Cart Ramps on Floor-Mount Models
Floor-mount pass-through chambers include dual-side stainless steel cart ramps, sloped on three sides, that are removable for easy cleaning.
Interlock Status Lights
Prevent operator damage! A green light bar indicates the door is available for use, with the electronic interlock disengaged. The bar turns red when the opposing door is open to indicate the electronic interlock is engaged.
Smart® Pass-Through Electronic Door Interlock
Smart® Pass-Throughs include visible/audible door status alerts: red light and chimes indicate opposing door open (interlock engaged); green light means door available for use. Smart add-ons expand capabilties: LED/UV light, access control, air shower, more!
Flush-Mount Design Prevents Dust Accumulation
CleanMount® pass-throughs hug the cleanroom wall, eliminating gaps that collect germs and particle and making them ideal for critical bio/pharmaceutical cleanroom use.

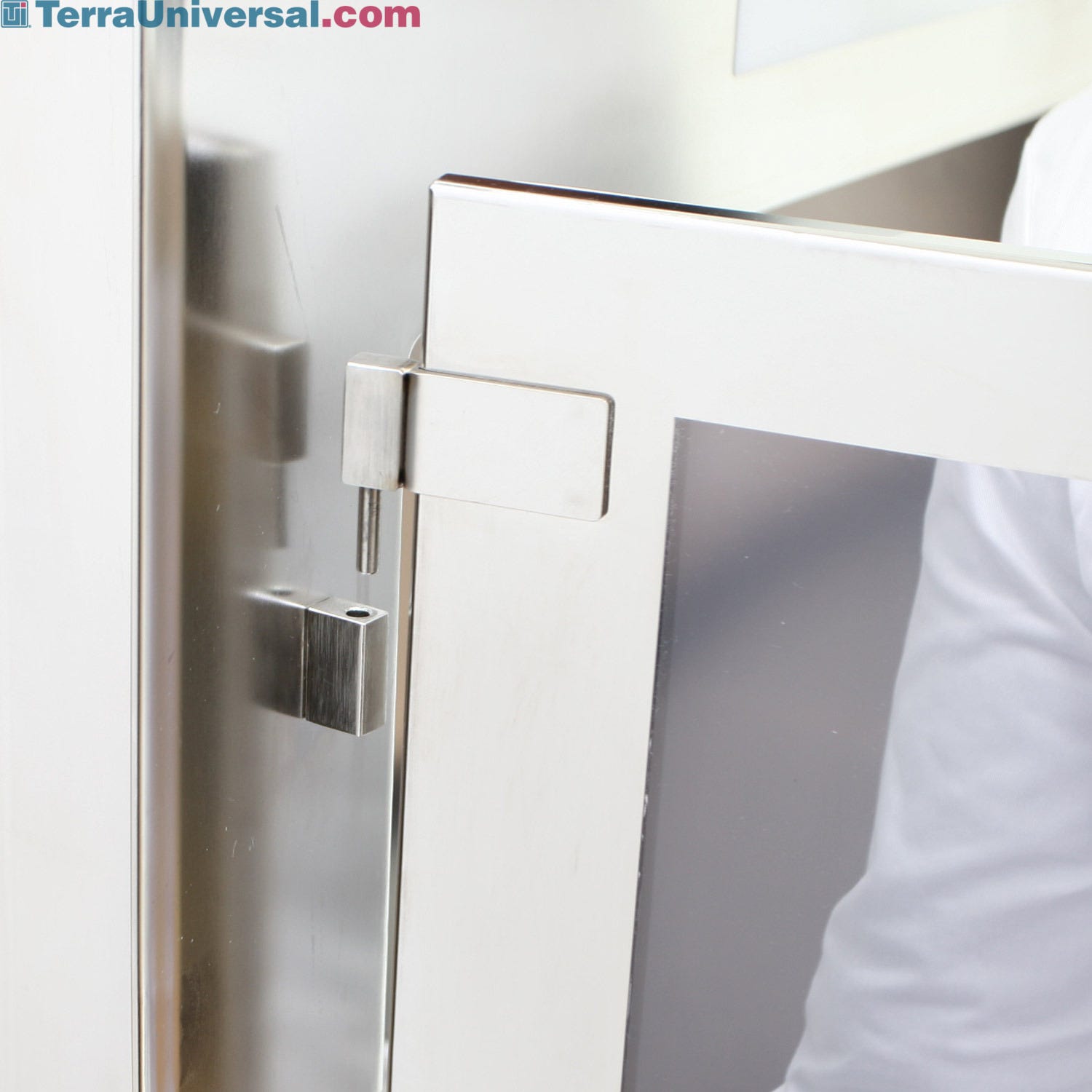

Stainless Steel-Reinforced Removable Pass-Through Door
Stainless steel-reinforced CleanMount® doors provide superior strength and durability. Heavy-duty barrel hinges allow the doors to lift off for easy replacement or more thorough cleaning/decontamination.
CleanMount® Lipless Chamber Eliminates Clearance Obstructions
Instead of welded seams, the corners of the CleanMount® pass-through interior are coved to eliminate dust and germ traps. The lipless opening presents no clearance obstructions and further simplifies cleaning.
