6600-21-VL-1006-SD
Terra Part # 6600-21-VL-1006-SD
$10,206
Usually ships in 4-6 business days

Want it faster ? Read about FasTrak

In stock
Accessories related to Terra Part # 6600-21-VL-1006-SD
70355
ValuLine™ Cleanroom; Hardwall, Static-Dissipative PVC Panels, 10'W x 6'D x 8'H
Product Details
  • Available Certified ISO Rated Designs: ISO 7, ISO 8
  • Terra's ValuLine static dissipative PVC paneled cleanrooms feature the same cleanliness, strength and durability of powder-coated steel frames, the same stainless steel wall trim and modularity as Terra's Standard cleanrooms.  ValuLine rooms reduce costs with simple on-off power supply units and without the top trim and power status indicators on Standard line rooms.  SDPVC reduced static cling and reduces particle counts.
  •   www.planner5d.com/b2b/terra/v/?key=18d2cd252e9a374e5c4a402477574b20&viewMode=3d
  • COMPONENTS AND ACCESSORIES INCLUDED:
  • Steel frame – posts and beams of 2" (51 mm) square tubing, powder coated
  • Steel ceiling grid – joists and cross members 3" (76 mm) T-bars
  • Static-dissipative PVC wall and door panels
  • (1) Door, cleanroom with door closer – 36" x 81", powder-coated aluminum door frame, SDPVC panel, UL leak-rated (6710-15A-L-PC)
  • (1) LED Light Module – 4000 lumens, 5 color temps, 40 W, 120-277 VAC (3800-41C-VL)
  • (1) Power Supply Unit – Switched power to six FFU/light receptacles, 20W 120 VAC (Not included)(6600-20B-VL)
  • Ceiling Panels -- 2' x 4', white polypropylene as required to fill ceiling grid
  • OPTIONAL ACCESSORIES DISPLAYED ON MODEL:
  • HEPA Fan/Filter Units to meet desired ISO cleanliness rating (ISO 7-8 shown on model)*
  • Top trim with power status indicator indicators*
  •         * These items are shown on 3D model, but are not included in base price
  • All electrical components are UL and UL-C listed
  • Electrical system UL Listing Declaration available (order separately), to help meet permit requirements
  • Rooms ship disassembled with assembly instructions.  Two assemblers make the process easier
  • FFUs and lights plug into Power Supply Units. Power Supply Units plug into US wall receptacles. Each PSU provides ceiling power and a non-switched GFI outlet on a wall post and requires a dedicated 20 A circuit.
  • FFUs add 13" (330 mm) overhead to height. Additional 9" to 11" (230 to 280 mm) clearance is required for air flow and installation. Total clearance required above filter face is 22" to 24" (560 to 610 mm)
  • Ships palletized to fit through 36" doorway. Forklift, lift gate and pallet jacks may be required
  • Terra assumes no responsibility for meeting local building regulations, including fire and seismic codes
  • Check your local planning department for regulations applying to your installation

Frame Material: Powder-Coated Steel

Height: 8'

Depth: 6'

Width: 10'

Panel Material: Static-Dissipative PVC

Unit of Measure: EA

Marks & Listings: UL, ULC

Electrical Specifications: 120 V, 18 A, 2,160 W, 50/60 Hz

Dimensions, Product: 124" W x 75" D x 96" H

Weight, Shipping: 1,986 lb

Dimensions, Shipping: 133" W x 65" D x 37" H

Package Type: Skid

Manuals & Resources
Buy Accessories
  1. Battery- powered emergency light illuminates cleanroom in event of a power failure  |  3800-47A displayed
    $1,149
    Increase Down Increase Up
  2. 2' x 2' Cleanroom LED light panel with emergency battery back-up in case of power failure  |  3800-48 displayed
    $1,019
    Increase Down Increase Up
  3. WhisperFlow Fan/Filter Units feature internal baffling and anodized aluminum diffuser panels provide quiet, uniform air fow  |  6601-24-H displayed
    $946
    Increase Down Increase Up
  4. Terra's ValuLine Cleanrooms provide low-cost contamination control
    $5,730
    Increase Down Increase Up
  5. Terra's ValuLine Cleanrooms provide low-cost contamination control
    $8,241
    Increase Down Increase Up
  6. 2'x2' panel with 8 customizable ports using twist lock plugs, TV cable ports, ethernet ports, and phone jacks  |  6706-09 displayed
    $422
    Increase Down Increase Up
  7. Adapter facilitates coved flooring installation within modular hardwall cleanrooms  |  6603-72 displayed
    Request Quote
    Increase Down Increase Up
  8. Recessed sprinkler head with a white cover plate for easier cleaning  |  6600-90 displayed
    $15
    Increase Down Increase Up
  9. ValuLine™ air conditioning unit connected to a cleanroom's fan filter units  |  6600-14 displayed
    $3,733
    Increase Down Increase Up
  10. ValuLine™ air conditioning unit connected to a cleanroom's fan filter units  |  6600-14 displayed
    $3,525
    Increase Down Increase Up
  11. One retaining arm holds panel on one side of ceiling joist.  |  6705-92 displayed
    $66
    Increase Down Increase Up
  12. Two retaining arms hold panels on both sides of ceiling joist  |  6705-93 displayed
    $76
    Increase Down Increase Up
  13. Filter replacement alarm system with integrated minihelic pressure gauge, light and buzzer  |  2625-54B-SS displayed
    $1,455
    Increase Down Increase Up
  14. Differential pressure sensor by SensoScientific® records and sends data to a standard access point that can be assessed by any Wi-Fi enabled network  |  6607-10 displayed
    $1,972
    Increase Down Increase Up
  15. Differential pressure sensor by SensoScientific® records and sends data to a standard access point that can be assessed by any Wi-Fi enabled network  |  6607-10 displayed
    Monitoring System; Cleanroom, Differential Pressure, SensoScientific® Ships Free Free shipping in contiguous USA In stock
    $1,084
    Increase Down Increase Up
  16. Humidity, temperature sensor by SensoScientific® monitors readings against preset conditions defined by user and transmits data wirelessly with TCP protocol
    $888
    Increase Down Increase Up
  17. Silicone sealant is RTV food grade  |  3052-30 displayed
    $11
    Increase Down Increase Up
  18. Service, ISO Grade™ Certificate, ISO 7
    Request Quote
    Increase Down Increase Up
  19. Warranty; 2 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up
  20. Warranty; 3 Year, Terra-Manufactured Product, Parts
    Request Quote
    Increase Down Increase Up
  21.  |  6600-33 displayed
    Request Quote
    Increase Down Increase Up
  22. FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  23. Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  24. White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  25. Cleanroom Installation Information
    Request Quote
    Increase Down Increase Up
  26. Cleanroom Cleaning Service
    Request Quote
    Increase Down Increase Up
  27. Equipment Testing
    Request Quote
    Increase Down Increase Up
  28. Floor Survey Service
    Request Quote
    Increase Down Increase Up
  29. High Efficiency Particle Filter is rated  99.99% efficient @ 0.3 µm diameter particles  |  6601-25 displayed
    Filter; HEPA, 2'x4', Aluminum, Rated 99.99% efficient Quick Ship+ Available 1737 in stock
    $616
    Increase Down Increase Up
  30. MERV 7 pre-filter for Terra Fan Filter Units (FFUs)), 4 pack  |  6601-34 displayed
    $170
    Increase Down Increase Up
  31. MERV 7 pre-filter for Terra Fan Filter Units (FFUs)), 12 pack  |  6603-84 displayed
    $454
    Increase Down Increase Up
  32.  |  6600-20B-VL displayed
    Power Supply Unit, 120V, Cleanroom, ValuLine Quick Ship+ Available In stock
    Request Quote
    Increase Down Increase Up

Hardwall Cleanrooms

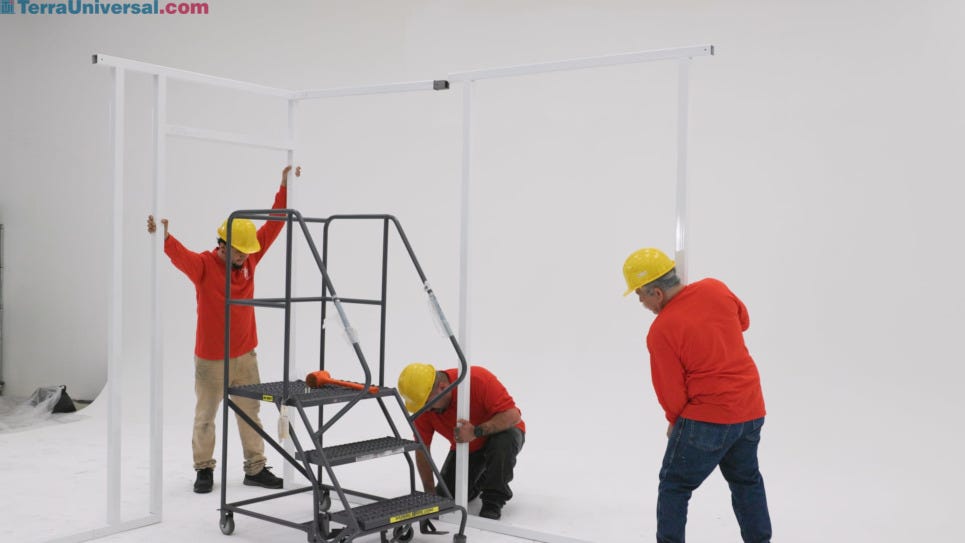

  • Terra's ValuLine Hardwall Cleanroom Installation Steps ValuLine Hardwall Cleanroom Installation
Terra's ValuLine Hardwall Cleanroom Installation Steps

Features and Benefits

Learn More: Valuline vs. Standard Cleanrooms

How are Terra Universal’s ValuLine and standard cleanrooms different? Is the standard line cleaner?

Ordering Information

Both cleanroom lines meet the same quality standards for design and materials while also providing essentially the same airflow, which is based on the configuration of fan/filter units.

However, Terra’s standard cleanrooms utilize Power Distribution Modules, which can accommodate more FFUs and light fixtures than the basic power supply included on ValuLine cleanrooms. PDMs also feature quick-connect fittings and a better control panel. ValuLine cleanrooms do not include the decorative top trim and status indicator lights included on standard line cleanrooms.

Each standard line cleanroom is built-to-order, can be made in virtually any reasonable size and can use alternative materials such as stainless steel frames. ValuLine cleanrooms are preconfigured from standard components to produce ten standard sizes from 6’ x 6’ up to 12’ x 12’ in each of two heights (7’ and 8’), allowing shorter lead times.

Fan / Filter Units with HEPA Filter
Model Nominal
Dimensions*
Inches
(mm)
Avg. CFM
@ MS
(m3/h)
High speed Airflow
FT/min(m/s)
Medium speed Airflow
FT/min(m/s)
Low speed Airflow
FT/min(m/s)
High speed
Run Amps (watts)
@ 60Hz
Medium speed
Run Amps (watts)
@ 60Hz
Low speed
Run Amps (watts)
@ 60Hz
2 x 4 23.63 x 47.63 x 13
(600 x 1210 x 332)
717
(1218)
115
(.58)
102
(.51)
93
(.47)
4.3A
(512W)
3.5A
(416W)
3.3A
(393W)
2 x 3 23.63 x 35.63 x 13
(600 x 905 x 332)
602
(1023)
121
(.61)
116
(.59)
106
(.54)
4.1A
(500W)
3.1A
(378W)
2.7A
(329W)
2 x 2 23.63 x 23.63 x 13
(600 x 600 x 332)
558
(948)
172
(.87)
166
(.84)
162
(.82)
3.9A
(472W)
2.8A
(339W)
2.4A
(290W)
