- Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
- Get instant pricing for custom windows, just enter desired width, height and wall-thickness
- BioSafe® frameless design features glass that sits perfectly flush with the wall surface for the most critical applications
- BioSafe® framed design features a smooth, stainless steel frame with continuous seam welds, fits tight against the wall; fire-rated models available
- ValuLine™ design offers a low-cost alternative without compromising cleanroom conditions
- Double-pane models allow flush-mounting on both sides of wall, ideal for installation between two cleanroom spaces
- Talk to an Expert +1 (714) 578-6100
BioSafe® Cleanroom Windows,BioSafe® Cleanroom Windows,Doors & Windows for Cleanrooms,Windows for Architects,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Architects & Builders,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components,Cleanroom Construction Components
6603-PP-WB
6603-PP-WB
Custom Cleanroom Windows
Read more
Want a quote quickly ?
Submit a QuickQuote requestProduct Details
Product Details
Frameless Cleanroom Window
Standard Features
- A Tempered GlassFrameless designs feature 1/4" thick tempered glass glazing. Framed designs can be configured with 1/2" thick tempered glass, shatter resistant polycarbonate, or fire-rated glass.
- B Stainless steel frameStainless steel frame provides a clean seal featuring no visible hardware; internal mounting system installs against window supports in minutes, without special tools.
- C Black borderFrameless windows feature an attractive black border on the inside surface so it cannot scratch or degrade over time.
- D Flush-mount DesignFlush-mount design embeds into standard gypsum walls or (shown here) seamed to a cleanroom FRP panel using a two-part, FDA-approved seam treatment. Can also be surface mounted.

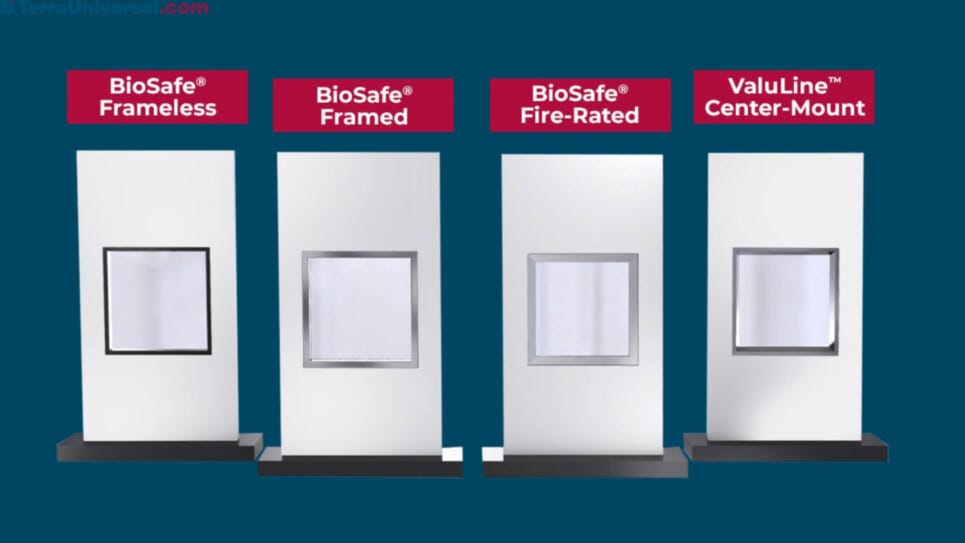

BioSafe® Cleanroom Windows
BioSafe® Cleanroom Windows- MicroPort Irvine - Double Pane Flush Mount Windows
- Watch Terra's Video of a Fire-Rated Cleanroom Window Burn Test
- Terra Universal's Biosafe® Windows
- Double Pane Flush-Mount Cleanroom Windows for Pharmacy Compounding
- Double pane Flush-Mount Cleanroom Windows Hospital Pharmacy
- Single-Side, Flush-Mount Window; Stainless Steel Frame, 1/4" Tempered Glass Pane
- Cleanroom Barrier Wall with Tempered Glass Windows
- Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom
- BioSafe Flush-Mount Frameless Double Window
- Double-Sided Flush-Mount Frameless Window
- BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
- BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
Durable, easy-to-clean windows built for ISO-classified and cGMP compliance BioSafe® Cleanroom Windows Terra Universal’s BioSafe® cleanroom windows engineered for ISO-classified and cGMP environments. Designed for durability, visibility, and easy cleaning while maintaining compliance. Available options include BioSafe® Frameless, BioSafe® Stainless Steel Framed, BioSafe® Fire-Rated, and ValuLine® cleanroom windows.
MicroPort Irvine - Double Pane Flush Mount Windows
Newly renovated U.S. headquarters in Irvine, CA. The 65,000-square-foot facility transforms a former warehouse into a cutting-edge hub for stent research and development. The space features ISO 7 and ISO 8 cleanrooms along with mock operating rooms, all centered around the theme of "science on display," providing visitors with an inside look at MicroPort’s groundbreaking innovations.
MicroPort Irvine - Double Pane Flush Mount Windows
Newly renovated U.S. headquarters in Irvine, CA. The 65,000-square-foot facility transforms a former warehouse into a cutting-edge hub for stent research and development. The space features ISO 7 and ISO 8 cleanrooms along with mock operating rooms, all centered around the theme of "science on display," providing visitors with an inside look at MicroPort’s groundbreaking innovations.
MicroPort Irvine - Double Pane Flush Mount Windows
Newly renovated U.S. headquarters in Irvine, CA. The 65,000-square-foot facility transforms a former warehouse into a cutting-edge hub for stent research and development. The space features ISO 7 and ISO 8 cleanrooms along with mock operating rooms, all centered around the theme of "science on display," providing visitors with an inside look at MicroPort’s groundbreaking innovations.
This video demonstrates a burn test for Terra's UL-listed fire-rated cleanroom window. | 6612-02-SS displayed Watch Terra's Video of a Fire-Rated Cleanroom Window Burn Test This video demonstrates a burn test for Terra's UL-listed fire-rated cleanroom window. Fire-rated windows save lives and protect property by maintaining the integrity of the fire-rated wall.
Terra's BioSafe windows are configurable to any wall thickness, easy to install and disinfect Terra Universal's Biosafe® Windows Terra Universal's BioSafe® windows are quick to install, easy to disinfect and configurable to any wall material or thickness.
6611-00-0904
Double Pane Flush-Mount Cleanroom Windows for Pharmacy Compounding
Flush-mount designed double pane windows minimize crevices where contaminants can collect, necessary for USP 797/800 pharmacy compounding. Terra’s BioSafe® windows mount easily, reducing the number of fasteners for an attractive, showcase finish.
Double pane windows for pharmacy compoudning with tempered glass, BioSafe® flush-mount design, 304 stainless steel frame | 6611-00-0904 displayed Double Pane Flush-Mount Cleanroom Windows for Pharmacy Compounding Flush-mount designed double pane windows minimize crevices where contaminants can collect, necessary for USP 797/800 pharmacy compounding. Terra’s BioSafe® windows mount easily, reducing the number of fasteners for an attractive, showcase finish.
6603-19-1604
Double pane Flush-Mount Cleanroom Windows Hospital Pharmacy
Flush-mount double pane cleanroom windows installed in a sterile hospital pharmacy. Hygienic design minimizes crevices where contaminants can collect, necessary for cGMP compliance. Terra's BioSafe® windows mount easily and hide fasteners for a clean showcase finish.
Double pane flush-mount cleanroom windows in a hospital pharmacy with tempered glass panes, BioSafe® reduced crevice design, 304 stainless steel frame, flush-mo | 6603-19-1604 displayed Double pane Flush-Mount Cleanroom Windows Hospital Pharmacy Flush-mount double pane cleanroom windows installed in a sterile hospital pharmacy. Hygienic design minimizes crevices where contaminants can collect, necessary for cGMP compliance. Terra's BioSafe® windows mount easily and hide fasteners for a clean showcase finish.
7833
Single-Side, Flush-Mount Window; Stainless Steel Frame, 1/4" Tempered Glass Pane
Stainless Steel frame fits flush on cleanroom wall surface, installs against supports without special tools. 1/4" tempered glass window pane.
Single-Pane, Stainless Steel Frame Window, fits flush on cleanroom wall surface, installs against supports without special tools. Single-Side, Flush-Mount Window; Stainless Steel Frame, 1/4" Tempered Glass Pane Stainless Steel frame fits flush on cleanroom wall surface, installs against supports without special tools. 1/4" tempered glass window pane.
6602-59
Cleanroom Barrier Wall with Tempered Glass Windows
Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows)
Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows) | 6602-59 displayed Cleanroom Barrier Wall with Tempered Glass Windows Create a barrier between an access corridor and adjacent containment room (optional tempered glass windows)
6603-15
Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom
BioSafe® modular steel cleanrooms are available with dual-sided, flush-mount tempered glass viewing windows.
Attractive frameless windows clean easily and add visibility to BioSafe® cleanrooms. | 6603-15 displayed Double-Sided Tempered Glass Windows for BioSafe Steel Cleanroom BioSafe® modular steel cleanrooms are available with dual-sided, flush-mount tempered glass viewing windows.
8924
BioSafe Flush-Mount Frameless Double Window
Unique BioSafe® frameless design seals flush against walls, eliminating surfaces that collect dust.
Flush-mount BioSafe® frameless design 84" x 40" double tempered glass window BioSafe Flush-Mount Frameless Double Window Unique BioSafe® frameless design seals flush against walls, eliminating surfaces that collect dust.
8928
Double-Sided Flush-Mount Frameless Window
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect; 48" x 44" double glass shown.
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect Double-Sided Flush-Mount Frameless Window BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices where contaminants can collect; 48" x 44" double glass shown.
8930
BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices that collect dust. Installed in retail pharmacy.
BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass BioSafe windows feature a flush-mount frame design that minimizes horizontal surfaces and crevices that collect dust. Installed in retail pharmacy.
8931
BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass
Tempered-glass BioSafe® window with stainless steel frame and two 0.5"-thick flush-mount windows for use in conventional walls (specify wall thickness)
Tempered-glass BioSafe® stainless steel frame and two 0.5"-thick single-pane windows BioSafe Double-Sided Stainless Steel Framed Window Tempered Glass Tempered-glass BioSafe® window with stainless steel frame and two 0.5"-thick flush-mount windows for use in conventional walls (specify wall thickness)
Features & Benefits
Features and Benefits
Framed BioSafe Window
Framed design encases window panes with 304 Stainless Steel frame on the exterior. Flush-mount design minimizes crevices where contaminants can collect.
White Border BioSafe Frameless Window
The BioSafe white frameless border window provides panes that are embedded into the wall. This creates a seamless view for the connection between the wall and window. Upgrade to white borders separately.
BioSafe Window Designs
Framed and frameless BioSafe windows are designed without exposed hardware or crevices where microbes can colonize.
Single-Window Frame Installation
The window frame is first placed in the wall cut-out from the "clean" side of the room
Double-Window Frame Installation
Fasteners attach the frame to the wall cut-out wood frame through the pre-drilled holes on the bottom, sides and top
Frameless BioSafe Window
Frameless design includes window panes embedded in wall with no visible hardware on exterior. Attractive black faux border is positioned on inside surface of glass to prevent scratching.
Built-in CleanSeam™ Ledge
Single pane BioSafe® cleanroom windows feature a seamless stainless steel ledge on the opposite side of the glass pane for easy sterilization.
BioSafe®: Terra's Ultimate Cleanliness Rating
Terra's BioSafe products are designed for the most critical applications: no gaps and crevices where microbes colonize, rounded corners for easy disinfection, won't produce contaminants during sterilization, and exceeds cGMP, IEST, ASTM and ISO 14644-1 requirements.
Custom Paint Options
These 20 different paint options can be applied to Terra doors and windows that use powder-coated steel, aluminum or polypropylene frames.
Products similar to this one
-
Some ship in 1 - 3 days - Some ship in 1 - 3 days
- Some ship in 40 - 45 days
- Some ship in 1 - 3 days
- Some ship in 20 - 30 days
- Group of 3 productsSmart® CleanMount® Pass-Throughs with Recirculating HEPA/ULPA Filtration FromAs low as $17,892Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 0 - 2 days
- Some ship in 0 - 2 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Group of 6 productsGeneral-Use Pass-Throughs with Recirculating HEPA Filtration FromAs low as $8,741Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Some ship in 1 - 3 days
- Fire-Rated Cleanroom Window; CleanMount™, Single Pane, 45 Minute Rating, 316L Stainless SteelRequest QuoteUsually Ships in 45 - 51 days
Other products you may find relevant
- Some ship in 0 - 2 days Some ship in 1 - 3 days Some ship in 0 - 2 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 0 - 2 days Some ship in 5 - 7 days Some ship in 4 - 6 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 5 - 7 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 10 - 20 days Some ship in 1 - 3 days Some ship in 1 - 3 days Some ship in 0 - 2 days Usually Ships in 1 - 3 days
Buy Accessories
Manuals & Resources
On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*
- FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
- FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
- FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.
Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.
* Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
Cleanroom Window Frequently Asked Questions
What are the hidden benefits of cleanroom windows?
Terra’s cleanroom windows are specifically designed for healthcare, pharmaceutical, and GMP manufacturing applications to help achieve FDA compliance. These easy-to-clean hygienic windows enhance visibility of operations and foot traffic without jeopardizing GMP design standards.
Our cleanroom window designs allow for easy installation to both modular or stick-built cleanrooms. Flush mount frame designs lay flat against both sides of the wall for a seamless finish. The absence of horizontal surfaces and crevices reduces areas where contaminants can collect and makes them easy to clean. Furthermore, the modern design of these cleanroom observation windows provides a showroom finish with a stylish aesthetic that aligns with contemporary architecture.
Framed vs. frameless cleanroom window designs
Frameless Flush Mount Cleanroom Windows
Frameless cleanroom windows feature a fully flush mount design with an attractive black border integral with the glass pane. This design allows the entire glass pane to mount flat against the wall for a truly seamless easy-to-clean finish. The black border on these flush mount windows is behind the glass pane so it can’t scratch or degrade over time.
Terra’s flush mount cleanroom windows feature a unique mounting system with no visible external fasteners or hardware for a showcase appearance. Frameless windows include 0.25"-thick tempered glass that overlays the wall surface on one or both sides. The glazing is attached to an internal stainless steel frame that is designed for quick, easy installation in a variety of wall materials and thicknesses.
Framed Flush Mount Cleanroom Windows
Framed cleanroom windows offer a low cost alternative to frameless cleanroom window designs for applications with less stringent cleanliness requirements. They feature a 2.75" wide 304 stainless steel outer frame mounted flush to the wall, allowing the glass pane to be recessed into the wall. The continuous seam welded and chemical resistant stainless steel frame provides a smooth, durable, easy-to-clean surface. 316L marine grade stainless steel is available for increased corrosion resistance.
Framed windows are also available in fire-rated designs, featuring a fully fire-rated frame assembly and window glazing, manufactured and tested in accordance with UL 9 and NFPA 80.
Framed windows include 0.5"-thick tempered glass pane. Similarly to frameless windows, framed windows use the same mounting system with no visible external fasteners or hardware for a showcase appearance.
Single-Glazed vs. Double-Glazed Construction
Terra offers single- and double-sided cleanroom window configurations. Both feature rigid inner frames constructed of durable and chemical resistant 304 stainless steel.
Single-Sided Cleanroom Window
Single-side construction has a clearly defined "clean" side and "dirty" side: the "clean" side is completely flush with the wall surface whereas the "dirty" side has a horizontal window ledge, which may be useful as a shelf, but may otherwise be problematic in a cleanroom environment that prohibits particle-gathering surfaces.
Double-Sided Cleanroom Window
Double-sided frame construction is designed for the window panes to sit completely flush on both sides of the wall, which makes this design both attractive and ideal for placement between adjacent rooms within a cleanroom.
What glazing options are available for cleanroom windows?
Terra’s cleanroom windows can be outfitted with a variety of glazing options specific to your facilities requirements. Common options include:
- Fire-rated cleanroom windows tested to UL standards
- Switch glass (smart glass) windows
- Glass with integral blinds
- Static-dissipative PVC panels for strict ESD-safe cleanroom environments
- Polycarbonate panels for impact resistance
What window sizes are available for cleanroom windows?
Terra manufactures its windows to suit any size or wall thickness for both traditional built and modular wall systems. Specify your wall thickness and rough opening dimensions at the time of order.
Terra can also manufacture windows up to 50 square feet to serve as cleanroom viewing panels. Viewing panels are ideal where full floor-to-ceiling viewing sections are preferred.
